Vacuum Tube Lifter Easyhand M
+ Add to Quote Request

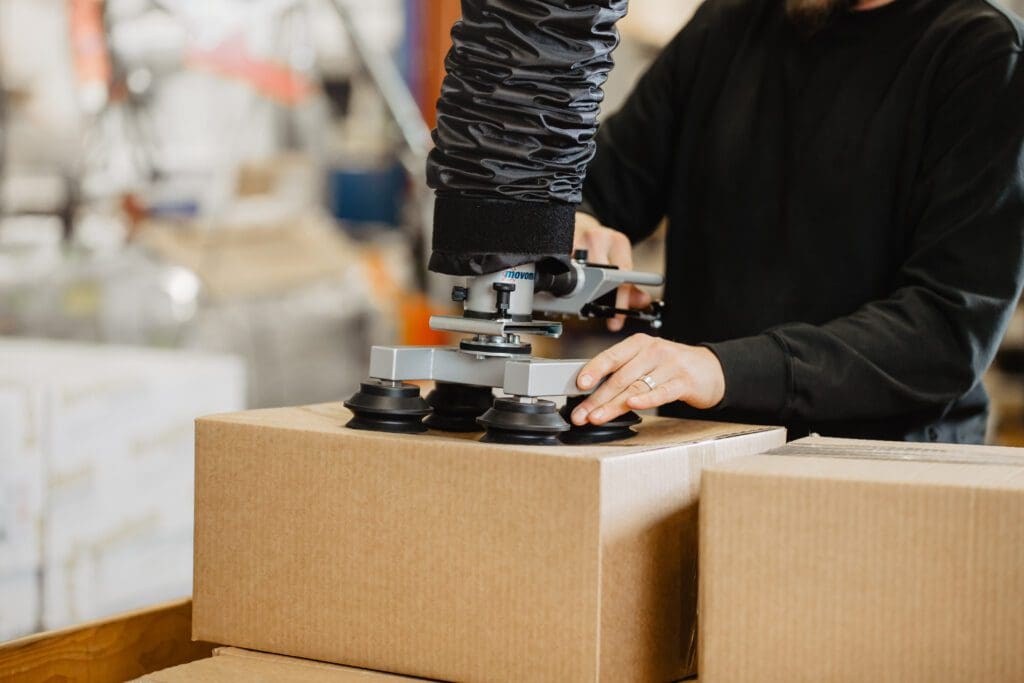

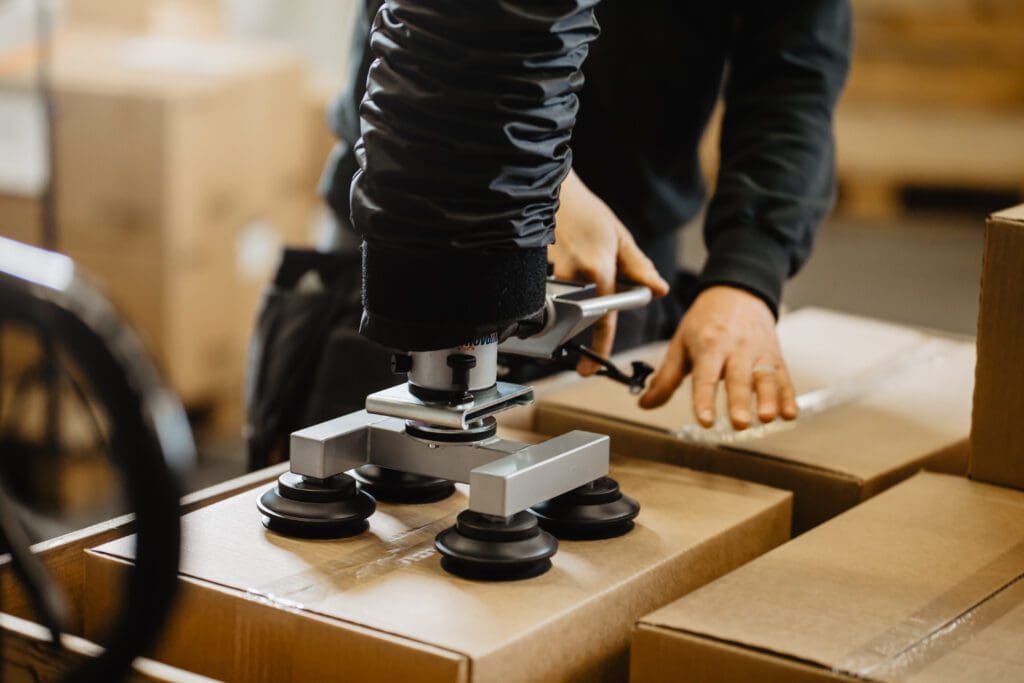

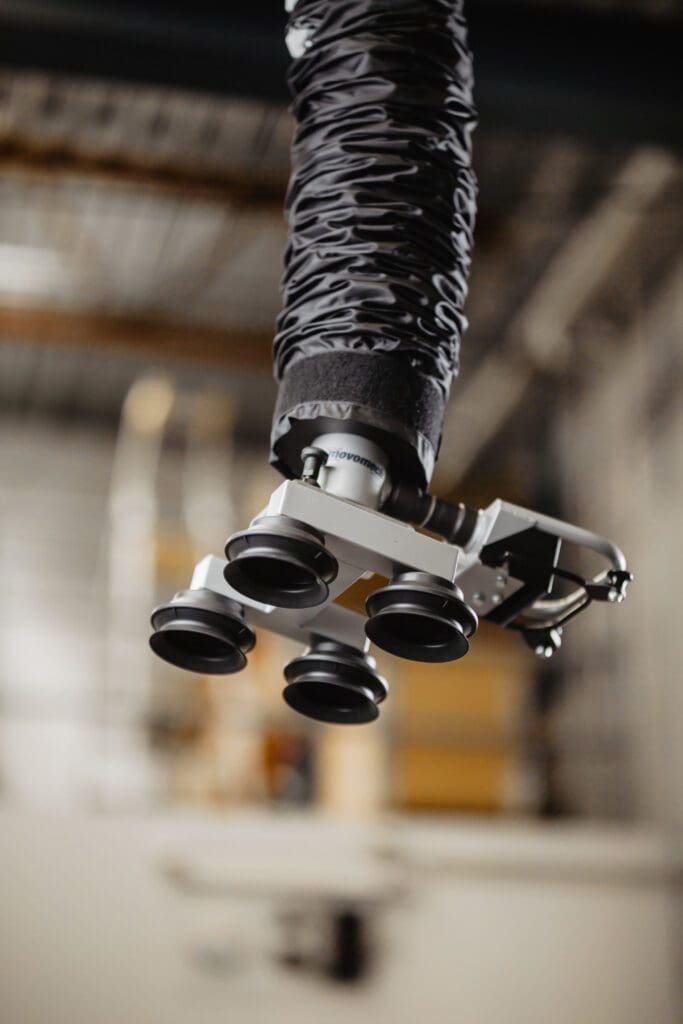

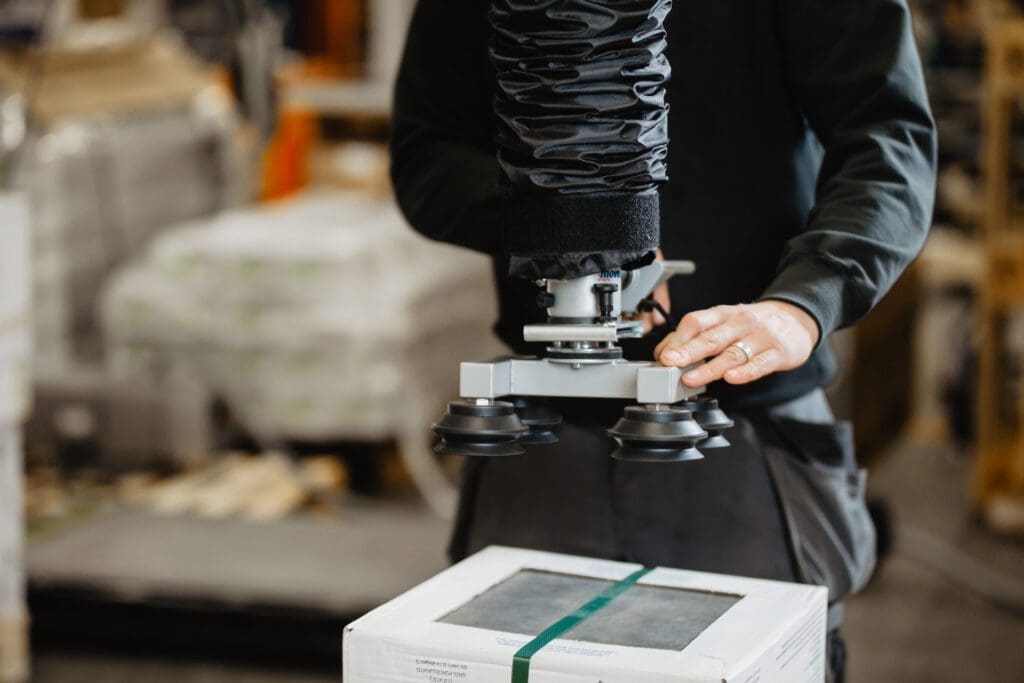

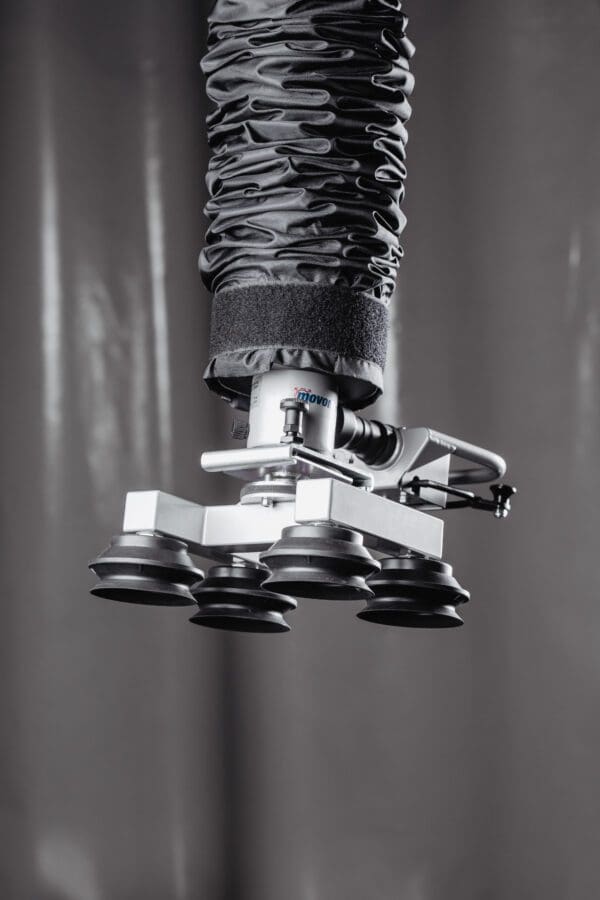

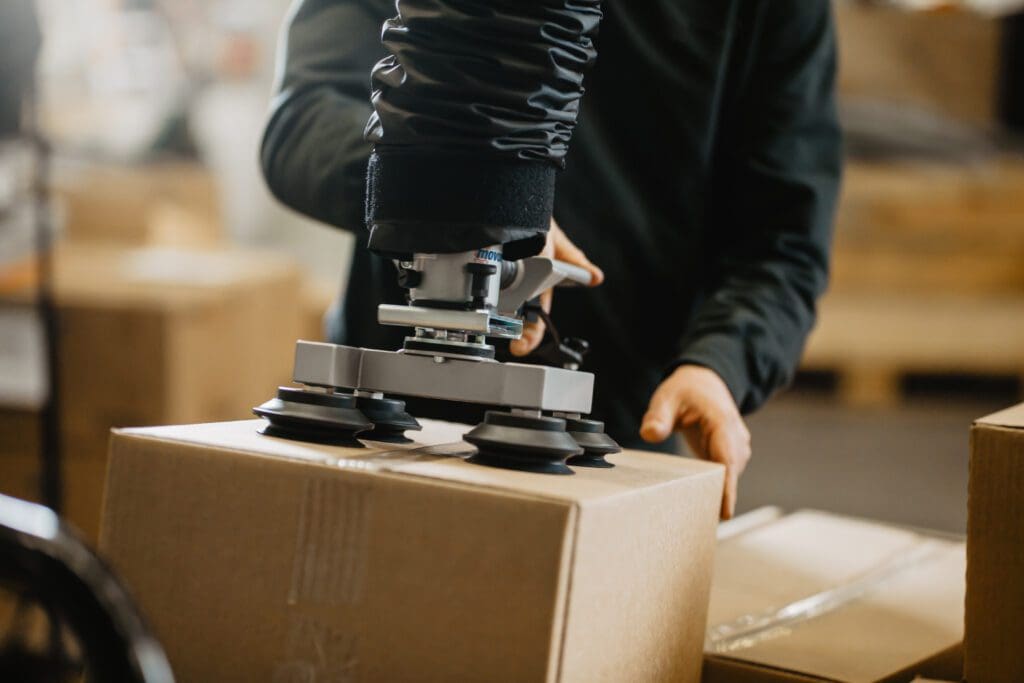

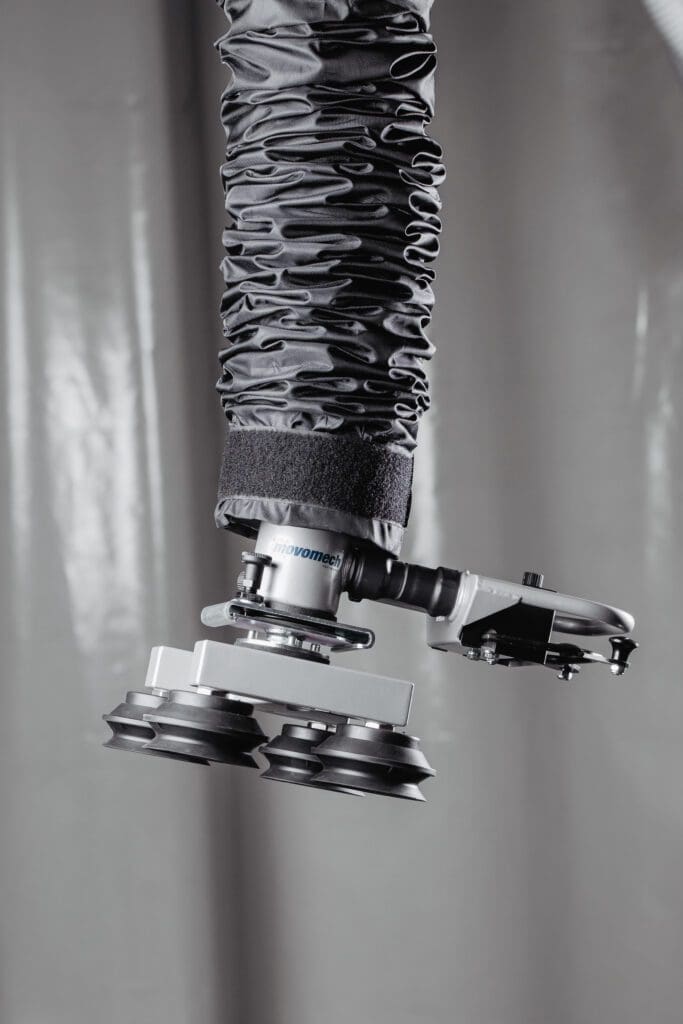

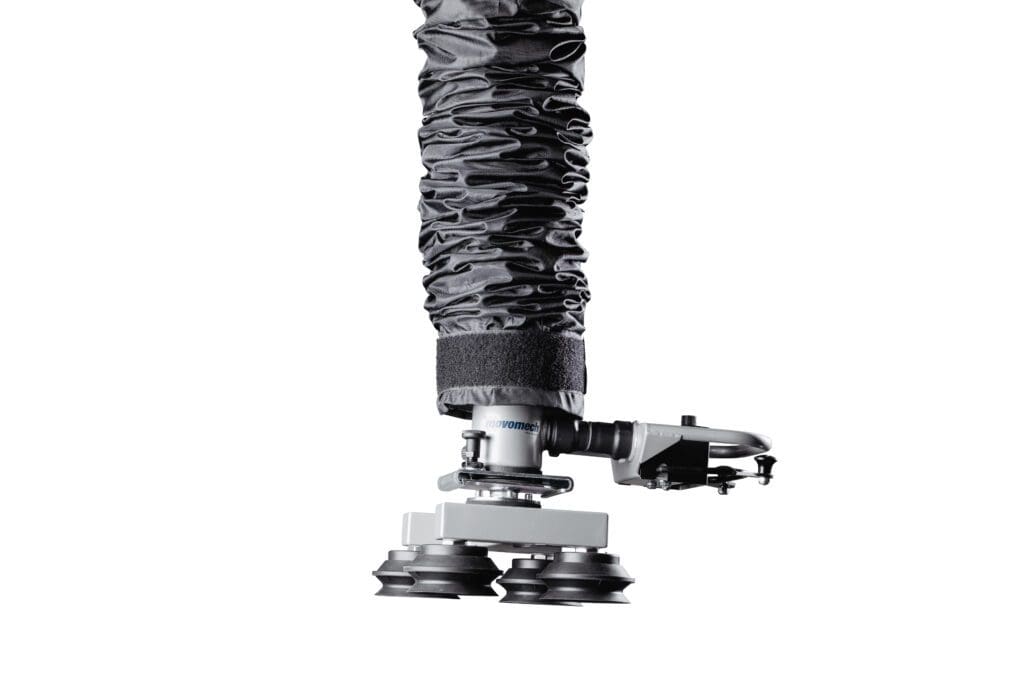

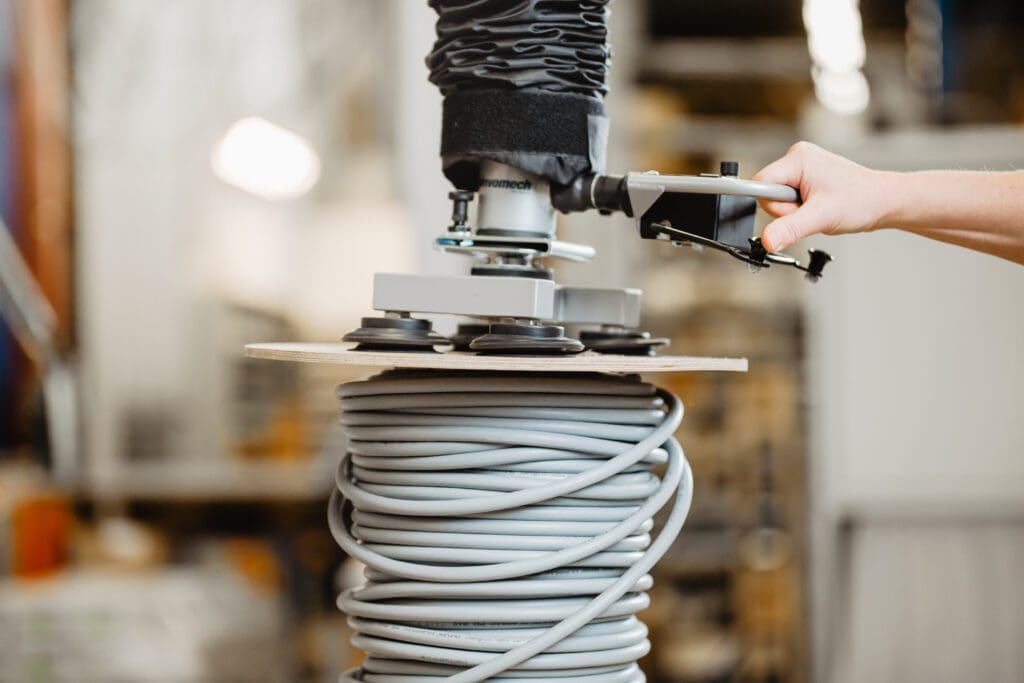

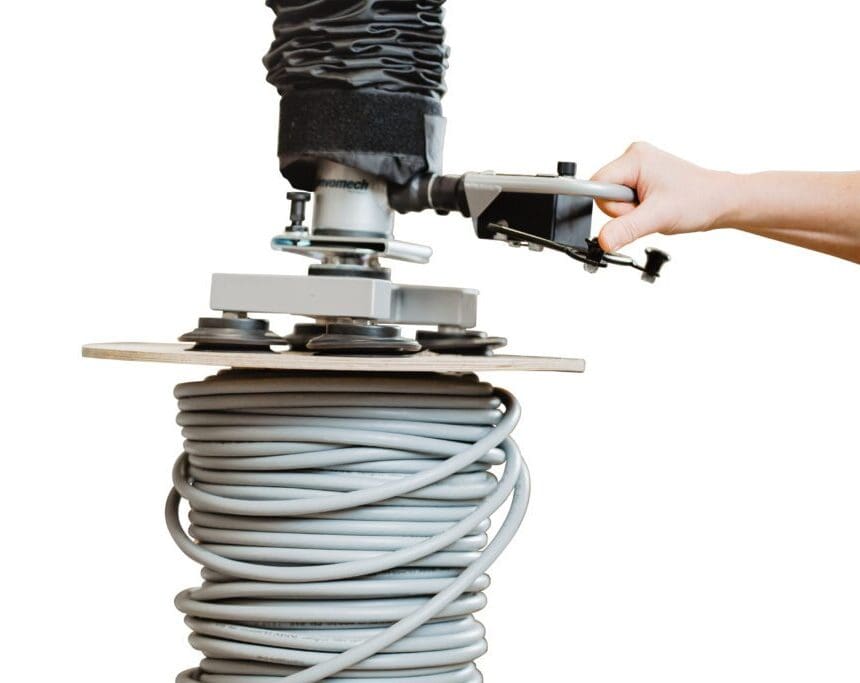

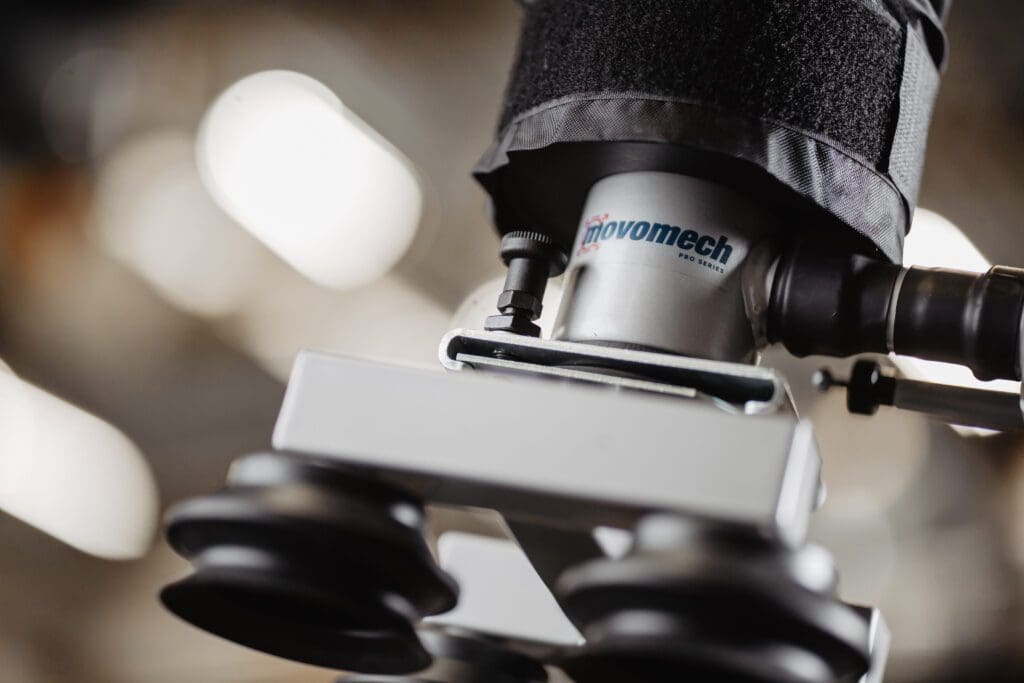

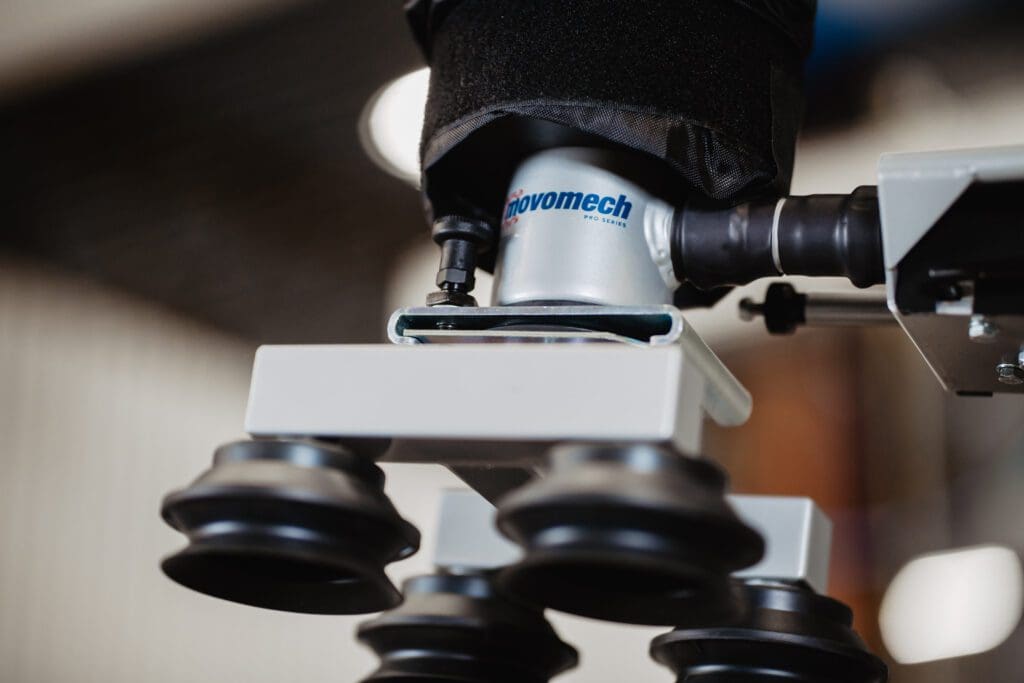

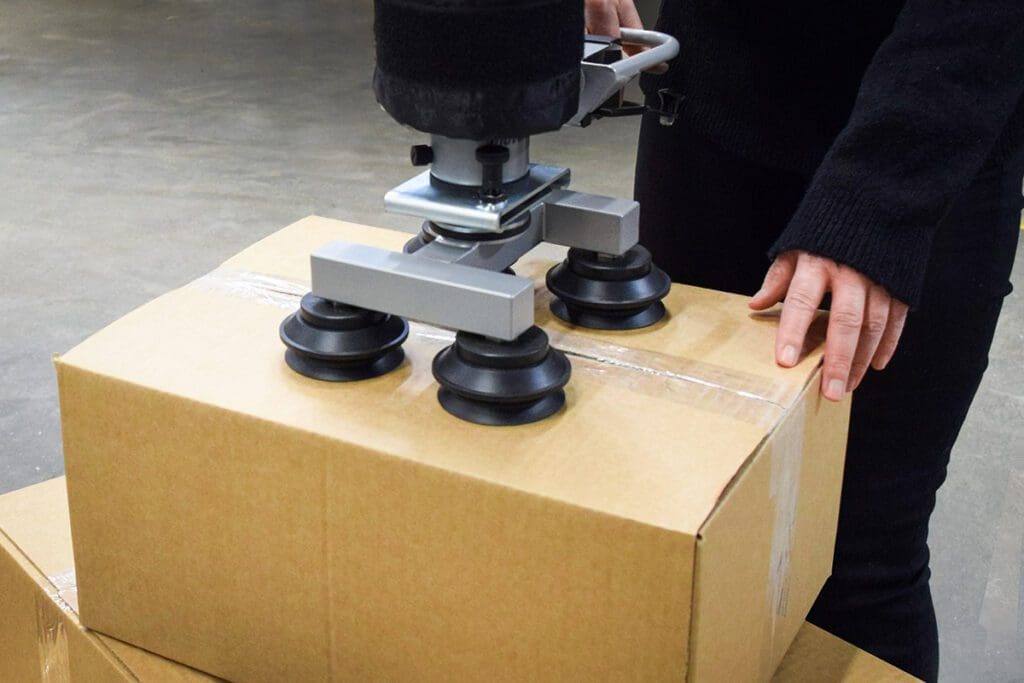

The Easyhand M Vacuum Tube Lifter is a small and handy general purpose vacuum lifter. It is built on the Easyhand modular design principle so it can be easily adapted to suit your needs. Choose this system for handling loads up to 50 kg. Ideally suited to lifting tasks between the shoulders and knees, not lifting from the floor.
There are a number of possibilities when you put the Easyhand M to the task. Also known as Microlex, this unit is an easily operated vacuum lifting device. It’s small, convenient and only requires one hand use. The baby brother to the Vacuhand Pro, the Easyhand makes heavy objects feel incredibly weightless and reduces risk in manual handling activities.
- Single-hand operation
- Can be customised to suit the task
- Ideal for small, repeat handling of loads up to 50 kg
- Incredibly ergonomic and safe to use
- Very reliable
- Low service costs
- Stainless steel is available
- Available in either electric or compressed air powered
- Wide range of accessories are available
Additional Information
| Easyhand M is easy to use

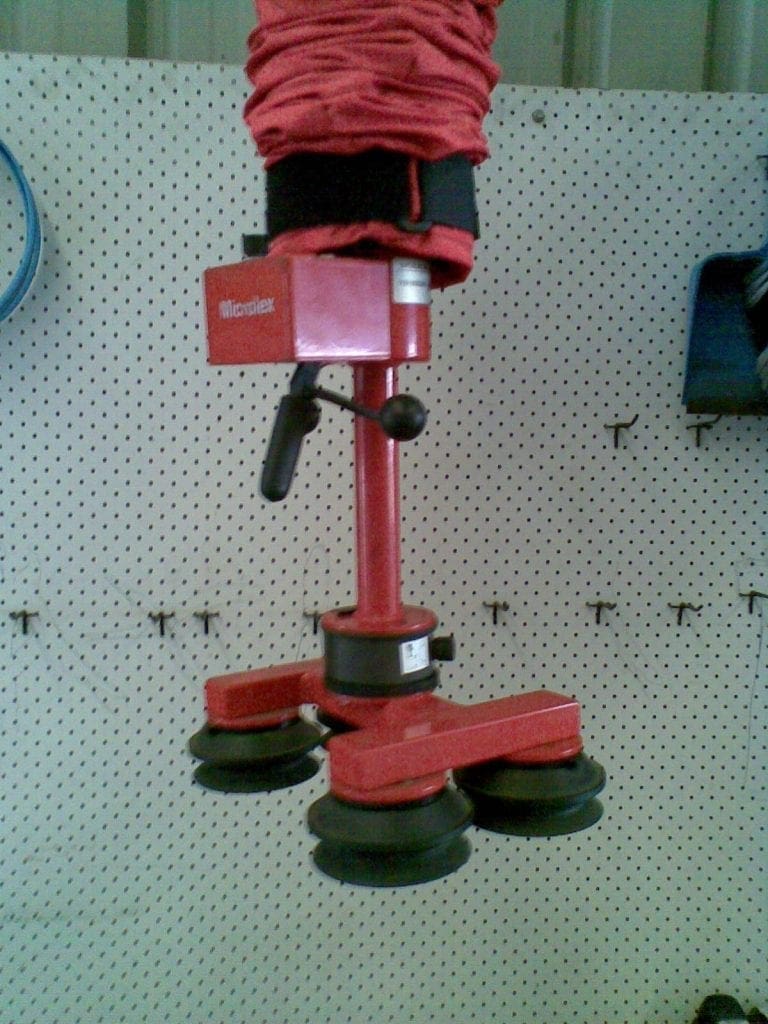

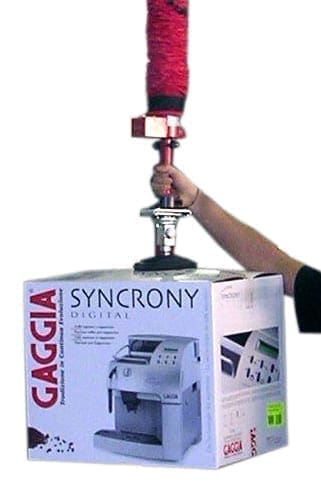

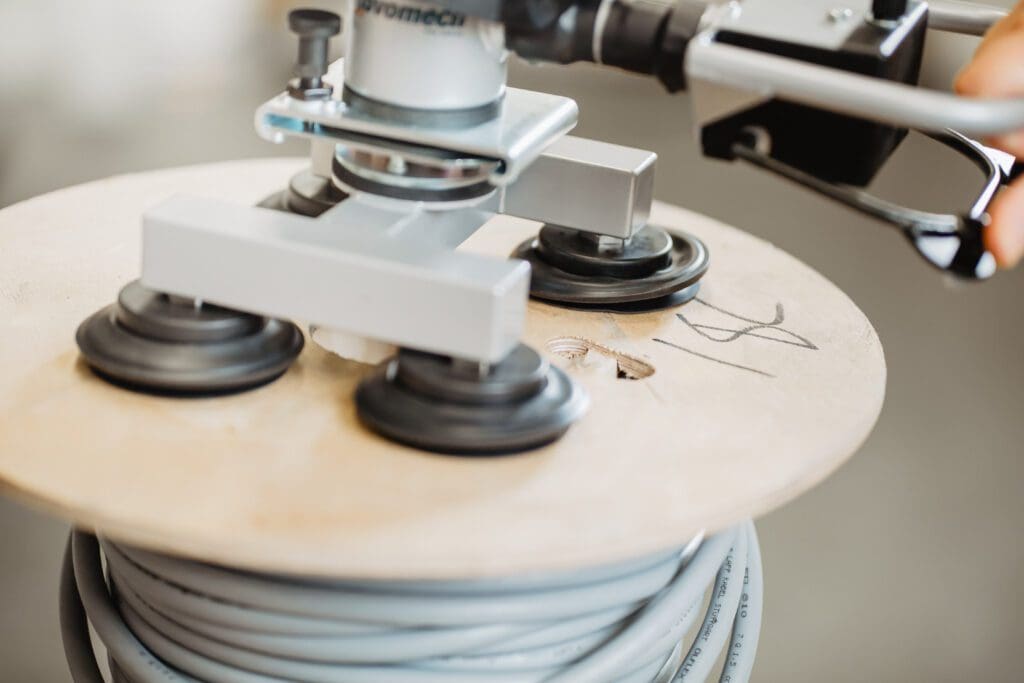

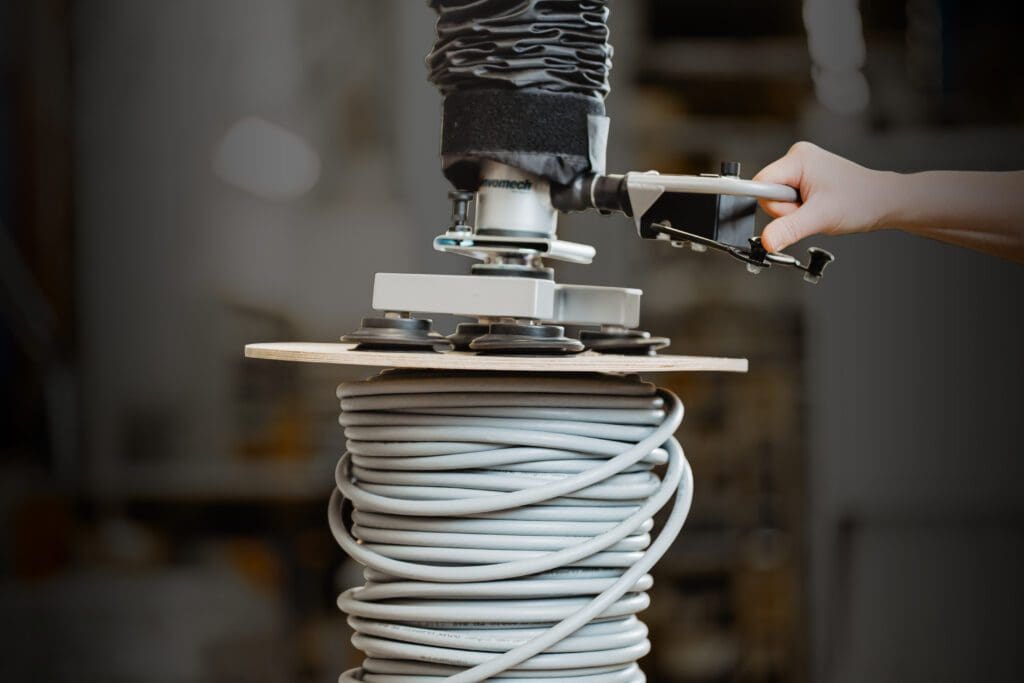

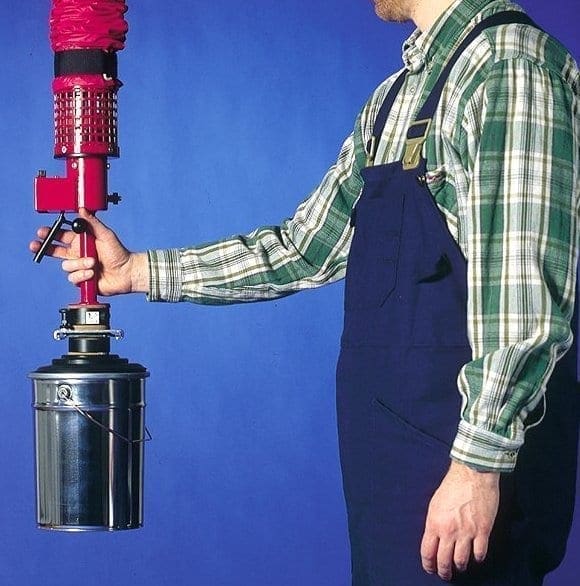

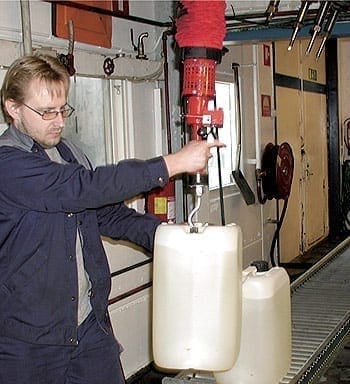

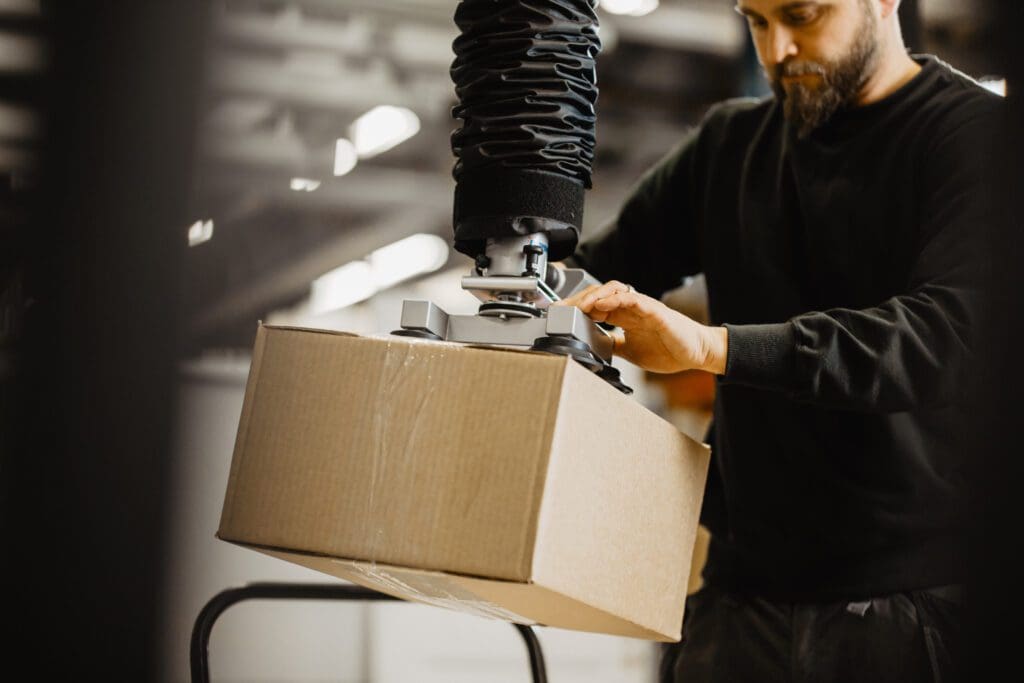

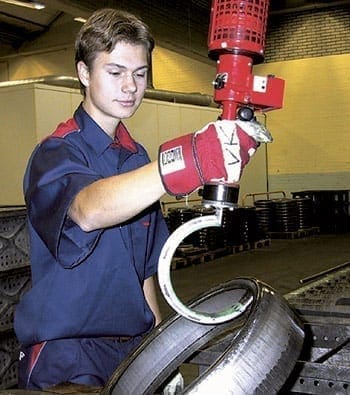

Lift, move and lower objects in a single fluid motion with the Easyhand M (also known as Microlex). Workloads are easier and more efficient, and safe lifting increases employee morale. Microlex is small and convenient for lifting heavy objects between 5-55 kg and minimal operator training is required. Single hand control Operation for this vacuum lifting device only requires one hand. With incredible flexibility, Easyhand can be adapted to a number of handling situations. Some applications don’t even use vacuum to grip the product, take a look! Many possibilities! With a wide range of accessories to assist in your lifting actions, Easyhand offers a number of possibilities. It can be used for many different products with a variety of control handles, suction heads and accessories that optimise the lifting solution. Specify your requirements and we’ll help you decide exactly what you need. Easyhand is even available in stainless steel for food and the pharmaceutical environment! Easyhand M can be used in temperatures as low as -5 degrees, making it ideal for cold and cool room applications. Reduces risks and injuries Easyhand M eliminates the need for physical manual handling tasks, that if performed incorrectly, can severely injure employees and damage goods. Build confidence in your workplace, by installing and investing in an Easyhand Vacuum Tube Lifter. Guaranteed to reduce lifting hazards and support your organisation in its duties. Easy to adapt Easyhand system is easy to apply to changing needs. With its modular design, at any point in time, you can simply reconfigure the lifting system to suit your new business goals. Ask us how and we’ll tell you more! Easy to implement in your workplace With the pneumatic vacuum pump, the unit is very easy to install as the pump is mounted on the top swivel. There are also a number of electric vacuum pumps available to suit your application. It is incredibly beneficial and easy to implement this technology in your workplace. |
|
Ready to see the Easyhand M in action?

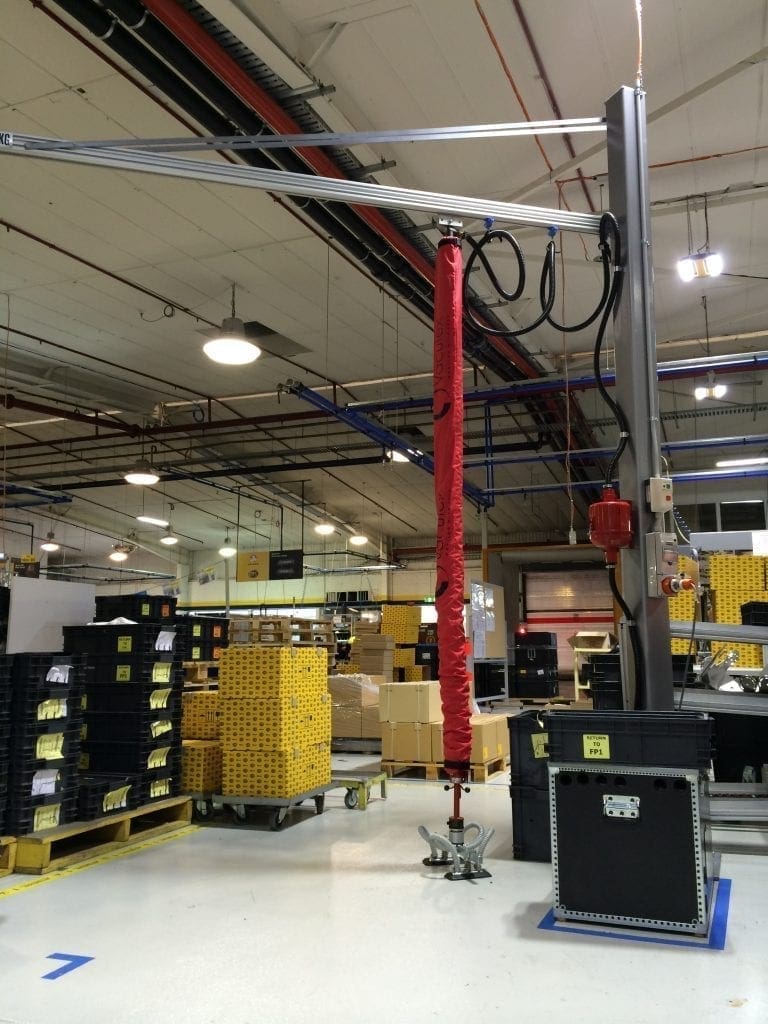

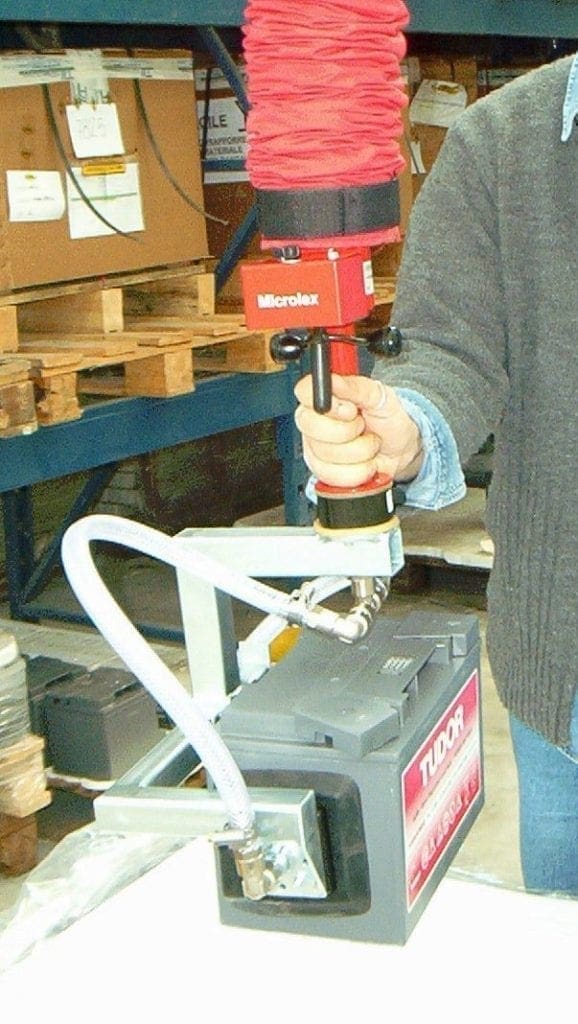

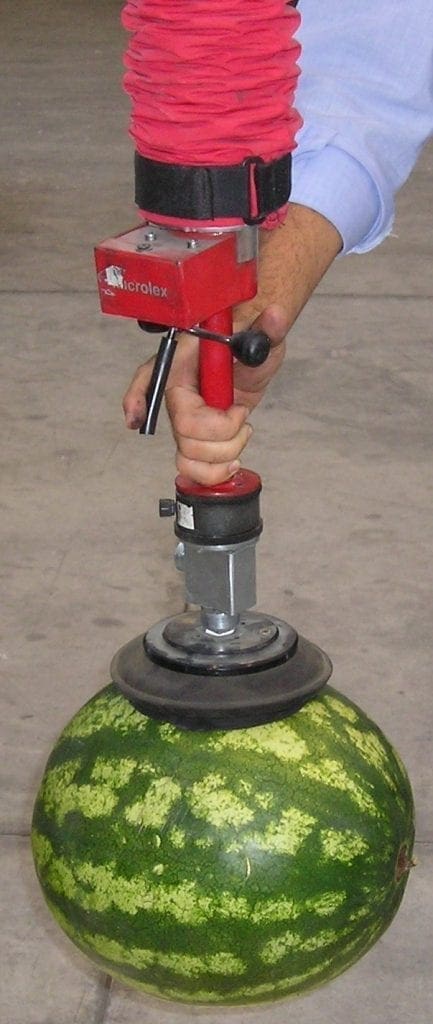

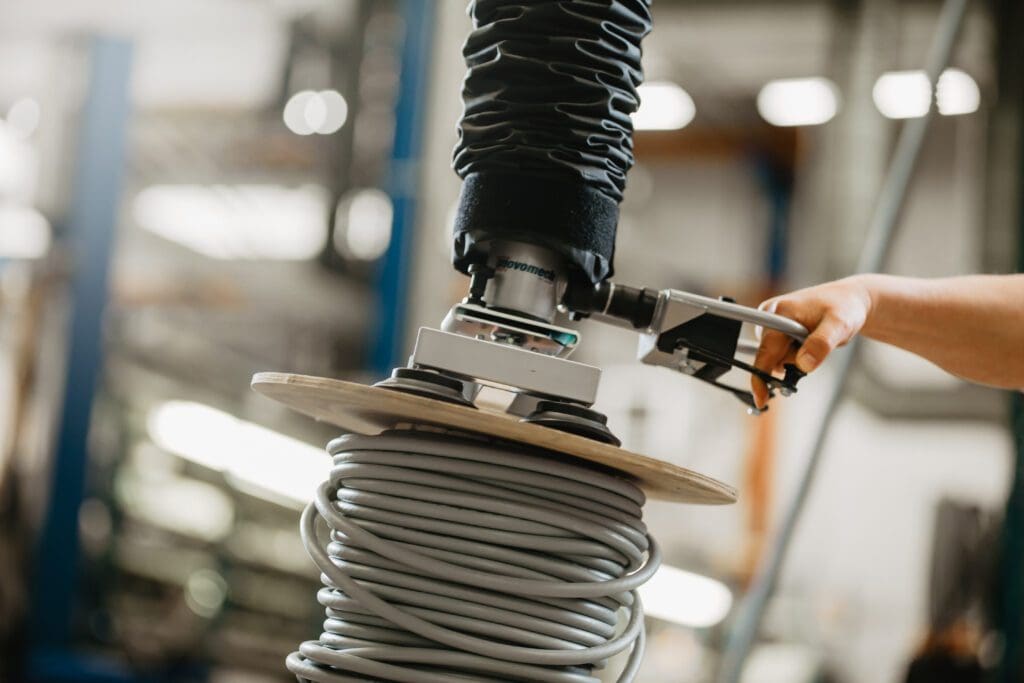

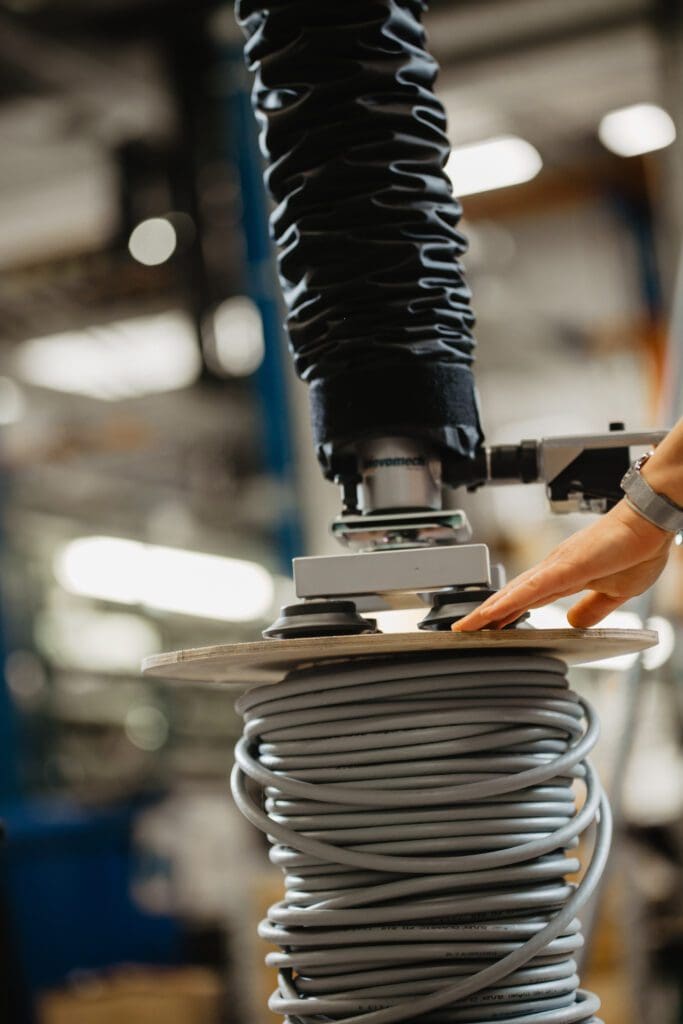

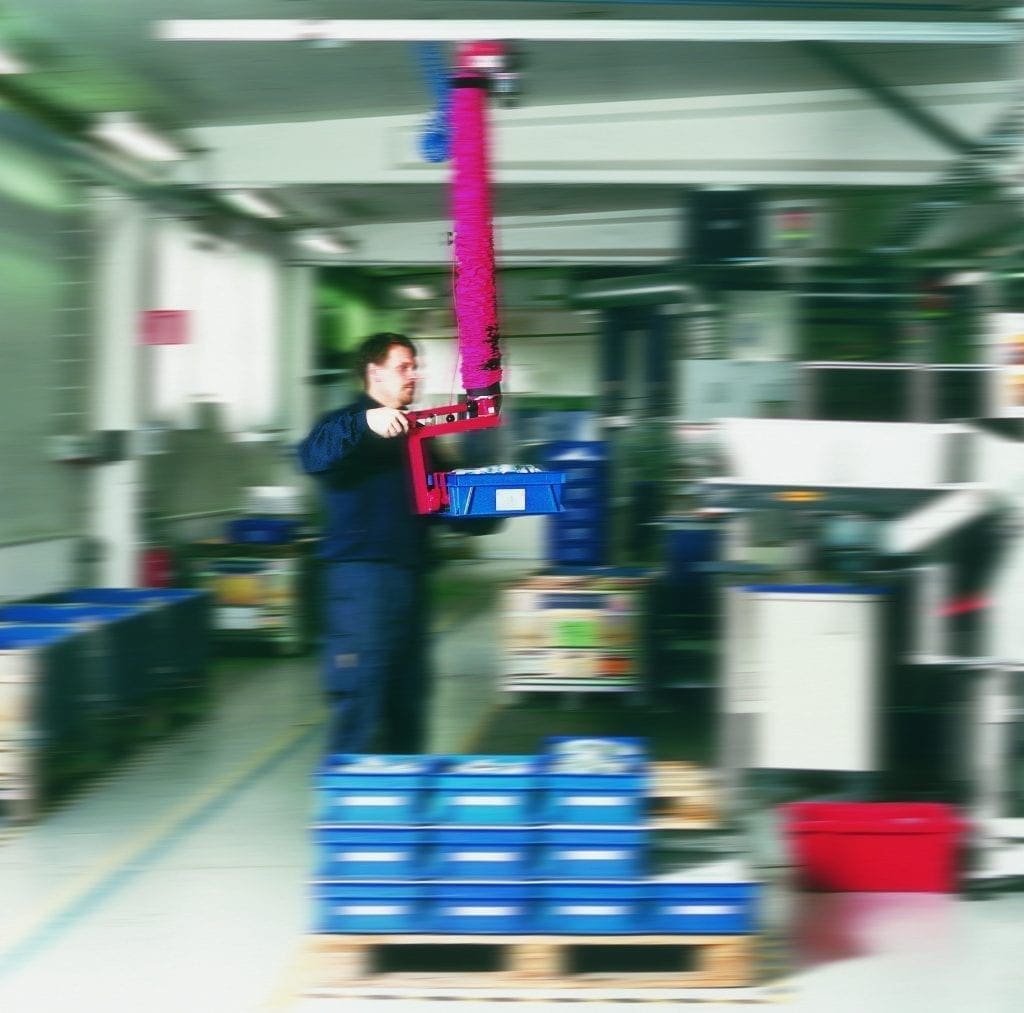

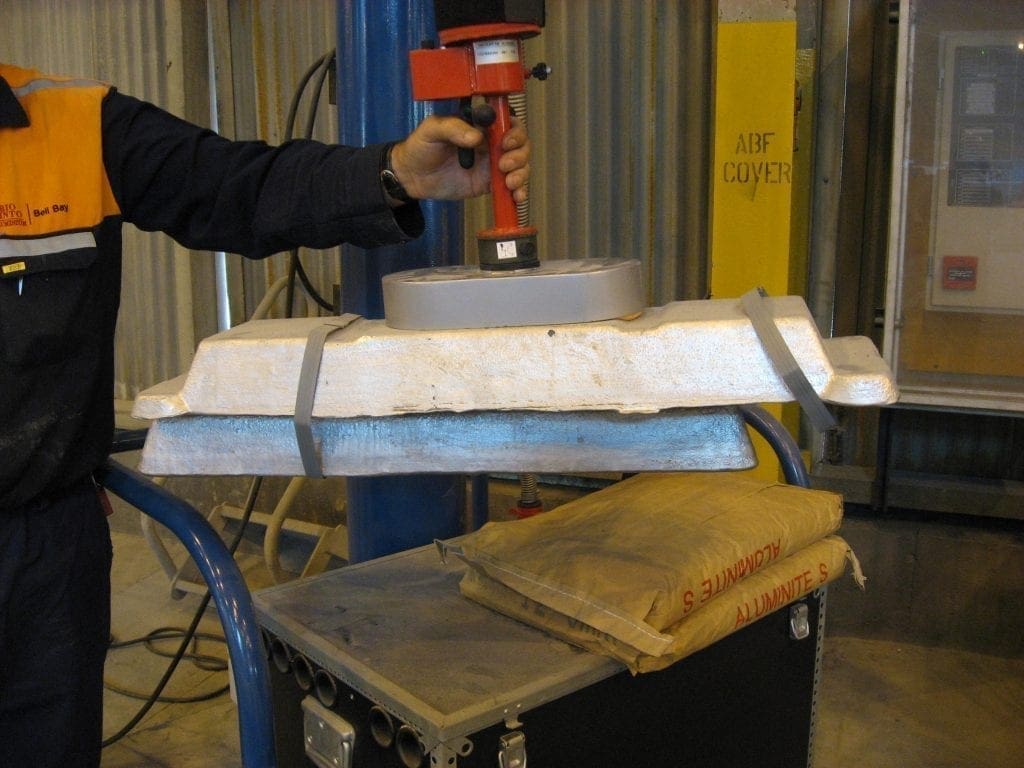

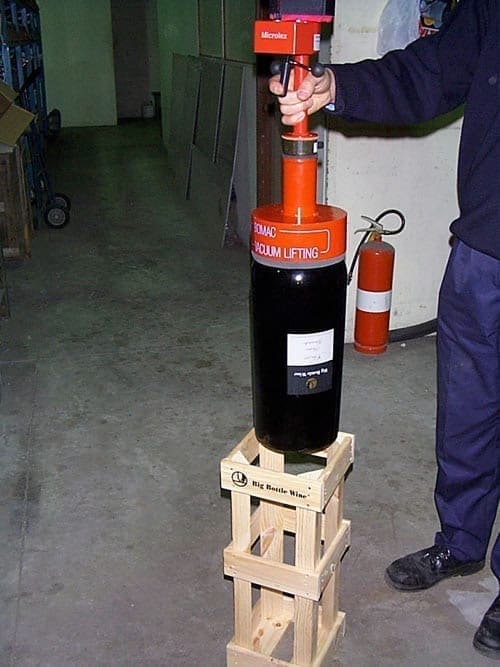

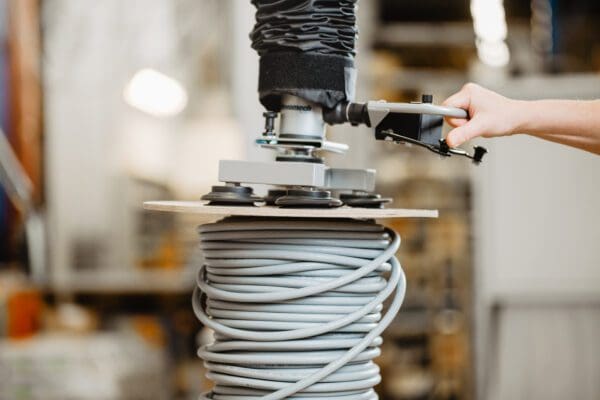

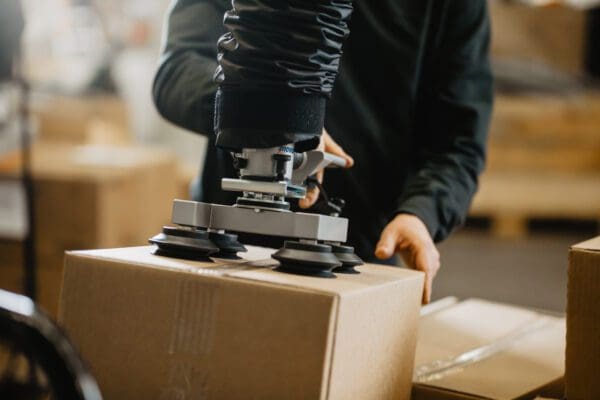

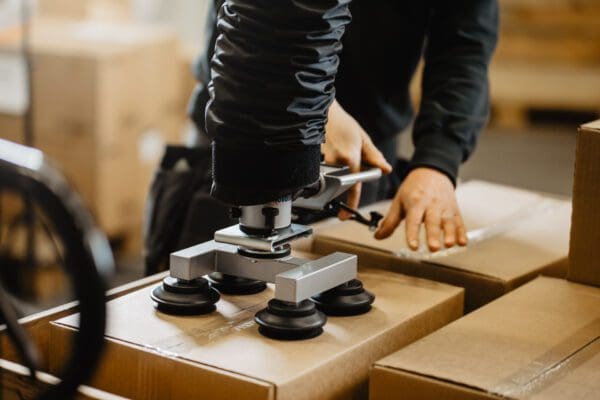

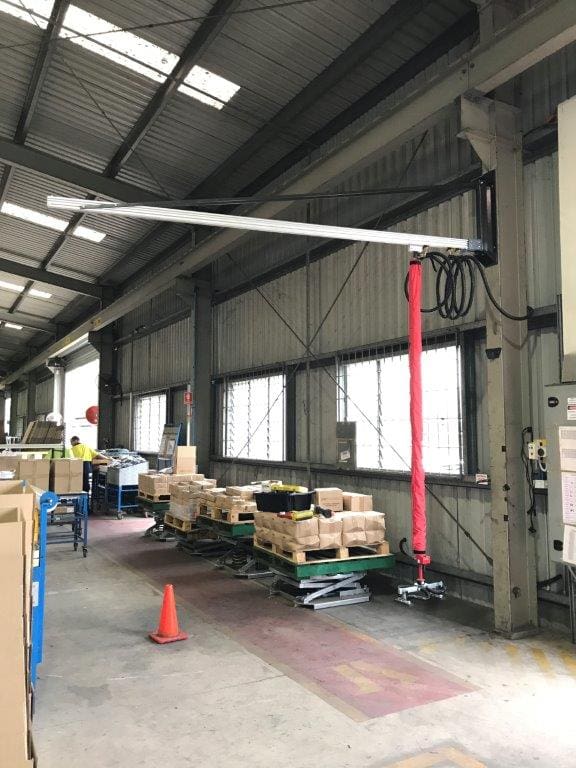

Lift objects securely with Easyhand lifting devices, in particular the Easyhand M small and handy vacuum system. See how these organisations are putting it into practice.
Technical Data
| Maximum Lifting Capacity | 50 kg |  |
| Lift Tube Sizes | 60-120 Ø | |
| Electric Vacuum Pump | 415V 3 phase | |
| Pneumatic Vacuum Pump [ejector] | 420-630 NI/min at 6 bar | |
| Vertical movement (stroke) | ||
| 2.5 m lift tube [standard] | 1.7 m | |
| 3.0 m lift tube | 2.1 m | |
| Installation height | ||
| 2.5 m lift tube | 2.9 m | |
| 3.0 m lift tube | 3.4 m | |
| Safety Factor (attachment force/lifting force) | 2.5 minimum | |
Customise your system to your needs!

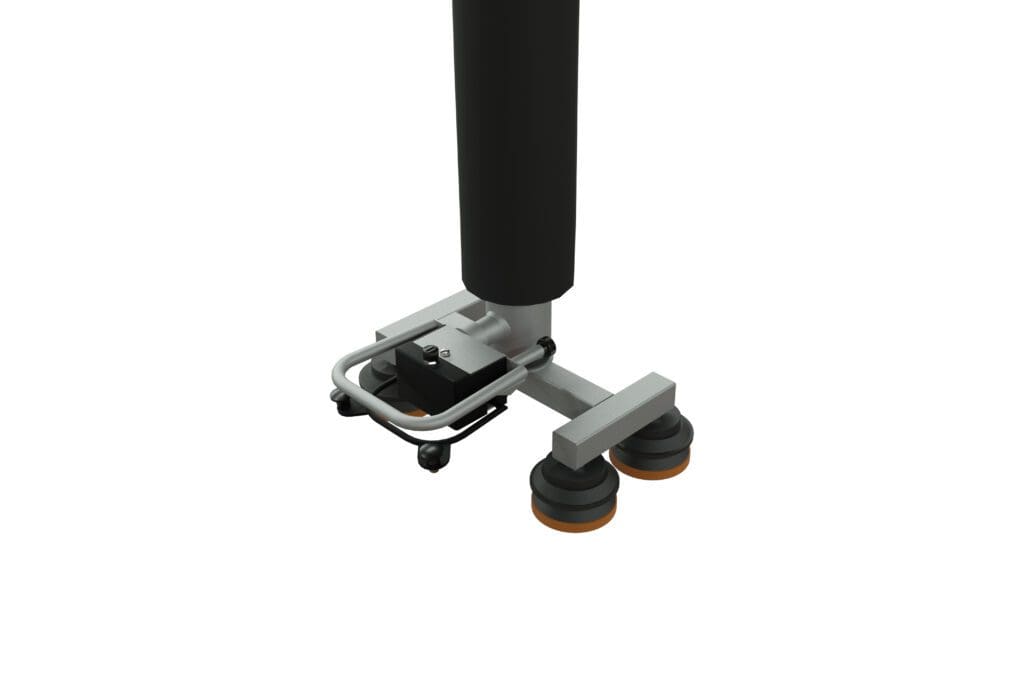

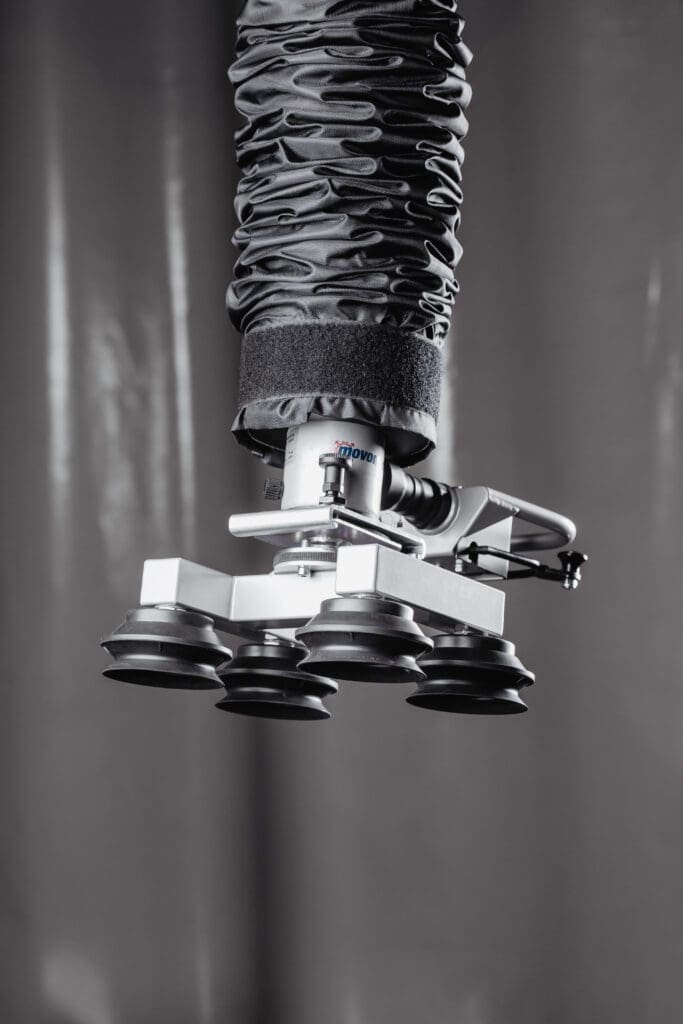

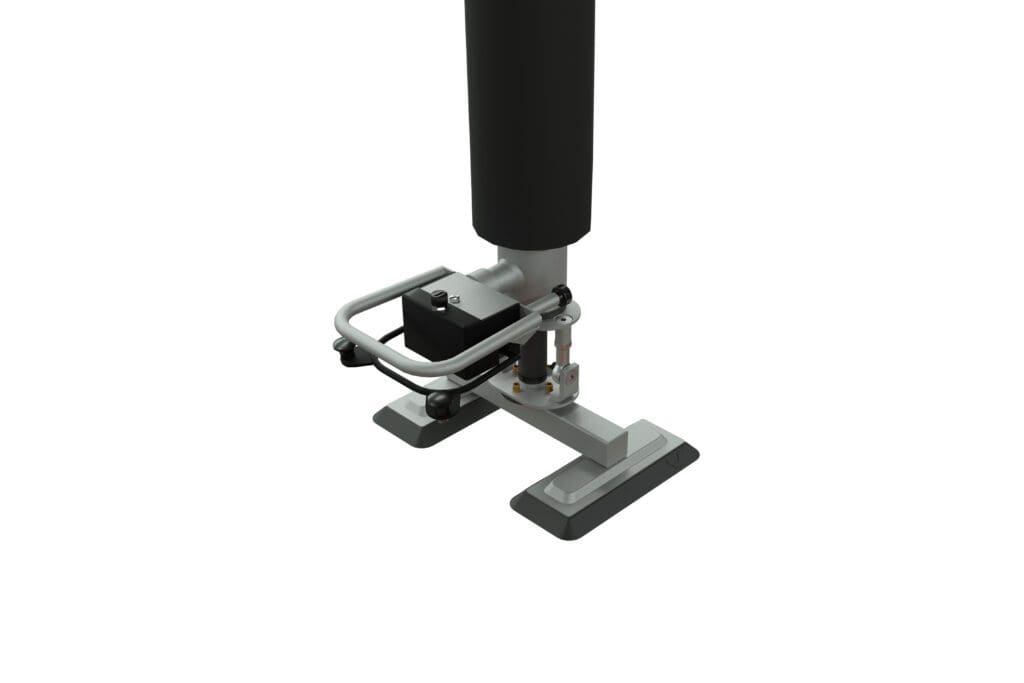

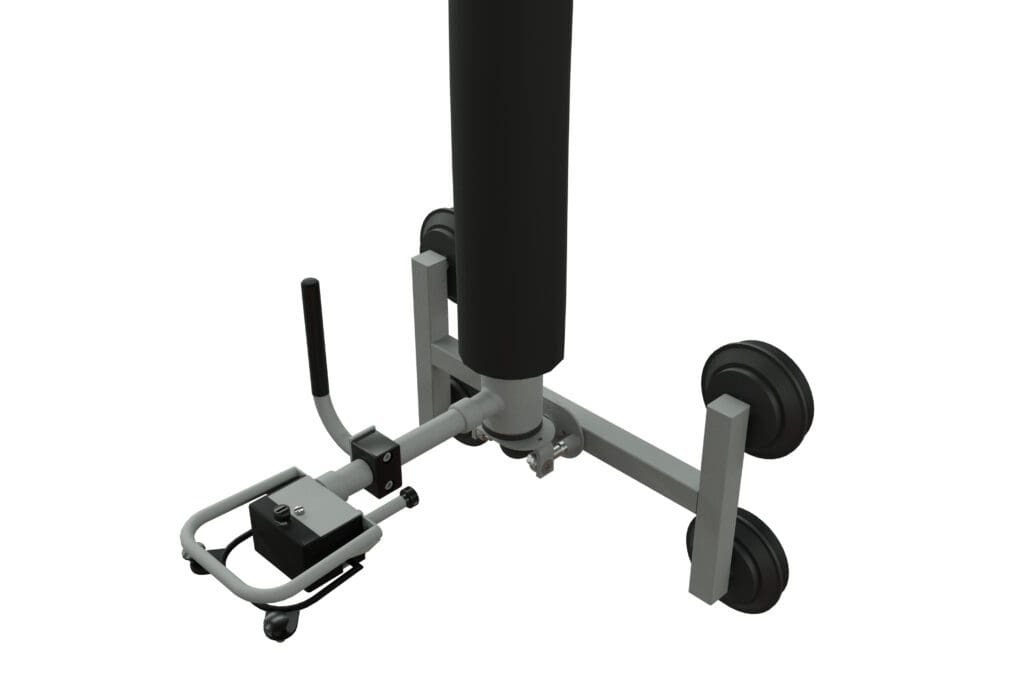

With a wide variety of accessories available, you can tailor your system to your requirements. Some options include different suction heads (rectangular, oval, yoke, round, etc), angle adaptors, protection valves, control units, remote controls and many more.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Quick connection upper |
100960 | ||
|
Quick connection lower |
100961 | ||
|
Angle joint 90° |
100970 | ||
|
Bottom swivel |
100975 | ||
|
Bottom swivel double bearing |
100976 | ||
|
Bottom swivel 4 position |
100977 | ||
|
Protective sock 60 diameter |
6050460 | ||
|
Protective sock 80 diameter |
6050461 | ||
|
Protective sock 100 diameter |
6050462 | ||
|
Protective sock 120 diameter |
6050463 | ||
|

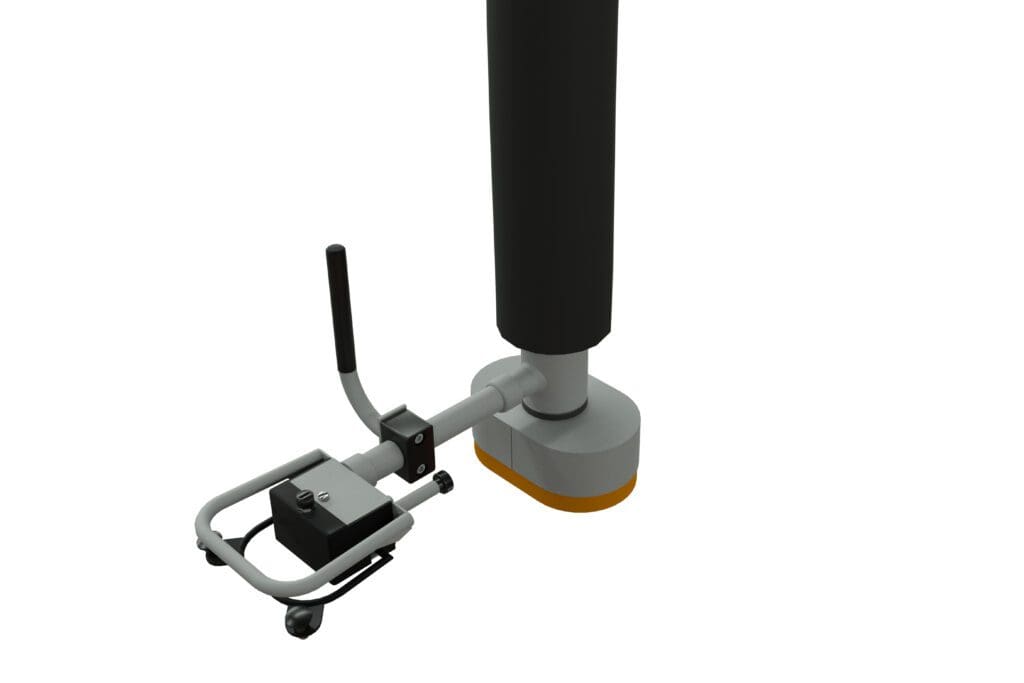

Fixed extended handle 200mm |
640200-002 | ||
|
Fixed extended handle 400mm |
640200-004 | ||
|
Fixed extended handle 600mm |
640200-006 | ||
|
Fixed extended handle 800mm |
640200-008 | ||
|
Fixed extended handle 1200mm |
640200-012 | ||
|
2-hand handle |
640205-001 | ||
|
2-hand handle knob |
640205-002 | ||
|
Extended handle flexible 200+200mm |
640210-0202 | ||
|
Extended handle flexible 200+400mm |
640210-0204 | ||
|
Extended handle flexible 200+600mm |
640210-0206 | ||
|
Extended handle flexible 400+400mm |
640210-0404 | ||
|
Extended handle flexible 400+600mm |
640210-0406 | ||
|
Extended handle flexible 800+400mm |
640210-0804 | ||
|
Lift tube 60 x 4.0 m |
640421-04 | ||
|
Lift tube 60 x 2.5 m standard |
640421 | ||
|
Lift tube 80 x 4.0 m |
640431-04 | ||
|
Lift tube 80 x 2.5 m standard |
640431 | ||
|
Lift tube 100 x 4.0 m |
640441-04 | ||
|
Lift tube 100 x 2.5 m standard |
640441 | ||
|
Lift tube 120 x 4.0 m |
640451-04 | ||
|
Lift tube 120 x 2.5 m standard |
640451 | ||
|
Easyhand M 60 / BE 25 vanes (C) |
640706-1CAA | ||
|
Easyhand M 60 / BE 40 vanes (D) |
640706-1DAA | ||
|
Easyhand M 60 / Ejector PI 100 (A) |
640706-3AAA | ||
|
Easyhand M 60 / Ejector PI 150 (B) |
640706-3BAA | ||
|
Easyhand M 80 / BE 25 vanes (C) |
640708-1CAA | ||
|
Easyhand M 80 / BE 40 vanes (D) |
640708-1DAA | ||
|
Easyhand M 80 / Ejector PI 100 (A) |
640708-3AAA | ||
|
Easyhand M 80 / Ejector PI 150 (B) |
640708-3BAA | ||
|
Easyhand M 100 / BE 25 vanes (C) |
640710-1CAA | ||
|
Easyhand M 100 / BE 40 vanes (D) |
640710-1DAA | ||
|
Easyhand M 100 / Ejector PI 100 (A) |
640710-3AAA | ||
|
Easyhand M 100 / Ejector PI 150 (B) |
640710-3BAA | ||
|
Easyhand M 120 / BE 25 vanes (C) |
640712-1CAA | ||
|
Easyhand M 120 / BE 40 vanes (D) |
640712-1DAA | ||
|
Easyhand M 120 / Ejector PI 100 (A) |
640712-3AAA | ||
|
Easyhand M 120 / Ejector PI 150 (B) |
640712-3BAA | ||
|

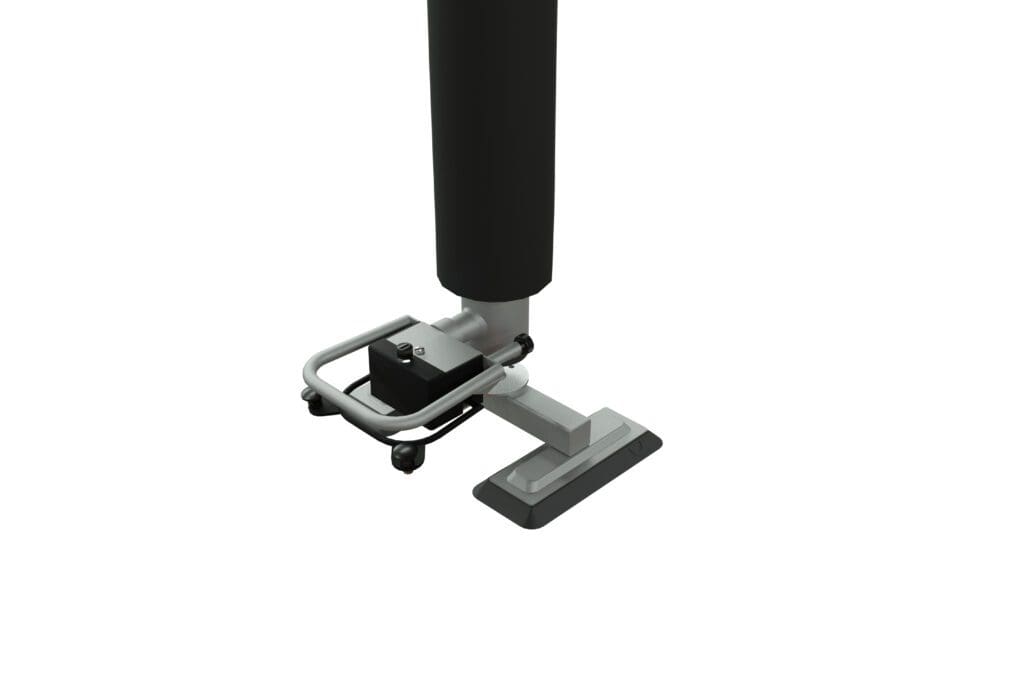

Suction foot 85×200 |
642001 | ||
|
Suction foot 125×320 |
642002 | ||
|
Suction foot 140×200 |
642003 | ||
|
Suction foot 150 diam bellows |
642150 | ||
|
Suction foot 200 diam bellows |
642200 | ||
|
Grid for 642201 |
642201-01 | ||
|

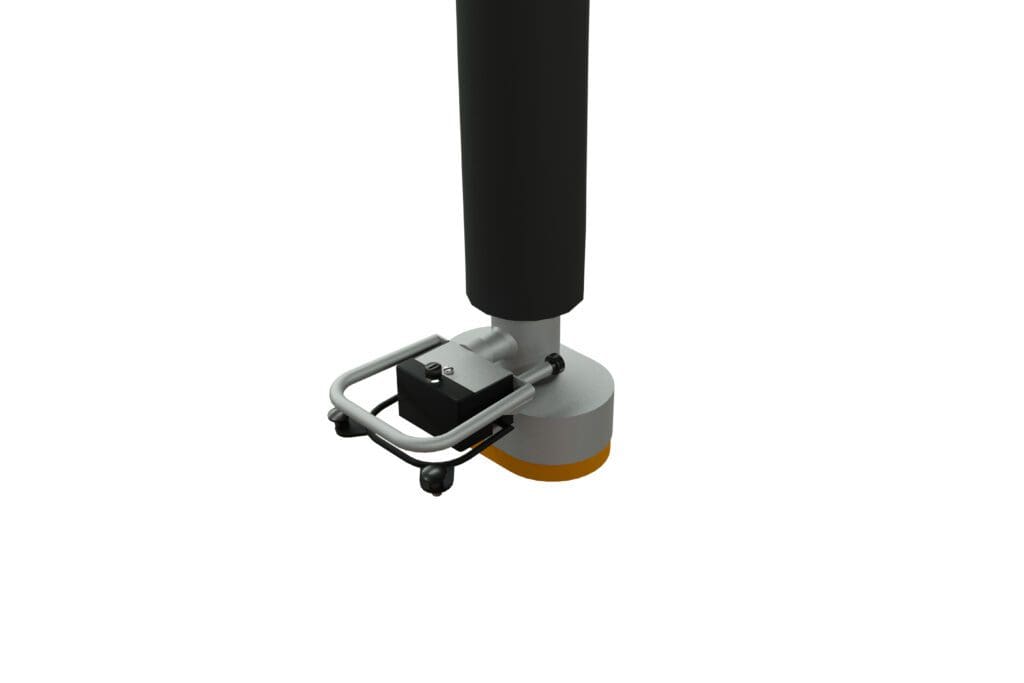

Gasket for 642201 oval foot |
642201-03 | ||
|
Suction foot sacks 185x115mm |
642201 | ||
|
Grid for 642202 |
642202-01 | ||
|
Gasket for 642202 oval foot |
642202-03 | ||
|
Suction foot sacks 290x154mm |
642202 | ||
|
Grid for 642203 |
642203-01 | ||
|
Gasket for 642203 oval foot |
642203-03 | ||
|
Suction foot sacks 275x175mm |
642203 | ||
|
Gasket for 642206 oval foot |
642206-03 | ||
|
Suction foot for sacks oval 125x245mm |
642206 | ||
|
Vacuhand Pro suction foot: two pads [each 85×200] adjustable on 500mm beam |
642400-050 | ||
|

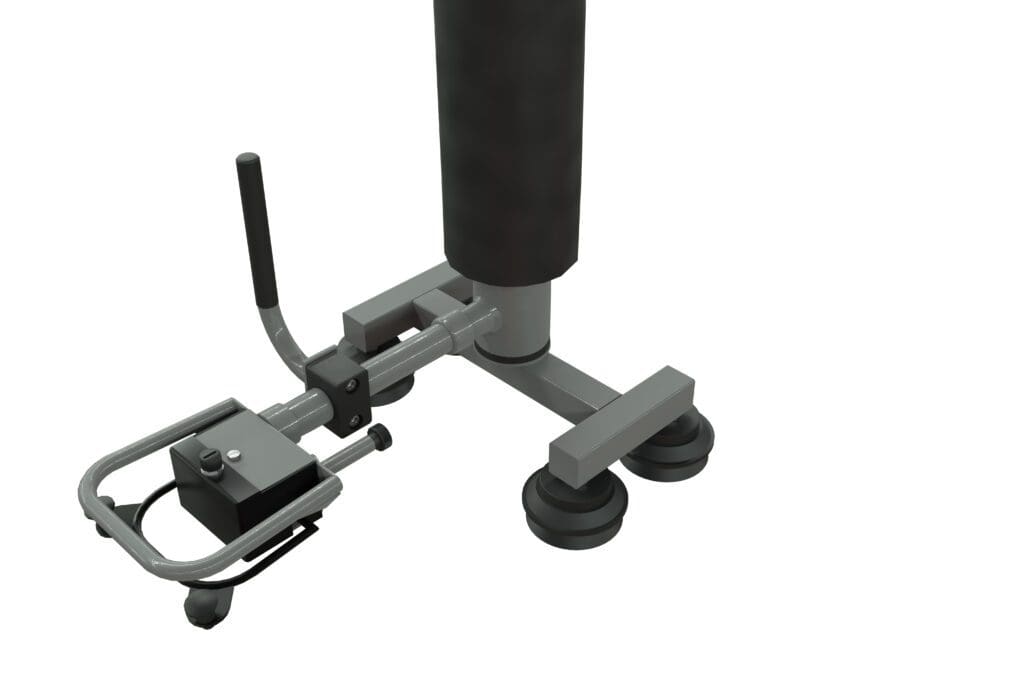

Yoke 800 85×200 x2 |
642400-080 | ||
|
Yoke 1200 85×200 x2 |
642400-120 | ||
|
Yoke fixed 300 85×200 x2 |
642405-030 | ||
|
Yoke fixed 500 85×200 x2 |
642405-050 | ||
|
Yoke fixed 800 85×200 x2 |
642405-080 | ||
|
Yoke fixed 1000 85×200 x2 |
642405-100 | ||
|
Filter unit complete to suit 25mm ID hose |
644002 | ||
|
Ejector Pl 100 (A) |
660001-A10 | ||
|
Ejector Pl 150 (B) |
660001-B15 | ||
|
Vacuum pump BE 25 vanes (C) |
660001-C25 | ||
|
Vacuum pump BE 40 vanes (D) |
660001-D40 | ||
|
Vacuum pump BE 90 vanes (I) |
660001-I90 | ||
|
Vacuum pump DV 60 vanes (I) |
660001-K60 | ||
|
Combined 90° joint + bottom swivel |
670050 | ||
|
Silencing box pump I |
860066-10 | ||
|
Silencing box pump D |
860067 | ||
|
Silencing box pump C |
860074 | ||
|
Vaculex ML control unit |
170000 | ||
|
Control cover ML control unit |
170304 | ||
|
Vaculex ML 80 lower adaptor |
170438 | ||
|
Vaculex ML 100 lower adaptor |
170439 | ||
|
Vaculex ML 100 top swivel [electric] |
170452 | ||
|
Vaculex ML 100 top swivel [ejector] |
170462 | ||
|
Vaculex ML vacuum house [extended control unit] |
180200 | ||
|
Vaculex ML rubber gasket |
170407-1 | ||
|
Vaculex ML vacuum house [extended control unit] |
180201 | ||
|
Tube lifter Easyhand M 80 |
640708-10 | ||
|
Tube lifter Easyhand M 100 |
640710-10 | ||
|
Tube lifter Easyhand M 120 |
640712-10 | ||
|
Vacuhand Pro suction foot: two pads [each 85×200] adjustable on 500mm beam – stainless steel |
642400-050-RF |
