Vacuum Tube Lifter Vacuhand Pro
+ Add to Quote Request

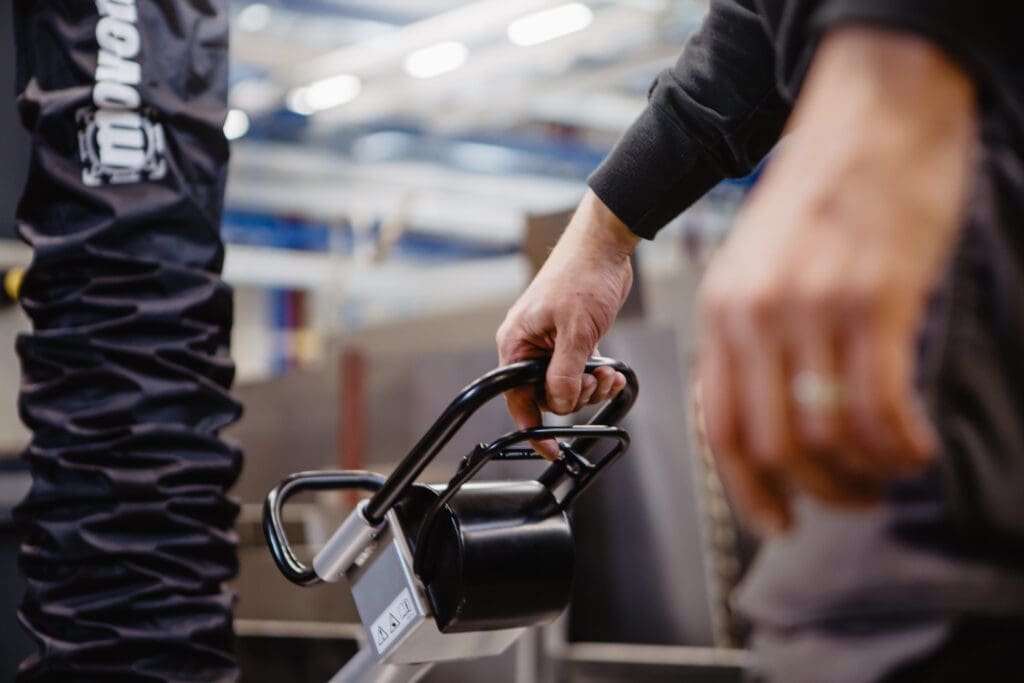

One of our strongest models, the Vacuhand Pro is versatile and user-friendly. The operation is intuitive and while it can be described as a two-hand control only one hand is actually required to operate the raise-lower-release function. The Vacuhand Pro can lift almost everything! An extremely cooperative device, this Vacuum Tube Lifter makes any object feel weightless. Workloads become easier, more efficient and more enjoyable as Vacuhand does the heavy lifting!
The Vacuhand Pro Vacuum Tube Lifter is a classic design typically suited to loads between 50-250 kg. The modular design makes it easily adapted to specific applications and is our most successful, general-purpose vacuum lifter.
- Two hand operation
- Handle heavy loads up to 250 kg
- Versatile and can be customised to your application
- Wide range of accessories and options is available
- Can be reconfigured for new tasks due to modular design
- Very low maintenance and low service costs
- A reliable machine that increases productivity
- Available with intelligent energy-saving devices to minimise power consumption
Additional Information
Why do you need Vacuhand Pro?
Our most heavy-duty vacuum lifter could be yours! The Vacuhand Pro defies the law of gravity to deliver high-performance results when moving heavy objects and loads. This model is available in seven different sizes (varying between 140-300 mm in diameter). Also available are several different vacuum pumps and suction cups that can be combined with a variety of accessories to configure the ideal solution for you. Vacuhand Pro is typically powered by an electric vacuum blower however a pneumatic vacuum generator (venturi or ejector) is available. The Vacuhand Pro provides maximum versatility for your organisation.
| Lift a number of different objects

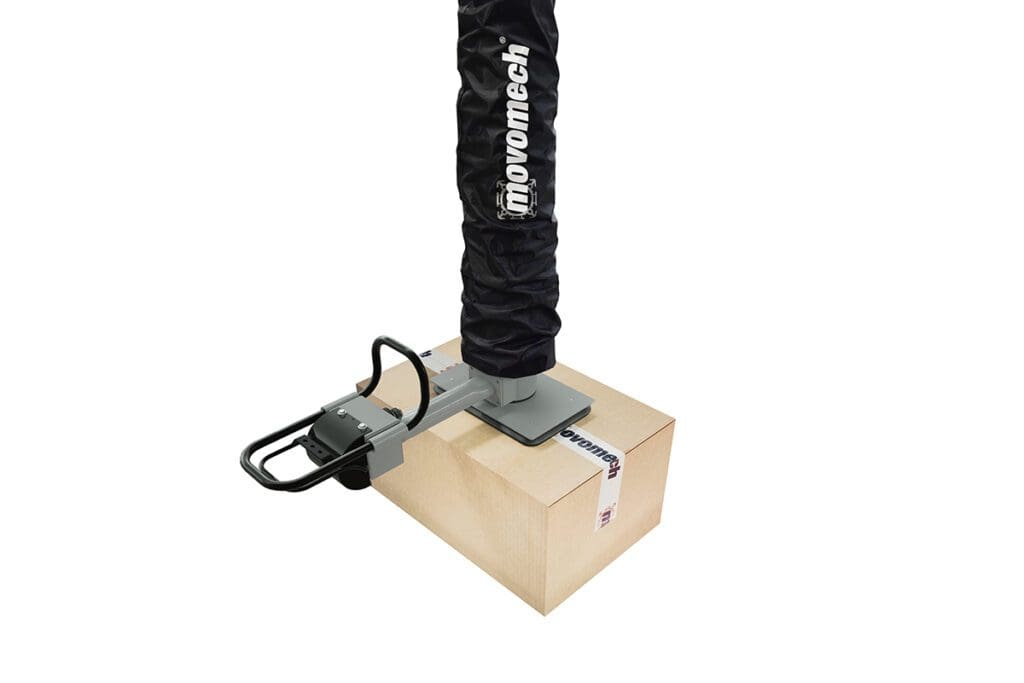

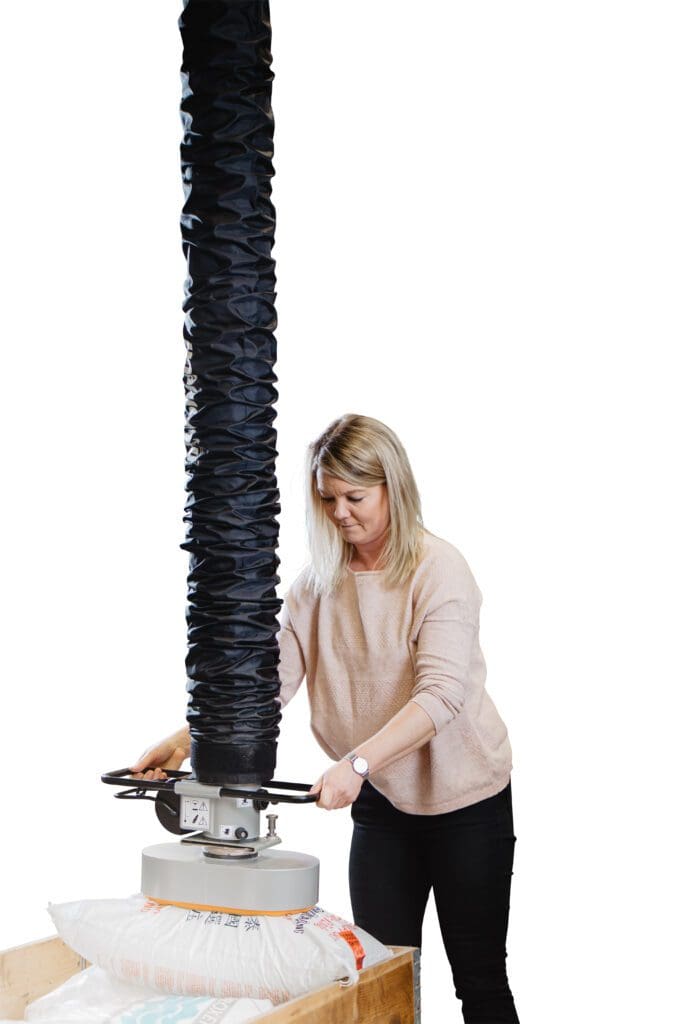

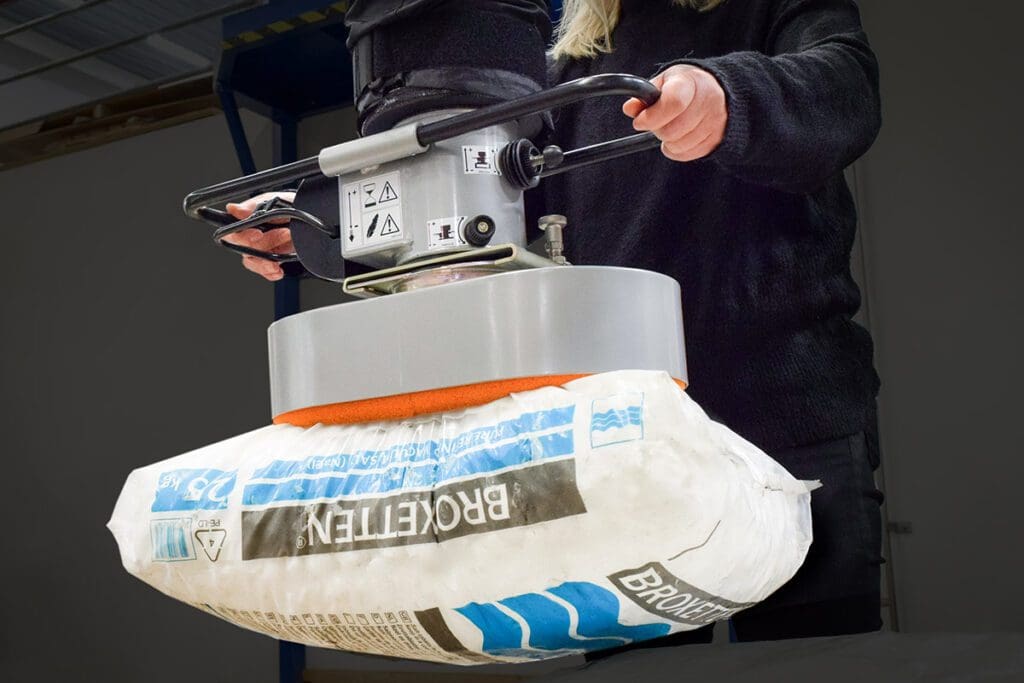

With the Vacuhand Pro, you can lift almost everything! Ideal for boxes, sacks, drums, sheet metal, computers, crates, barrels, TVs, etc. – the list is practically endless! What you lift, how often and where defines the model best suited to you. Our technical sales team can help you identify the best solution. With Australia-wide sales and service and decades of experience, we’ve got you covered. Robust design This unit is incredibly adaptable! The Vacuhand Pro can be configured to suit your needs. The vacuum tube lifter is combined with a vacuum generator, suction supply hose, lift tube, control unit and suction head, but that is just the start. A comprehensive catalogue of standard components is supported by an extensive history of customised solutions. Got an unusual application? Chances are someone else has already solved the problem. Vacuhand has distributors across the planet sharing ideas and applications so fair chance it has been done before. The unit can even operate in an atmosphere below zero, making it ideal for cold rooms and freezers. Incredibly Ergonomic Vacuhand systems increase productivity, work rates and workplace morale. An extremely ergonomic machine, these Vacuum Tube Lifters minimise exposure to manual handling hazards and reduce the risks of materials handling accidents that can injure the user and damage goods. The Vacuhand is incredibly strong and a great investment. Heavy lifting doesn’t have to be expensive, nor should it cost you in the long run. Vacuhand Pro lifters are guaranteed to improve lifting tasks in your organisation. |
|
Watch the Vacuhand Pro in action!
Need to see it for yourself? Check out our videos below to see the Vacuhand Pro. A strong and robustly designed vacuum lifter that can move even the bulkiest of loads for you.
Technical Data
| Maximum Lifting Capacity | 250 kg |  |
| Lift Tube Sizes | 140-300 Ø | |
| Electrical Vacuum Pump | 415V 3 phase | |
| Vertical Movement (stroke) | ||
| 2.5 m lift tube [standard] | 1.7 m | |
| 4.0 m lift tube | 2.7 m | |
| Installation Height | ||
| 2.5 m lift tube | 2.9 m | |
| 4.0 m lift tube | 4.2 m | |
| Safety Factor (suction force vs lifting force) | 2.5 minimum | |
A number of accessories are available!
To help customise your Vacuhand Pro to your requirements, a number of accessories are available. These include a wide variety of suction heads (to help with all sizes and shapes), angle adaptors, swivels, control units, release valves, energy-saving devices, remote controls and more. Contact our sales team to see how we can adapt our Vacuhand Pro unit to suit your business.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Filter unit complete to suit 50mm ID hose – stainless steel |
644001-RF | ||
|
Grid for 642205 oval foot stainless |
642205-01-RF | ||
|
Suction foot for sacks oval 375x210mm Stainless Steel |
642205-RF | ||
|
VacuHand 160 top swivel 1 lug Stainless Steel |
640321-10-RF | ||
|
Tube lifter Vacuhand Pro 140 |
640714-10 | ||
|
Tube lifter Vacuhand Pro 160 |
640716-10 | ||
|
Tube lifter Vacuhand Pro 180 |
640718-10 | ||
|
Protective sock 140 diameter |
6050464 | ||
|
Protective sock 160 diameter |
6050465 | ||
|
Protective sock 180 diameter |
6050466 | ||
|
Protective sock 200 diameter |
6050467 | ||
|
Protective sock 230 diameter |
6050469 | ||
|
Protective sock 250 diameter |
6050470 | ||
|
Protective sock 300 diameter |
6050471 | ||
|
Vacuhand Pro standard control unit |
640000 | ||
|
VacuHand 160 top swivel 1 lug |
640321-10 | ||
|
VacuHand 160 top swivel 2 lug |
640321-20 | ||
|
Vacuhand Pro 140 lower adaptor |
640366 | ||
|
Vacuhand Pro 160 lower adaptor |
640367 | ||
|
Vacuhand Pro 180 lower adaptor |
640368 | ||
|
Vacuhand Pro 200 lower adaptor |
640369 | ||
|
Lift tube 140 x 4.0 m |
640461-04 | ||
|
Lift tube 140 x 2.5 m standard |
640461 | ||
|
Lift tube 160 x 4.0 m |
640471-04 | ||
|
Lift tube 160 x 2.5 m standard |
640471 | ||
|
Lift tube 180 x 4.0 m |
640481-04 | ||
|
Lift tube 180 x 2.5 m standard |
640481 | ||
|
Lift tube 200 x 4.0 m |
640491-04 | ||
|
Lift tube 200 x 2.5 m standard |
640491 | ||
|
Lift tube 230 x 4.0 m |
640499-04 | ||
|
Lift tube 230 x 2.5 m standard |
640499 | ||
|
Lift tube 250 x 2.5 m standard |
640504 | ||
|
Lift tube 300 x 2.5 m standard |
640514 | ||
|
Vacuhand Pro 140 4m lift tube / BE 3.0 kW side (G) – stainless steel |
640714-1G4A-RF | ||
|
Vacuhand Pro 140 / BE 3.0 kW side (G) – stainless steel |
640714-1GAA-RF | ||
|
Vacuhand Pro 140 / BE 3.0 kW side (G) |
640714-1GAA | ||
|
Vacuhand Pro 160 / BE 2.2 kW side (F) – stainless steel |
640716-1FAA-RF | ||
|
Vacuhand Pro 160 / BE 2.2 kW side (F) |
640716-1FAA | ||
|
Vacuhand Pro 160 / BE 3.0 kW side (G) |
640716-1GAA | ||
|
Vacuhand Pro 180 / BE 2.2 kW side (F) |
640718-1FAA | ||
|
Vacuhand Pro 180 / BE 3.0 kW side (G) |
640718-1GAA | ||
|
Vacuhand Pro 200 / BE 2.2 kW side (F) |
640720-1FAA | ||
|
Vacuhand Pro 200 / BE 3.0 kW side (G) |
640720-1GAA | ||
|
Vacuhand Pro 230 / BE 3.0 kW side (G) |
640723-1GAA | ||
|
Vacuhand Pro 250 / BE 3.0 kW side (G) |
640725-1GAA | ||
|
Vacuhand Pro 300 / BE 3.0 kW side (G) |
640730-1GAA | ||
|
Quick connection lower Vachhand Pro – stainless steel |
641001-RF | ||
|
Quick connection lower Vachhand Pro |
641001 | ||
|
Black rubber gasket for tooling |
641002 | ||
|
Cork gasket between controls and lift unit |
641003 | ||
|
Angle joint 90° |
641009 | ||
|
Suction foot 210×330 |
641706 | ||
|
Suction foot 200×290 |
641707 | ||
|
Suction foot 2x200x290 |
641711 | ||
|
Grid for 642204 oval foot SS |
642204-01-RF | ||
|
Grid for 642204 oval foot |
642204-01 | ||
|
Gasket for 642204 oval foot |
642204-03 | ||
|
Suction foot for sacks oval 280x175mm SS |
642204-RF | ||
|
Suction foot for sacks oval 280x175mm |
642204 | ||
|
Grid for 642205 oval foot |
642205-01 | ||
|
Gasket for 642205 oval foot |
642205-03 | ||
|
Suction foot for sacks oval 375x210mm |
642205 | ||
|
Grid for 642208 oval foot |
642208-01 | ||
|
Gasket for 642208 oval foot |
642208-03 | ||
|
Suction foot for sacks oval 455x260mm |
642208 | ||
|
Suction foot round Ø230 mm |
642230 | ||
|
Suction foot round Ø250 mm |
642250 | ||
|
Suction foot round Ø280 mm |
642280 | ||
|
Suction foot round 300 mm diameter – stainless steel |
642300-RF | ||
|
Suction foot round 300 mm diameter |
642300 | ||
|
Suction foot round Ø320 mm |
642320 | ||
|
Suction foot round Ø360 mm |
642360 | ||
|
Suction foot round 400 mm diameter – stainless steel |
642400-RF | ||
|
Suction foot round 400 mm diameter |
642400 | ||
|
Yoke 500 150×210 x2 |
642401-050 | ||
|
Yoke 800 150×210 x2 |
642401-080 | ||
|
Yoke 1200 150×210 x2 |
642401-120 | ||
|
Yoke 500 120×315 x2 |
642402-050 | ||
|
Yoke 800 120×315 x2 |
642402-080 | ||
|
Yoke 1200 120×315 x2 |
642402-120 | ||
|
Yoke 500 200×290 x2 |
642403-050 | ||
|
Yoke 800 200×290 x2 |
642403-080 | ||
|
Yoke 1200 200×290 x2 |
642403-120 | ||
|
Yoke fixed 500 140×200 x2 |
642408-050 | ||
|
Yoke fixed 800 140×200 x2 |
642408-080 | ||
|
Yoke fixed 1000 140×200 x2 |
642408-100 | ||
|
H-yoke 500×600 85×200 x4 |
642420-0506 | ||
|
H-yoke 800×600 85×200 x4 |
642420-0806 | ||
|
H-yoke 1200×600 85×200 x4 |
642420-1206 | ||
|
H-yoke 500×600 120×315 x4 |
642422-0506 | ||
|
H-yoke 800×600 120×315 x4 |
642422-0806 | ||
|
Suction foot H-yoke 1200x600mm fitted with 4 suction pads each 120x315mm |
642422-1206 | ||
|
H-yoke 500×600 200×290 x4 |
642423-0506 | ||
|
H-yoke 800×600 200×290 x4 |
642423-0806 | ||
|
H-yoke 1200×600 200×290 x4 |
642423-1206 | ||
|
H-yoke fixed 4x bellow Ø75 190×230 |
642425-001 | ||
|
H-yoke fixed 4x bellow Ø75 185×325 |
642425-003 | ||
|
H-yoke fixed 4x bellow Ø110 280×370 |
642425-007 | ||
|
H-yoke fixed 4x bellow Ø110 330×500 |
642425-009 | ||
|
H-yoke fixed 4x bellow Ø150 350×350 |
642425-021 | ||
|
Bottom swivel |
642501 | ||
|
Bottom swivel 4-position |
642502 | ||
|
Release valve standard |
642510 | ||
|
Release valve extended |
642511 | ||
|
Release valve to suit standard control handle Vacuhand Pro |
642520 | ||
|
Release valve to suit extended control handle Vacuhand Pro |
642521 | ||
|
Filter unit complete to suit 50mm ID hose |
644001 | ||
|
Vacuum pump BE 2.2 kW blower (F) |
660001-F22 | ||
|
Weather/dust protection cover suit pump F |
860060 | ||
|
Silencing box pump E & F |
860062 | ||
|
Silencing box pump G & H |
860065 | ||
|
Weather/dust protection pump G & H |
860066 | ||
|
Quick connection upper VH |
242100 |
