Vacuum Lifter – uniWood

The uniWood Vacuum Lifter is able to handle a variety of materials including wood panels, melamine sheets, MDF boards, chipboard, door panels, laminated boards and other similar items. The device has been specially designed to suit professional requirements and it features a range of options to suit different needs.

Featuring state-of-the-art technology, these lifters provide an innovative lifting solution integrated with the vacuum gripper. A huge advantage is the energy efficiency of these devices. When compared to other lifting solutions, like vacuum tube lifters, the uniWood requires only a fraction of the power supply to operate. A smart handling device that will also reduce your energy consumption!

The uniWood Vacuum Lifter is a complete handling system that can easily be used by a single operator. With enhanced safety, options like load monitoring and a ‘blow-off’ feature for quick release, it is a great option for cabinet makers, shopfitting, joinery, processing facilities and related industries.

This vacuum lifter boasts an incredible range with a variety of benefits and abilities.

Product Variation

Clear

Additional Information

Check out the entire range of uniWood vacuum lifters!

The uniWood Vacuum Lifter range features four core models that are suitable for a variety of applications. The systems can either lift or lift and tilt the workpiece and position them where required. View the options below.

uniWood UWL 1 – lifting only

This device is ideal for handling larger wood boards without the need for tilting. It is used on flat panels like laminated sheets and natural wood products. The uniWood comes complete with an electric hoist and additional safety features. It is shown here fitted with 99503.

Capacity – 150 kg
Lifting Speed – Dual speed 2-8 m/min
Operating Voltage – 240 V / 50 Hz
Compressed Air Required – 6 bar
Lifting Height – 2000 mm

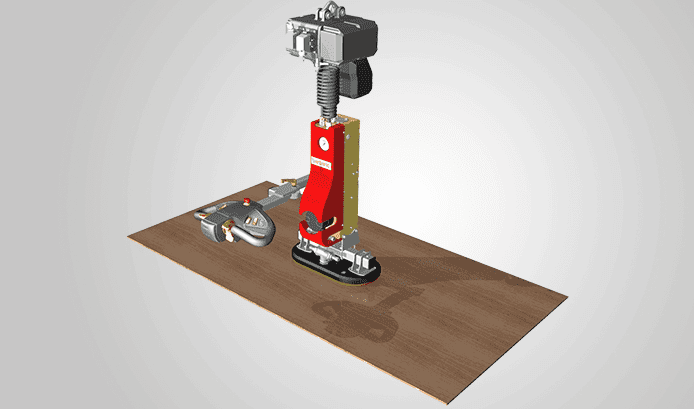

uniWood UWL 1S – lifting only

Featuring a compact body with a low overall height, the UWL 1S uniWood is a compact and versatile vacuum lifter. This option does not include a tilting function. It is perfect for fast and repetitive handling of the workpiece. Able to be operated with one hand with fast cycle times due to the integrated electric hoist.

Load Capacity – 150 kg
Lifting Height – 2000 mm
Lifting Speed – 0-10 m/min variable lifting speed
Operating Voltage – 240 V / 50 Hz
Compressed Air Required – 6 bar
Lifting Height – 2000 mm

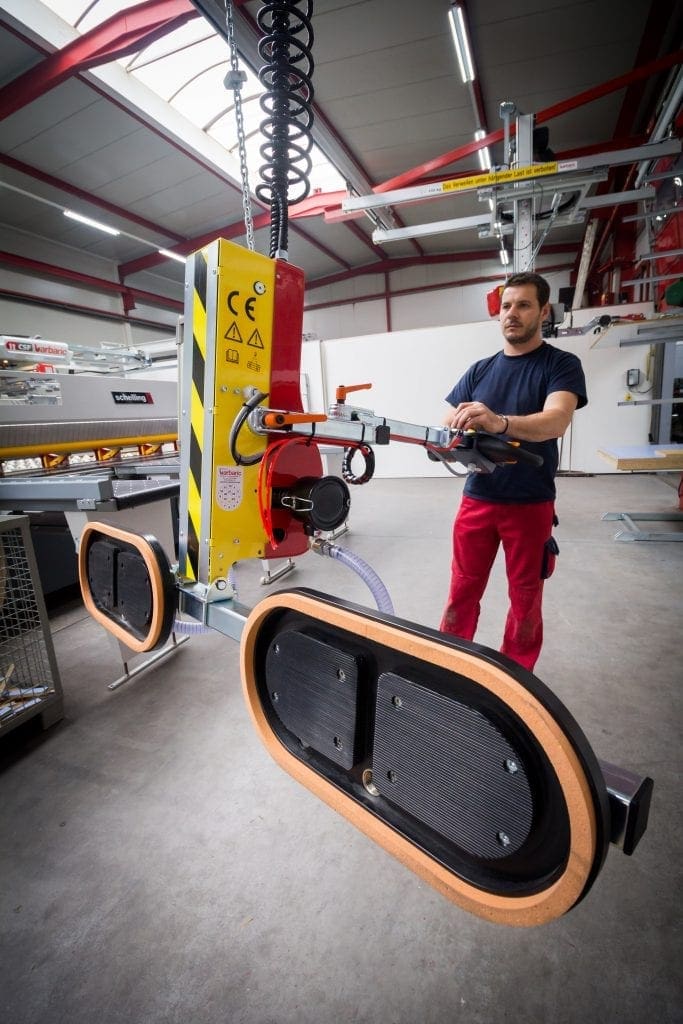

uniWood UWL 3 – lifting and tilting

This model is ideal for handling larger wood boards including laminated sheets, MDF and similar products. It can handle sheets with a maximum size of 3000 x 2100 mm. The UWL 3 uniWood also features a unique 90° tilting function actuated by the pneumatic cylinder. It comes as a complete handling system with electric hoist and additional safety features. Shown here fitted with 99503.

Load Capacity – 150 kg
Lifting Speed – Dual speed 2-8 m/min
Operating Voltage – 240 V / 50 Hz
Compressed Air Required – 6 bar
Lifting Height – 2000 mm
Tilting horizontal to vertical through 90°

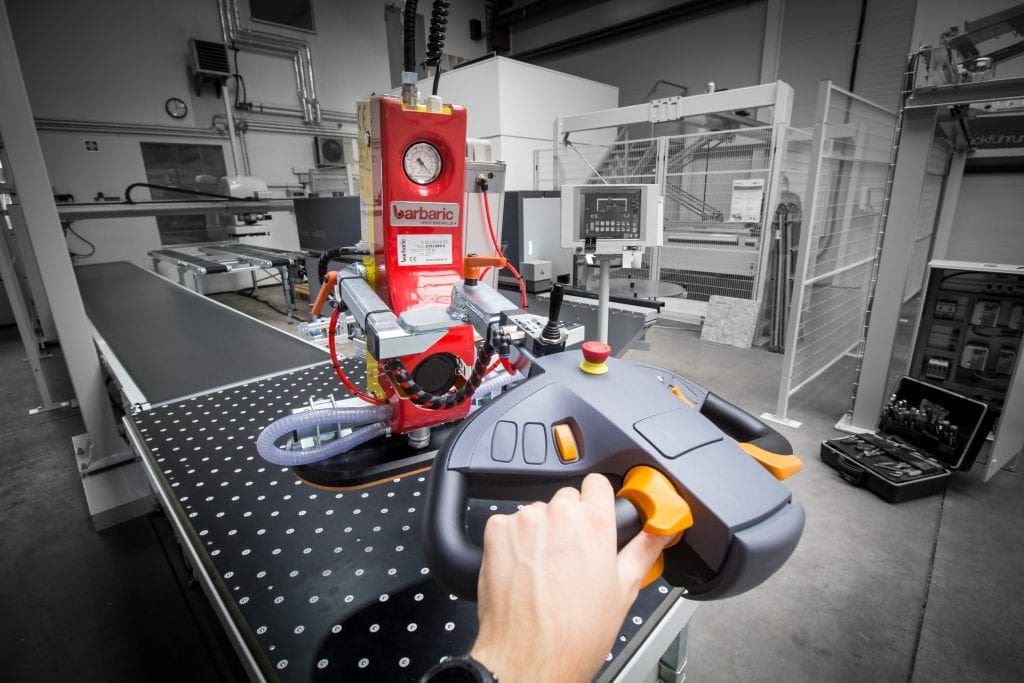

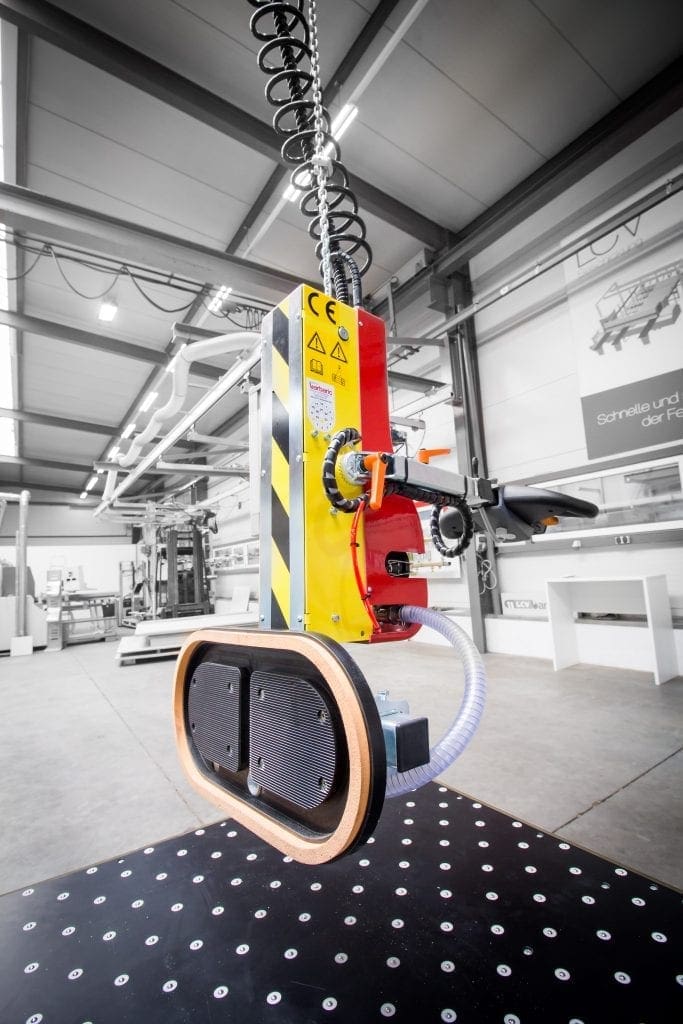

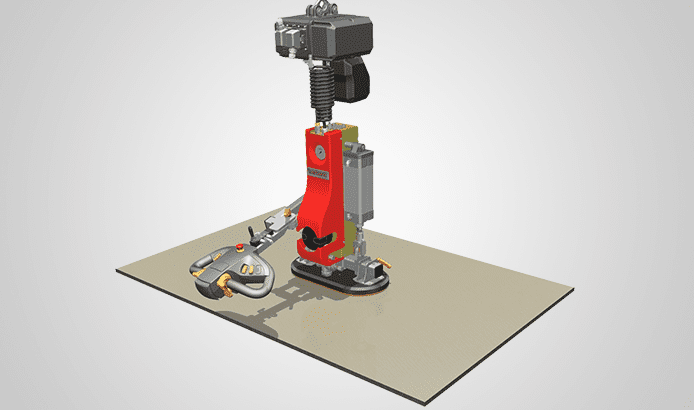

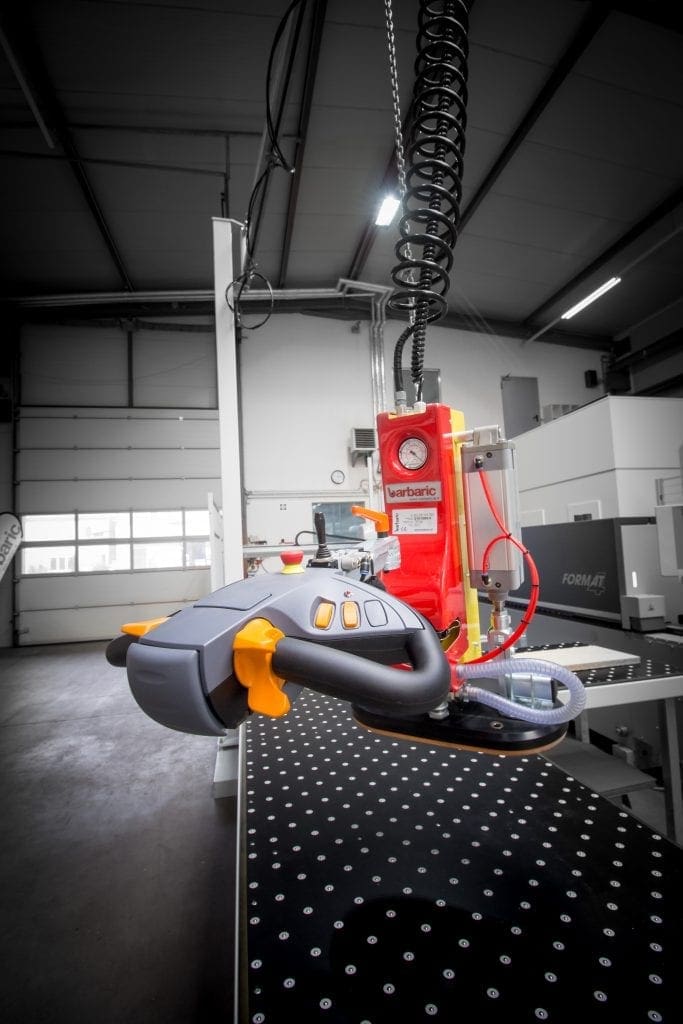

uniWood UWL 3S – lifting and tilting

The UWL 3s uniWood mini has a compact main body and low system height. It is perfect for applications requiring handling with a 90° tilting function. This system handles boards with ease and can be operated with only one hand! The integrated electric hoist ensures fast cycle times.

Load Capacity – 150 kg
Lifting Speed – 0-10 m/min variable lifting speed
Operating Voltage – 240 V / 50 Hz
Compressed Air Required – 6 bar
Lifting Height – 2000 mm
Tilting horizontal to vertical through 90°

uniWood UWL 4 – lifting, tilting and rotating

The UWL 4 uniWood is a versatile solution as it features the ability to rotate and tilt wooden boards.

Load Capacity – 250 kg
Tilting Function – 90°
Rotating Function – 200°
Operating Voltage – 240 V / 50 Hz
Lifting Speed – 0-10 m/min variable speed
Compressed Air Required – 6 bar

See the uniWood Vacuum Lifter (specifically the UWL 3S model) in action below!

Learn more about the range!

uniWood Vacuum Lifters are sophisticated and intelligent lifting devices. View more of their amazing products and find the perfect solution for your organisation.

Product Variations

Description	Product Code
UWL 1S uniWood 150 kg Horizontal transport of boards Compact lightweight body with low headroom Single 500×250 suction cup with sponge gasket	99101	Add to Quote Request
UWL 3 uniWood mini 150 kg Handling and tilting of flat boards Pneumatic tilting range of 90 ° Single 500×250 suction cup with sponge gasket	99103	Add to Quote Request
UWL 4 uniWood 250 kg Handling tilting and rotating of wood boards Electric rotation mechanism 200 degrees Pneumatic tilting 90 degrees Two 500×250 suction cups adjustable on 1200mm beam	99111	Add to Quote Request
Option: suction beam for thin boards 150 kg Four 270mm suctions cups adjustable on 1500x800mm beams Suitable for non-porous materials	99500	Add to Quote Request
Option: Cross beam for doors with glass insert section 4 oval suction cups 377 x 81 mm adjustable on 1500 x 1200 mm beams	99501	Add to Quote Request
Option: Cross beam for iron sheets and acrylic glass 8 bellow suction cups 115 mm adjustable on 2500 x 1200 mm beams The outer suction cups can be isolated	99502	Add to Quote Request
Option: cross beam for porous materials 250 kg Two oval suction cups 500×250 adjustable on 1500mm beam Includes upgraded vacuum pump	99503	Add to Quote Request
