Bollards U Bar

Single Rail U Bars

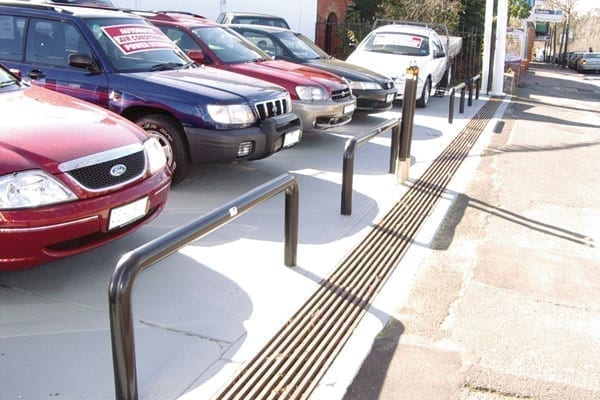

‘U’ Bars are ideal where independent bollards do not provide sufficient protection. Our large U Bar Bollards are generally used as vehicle barriers, typically seen around car yards etc.

They are also an effective method of segregating pedestrian and vehicle traffic. Available in either surface mount or in-ground designs they come in galvanised finish or safety yellow.

Product Variation

Clear

Additional Information

Specifications:
Material: Steel tube 90mm diameter with 5mm wall thickness
Finish: Galvanised or yellow powder coat
Height: 700mm
Length: 1000, 1500 and 2000mm
Installation: Surface mounted or embedded into the ground

Double Rail U Bars

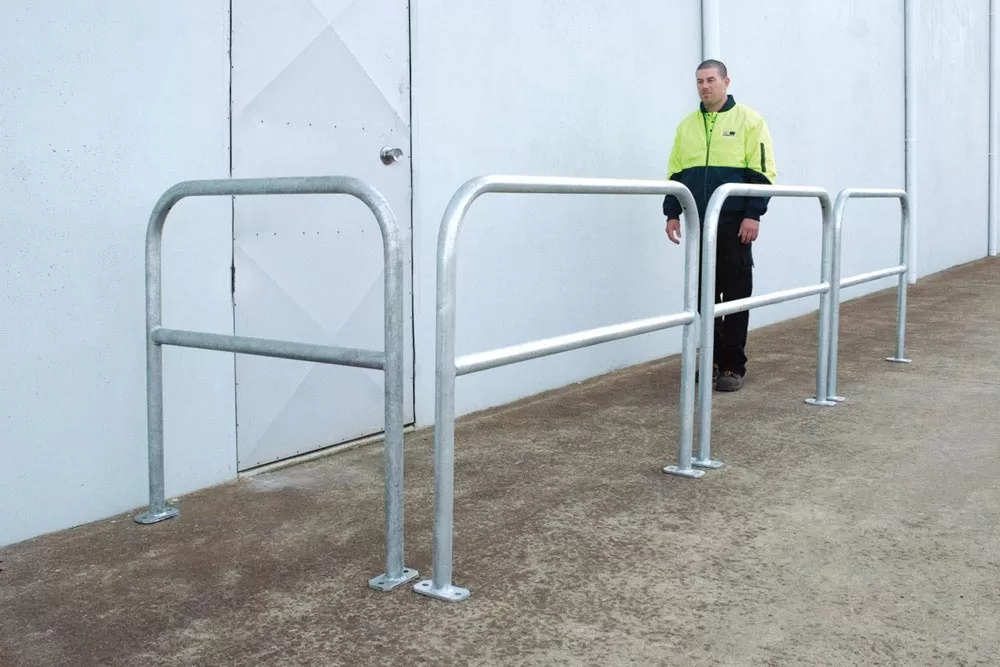

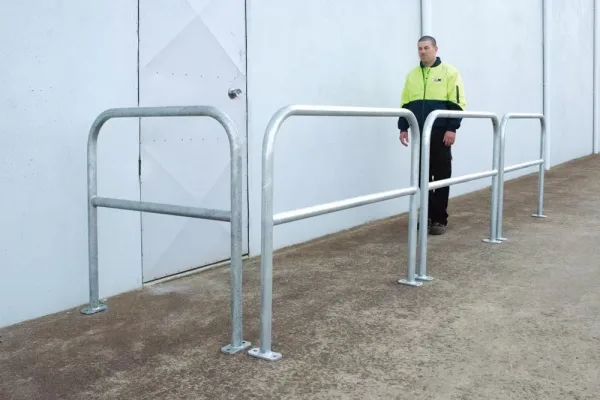

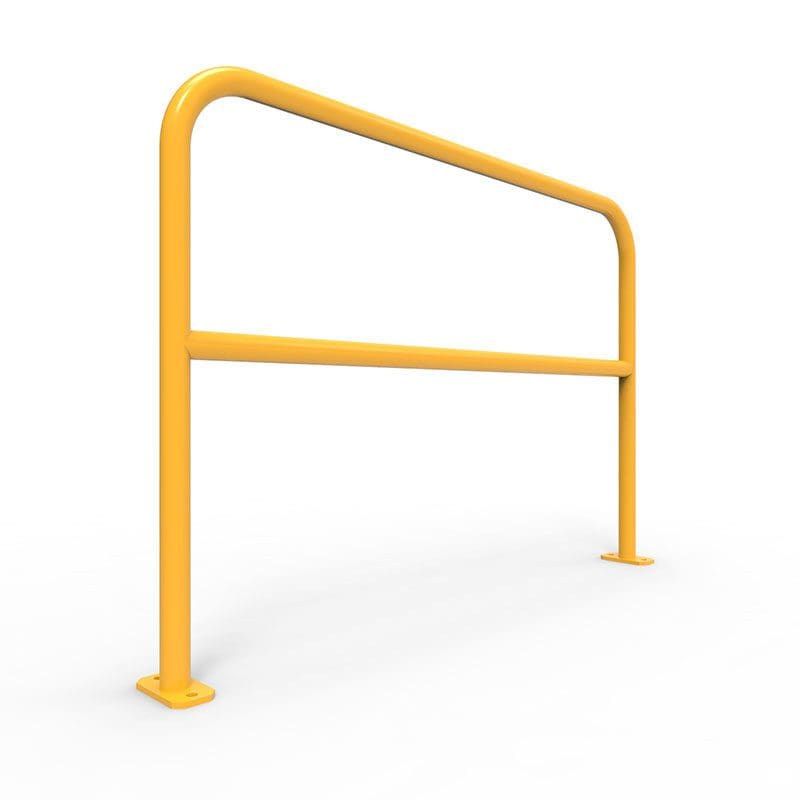

A modular one-piece design U-bar barrier with fully welded knee rail. Suitable for pedestrian barriers at crossing points or traffic management in and around factory/warehouse areas.

Specifications:

Material: Steel tube 48mm diameter with 3mm wall thickness
Finish: Galvanised or yellow powder coat
Height: 1040mm with a fully welded knee rail at 580mm high.
Length: 1000, 1500 and 2000mm
Installation: Surface mounted or embedded into the ground

In-ground models are complete with welded concrete starter bars. Surface mount models have fully welded base plates and include fixings.

Product Variations

Description	Product Code	Price (excl. GST)
U-Bar Heavy Duty 1m Below Ground – Galvanised and Powder Coated	UB100BG	$699.00	Add to Quote Request
U-Bar Heavy Duty 1m Surface Mounted – Galvanised and Powder Coated	UB100SM	$627.00	Add to Quote Request
U-Bar Heavy Duty 1.5m Below Ground – Galvanised and Powder Coated	UB150BG	$829.00	Add to Quote Request
U-Bar Heavy Duty 1.5m Surface Mounted – Galvanised and Powder Coated	UB150SM	$704.00	Add to Quote Request
U-Bar Heavy Duty 2m Below Ground – Galvanised and Powder Coated	UB200BG	$922.00	Add to Quote Request
U-Bar Heavy Duty 2m Surface Mounted – Galvanised and Powder Coated	UB200SM	$795.00	Add to Quote Request
U-Bar Heavy Duty 1m Below Ground – Galvanised	UB100BG-G	$540.00	Add to Quote Request
U-Bar Heavy Duty 1m Surface Mounted – Galvanised	UB100SM-G	$517.00	Add to Quote Request
U-Bar Heavy Duty 1.5m Below Ground – Galvanised	UB150BG-G	$615.00	Add to Quote Request
U-Bar Heavy Duty 1.5m Surface Mounted – Galvanised	UB150SM-G	$570.00	Add to Quote Request
U-Bar Heavy Duty 2m Below Ground – Galvanised	UB200BG-G	$677.00	Add to Quote Request
U-Bar Heavy Duty 2m Surface Mounted – Galvanised	UB200SM-G	$637.00	Add to Quote Request
U-Bar Double Rail 1m Below Ground – Galvanised	UBD100BG-G	$250.00	Add to Quote Request
U-Bar Double Rail 1m Below Ground – Galvanised and Powder Coated	UBD100BG	$375.00	Add to Quote Request
U-Bar Double Rail 1m Surface Mounted – Galvanised	UBD100SM-G	$249.00	Add to Quote Request
U-Bar Double Rail 1m Surface Mounted – Galvanised and Powder Coated	UBD100SM	$324.00	Add to Quote Request
U-Bar Double Rail 1.5m Below Ground – Galvanised	UBD150BG-G	$295.00	Add to Quote Request
U-Bar Double Rail 1.5m Below Ground – Galvanised and Powder Coated	UBD150BG	$457.00	Add to Quote Request
U-Bar Double Rail 1.5m Surface Mounted – Galvanised	UBD150SM-G	$294.00	Add to Quote Request
U-Bar Double Rail 1.5m Surface Mounted – Galvanised and Powder Coated	UBD150SM	$392.00	Add to Quote Request
U-Bar Double Rail 2m Below Ground – Galvanised	UBD200BG-G	$324.00	Add to Quote Request
U-Bar Double Rail 2m Below Ground – Galvanised and Powder Coated	UBD200BG	$549.00	Add to Quote Request
U-Bar Double Rail 2m Surface Mounted – Galvanised and Powder Coated	UBD200SM	$462.00	Add to Quote Request
U-Bar Double Rail 2m Surface Mounted – Galvanised	UBD200SM-G	$317.00	Add to Quote Request
