Tipping Bins Forklift Mounted Lever Release

MTU Tipping Bins Lever Release plus pull cord tipping mechanism

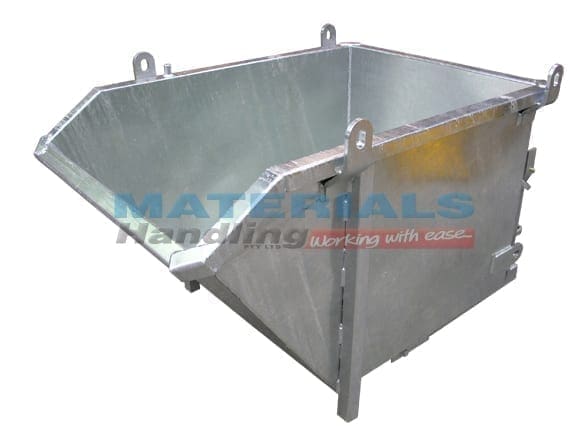

MTU Tipping Bins Lever Release opt crane lugs

The MTU range of Tipping Bins provide a heavy duty option for waste storage and handling. They feature a low profile design, which adds to their versatility when used in confined spaces. Their pouring lip and smooth edges ensure the Lever Release Tipping Bins are suitable for food industry applications as well.

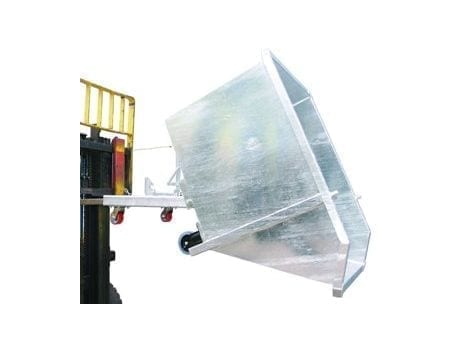

When using the bin, the tipping release mechanism is activated by a forklift operator. Tipping Bins spring to life when the pull cord is drawn, from the drivers seat. Having a forward centre of gravity allows the bin to tip. After emptying, the bin can be lowered and closed by driving backwards.

Tipping Bins also feature a custom built shock absorber, fork pockets and safety chains. Optional crane lugs, wheel kits, drain valves and strainers are available.

Product Variation

Clear

Additional Information

Tipping Bins are great for waste disposal, storage and food industry applications!

Our Tipping Bins provide a unique solution to bulk handling. With shock absorbers that prevent impact forces from being transmitted to a forklift driver, they are safe, durable and easy to use during the tipping cycle. Fork pockets and safety chains allow for quick connection to and from a forklift. Their low-profile design suits a variety of applications and makes the bin easy to clean and maintain. Manufactured from 3mm plate, the bins have a galvanised finish as standard. Optional painted finishes are available.

Crane lugs

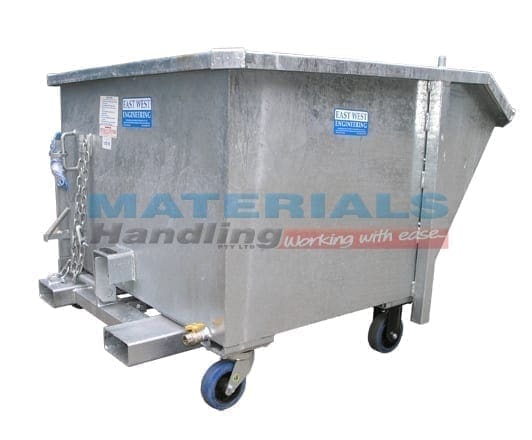

Cast iron or rubber wheels
Drain cocks & strainers

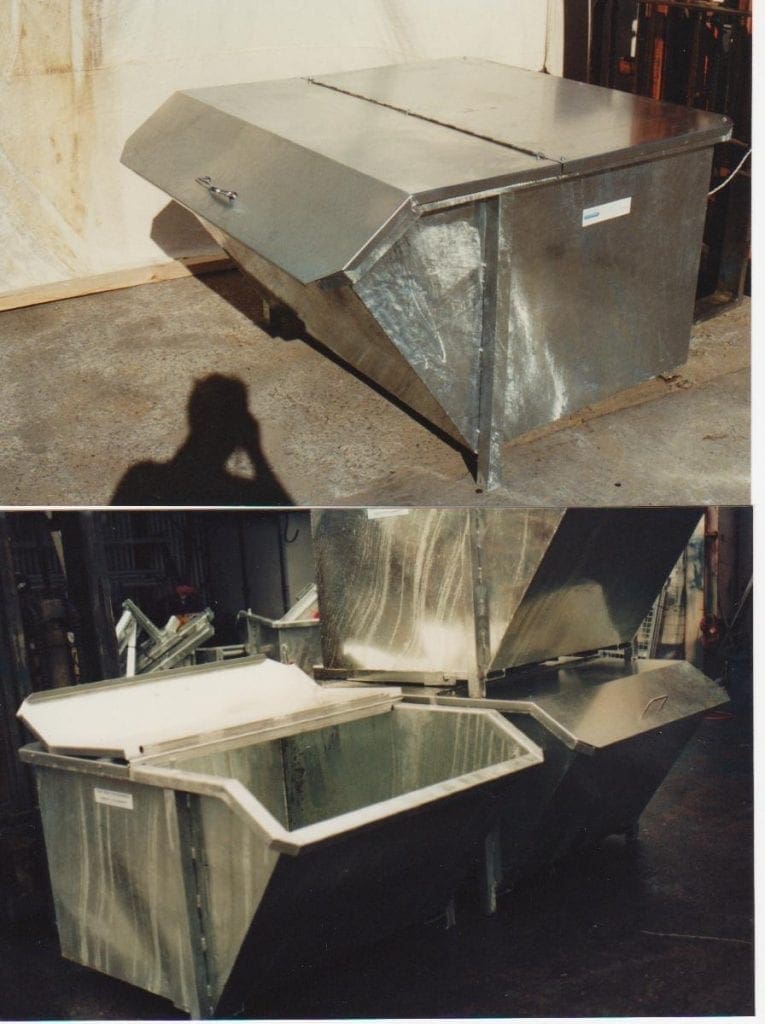

Lids manufactured from 1.6mm sheet
Stainless steel or painted finish

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
Optional castor kit: Two fixed two swivel castors with brakes 150mm diameter polyurethane	SC60006-004	$300.00	Add to Quote Request
Optional castor kit: Two fixed two swivel castors with brakes	SC60011-005	$300.00	Add to Quote Request
Volume 1.0 cubic metre Weight 215kg Dimensions (LxWxH) 1300x1450x1000 SWL 700kg	MTU12P		Add to Quote Request
Volume 0.5 cubic metre Weight 185kg Dimensions (LxWxH) 700x1450x1000 SWL 700kg	MTU6	$3,630.00	Add to Quote Request
Volume 0.75 cubic metre Weight 200kg Dimensions (LxWxH) 1000x1450x1000 SWL 700kg	MTU9	$3,730.00	Add to Quote Request
Volume 1.0 cubic metre Weight 215kg Dimensions (LxWxH) 1300x1450x1000 SWL 700kg	MTU12	$4,130.00	Add to Quote Request
Volume 1.25 cubic metre Weight 240kg Dimensions (LxWxH) 1600x1450x1000 SWL 1000kg	MTU15	$4,310.00	Add to Quote Request
Volume 1.5 cubic metre Weight 260kg Dimensions (LxWxH) 1900x1450x1000 SWL 1000kg	MTU18	$4,740.00	Add to Quote Request
