Tipping Bins Forklift Mounted Self Dumping
+ Add to Quote Request
- Rollover action

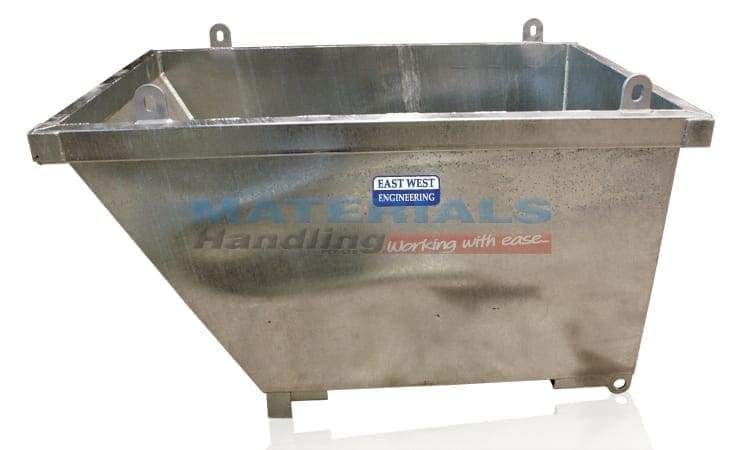

The MWFH range of Self Dumping Bins provides an economical answer to collecting and disposing industrial waste. They are suited to forklifts and overhead cranes, and safely store materials. Manufactured from 3 mm galvanised plate, the bins are strong, durable, and offer a range of workplace benefits.

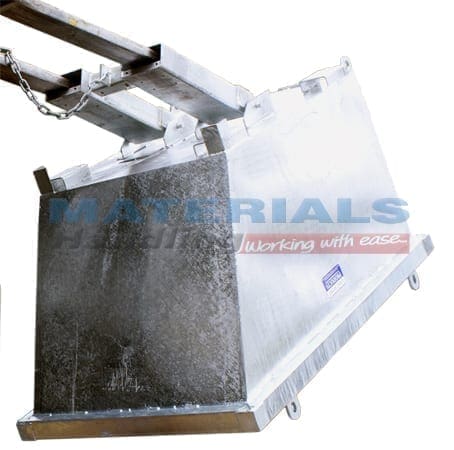

When using Self Dumping Bins, forklift tines allow operators to transport them with ease. They are positioned fully under the bin. To empty, the forklift driver catches the bin on the edge of a bulk container and reverses the forklift. When the tines clear the pivot point of the bin, raise the forks to completely discharge contents.
Self Dumping Bins feature reinforced edging, crane lugs and have a low profile for use in confined spaces. They have a Safe Working Load (SWL) of 1500 kg.
Additional Information
Self Dumping Bins provide a great waste and storage solution!

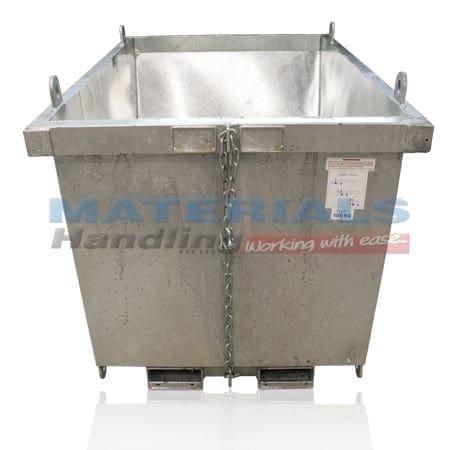

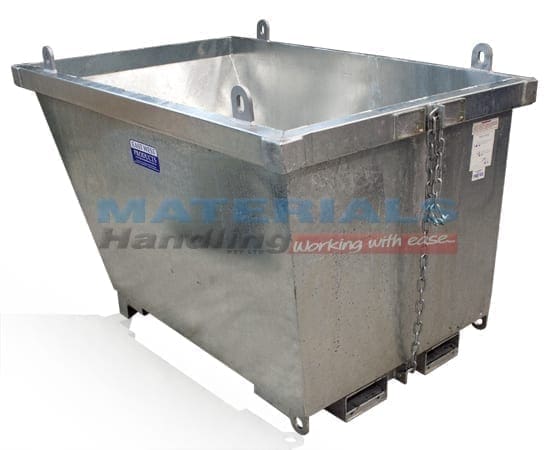

Our bins are supplied standard with 4 crane lugs and upending lugs. Their ‘self dumping’ mechanism is completely operated by a forklift driver, who safely activates the tipping cycle from their seat. Each bin is fitted with a removable drain plug, features a low profile design, fork pockets and has a safety chain for quick forklift connection. Optional wheel kits are also available (2 fixed, 2 swivel) to attach to the bin to make it easily movable around a workplace.
Overall Self Dumping Bins Specifications:
- Working Load Limit (WLL) – 1500 kg
- Fork Pocket size: 185 x 70 mm
- Fitted with removable drain plug as standard
- Galvanised finish
- 3 mm plate and reinforced edging for demanding applications
- Wheels optional
| Model | Working Load Limit (WLL) | Capacity (m³) | Bin Dimensions L x W x H (mm) |
Fork Pocket Size (mm) | Fork Pocket Centres (mm) | Unit Weight (kg) |
| MWFH5X74 | 1500 | 0.35 | 1510 x 740 x 630 | 185 x 70 | 310 | 130 |
| MWFH9X74 | 1500 | 0.68 | 1715 x 740 x 980 | 185 x 70 | 310 | 165 |
| MWFH5X11 | 1500 | 0.59 | 1510 x 1150 x 630 | 185 x 70 | 695 | 155 |
| MWFH9X11 | 1500 | 1.1 | 1715 x 1150 x 980 | 185 x 70 | 695 | 200 |
| MWFH9X20 | 1500 | 2.1 | 1715 x 1986 x 980 | 185 x 70 | 695 | 260 |
Need a different Storage Bin?
Continue browsing our entire range of Forklift Mounted Drum Lifting to find the right solution for your workplace.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Optional castor kit: |
SC60011-005 | $300.00 | |
|
Optional castor kit: |
SC60006-004 | $300.00 | |
|
Forklift Tipping Bin- Self Dumping |
MWFH5X74 | $1,580.00 | |
|
Forklift Tipping Bin- Self Dumping |
MWFH9X74 | $1,870.00 | |
|
Forklift Tipping Bin- Self Dumping |
MWFH5X11 | $1,800.00 | |
|
Forklift Tipping Bin- Self Dumping |
MWFH9X11 | $2,220.00 | |
|
Forklift Tipping Bin- Self Dumping |
MWFH9X20 | $2,860.00 |
