Vacuum Lifter – batteryLifter

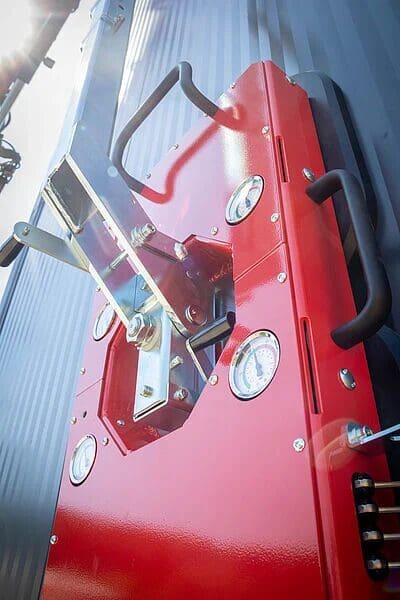

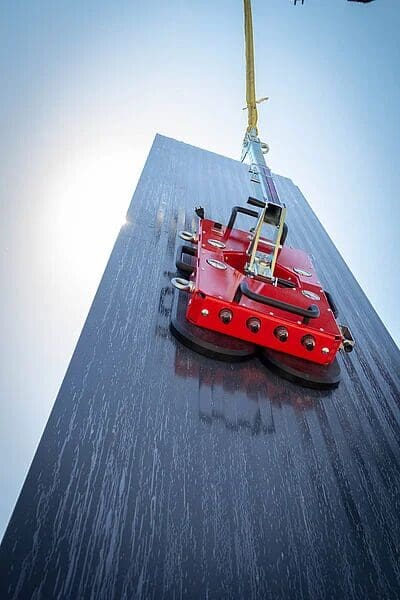

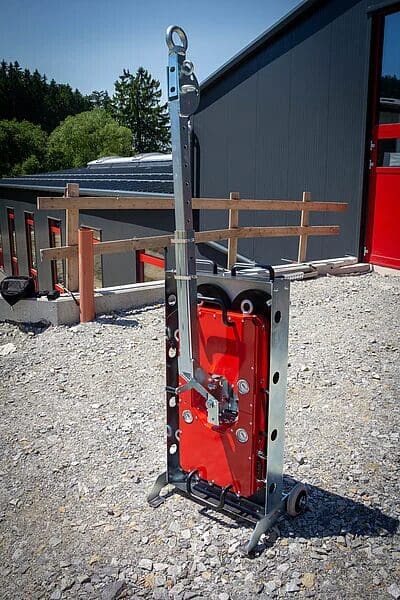

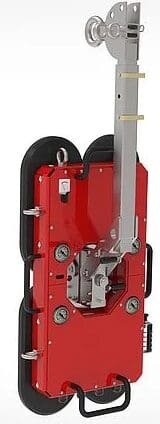

The CSL Type Z is our all-rounder vacuum handling device. Panels can be moved not only vertically but also horizontally. Fitted with four-circuit vacuum technology to ensure the highest possible safety on the construction site.

The suction cups are suitable for both flat and textured surfaces. The built-in double battery system ensures a long operation and provides special safety due to the redundant design of the batteries.

• Capacity 500 kg
• Universal suction cups for structured and smooth surfaces
• Special ergonomics: several handles allow easy handling
• Double battery system (up to 200 suction processes)
• Horizontal and vertical transport possible (rotation and tilt function)
• Low weight due to aluminium construction
• Four vacuum gauges and a safety horn for pressure monitoring
• Water separators ensure safe use even in humid conditions

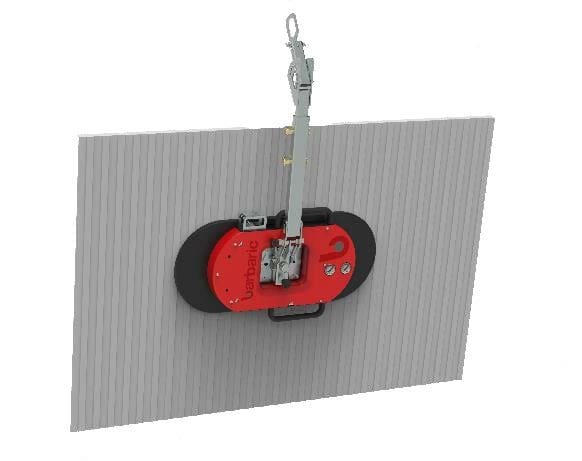

The CSL Type O is our universal lifter with a compact design. Panels can be moved not only vertically but also horizontally. The suction cup design combines two suction cups in one vacuum unit and thus enables ergonomics and safety. Fitted with a two-circuit vacuum pump system ensures the highest possible safety on the construction site.

The suction cups are suitable for both flat and textured surfaces. The built-in double battery system ensures a long operation and provides special safety due to the redundant design of the batteries.

• Capacity 250 kg
• Innovative suction cup design with two vacuum chambers
• Universally applicable sealing lip for structured and flat surfaces
• Special ergonomics: several handles allow easy handling
• Modern dual battery system
• Horizontal and vertical transport possible (rotation and tilt function)
• Low weight due to aluminium construction
• Two vacuum gauges and a safety signal-horn for pressure monitoring

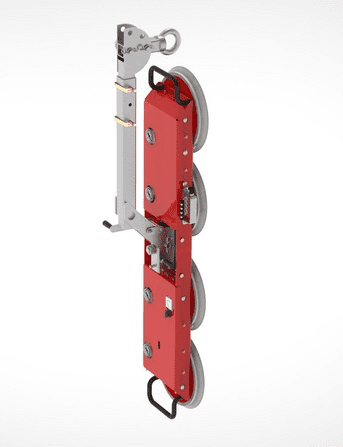

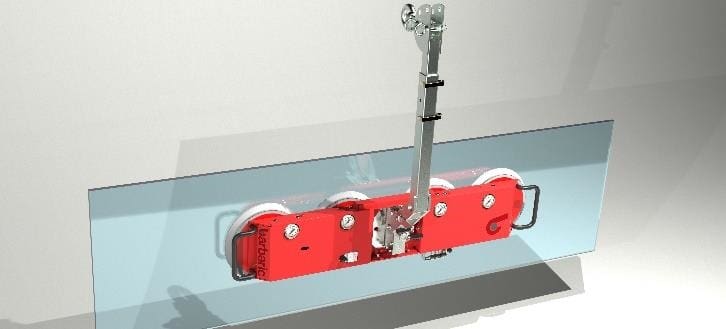

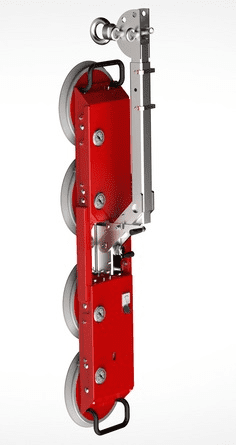

The CSL Type I is the optimal solution for the handling of long glass panels with flat surfaces. Panels can be moved not only vertically but also horizontally.

• Capacity 500 kg
• Suitable for vertical and horizontal transport of flat glass
• Special arrangement of suction cups for the handling of long and narrow glass panels
• Highest possible safety through four-circuit technology
• Dual-battery system for long operating time (up to 200 suction processes)
• Low weight due to aluminium construction
• Four vacuum gauges and a safety signal-horn for pressure monitoring
• Rotation function 360° horizontally
• Tilting function regulated continuously up to 90° vertically
• Minimal size of glass 1500 mm x 360 mm

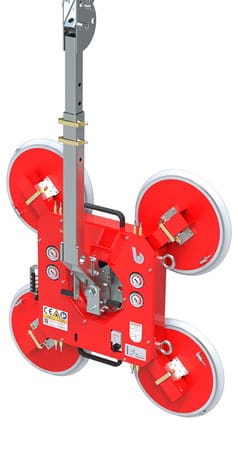

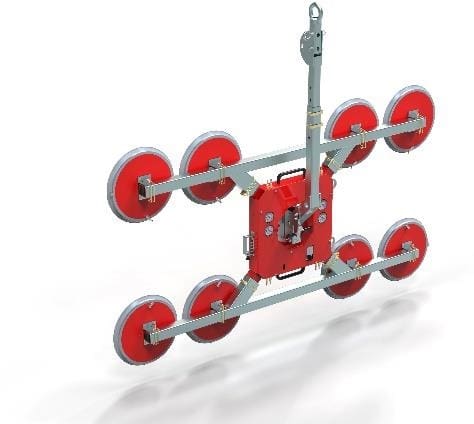

Suitable for vertical and horizontal transport of flat glass on site. 360° rotation range, tilting range 90° with locking mechanism in different positions. CSL Type X is equipped with a telescopic and removable arm. Without the suspension arm, the lifter has a compact size.

When used with the extension arms, the body can easily be reconfigured, making this a versatile vacuum lifter. An optional beam for working loads of 1000kg is available.

• Capacity 500 kg (1000 kg optional)
• Dual battery system for up to 200 suction processes
• Four suction cups with a diameter of 420mm, optional configuration with additionally 4 suction cups
• Four-circuit technology for highest possible safety
• Minimum suction time due to high suction capacity of the pumps
• Double battery system for long operating time (up to 200 suction processes)
• Four vacuum gauges and a safety signal-horn for pressure monitoring
• Rotation mechanism 360° horizontal
• Variable tilting mechanism up to 90° vertically

The BAT 1M enables flexible lifting of workpieces for indoor use at the overhead crane. The compact design provides effortless lifting of workpieces with different surfaces. Parts can be handled not only vertically but also horizontally.

• Capacity 125 kg
• Special ergonomics: several handles allow easy handling
• Horizontal and vertical transport possible (tilt function)
• Low weight due to aluminium construction
• Pressure gauges and a safety signal-horn for pressure monitoring
• Particularly compact design allows effortless handling
• Modern battery system with lithium-ion technology
• Long operating time with one battery charge (up to 1000 suction processes)

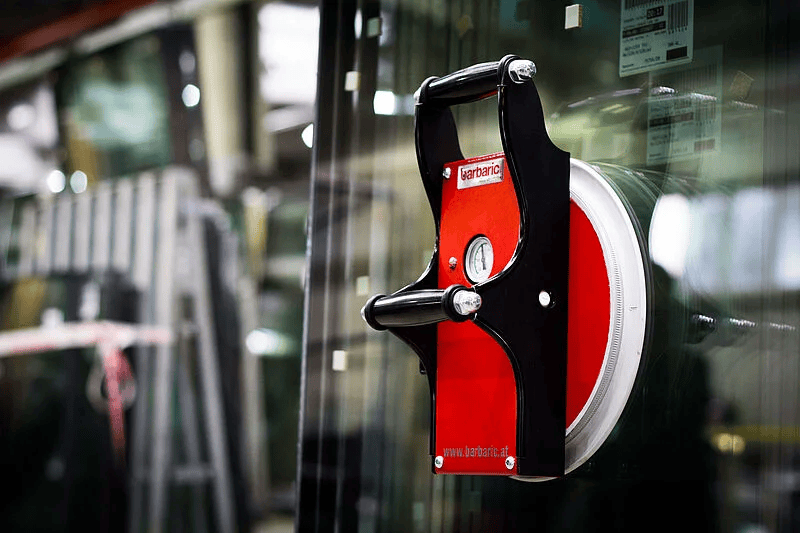

This compact device has a lithium battery to generate a fast vacuum while maintaining a very low unit mass of 3kg. This is designed to be a versatile tool. It can be partnered with the EZL Roll device for transport around the worksite or fitted with the EZL iso, a bracket that supports the lower edge of the workpiece for added security.

• Fast suction time ~2 seconds
• Suction cup: 270 mm diameter
• Dual battery system with lithium-ion technology
• Battery charger included
• Load Capacity – 100 kg
• Lightweight device: weight 3 kg

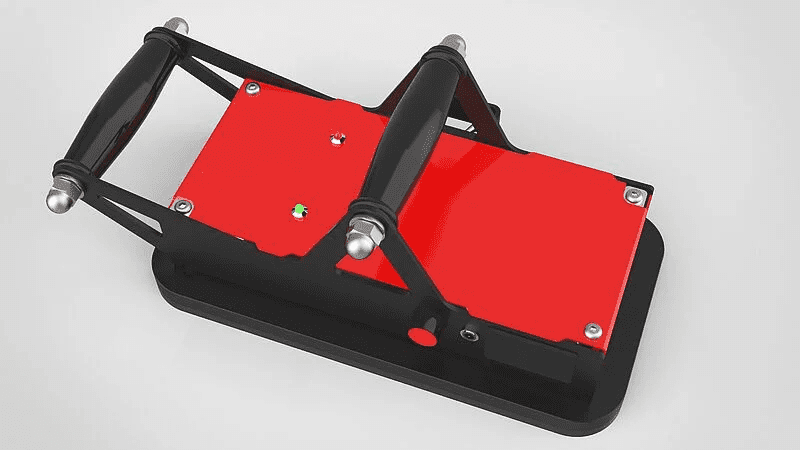

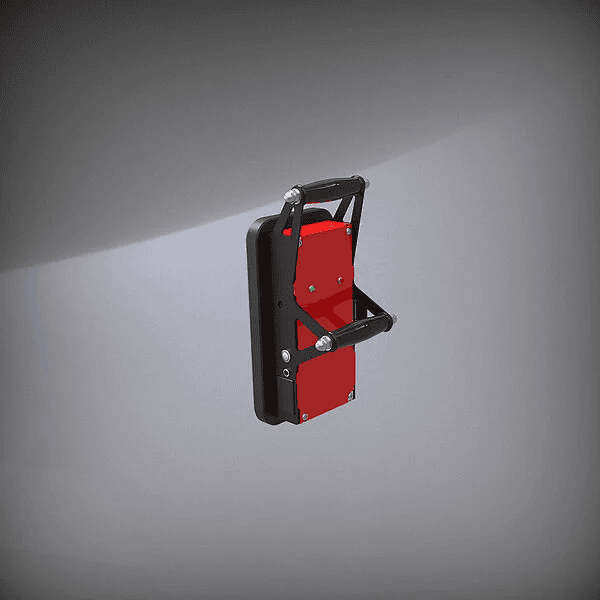

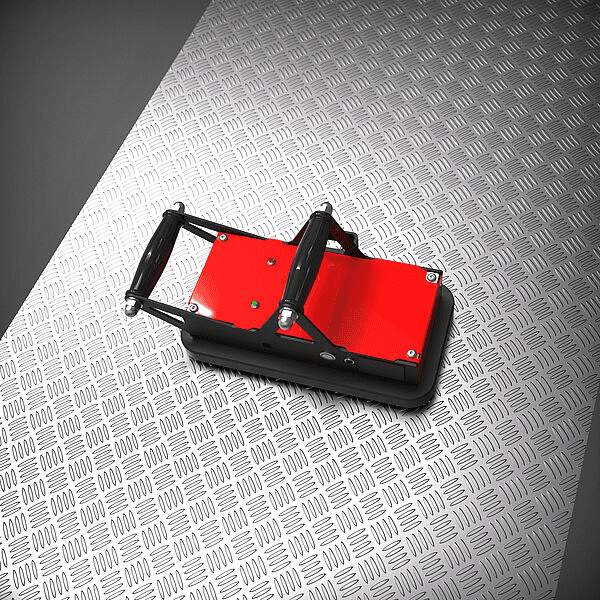

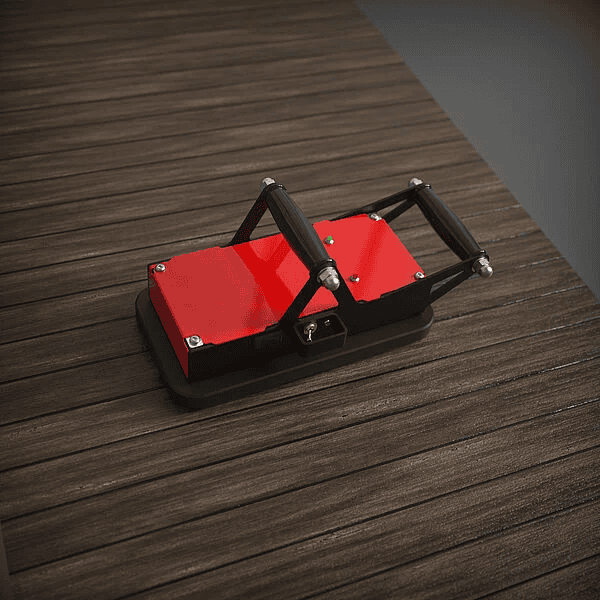

The EasyLifter Mini U is designed for both textured and smooth surfaces. Because of the compact design, EasyLifter Mini U can be used for a wide range of applications: Glass, windows, furniture, building materials, stone slabs, and much more.

• Capacity 80 kg
• Dual-battery system with lithium-ion technology
• Long operating time with one battery charge
• Vacuum monitoring system
• Battery-powered vacuum pump
• Lightweight construction – weight approx. 3 kg

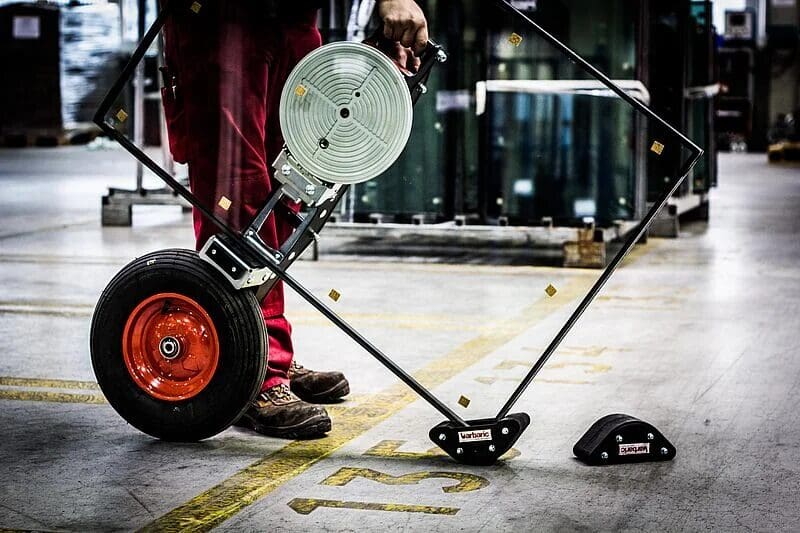

The EZL Roll adapter can be connected with the EasyLifter EZL Mini. The pneumatic wheel can also be moved over uneven ground.

Special protectors facilitate rotation of glass plates from the floor. The corners of the plates are protected to prevent damage during handling.

• Working load: max. 200 kg
• Battery operation of up to 300 suction processes
• Vacuum monitoring system
• Battery-powered vacuum pump
• Lightweight construction – 3 kg
