Tipping Bins Forklift Mounted and Crane Lifting Roll Over

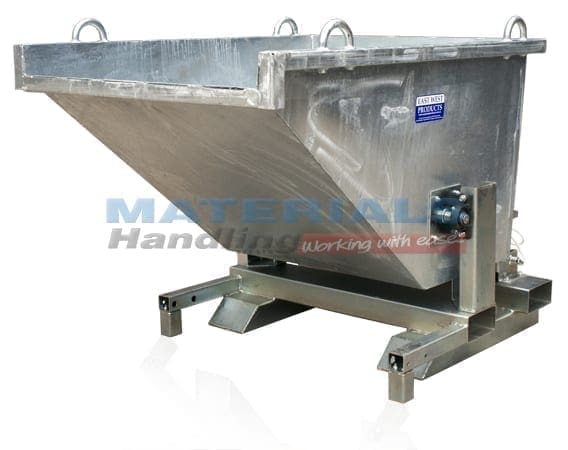

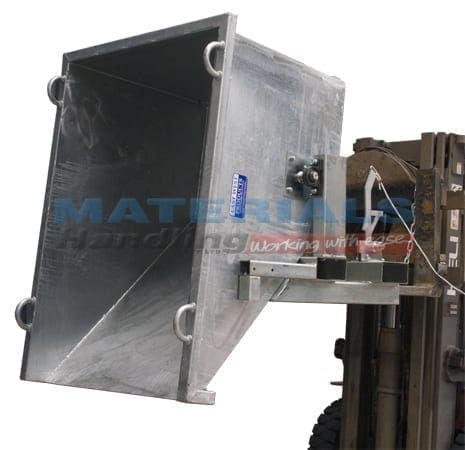

The MWRF ROLL OVER FORKLIFT BIN has been designed for a even tipping action with negligible impact during pour out. Side bearings prevent the bin being dislodged during tipping as is frequent with the roll over type bins. The cut away front design makes this bin ideal for tipping liquids. The release device is activated by the forklift operator pulling the cord from the driver’s seat. Four-way fork pockets also allows entry for sideways tipping action as well as forward tip. Crane lugs and drain plug are fitted as standard. The overall dimensions L x W x H are: 1690 x 1156 x 1238mm

• Pocket size 185 x 65mm

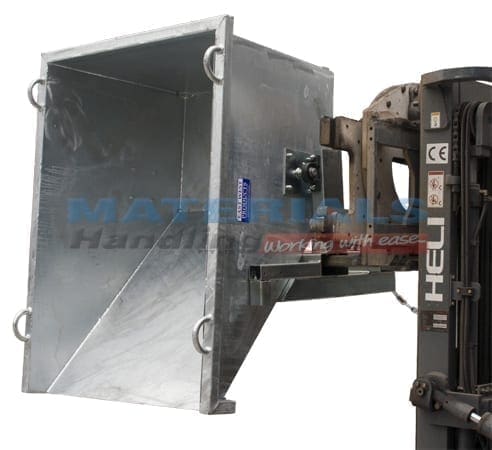

• Pocket Centres – 850mm
• Working Load Limit (WLL) – 1500kg
• Unit Weight – 235kg
• Volume Capacity – 0.77m³
• HCG 605mm • VCG 415mm
• Zinc finish
