Lifting Cages – Rigging Storage
+ Add to Quote Request

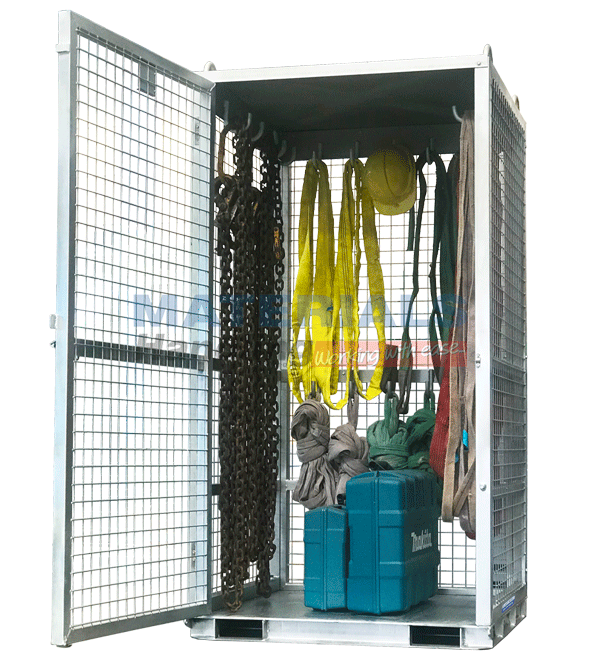

MCNGC10 Rigging Storage Cage- Fill the Rigging Storage Cage with valuable rigging equipment.

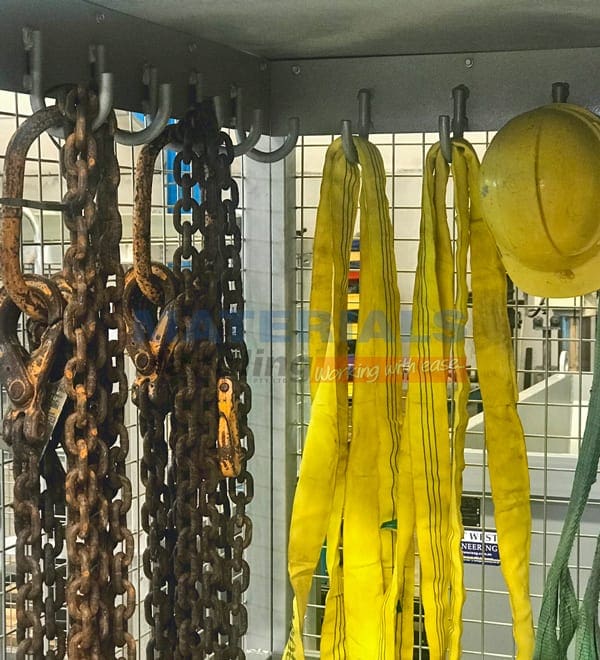

- Hooks are provided for hanging.
The Rigging Storage Cage is a secure storage unit that protects valuable items. Designed especially for rigging equipment, it suitably stores chains, slings, shackles, hooks and clamps. When these items are not in use, they can be hung up and out of the way. This protects them from potential hazards that may compromise the integrity of the lifting equipment.
Each cage is fully enclosed with a sheet metal roof that ensures the safety of all items. They are fitted with 4-point crane lifting lugs and forklift pockets, which allows them to be transported to and from a worksite. The cage also has a lockable gate for restricted access and to provide extra security against theft.
The MCNGC10 has a Working Load Limit (WLL) of 750 kg and is supplied with 20 hanging hooks.
Additional Information
Rigging Storage Cage has been designed to store and transport equipment!

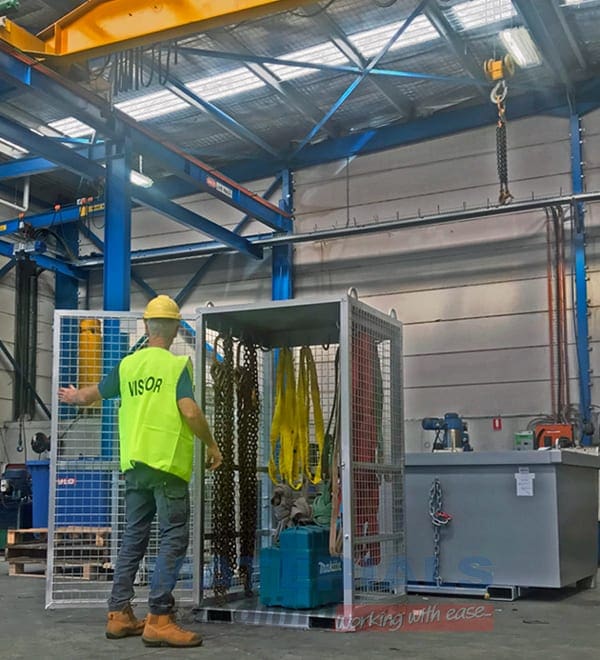

Ideal for building sites and mines, this great storage solution helps prevent damage by protecting your lifting and rigging equipment against the elements. The cage is fully enclosed with mesh sides and a sheet metal roof. Additionally, it is equipped with a lockable hinged gated that opens 180° and lifting lugs/forklift pockets for easy transportation around a worksite. The cage has a heavy-duty zinc-plated finish.
Features:
- A secure storage unit that has been designed to store and transport rigging equipment (like chains, slings, shackles, hooks and clamps).
- Protects lifting equipment against hazard or damage that may compromise the integrity and life of valuable components.
- Fully enclosed with mesh sides and roof sheeting provide protection.
- Has a lockable gate for extra security against theft, with a 180° opening.
- Heavy-duty hooks are provided.
- Fitted with overhead lifting points and fork pockets for easy transportation.
- Chain anchor plate on sidewalls provides the option of passing and anchoring chain in front of the taller riggings and gears for additional safety.
- Zinc plated finish.
Rigging Storage Cage MCNG10 Specifications:
- Working Load Limit (WLL) – 750 kg
- Unit Weight – 175 kg
- Hanging Hooks – 20
- Dimensions (mm) – 1030 x 1030 x 1928
- Internal Clearance (mm) – 930 x 930 x 1815
- Pocket Size – 165 x 65 mm
- Pocket Centres – 665 mm
- Horizontal Centre of Gravity – 515 mm
- Vertical Centre of Gravity – 816 mm

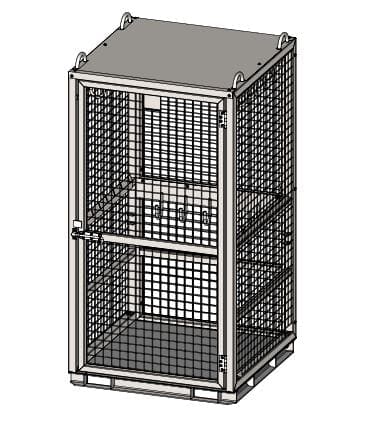

Rigging Storage Cage Drawing
The cage is supplied flat-packed to minimise shipping costs. To receive the cage fully assembled, select model MCNG10A.
Looking for something else?
View our solutions for Rigging Equipment.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
|
Rigging Storage Cage (flatpack) |
MCNGC10 | $1,940.00 | |
|
Rigging Storage Cage (assembled) |
MCNGC10A | $2,040.00 |
