Handrails Removable Safety U-Bar

Additional Information

Safety rails that are quick to install!

You can easily ensure the safety and protection of your workers, visitors, and building assets with our Removable U-Bar Rails. Their modular design complies with Australian Standards and offers maximum design flexibility. This means that you can organise them however you like in your workplace.

U-Bar Rails are also highly durable due to their heavy steel construction. Their excellent visibility is ensured by a powder-coated safety yellow finish. Depending on your working needs, single or double socket cast floor shoes are available. Our Safety U-Bar Rails may also be readily removed and replaced if necessary when needed.

Features:

• Protects building assets and helps to segregate traffic from pedestrians.
• Modular design allows flexibility in any workplace.
• Mount as a standalone or continuous rail.
• Heavy steel construction ensures durability and strength.
• Rails are finished in a powder-coated safety yellow for high visibility.
• Cast floor shoes are available, either a single or double socket.
• Handrail and knee rail spacings comply with AS1657:2013.
• Safety Rails can be quickly removed and replaced if necessary.

Specifications:

• Operation – Rails plug into floor mounted sockets
• Construction – Powder-coated steel rails with cast steel floor sockets
• Handrail height – 1050 mm
• Knee rail height – 530 mm
• Panel lengths – 1220 mm, 1525 mm or 1830 mm
• Panel weights – 12.7 kg, 15 kg or 17.2 kg
• Tube diameter – 42 mm

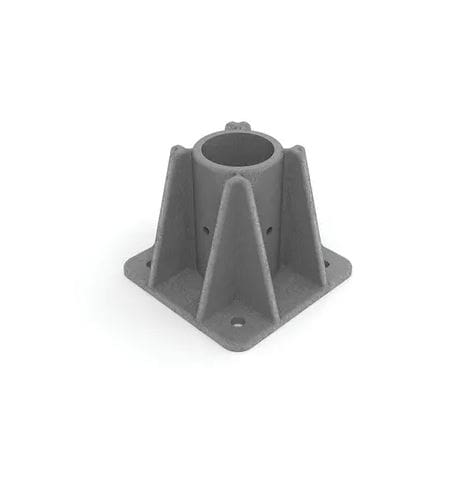

• Single socket (H x W x L) – 102 x 127 x 127 mm (3.1 kg)

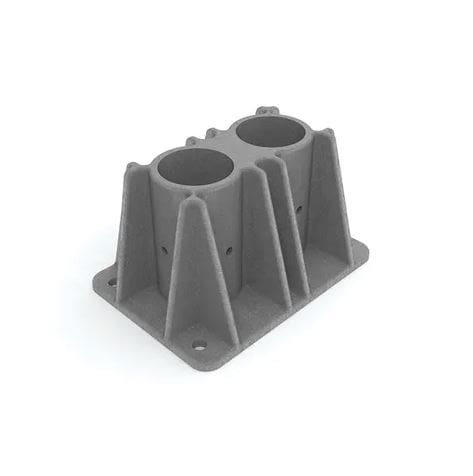

• Double socket (H x W x L) – 102 x 127 x 90 mm (5.4 kg)
• Finish – Safety yellow powder coat
