Quick-Lift NEO Battery Lifter

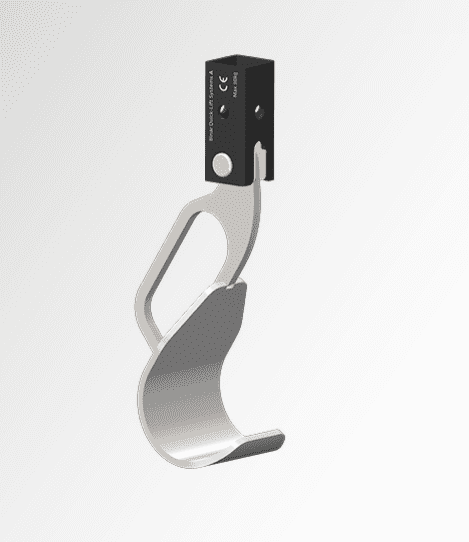

The Canister Hook can quickly and ergonomically grip and release, making handling objects with drum handles simple and effective. The design is intended for rapid and simple pick-and-place of drums, pails and liquid cubes with handles.

• Height – 210 mm
• Width – 70 mm
• Depth – 100 mm
• End Effector Weight – 0.7 kg
• Lifting Capacity – 30 kg (including own weight of the tool)

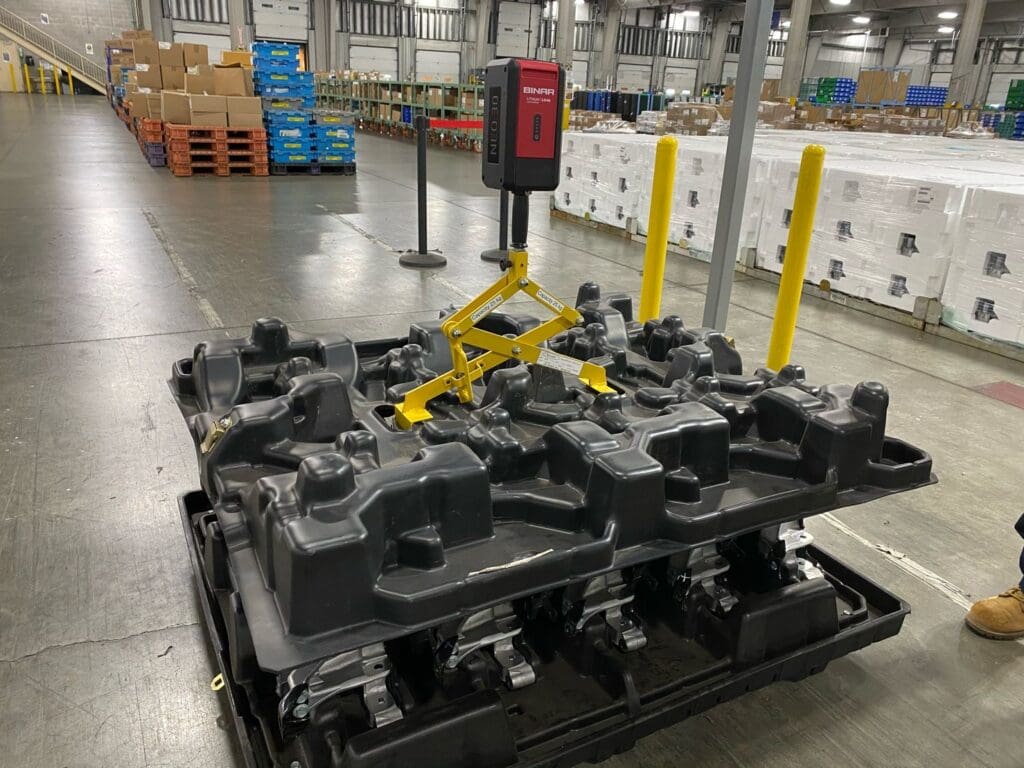

This is a versatile and adaptable attachment that may be used to lift a broad range of objects. Because the scissor arms may be manually adjusted, the gripping width can range from 270 to 500 mm. When the end effector is pushed down towards the workpiece, a mechanism automatically shifts between gripping and releasing mode. This scissor grab applies greater gripping force as the weight becomes heavier, increasing safety.

Please keep in mind that the maximum lifting capacity of a lifting object varies based on its shape and contact surface. The maximum lifting capacity may be reduced as a result.

• Height – 240 mm
• Width – 270-500 mm
• Depth – 125 mm
• End Effector Weight – 3.6 kg
• Lifting Capacity – 30 kg (including own weight of the tool)

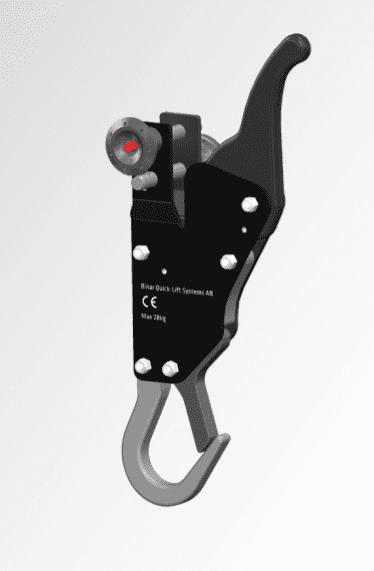

This attachment lifts and releases products quickly and easily, increasing a team’s productivity. The Productivity Hook’s spring locking mechanism improves safety, and the integrated lever makes gripping and releasing products easier and more ergonomic.

• Height – 175 mm
• Width – 120 mm
• Depth – 75 mm
• End Effector Weight – 0.7 kg
• Lifting Capacity – 30 kg (including own weight of the tool)

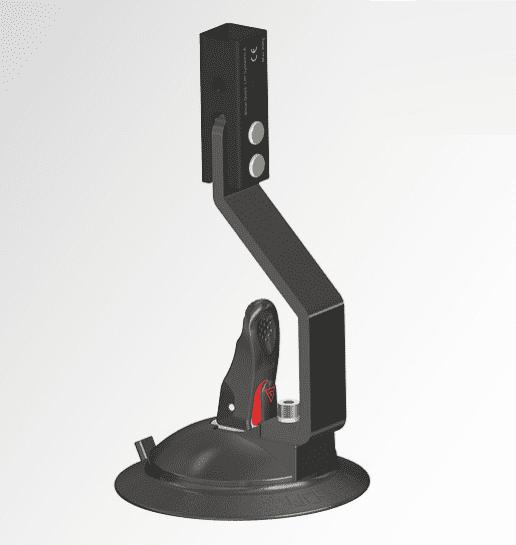

With this 150 mm diameter suction cup, vacuum lifting will be simpler than ever. Bring the end effector down onto the object and pull the lever. This will produce a vacuum between the suction cup and the item, allowing you to lift it. The red gauge on the lever on the end effector will show if the suction is not secure. Depending on how the attachment is secured to the Quick-Lift NEO, it can either be fixed or tilted. This is simple and can be further altered with a fast connection of two pins.

• Height – 240 mm
• Width – 270-500 mm
• Depth – 125 mm
• End Effector Weight – 3.6 kg
• Lifting Capacity – 30 kg (including own weight of the tool)

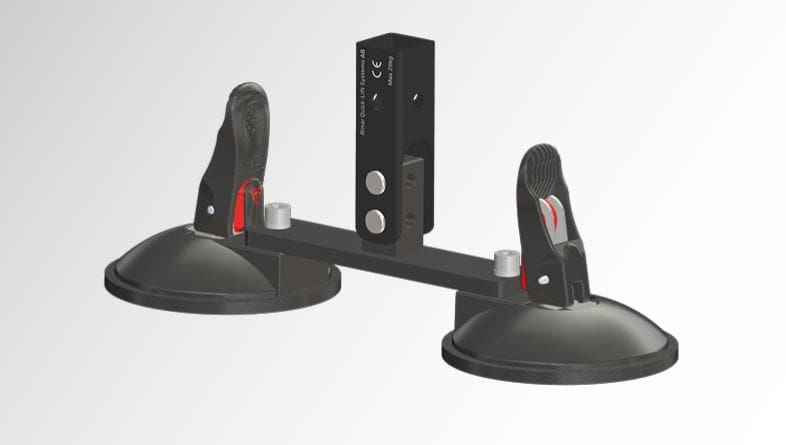

Together with the Quick-Lift NEO, the Dual Vacuum End Effector can effortlessly lift products up to 30 kg. A vacuum connection between the cups and the object is established when the attachment is put on the targeted object and the two levers are pushed. This guarantees that your object is gripped by suction. The red gauge on each vacuum cup will show if one of the suction is not secure. This attachment may be tilted in various directions or fixed to suit your application. This angle can be adjusted by adjusting the two pins quickly.

• Height – 115 mm
• Width – 345 mm
• Depth – 120 mm
• End Effector Weight – 1.4 kg
• Lifting Capacity – 30 kg (including own weight of the tool)

This attachment is a compact lifting magnet that may be used to handle steel bars, rounds, and plates, machine components, and moulds, among other things. Because of the simple On/Off lever, the design enhances operator safety and action speed. The operator can simply lower the end effector onto the chosen lifting object, turn on the lever, and raise the item. As a result, the magnet is quick and simple to use.

• Height – 120 mm
• Width – 107 mm
• Depth – 60 mm (125 mm with lever)
• End Effector Weight – 2.5 kg
• Lifting Capacity – 30 kg (including own weight of the tool)
