Wire Rope Balancer Pneumatic

Pneumatic Wire Rope Balancers are used mostly in production lines to improve processes and productivity. They ensure quick loading and unloading and may be positioned where required for easy lifting and handling. Thanks to their ability to make heavy machinery and tools feel weightless, they are commonly used in warehouses and facilities that require innovation and modernised solutions.

With a Pneumatic Wire Rope Balancer, it’s possible to increase the working area, especially when using the suspended version, which is attached to a jib crane or suspended from a rail system. These devices are equipped to handle a load capacity of up to 150 kg. The inherent function of the pneumatic cylinder gives the operator excellent control of the workpiece due to the variable speed of lifting and lowering.

Product Variation

Clear

Additional Information

An innovative lifting solution!

Pneumatic Rope Balancers are suitable for use in various industries, including food and beverage, ATEX classified zones and warehouse facilities. The device is manufactured in stainless steel that is robust and long-lasting. This is an effective piece of industrial equipment that allows operators to lift easily, manoeuvre goods around a worksite and increase user ability on a workshop floor.

Features:

Enables easy lifting, moving, rotating, loading and unloading applications.
Available with a capacity of up to 150 kg.
Working radius up to 3 m.
Vertical stroke can vary between 1.5 m to 2 m.
Both arms can turn 360° continuously thanks to a rotating joint with internal air passages.
Suitable for various industries including food, cleanroom, ATEX classified zones and warehouse.
Manufactured in stainless steel.

A Pneumatic Wire Rope Balancer can be customised to suit various lifting requirements – with a hook, permanent magnet, vacuum pad or for boxes. On request, models with bigger capacities are available.

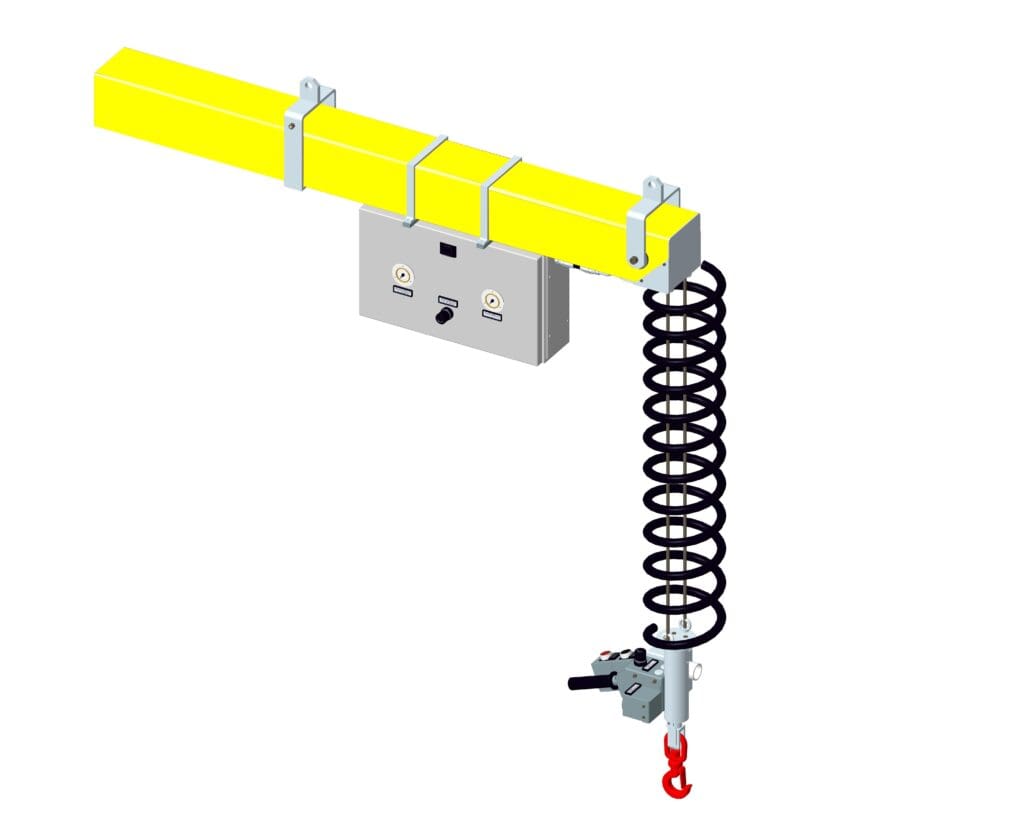

Pneumatic Wire Rope Balancers BFB75 Drawing

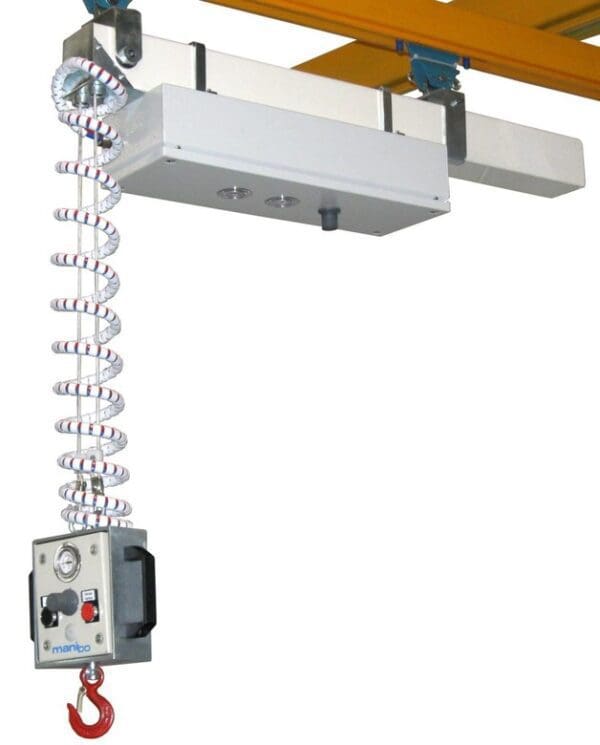

Pneumatic Rope Balancer with Hook

Capacity at 7 bar – 75 kg
Useful Vertical Stroke – 1.5 or 2 m

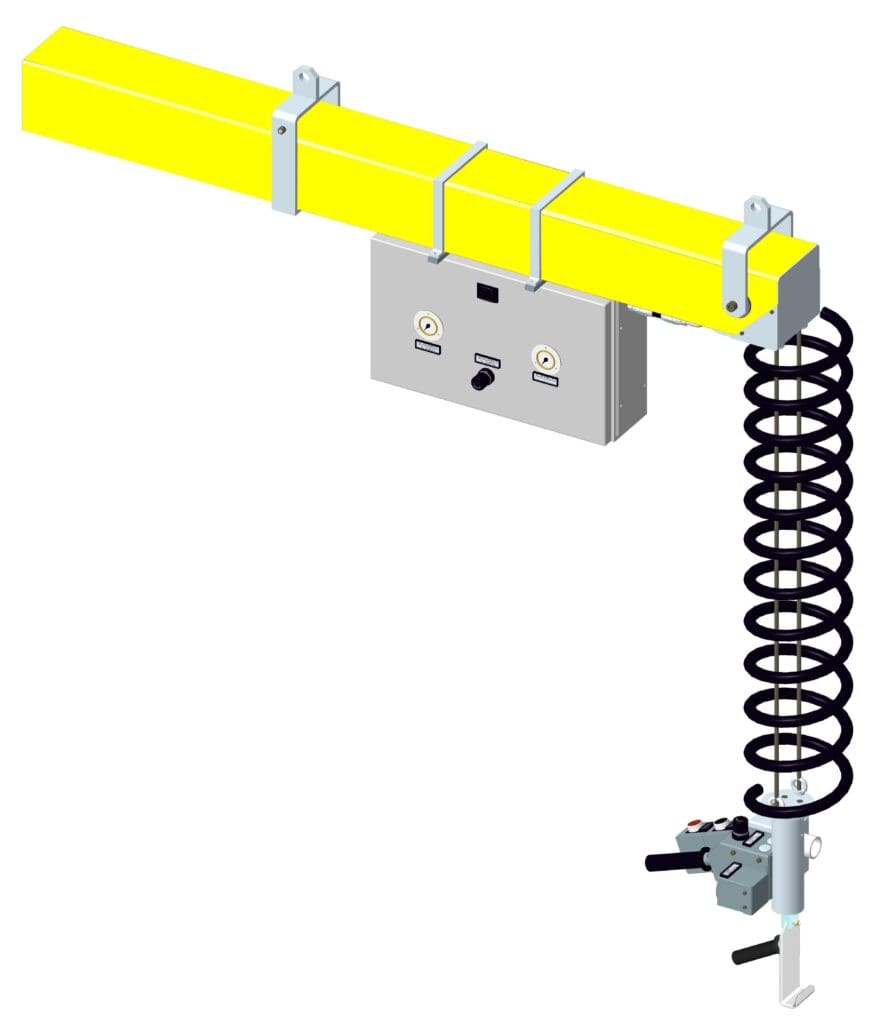

Pneumatic Wire Rope Balancers with hook for small drums

Capacity at 7 bar – 60 kg
Useful Vertical Stroke – 1.5 or 2 m

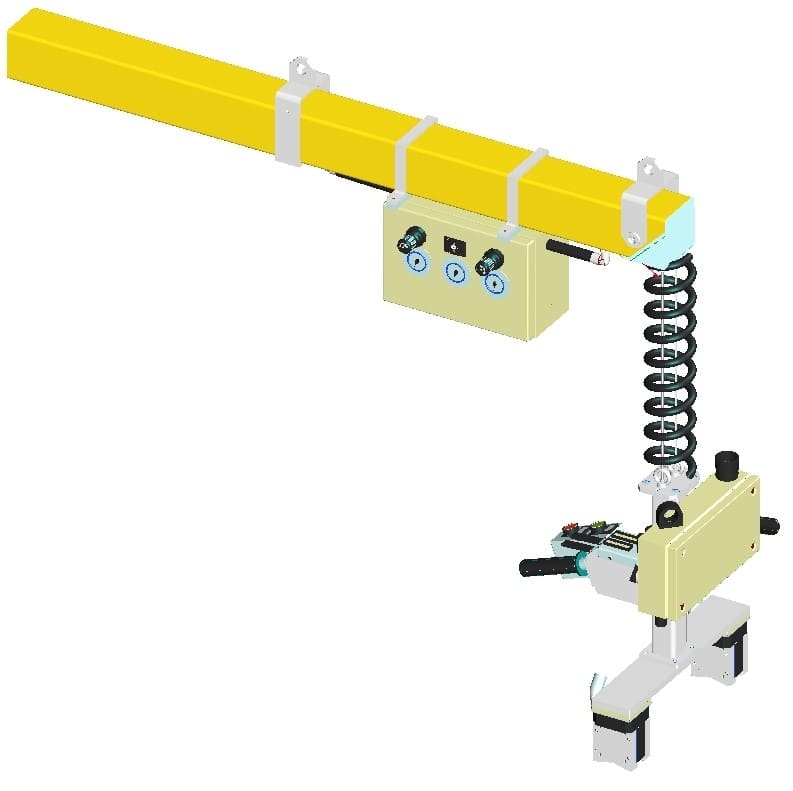

Pneumatic Wire Rope Balancers with permanent magnet

Capacity at 7 bar – 50 kg
Useful Vertical Stroke – 1.5 or 2 m

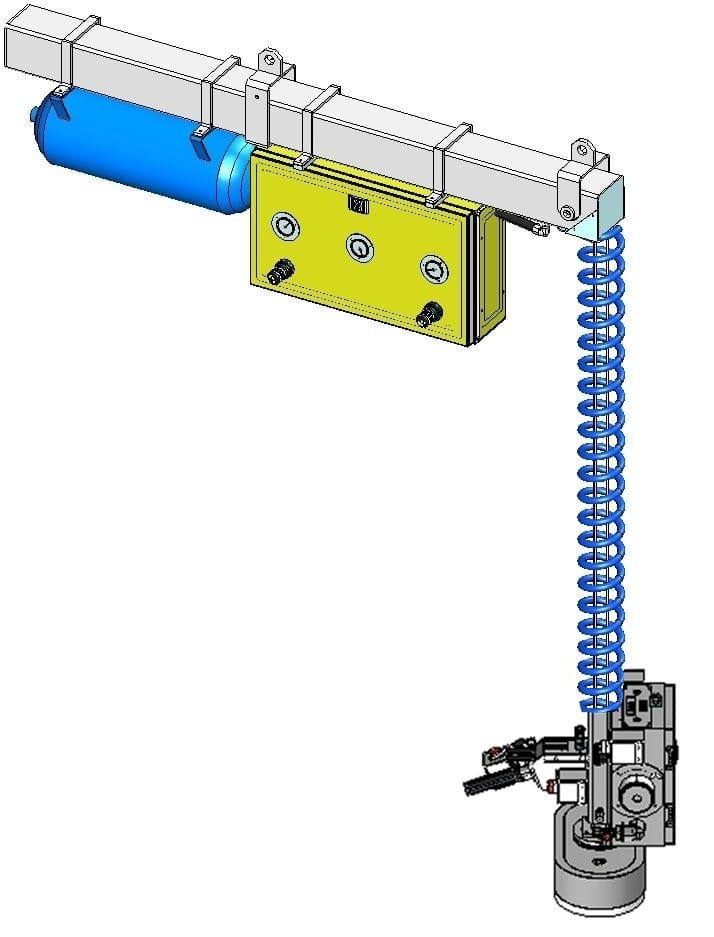

Pneumatic Wire Rope Balancers with vacuum pads for sacks

Capacity at 7 bar – 50 kg
Useful Vertical Stroke – 1.5 or 2 m

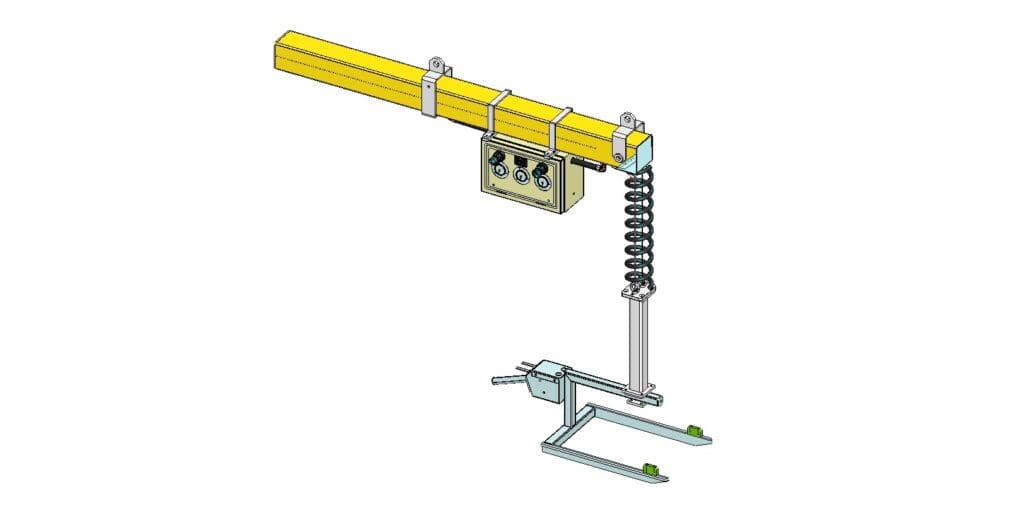

Pneumatic Wire Rope Balancers with forks for boxes

Capacity at 7 bar – 50 kg
Useful Vertical Stroke – 1.5 or 2 m

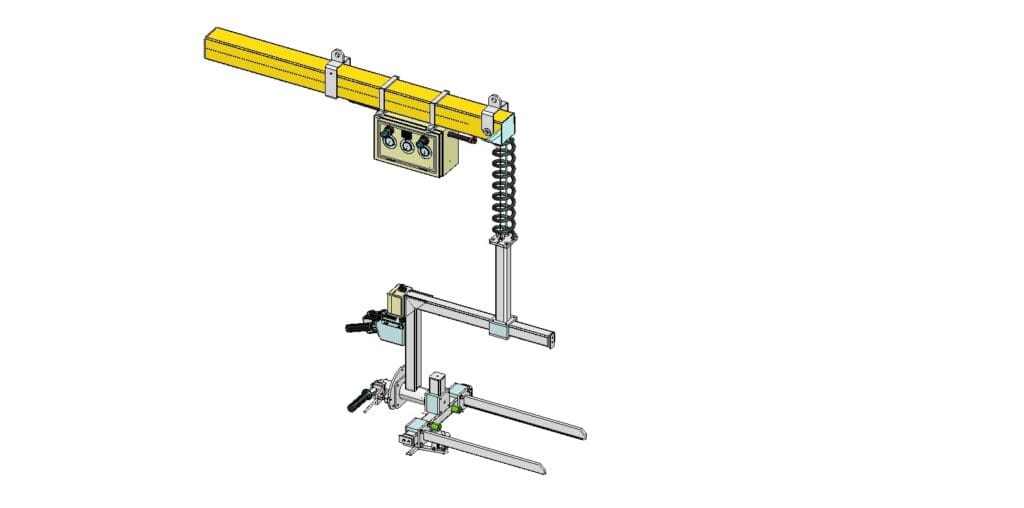

Pneumatic Wire Rope Balancers with forks for boxes emptying

Capacity at 7 bar – 50 kg
Useful Vertical Stroke – 1.5 or 2 m

Want a solution to improve your lifting processes?

Learn more about our Intelligent Lift Assist Devices!

Click the PDF button to learn more.

Product Variations

Description	Product Code
Pneumatic wire rope balancer Fitted with vacuum gripper for sacks/bags	BFB75-04-1500	Add to Quote Request
Pneumatic wire rope balancer Fitted with fork tooling for crates	BFB75-05-1500	Add to Quote Request
Pneumatic wire rope balancer Fitted with fork tooling for lifting and tipping crates	BFB75-06-1500	Add to Quote Request

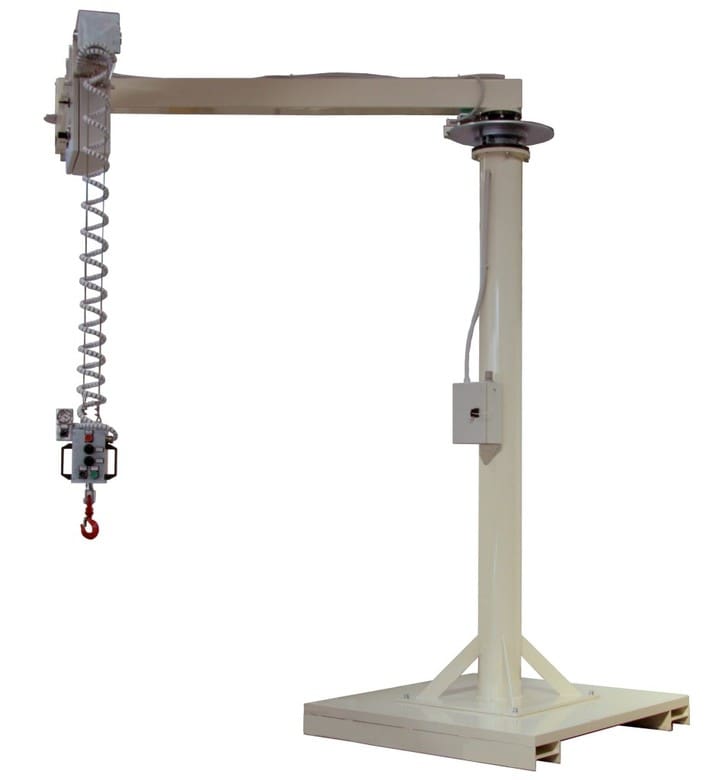

Pneumatic wire rope balancer 150kg Integrated into free-standing articulated jib crane Reach 3000mm Stroke 2000 mm	BFG150	Add to Quote Request
Pneumatic wire rope balancer 75 kg For suspension from rail system	BFB75	Add to Quote Request
Pneumatic wire rope balancer Fitted with hook for canisters and pails Stroke 1500mm	BFB75-02-1500	Add to Quote Request
Pneumatic wire rope balancer Fitted with push-button actuated magnet Stroke 1500mm	BFB75-03-1500	Add to Quote Request
Pneumatic wire rope balancer 75kg Integrated into free-standing articulated jib crane Reach 3000mm Stroke 2000 mm	BFCS75	Add to Quote Request
Pneumatic wire rope balancer 150 kg For suspension from rail system	BFGB150	Add to Quote Request
Pneumatic wire rope balancer 150 kg Fitted with push-button actuated magnet Stroke 1500mm	BFGB150-03	Add to Quote Request
