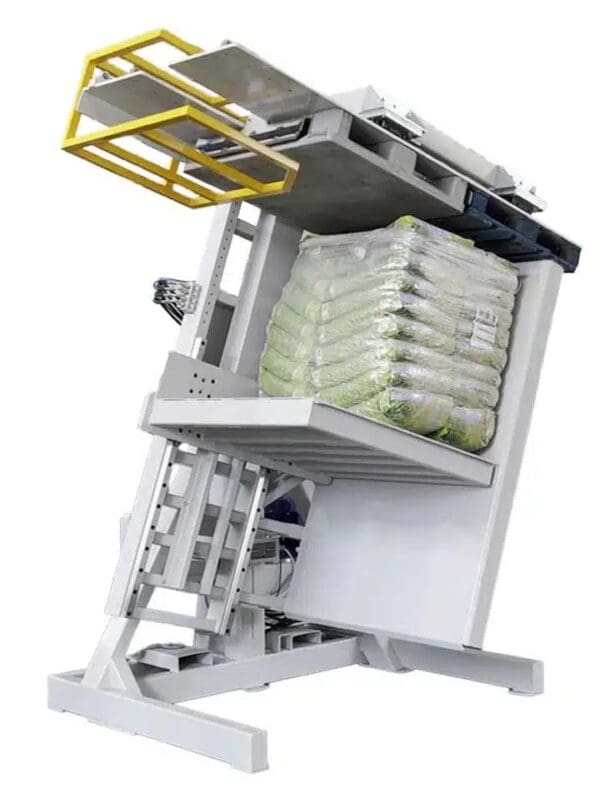

Pallet Inverter Stationary Hands-Free

If you are looking for a pallet turner, this is the fastest and most compact pallet inverter on the market patented by Toppy.

It’s the first automatic pallet inverter that does not require operators.

The pallet change operation begins initially by trasporting the load inside the machine. Immediately after, the operator activates the automatic pallet inverting system via a push-button panel which blocks the product safely.

Subsequently, the operator activates the rotation of the load at 120° and opens the upper platform. At this point, the operator activates the side shifting of the new pallet instead of the old pallet.

The pallet inverting operation ends with the closing pf the upper platform and the rotation of the load by 120°. For certain products such as bags, it is possible to replace the pallet without tipping the load by 120 °.

This pallet turner can handle products with a maximum weight of 1500 kg and a maximum height of 2000 mm.

The “Hands Free” differs from other types of pallet inverters because changes the pallet by shifting the load, withouth the need of operators.

It is considered the fastest pallet inverter in the world, capable of handling up to 50 pallets per hour. Our stationary pallet inverters are available in the manual version, with a button panel, or in the automatic version with PLC.

 The pallet turner “Hands Free” is an extremely versatile solution suitable for various industrial sectors such as the pharmaceutical, food and beverage, cosmetics, ceramic sectors, etc.
