Pallet Inverter Stationary Automatic

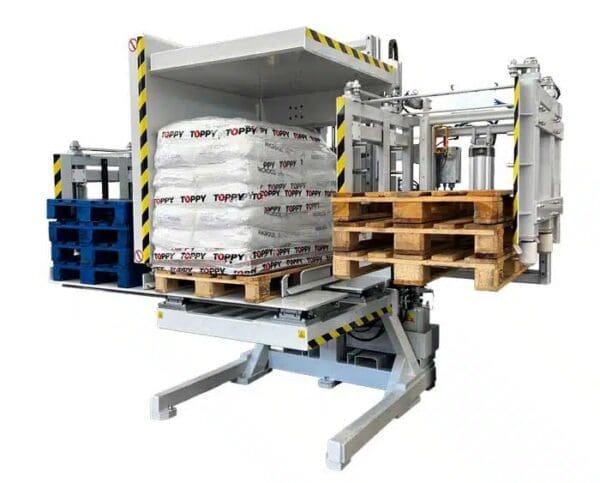

This is the newly automatic pallet inverter designed by Toppy.

“The Game Changer” is equipped with two automatic pallet dispensers for non-stop cycle.

“The Game Changer” begins the pallet changing thanks to an operator that transport the load inside the automatic pallet inverter.

The operator activates the automatic pallet changer system via a push-button panel. Subsequently, the operator activates the upper platform through a push-button panel which blocks the product safely. At this point, is possible to activate the rotation of the load at 120°.

This operation is necessary for separating the old pallet from the product and facilitate the translation of the new pallet instead of the old one. You will end the operation by closing the upper platform and by rotating the load by 120° for returning into initial position.

For certain products such as bags, it is possible to replace the pallet without tipping the load by 120 °.
