Pallet Hooks / Pallet Forks

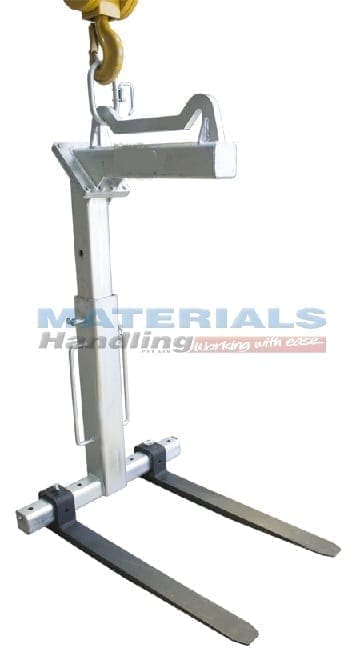

LCHM2000 – Economy Pallet Hook

The LCHM2000 adjusts manually to suit different heights and widths.  This device is adopted extensively in the transport and construction industries. To balance the load, simply move the lifting ring and use the handle between positions. If using a truck-mounted crane, the operator doesn’t need to manually move the ring as they can reposition the crane (altering the load balance).

Specifications:

• Working Load Limit (WLL) – 2000 kg
• Tine Size – 100 x 40 x 1050 mm, clear tine length.
• Load Centre – 600 mm
• Unit Weight – 242 kg

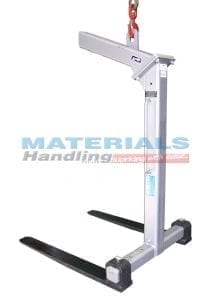

LPHA2000 – Automatic Self-Levelling Pallet Hook

The LPHA2000 Pallet Hook is an innovative device that self-balances and automatically lifts to the correct position, thanks to its internal spring mechanism. This ensures it’s easy to use and it can maintain fork tines horizontally. Its steel construction delivers strength and high performance, all with little maintenance required. Fork tines can be adjusted to 315mm, 595mm or 875mm centres. The pallet hook is zinc plated.

Specifications:

• Safe Working Load (SWL) – 2000 kg
• Load Centre – 600 mm
• Unit Weight – 196 kg
• Note – Only loads exceeding 250 kg should be lifted with this type of Pallet Hook

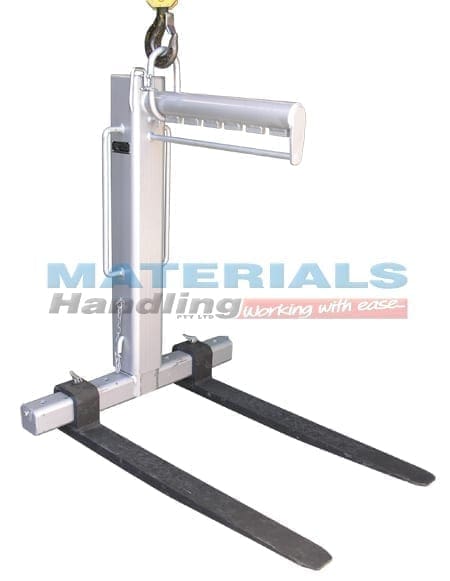

LPHD2200 – Adjustable Pallet Hook

The LPHD2200 Pallet Hook has six manually variable fork positions for balancing the load. Its robust and durable construction offers maximum strength, yet the unit is still incredibly lightweight.  Easy to use and little maintenance required, this model features variable height and adjustable fork tine widths for ideal overhead lifting requirements. It’s finished in a zinc-plated design.

Specifications:

• Safe Working Load (SWL) – 2200 kg
• Load Centre – 600 mm
• Unit Weight – 215 kg

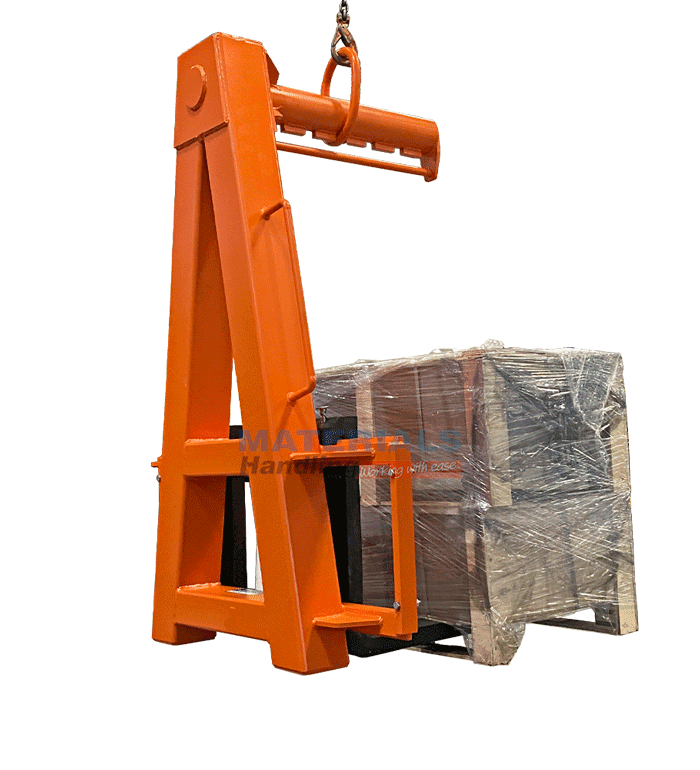

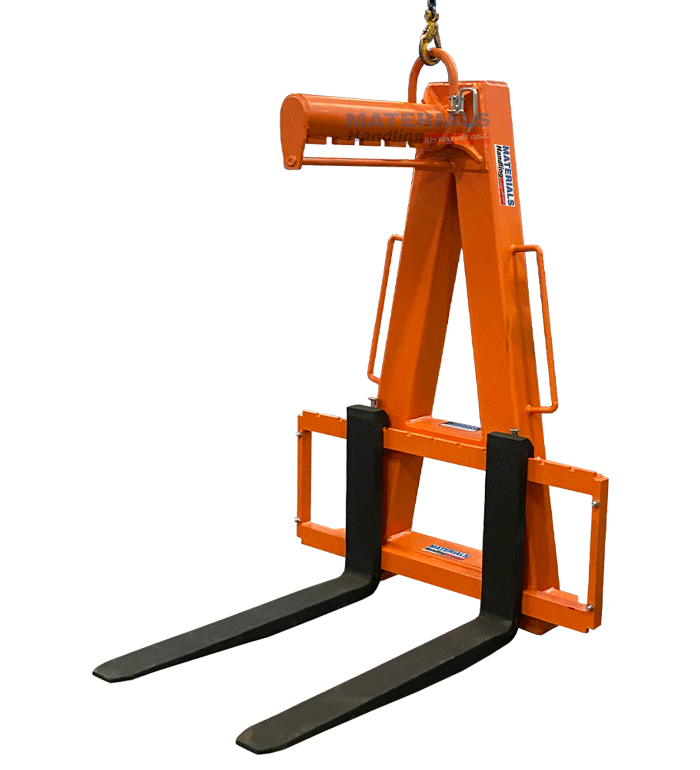

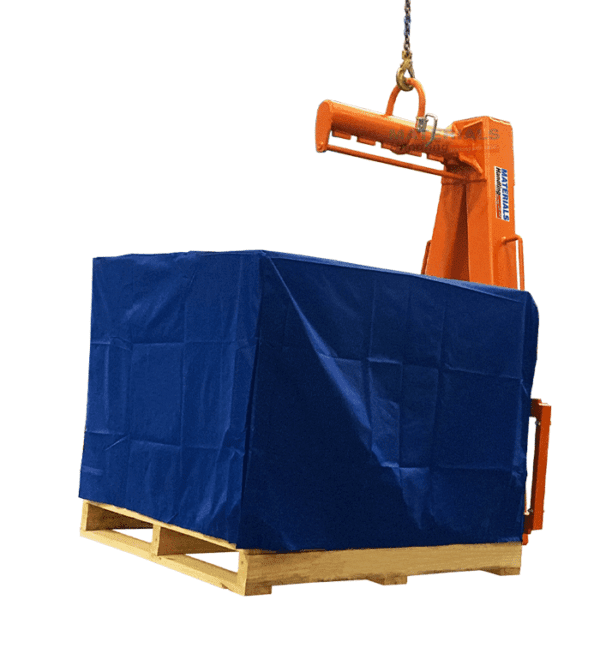

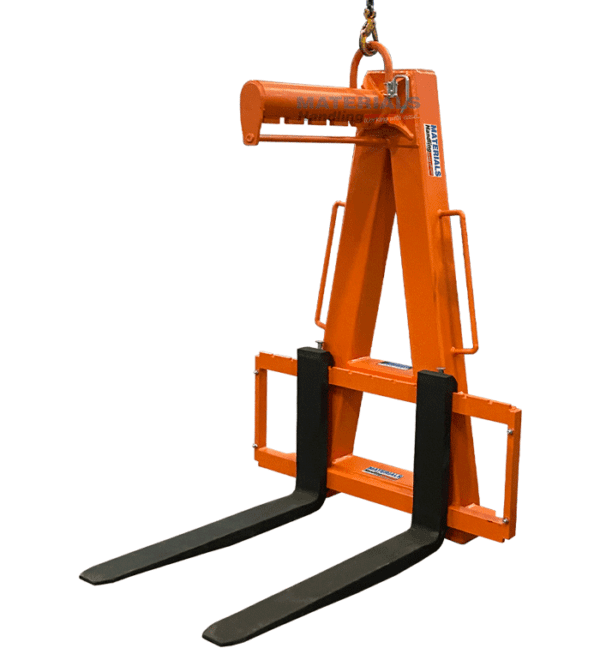

LPHN – Adjustable Pallet Hook

The LPHN Pallet Hook boasts the strongest lifting capacity, handling heavy loads with ease.  It has been designed with fully adjustable tines, making this device extremely versatile.  The load is balanced via its moveable lifting rings, available in six positions.  This Pallet Hook is finished in enamel paint.

Specifications:

• Safe Working Load (SWL) – 4500 kg
• Load Centre – 600 mm
• Unit Weight – 456 kg
• Tines are fully adjustable

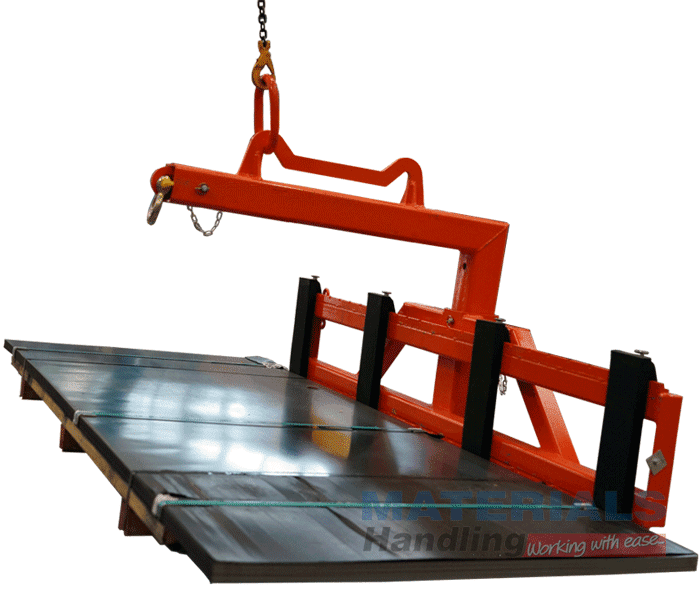

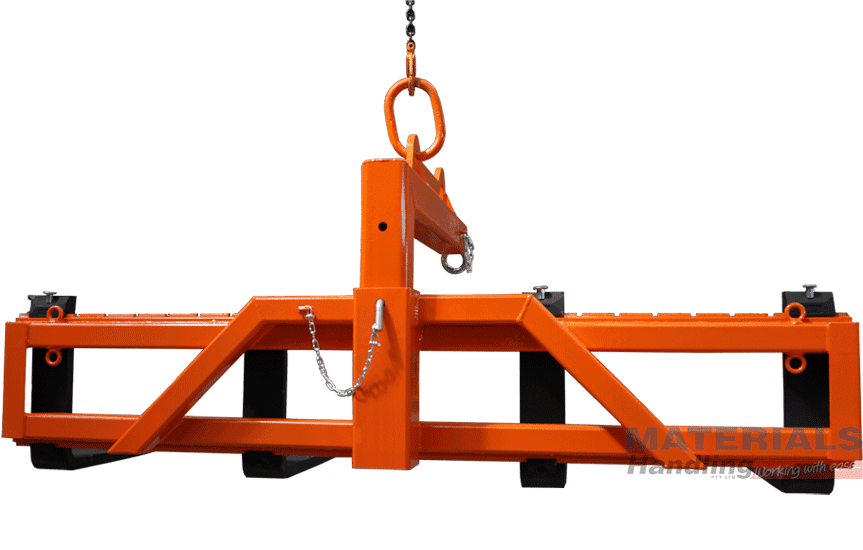

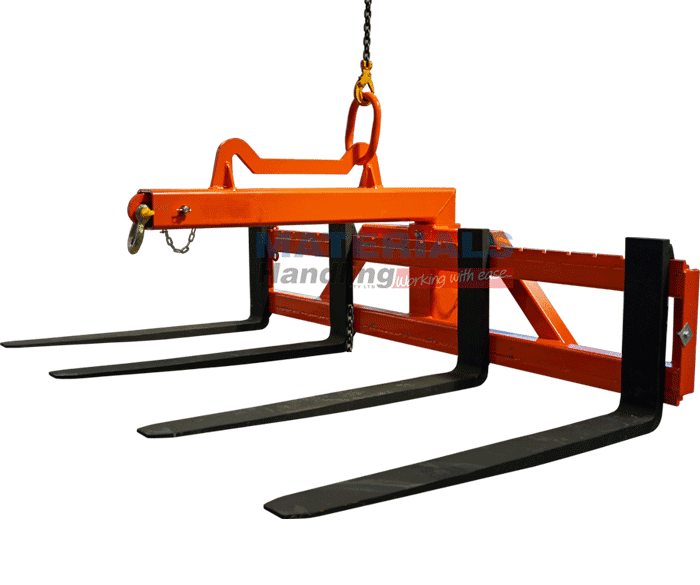

MCHW150 – Wide Load Pallet Hook

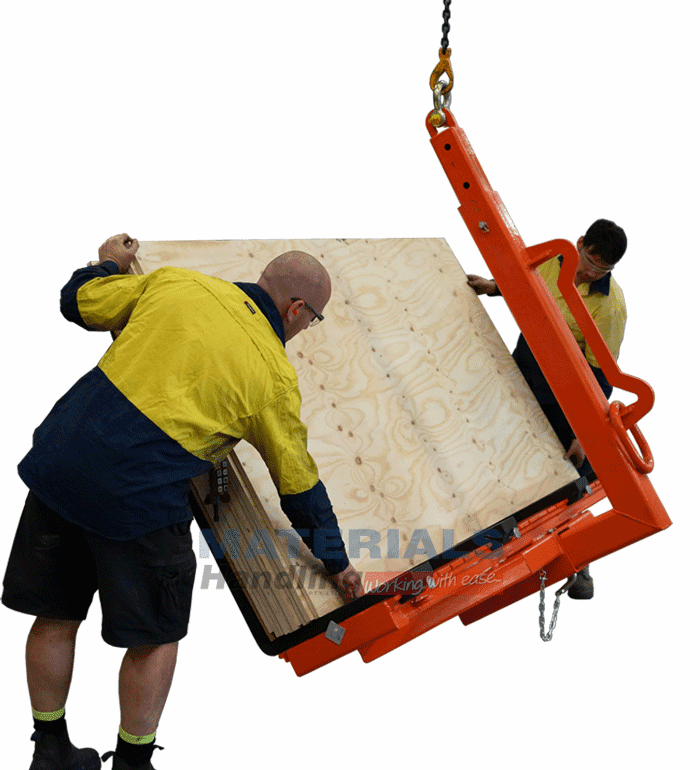

The MCHW150 is used for lifting wide loads such as plasterboard, timber and roof sheeting. It’s used commonly in transport, manufacturing and construction industries. The innovative pallet hook features an adjustable body height and forklift tine, allowing it to suit varying load requirements. When in use, the load is balanced by moving the lifting ring between its loaded and unloaded positions. An additional lug is included for inverting loads – especially useful for long materials. The MCHW150 is made from high tensile steel for maximum strength and durability and finished in enamel paint.

Specifications:

• Safe Working Load (SWL) – 1500 kg
• Load Centre – 675 mm
• Unit Weight – 210 kg
• Inside Clearance – 715 mm
• Clear Length Fork Tines – 100 x 45 x 1200 mm
