Name: Electric Chain Hoists - Pacific
Brand: Materials Handling Pty Ltd
Availability: InStock

Electric Chain Hoists – Pacific

This range of hoists has been carefully selected to meet all Australian and International safety requirements and ensures versatility in any application. They have motor thermal protection; fuse protection to control circuit, protection rating IP54 and reverse phase protection relay on all models excluding 250kg. The standard lift height is 3 metres and additional lengths are available. Push, Geared or powered trolleys are available for all sizes.

They feature:

Single or two speed operation.
IP65 Pendant with 24volt control for operator safety.
Overload protection – clutch prevents damage caused by overloading.
Brake automatically engages in the event of a power failure.
Totally enclosed construction withstands harsh conditions.
Upper and lower electrical limit switches.
Durable Grade 80 Zinc plated load chain supplied as standard.
415volt, 3 phase operation

Product Variation

Product Variations

Description	Product Code

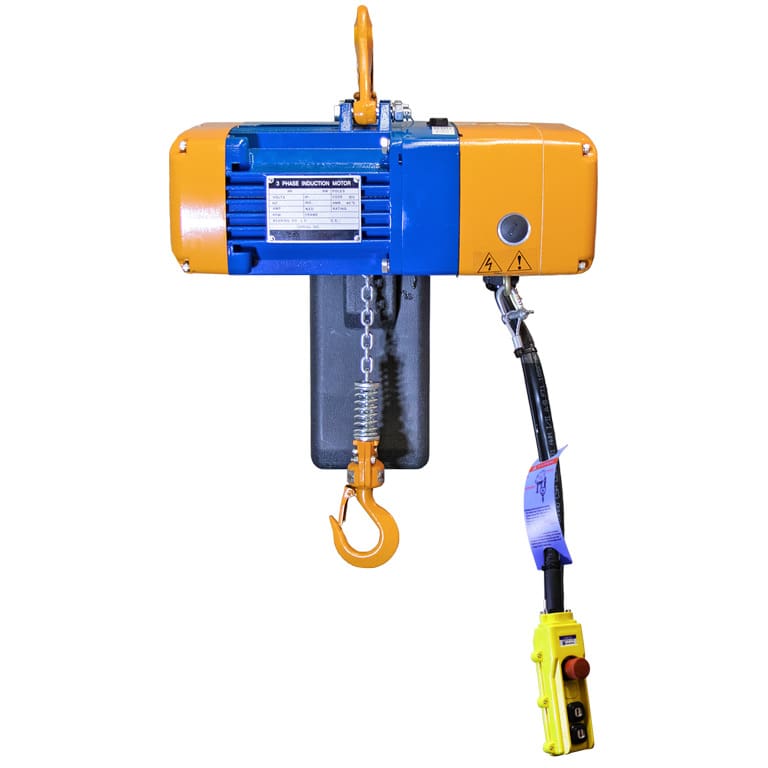

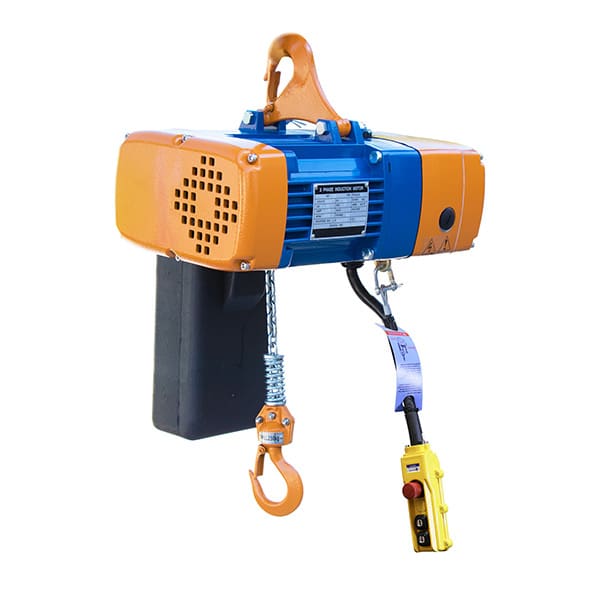

Electric Chain Hoist 250kg Single Speed 12m/min 415v 50Hz	LPEH025NH	Add to Quote Request

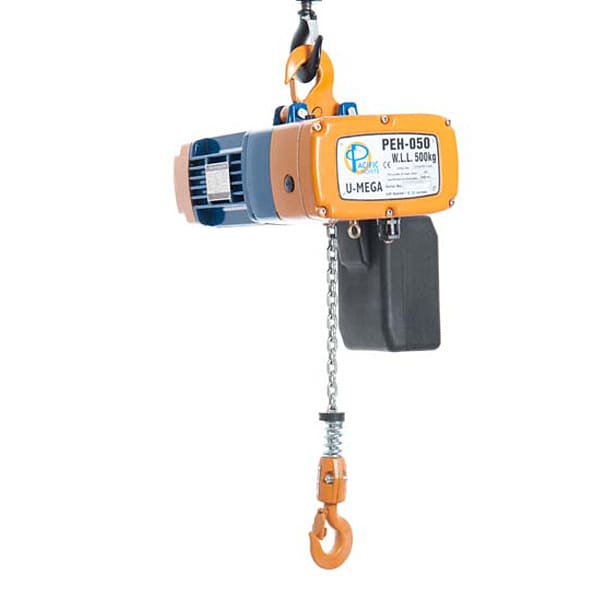

Electric Chain Hoist 500kg Single Speed 10m/min 415v 50Hz	LPEH050NH	Add to Quote Request

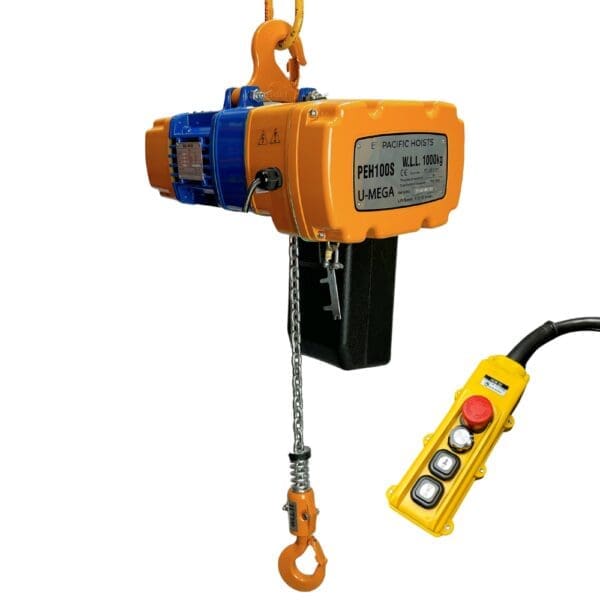

Electric Chain Hoist 1000kg Single Speed 8m/min 415v 50Hz	LPEH100NH	Add to Quote Request

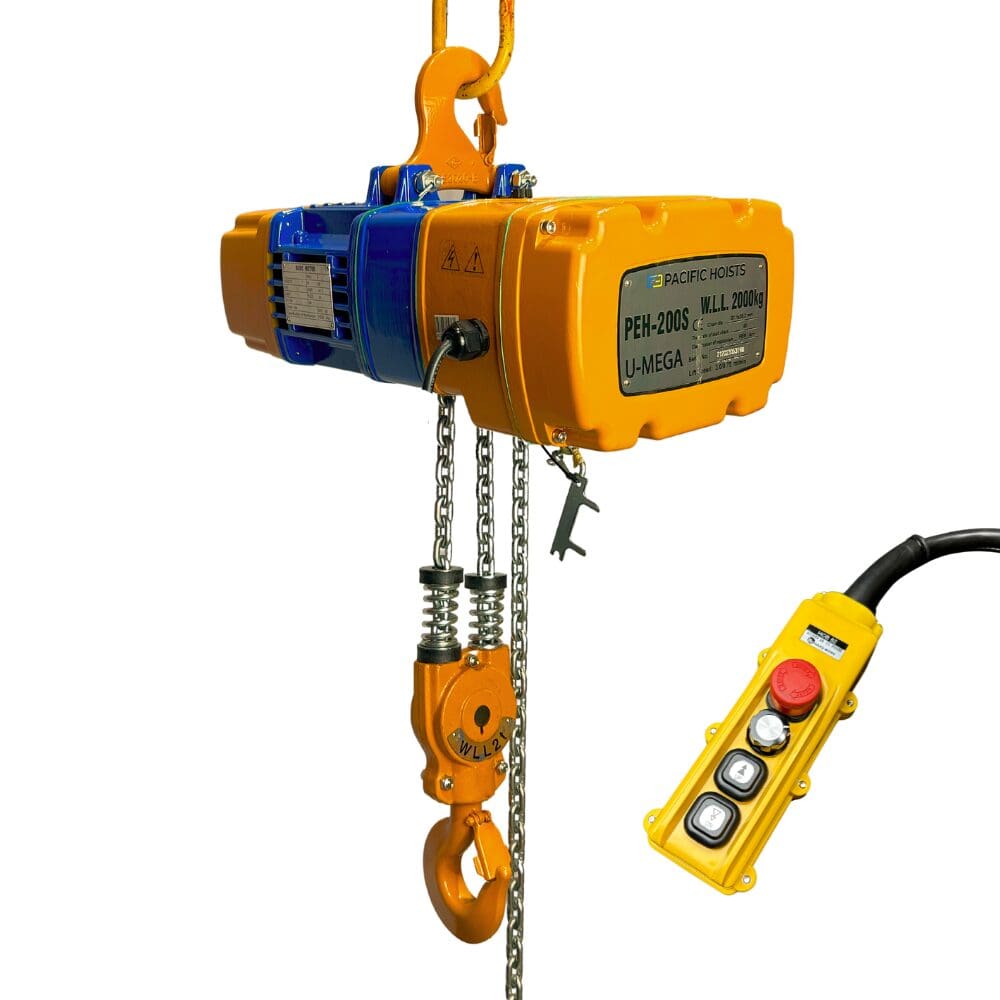

Electric Chain Hoist 2000kg Single Speed 4m/min 415v 50Hz	LPEH200NH	Add to Quote Request
Electric Chain Hoist 3000kg Single Speed 6.4m/min 415v 50Hz	LPEH300NH	Add to Quote Request
Electric Chain Hoist 5000kg Single Speed 4m/min 415v 50Hz	LPEH500NH	Add to Quote Request
Electric Chain Hoist 125kg Two Speed 12/3m/min 415v 50Hz	LPEH012	Add to Quote Request
Electric Chain Hoist 250kg Two Speed 12/3m/min 415v 50Hz	LPEH025	Add to Quote Request
Electric Chain Hoist 500kg Two Speed 10/2.5m/min 415v 50Hz	LPEH050	Add to Quote Request
Electric Chain Hoist 1000kg Two Speed 8/2m/min 415v 50Hz	LPEH100	Add to Quote Request
Electric Chain Hoist 2000kg Two Speed 9.6/2.4.m/min 415v 50Hz	LPEH200	Add to Quote Request
Electric Chain Hoist 3000kg Two Speed 6.4/1.6m/min 415v 50Hz	LPEH300	Add to Quote Request
Electric Chain Hoist 5000kg Two Speed 3.7/0.9m/min 415v 50Hz	LPEH500	Add to Quote Request

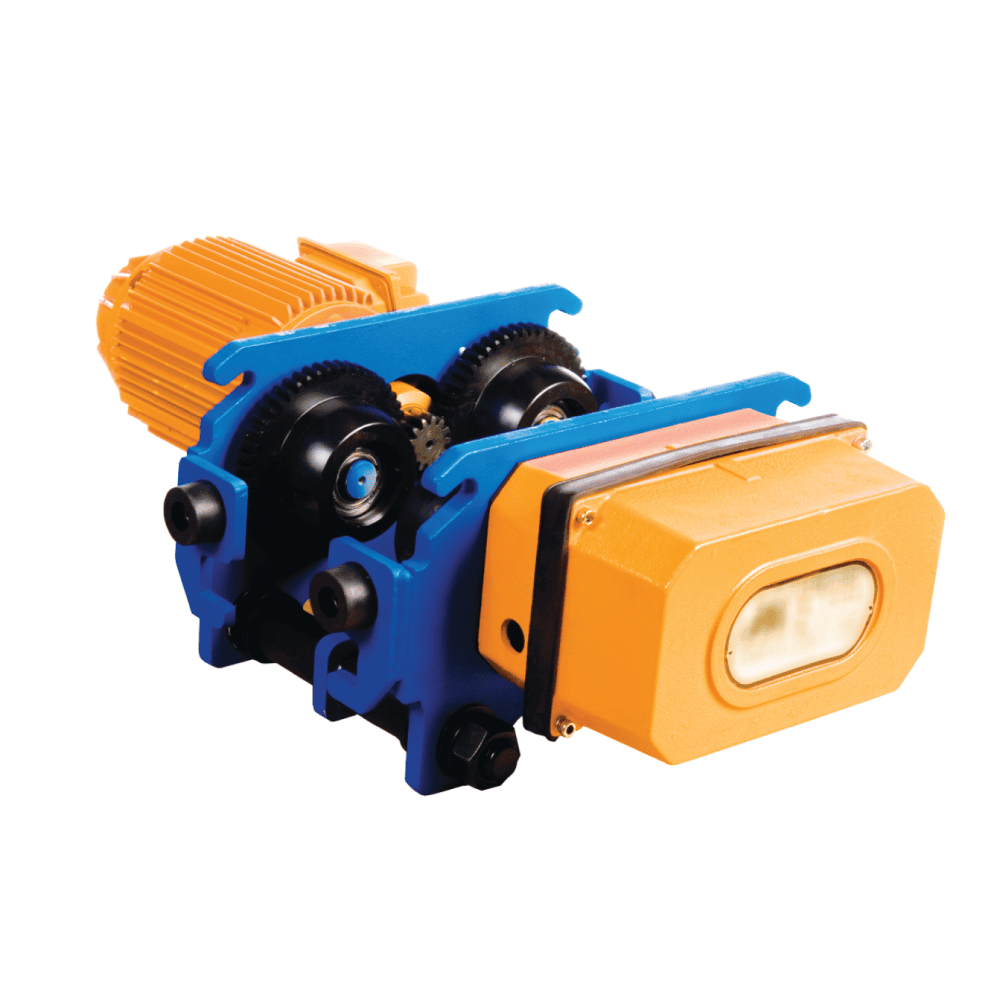

Electric Trolley 500kg 10m/min 415Volt 50Hz	LPET050	Add to Quote Request
Electric Trolley 1000kg 10m/min 415Volt 50Hz	LPET100	Add to Quote Request
Electric Trolley 2000kg 10m/min 415Volt 50Hz	LPET200	Add to Quote Request
Electric Trolley 500kg 10/5 m/min 415Volt 50Hz	LPET055	Add to Quote Request
Electric Trolley 500kg 20/5m/min 415Volt 50Hz	LPET105	Add to Quote Request
Electric Trolley 2000kg 20/5m/min 415Volt 50Hz	LPET205	Add to Quote Request
Electric Trolley 3000kg 10m/min 415Volt 50Hz	LPET310	Add to Quote Request
Electric Trolley 5000kg 10m/min 415Volt 50Hz	LPET510	Add to Quote Request
Electric Trolley 5000kg 20/5m/min 415Volt 50Hz	LPET515	Add to Quote Request
