Lifting Clamp Multi-Position

+ Add to Quote Request

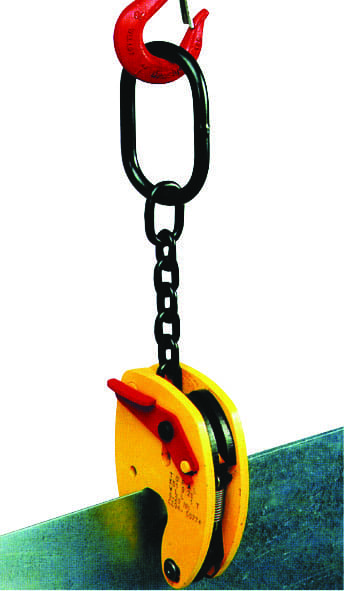

Lifting Clamps suitable for vertical and horizontal lifting. The clamps are able to lift and tilt the workpiece.

Each lifting clamp is fitted with a safety spring mechanism for permanent contact of the cam onto the piece to be lifted, even when it is being put down.

The locking lever does not stick out so that the clamp may be used on the bare ground. The chain enables the lifting clamp to grip from any angle and makes positioning easier.

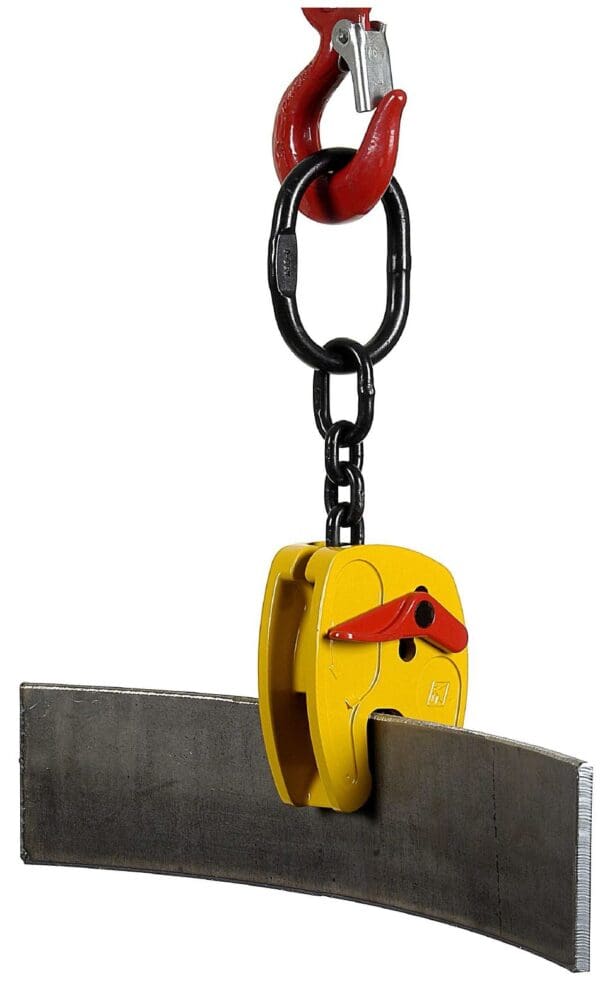

The chain connection enables the load to be lifted and tilted. The workpiece can be gripped from the side and lifted to tip them over.

The corrugated cam marks only one side of the load.

Additional Information

Lifting Clamp NK operation diagram

To open the lifting clamp, push the locking lever downwards. The locking is automatic when the lever is being freed. The corrugated cam penetrates into the load material.

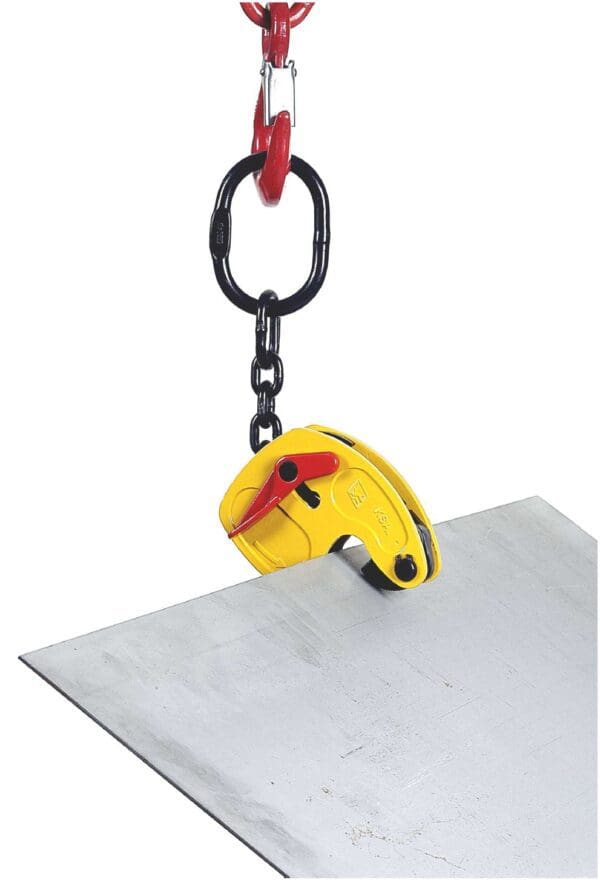

Lifting ensures proportional clamping to avoid marking the load excessively. Loads may be grasped horizontally or vertically and tilted to an inverse position (90 or 180°). The pieces can be gripped from the side in order to tip them over.

  • Secured and intuitive use
  • No need for additional lifting accessories
  • Possibility to use the clamp sideways
  • Tilting is possible
  • Clamping secured by a safety spring mechanism
  • Easy manipulation and positioning of the load thanks to the chain
  • The safety locking lever is always included in the clamp‘s body and cannot be damaged

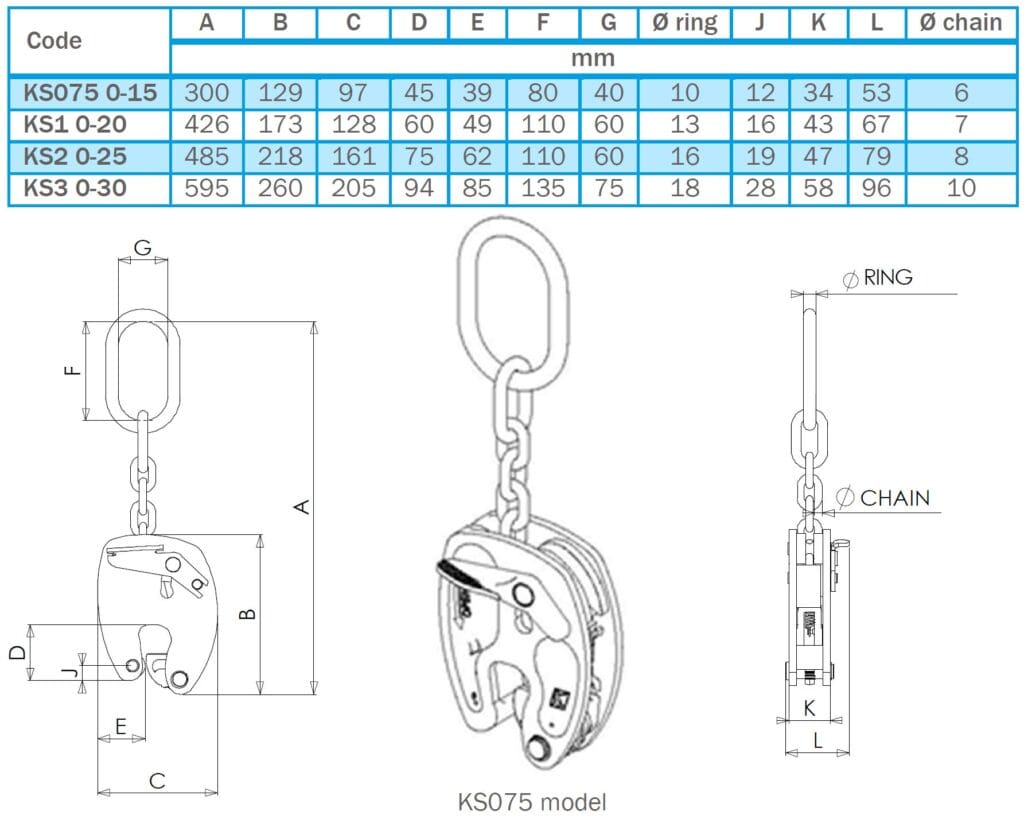

Lifting Clamp KS diagram



Product Variations

Image Description Product Code Price (excl. GST)

Multi-Position Lifting Clamp
Opening: 0-15 mm
WLL: 750 kg

KS075-0-15

Multi-Position Lifting Clamp
Opening: 0-20 mm
WLL: 1000 kg

KS1-0-20

Multi-Position Lifting Clamp
Opening: 0-25 mm
WLL: 2000 kg

KS2-0-25

Multi-Position Lifting Clamp
Opening: 0-30 mm
WLL: 3000 kg

KS3-0-30
