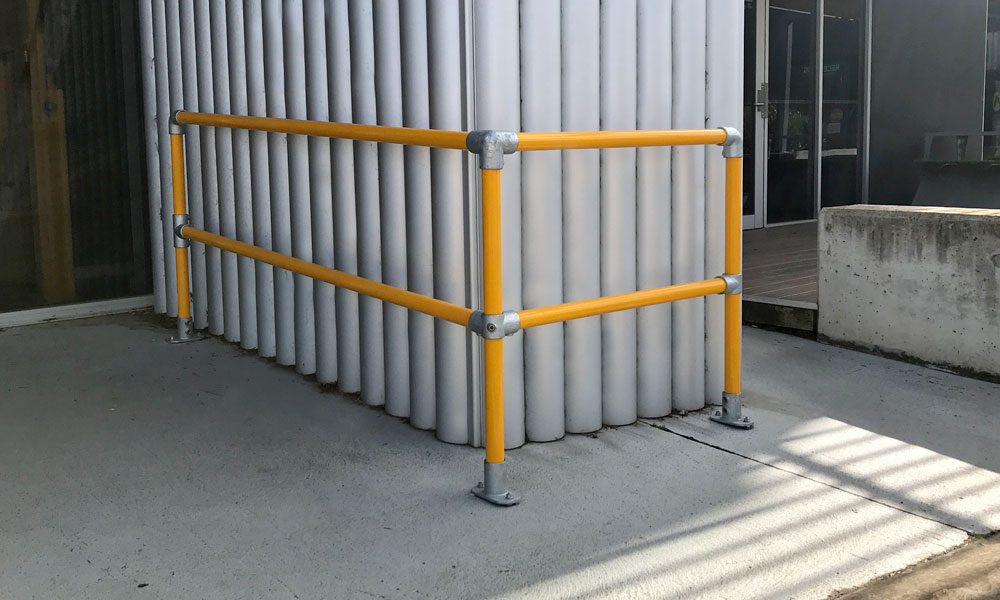

Handrails Modular Clamp
+ Add to Quote Request
Our Modular Clamp Handrails are an easy-to-install, robust and adaptable railing system. Featuring a wide range of attachable components, the system can include multi-directional lines, straight runs, 90° corners, end posts, and gate posts. Additionally, several angled fixtured components can be used on ramps and stairwells.
If you need a quick and robust barrier solution then this is the perfect safety solution. No ‘hot permits’ or extra equipment is required during installation because there are no welding components involved. This also means there is no need for threading, bolting, or any other specific equipment or expertise to complete the installation.
Modular Clamp Handrails may be customised for a variety of purposes. This is an efficient and cost-effective system, particularly when compared to traditional fencing and rails that require significant construction to mount.
Additional Information
Are you looking for a robust, simple and modular railing system?
This handrail solution is ideal for a wide range of industrial fence applications. Available in 2 m sections to provide the recommended spacing between posts, although smaller pieces may be trimmed down to fit. This modular handrail system is strong, dependable, and satisfies applicable Australian Standards, with stanchions that may house a choice of directional fittings with sturdy surface-mounted base plates.
Both indoor and outdoor use
The Modular Clamp Handrail systems allow you to use the fencing in both indoors and outdoors applications. Thanks to its robust construction, it’s durable and long-lasting. Rails are manufactured in a galvanised or galvanised/powder-coated yellow design.
Fast installation with no tools and no welding
With an impact drill or a hex key, components, railing, and fixings may be quickly constructed on-site. No special equipment, skillset, hot permits, threading or bolting is required.
A versatile barrier system
These rails accommodate a range of fencing applications with flexible and modular construction. With an extensive range of components, it enables multi-directional runs, straight runs, 90° corners, end posts, and gate posts. Choose the configuration that suits your workplace!
End Post Surface Mount
Through Post Surface Mount
Corner Post Surface Mount
End Post Vertical Mount
Through Post Vertical Mount
Corner Post Vertical Mount

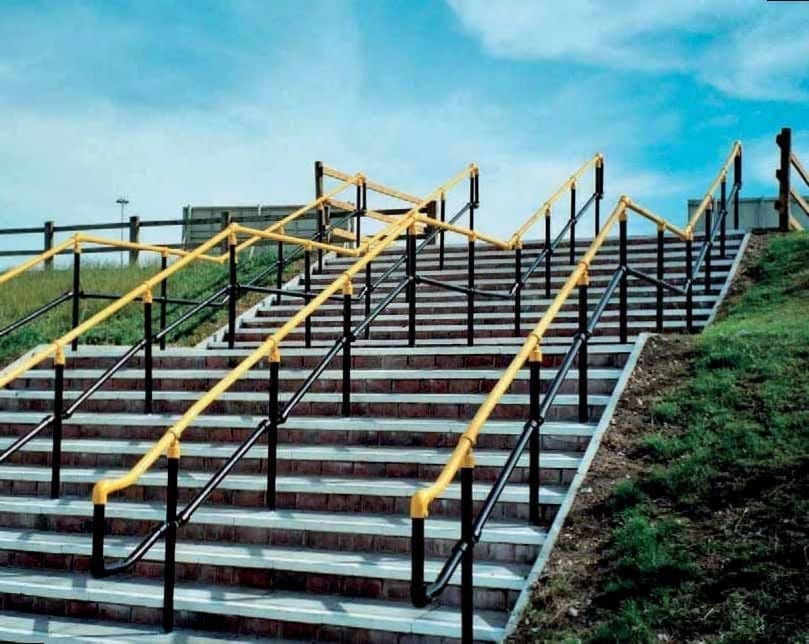

These systems are robust, dependable, and constructed to comply with Australian Standards for use as a Balustrade on fixed platforms, walkways, and stairways (AS 1657:2018).
Features:
- Rapid to assemble with an impact drill or a hex key
- No welding required eliminates the need to carry bulky welding equipment from site to site and hot work permits
- A versatile range that can be configured into multiple applications
- Great for use both indoors and outdoors
- Components and railings comply with relevant Australian standards
- Choose between a galvanised or galvanised/yellow powder-coated finish
- Optional Gate: Ball Fence Swing Gate available
Technical Specifications:
- Materials – Post and Rail 48 mm OD (40 mm NB)
- Finish (Railing) – Either Galvanised or Galvanised/Yellow Powder-Coat
- Finish (Components) – Hot Dipped Galvanised Cast Iron
- Height – Adjustable (refer to Australian Standard guidelines)
- Spacing – Maximum post spacing 2 metres (post centre to post centre)
Continue browsing other workplace safety solutions?
Require an alternative fencing option, view our full range of Safety Barriers.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |

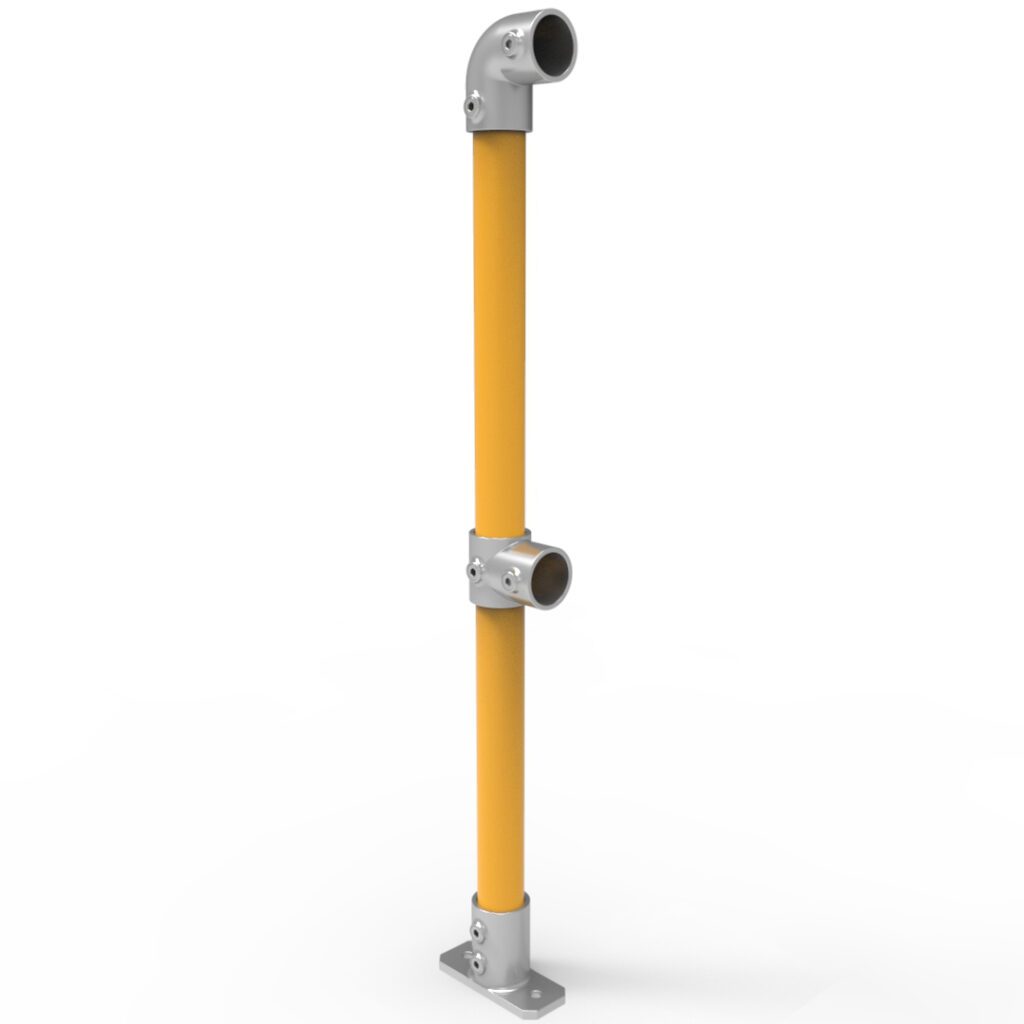

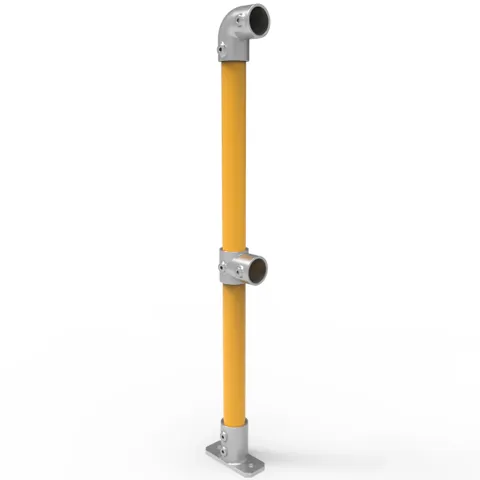

NoWeld End Post Surface Mount – Galvanised and Powder Coated Yellow |
NWEP-SMY | $157.00 | |
 |
40NB (48.3mm OD) x 2.75mm x 1m Rail – Galvanised |
NW48G-1000 | $57.00 | |
 |

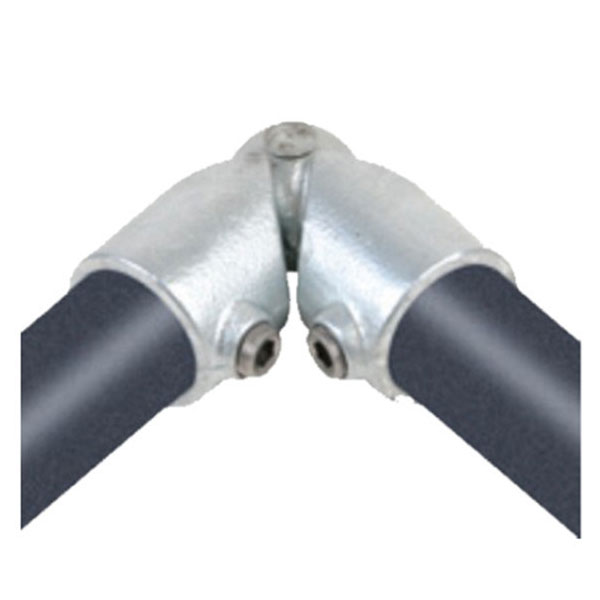

NoWeld 125H – Variable Elbow 48.3mm – Galvanised |
NW48G-125H | $40.00 | |
 |

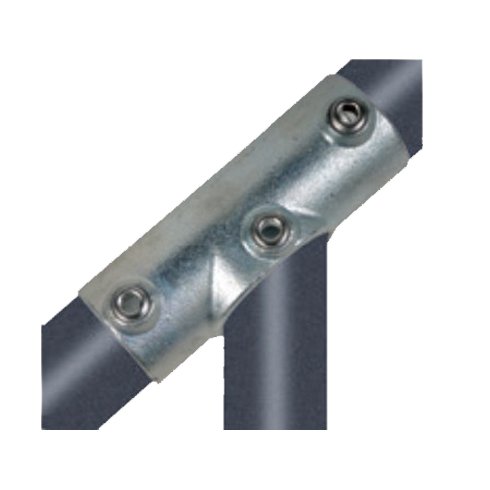

NoWeld 127 – Adjustable Long Tee (30° – 45°) – Galvanised |
NW48G-127 | $44.00 | |
 |

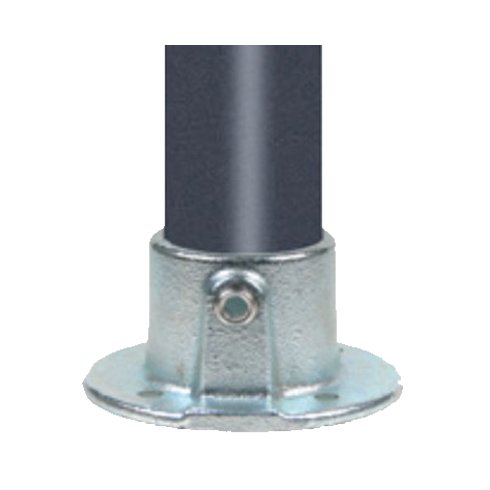

NoWeld 131 – Wall Flange – Galvanised |
NW48G-131 | $29.00 | |
 |

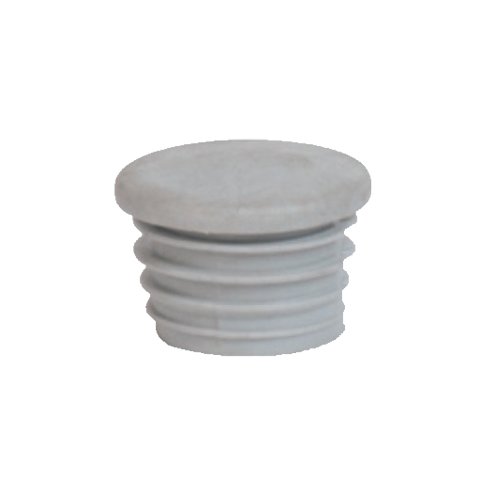

NoWeld 133 – Plastic End Cap |
NW48G-133 | $7.00 | |
 |

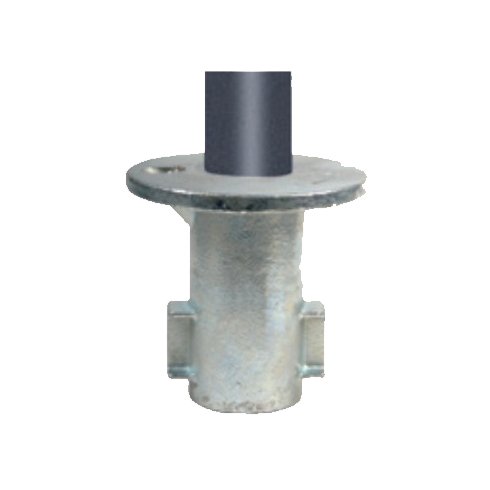

NoWeld 134 – Ground Socket – Galvanised |
NW48G-134 | $122.00 | |
 |

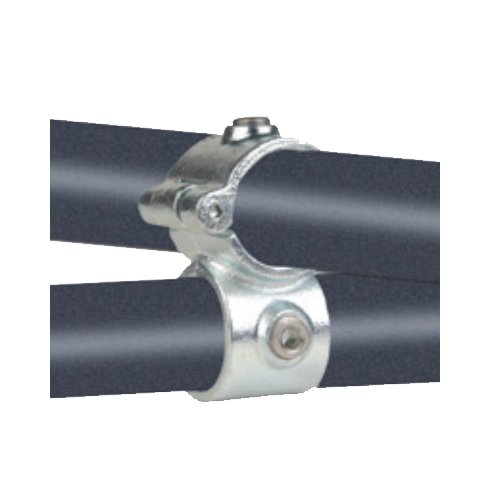

NoWeld 137 – Clamp-on Crossover – Galvanised |
NW48G-137 | $34.00 | |
 |

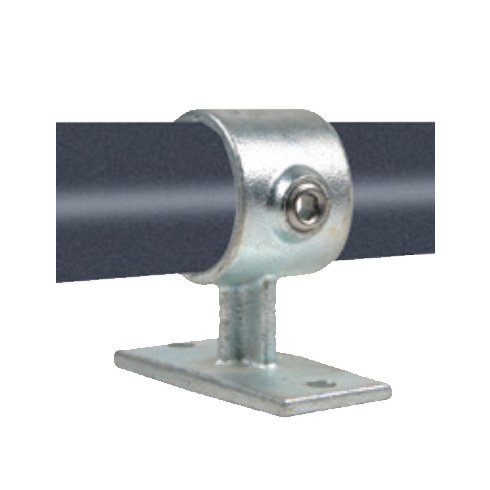

NoWeld 143W – 48.3mm Handrail Bracket – Galvanised |
NW48G-143W | $27.00 | |
 |

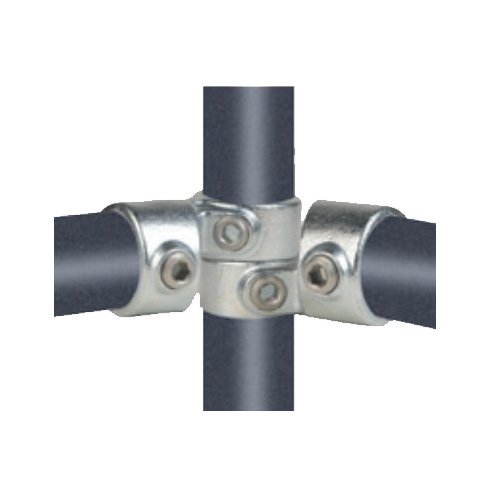

NoWeld 148 – Short Swivel Tee – Galvanised |
NW48G-148 | $22.00 | |
 |

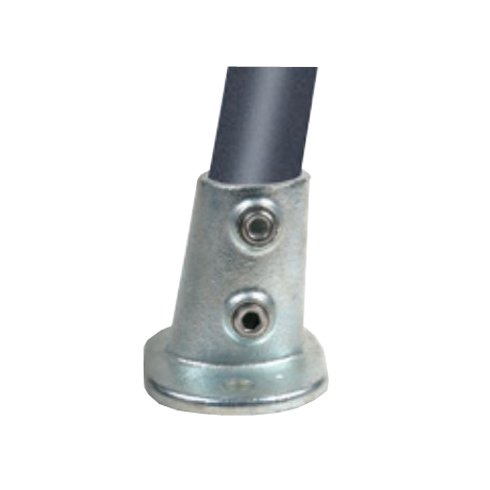

NoWeld 152 – Slope Base Flange (0° – 11°) – Galvanised |
NW48G-152 | $45.00 | |
 |

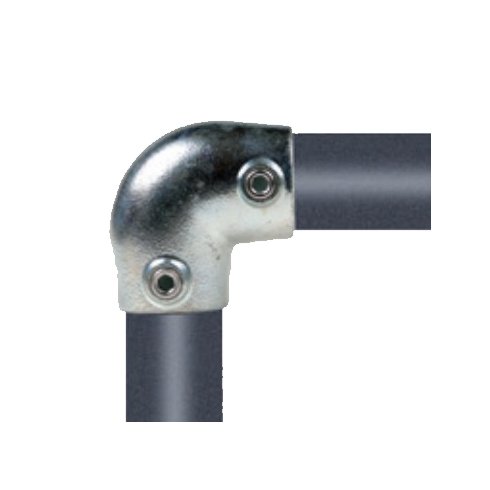

NoWeld 154 – 48.3mm Elbow 0-11 Degree – Galvanised |
NW48G-154 | $35.00 | |
 |

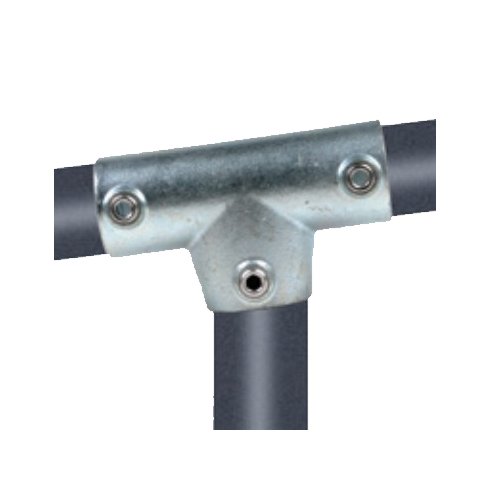

NoWeld 155 – 48.3mm Long Tee 0-11 Degree – Galvanised |
NW48G-155 | $39.00 | |
 |

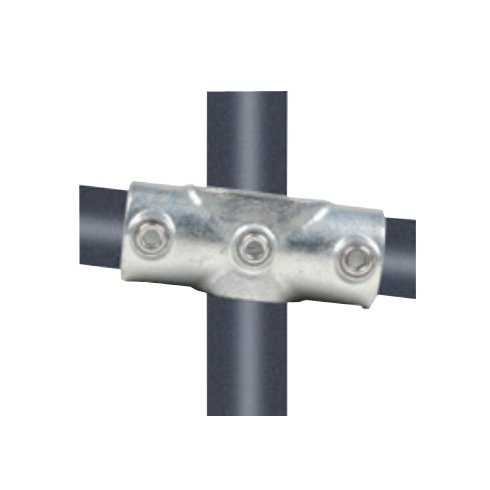

NoWeld 156 – Slope Cross (0° – 11°) – Galvanised |
NW48G-156 | $37.00 | |
 |

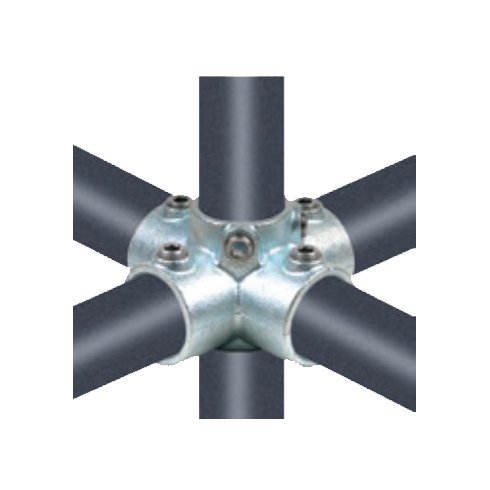

NoWeld 158 – 4 way Center Cross – Galvanised |
NW48G-158 | $54.00 | |
 |

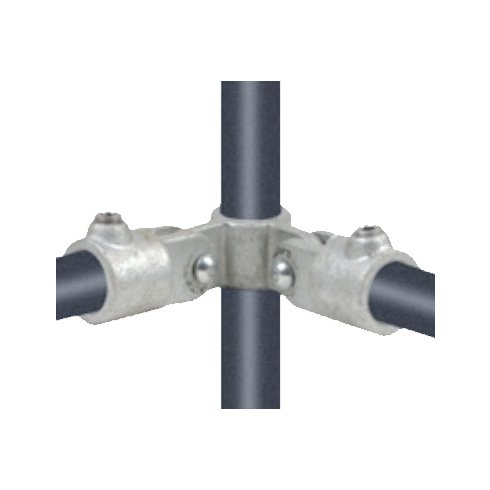

NoWeld 168 – Corner Swivel Combination – Galvanised |
NW48G-168 | $54.00 | |
 |
NoWeld 169 – Angled Support Flange/Brace 48.3mm – Galvanised |
NW48G-169 | $34.00 | |
 |

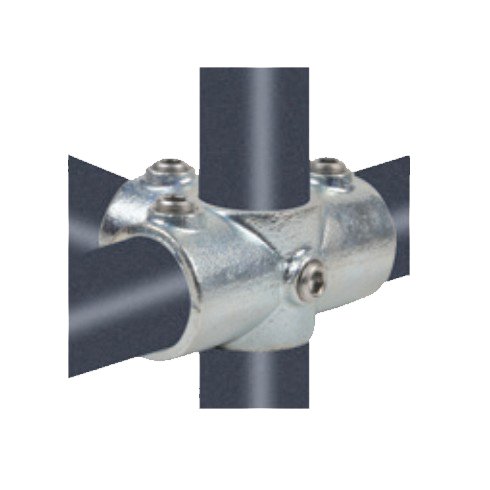

NoWeld 176 – Side Outlet Tee – Galvanised |
NW48G-176 | $34.00 | |
 |
NoWeld 179 – 48.3mm Locking Collar – Galvanised |
NW48G-179 | $9.00 | |
 |
NoWeld 184 – Plug for 48.3mm – Galvanised |
NW48G-184 | $12.00 | |
 |

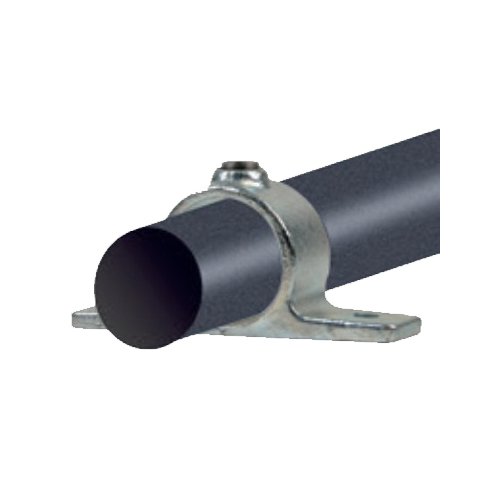

NoWeld 198 for 48.3mm Double Sided Fixing Bracket – Galvanised |
NW48G-198 | $29.00 | |
 |

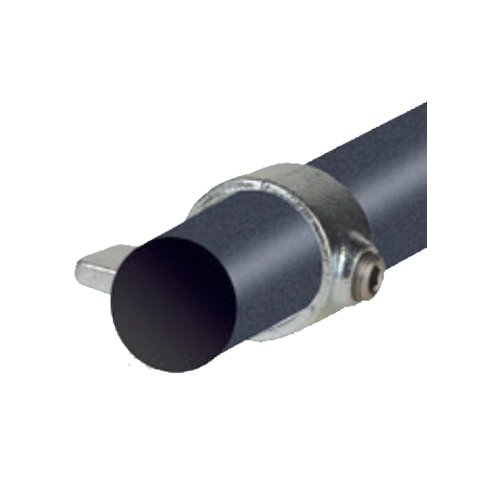

NoWeld 199 – Single-lugged Bracket – Galvanised |
NW48G-199 | $15.00 | |
 |

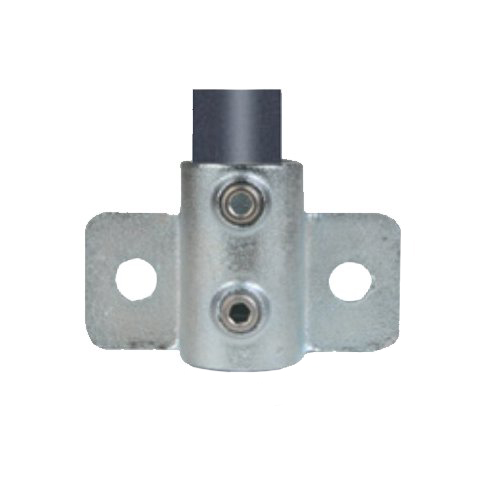

NoWeld 246 – Side Railing Base – Galvanised |
NW48G-246 | $54.00 | |
 |
40NB (48.3mm OD) x 2.75mm x 1m Rail – Galvanised and Powder Coated Yellow |
NW48Y-1000 | $59.00 | |
 |

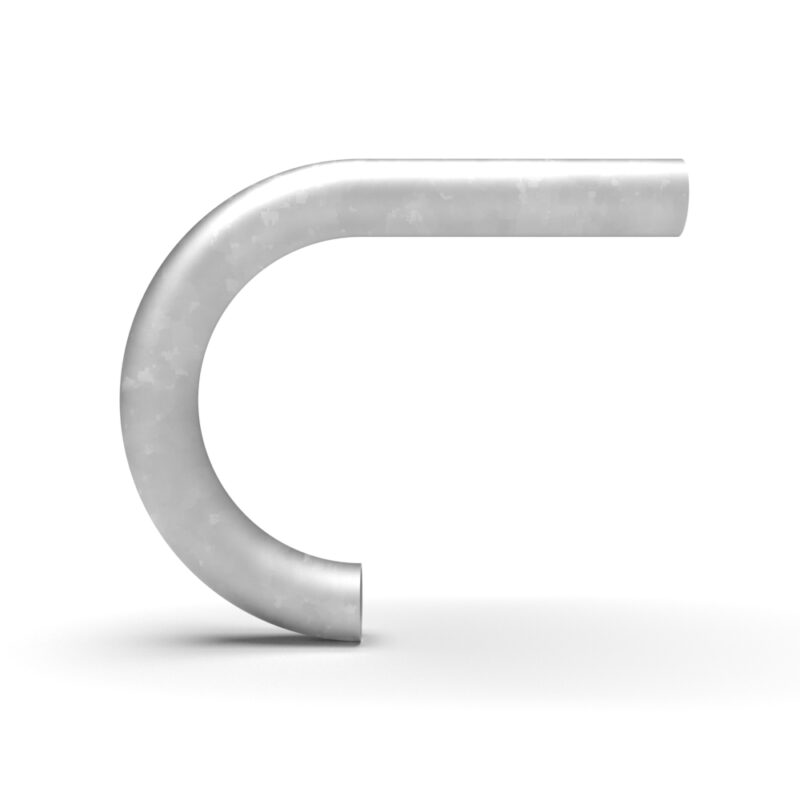

NoWeld Handrail Bend 40NB 180 degree – Galvanised |
NWB40-180 | $105.00 | |
 |
NoWeld Corner Post Removable In-Floor – Galvanised |
NWCP-RIG | $245.00 | |
 |

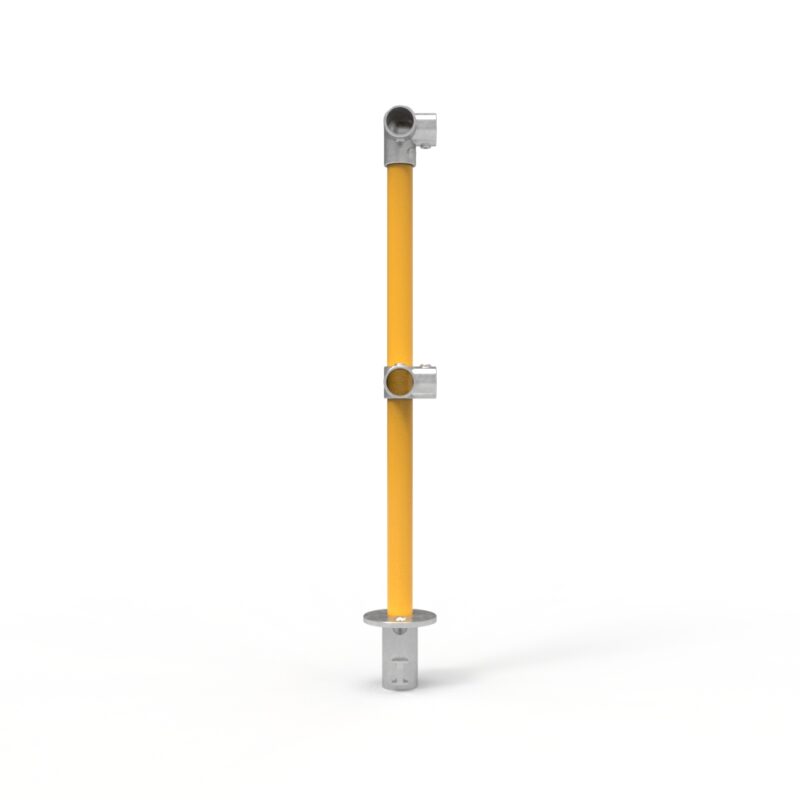

NoWeld Corner Post Removable In-Floor – Galvanised and Powder Coated Yellow |
NWCP-RIY | $254.00 | |
 |
NoWeld End Post Removable In-Floor – Galvanised |
NWEP-RIG | $225.00 | |
 |

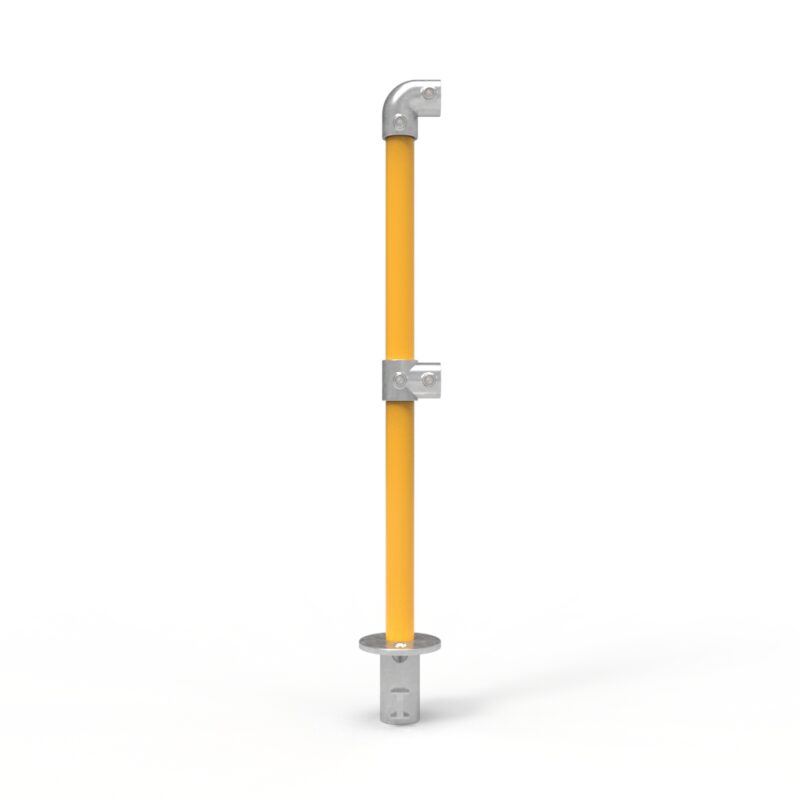

NoWeld End Post Removable In-Floor – Galvanised and Powder Coated Yellow |
NWEP-RIY | $232.00 | |
 |

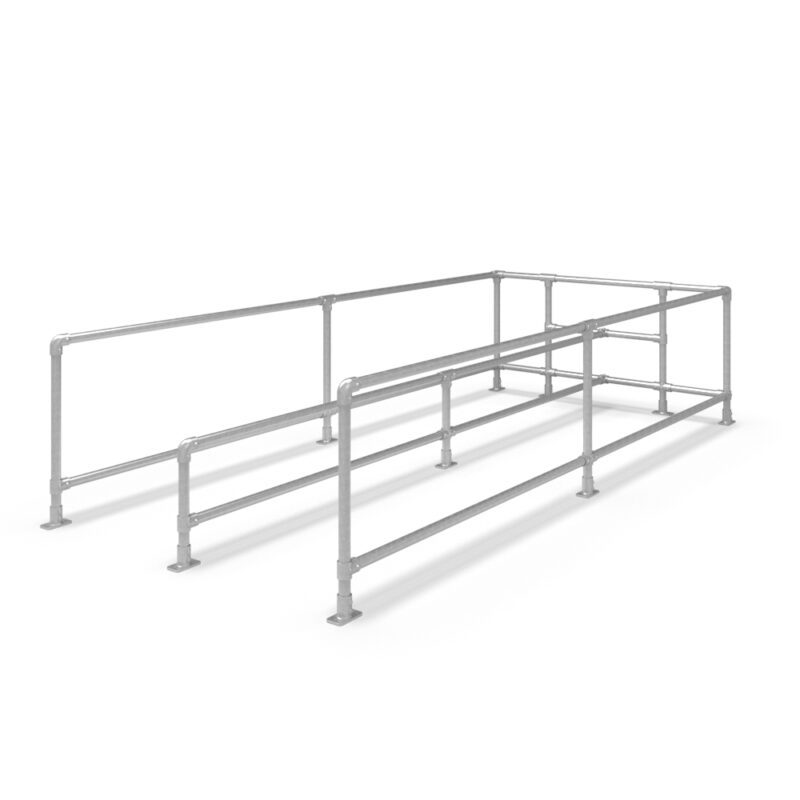

NoWeld Trolley Bay Double Bay – 4m Depth – Galvanised |
NWTB-D4 | $2,689.00 | |
 |

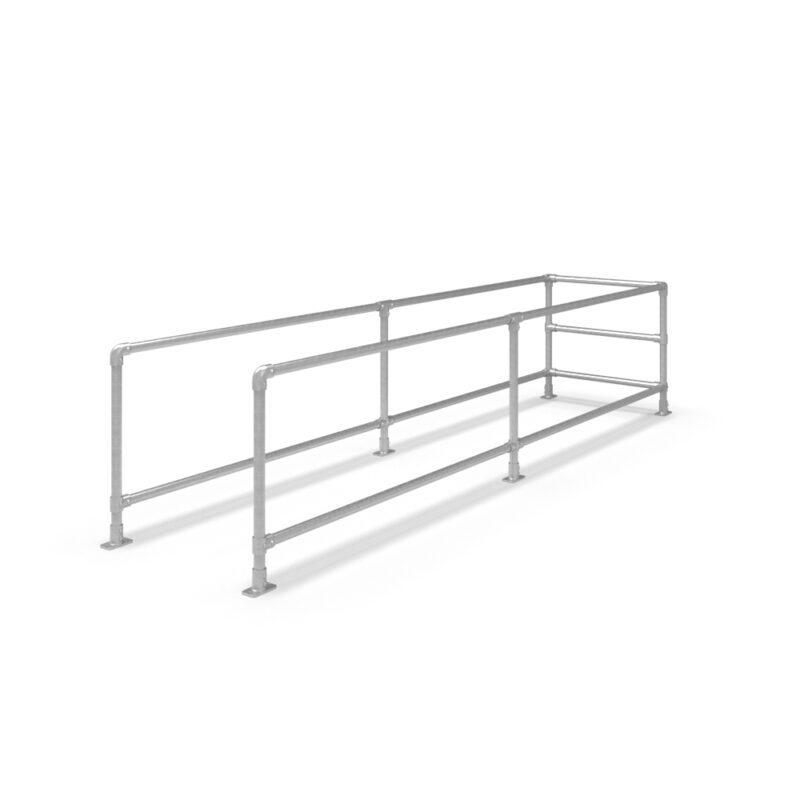

NoWeld Trolley Bay Single Bay – 4m Depth – Galvanised |
NWTB-S4 | $1,697.00 | |
 |

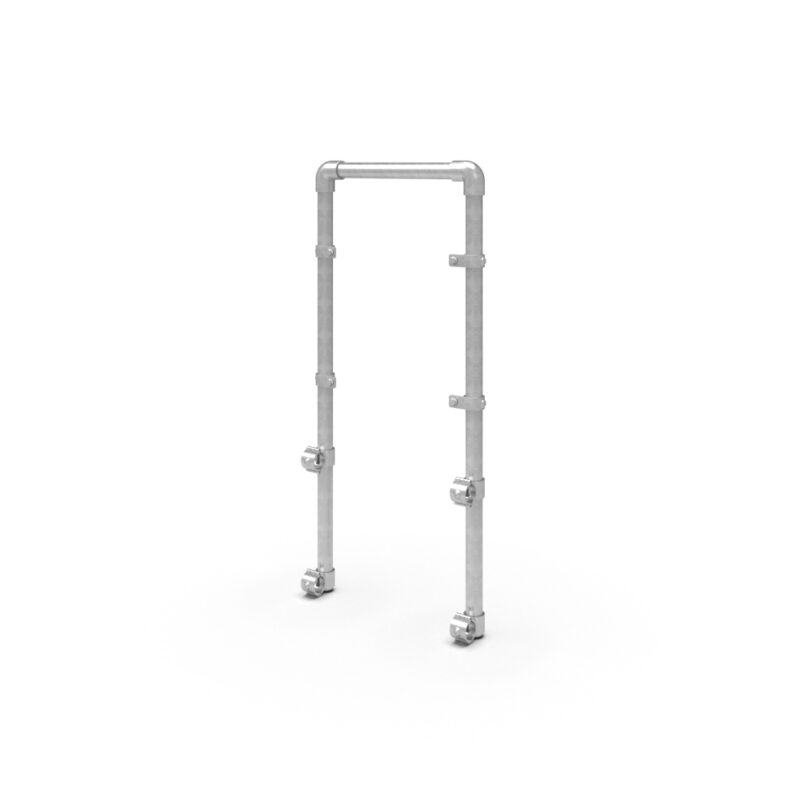

NoWeld Trolley Bay Sign Frame – Single Side – Galvanised |
NWTB-SF | $345.00 | |
 |

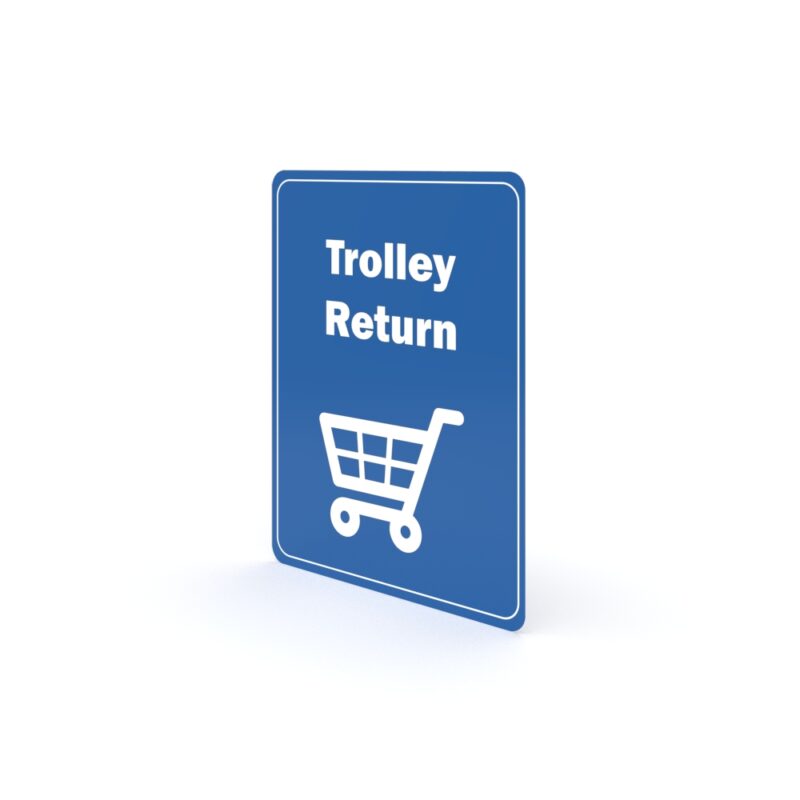

NoWeld Trolley Bay Sign 1200 x 900mm -1.6mm Aluminium |
NWTB-SIGN | $412.00 | |
 |
NoWeld Through Post Removable In-Floor – Galvanised |
NWTP-RIG | $244.00 | |
 |

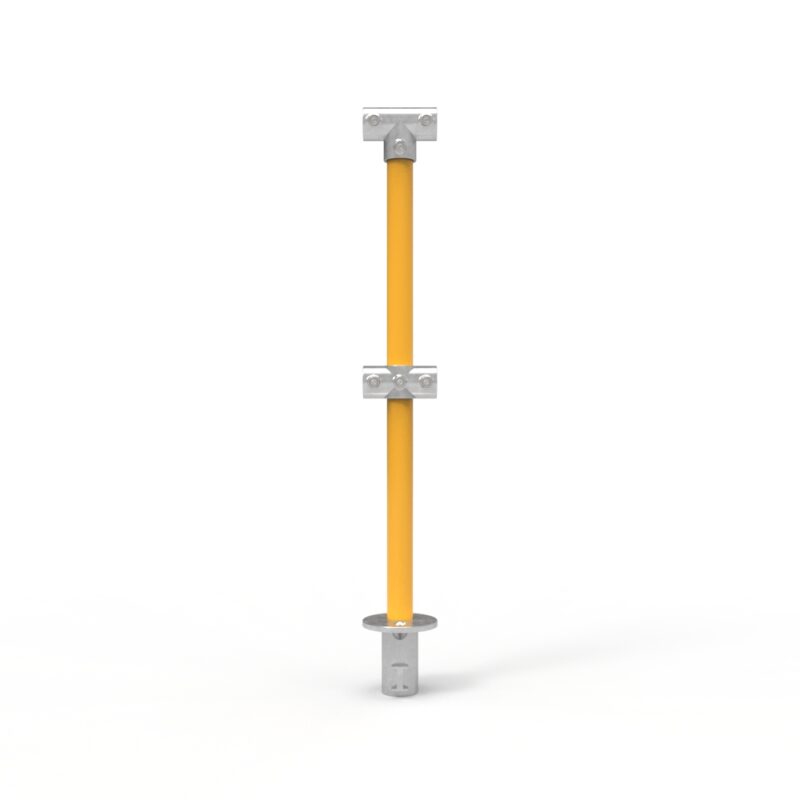

NoWeld Through Post Removable In-Floor – Galvanised and Powder Coated Yellow |
NWTP-RIY | $252.00 | |
 |

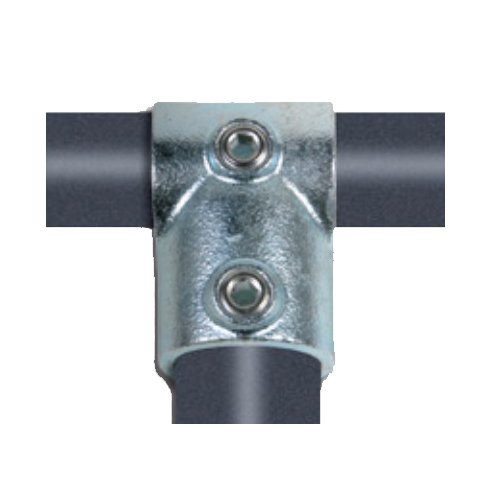

NoWeld 101 – Short Tee 48.3mm Connector – Galvanised |
NW48G-101 | $27.00 | |
 |

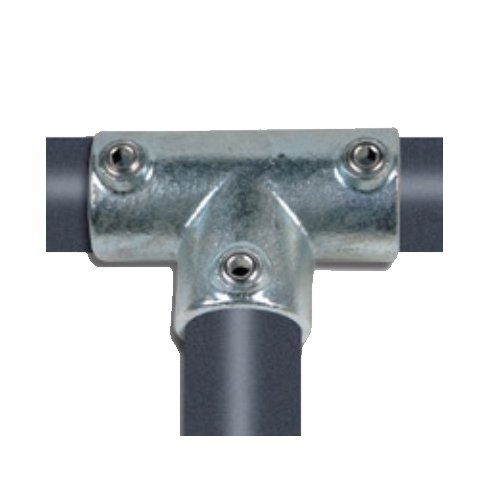

NoWeld 104 – Long Tee 48.3mm Connector – Galvanised |
NW48G-104 | $40.00 | |
 |

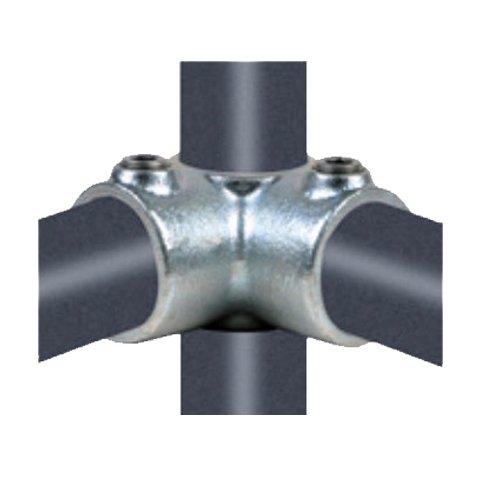

NoWeld 116 – 90 deg Corner Through 48.3mm Connector – Galvanised |
NW48G-116 | $35.00 | |
 |

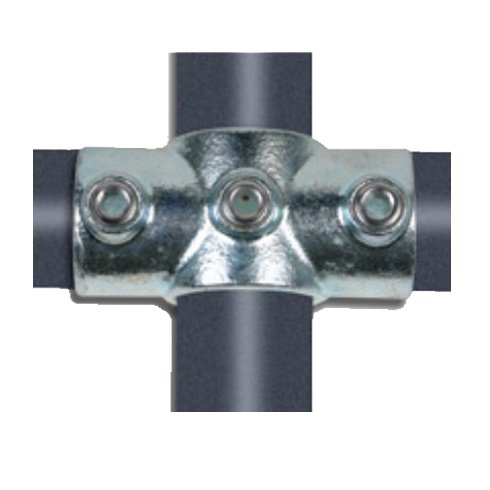

NoWeld 119 – Cross 48.3mm Connector – Galvanised |
NW48G-119 | $35.00 | |
 |

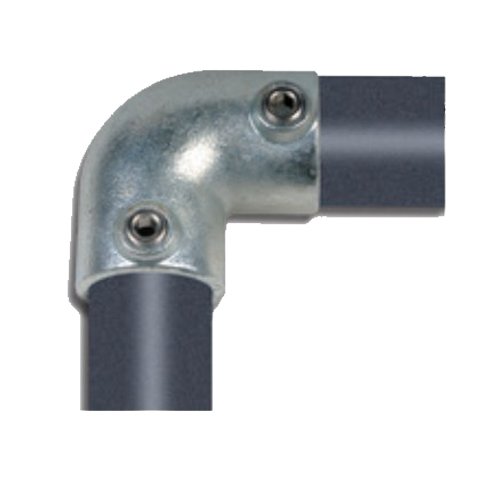

NoWeld 125 – 90 deg Corner 48.3mm Connector – Galvanised |
NW48G-125 | $30.00 | |
|
40NB (48.3mm OD) x 2.75mm x 1275mm Below Ground Post – Galvanised |
NW48G-1275 | $57.00 | |
 |

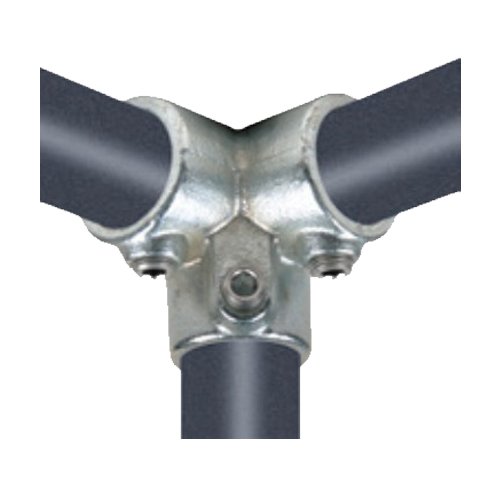

NoWeld 128 – 90 deg Corner Top 48.3mm Connector – Galvanised |
NW48G-128 | $42.00 | |
 |

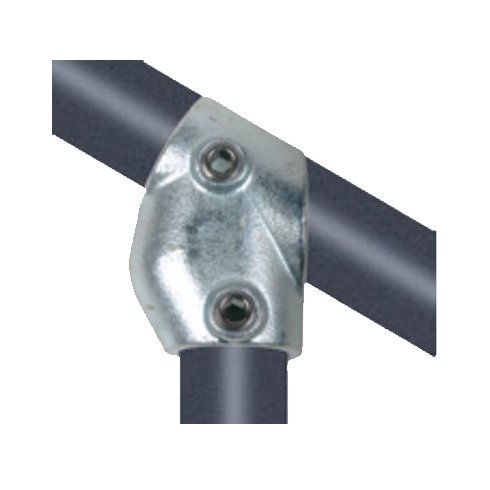

NoWeld 129 – Adjustable Top Tee (30 deg to 60 deg) 48.3mm Connector – Galvanised |
NW48G-129 | $35.00 | |
 |

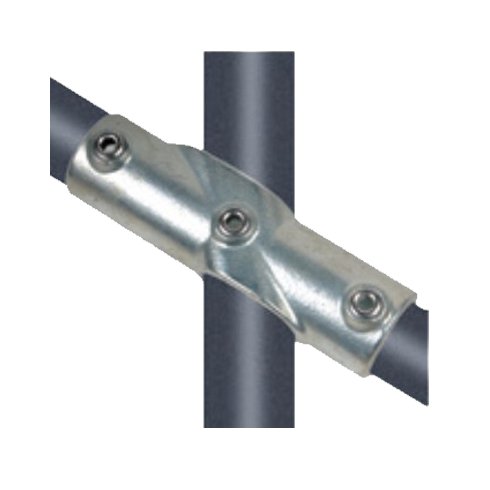

NoWeld 130 – Adjustable Mid through (30 deg to 45 deg) 48.3mm Connector – Galvanised |
NW48G-130 | $57.00 | |
 |

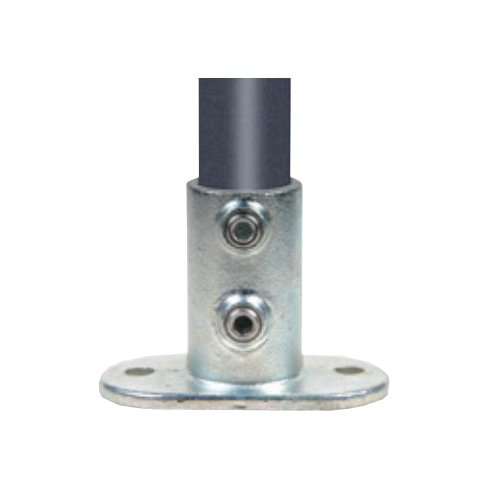

NoWeld 132 – Surface Mount Flange 48.3mm Connector – Galvanised |
NW48G-132 | $42.00 | |
 |

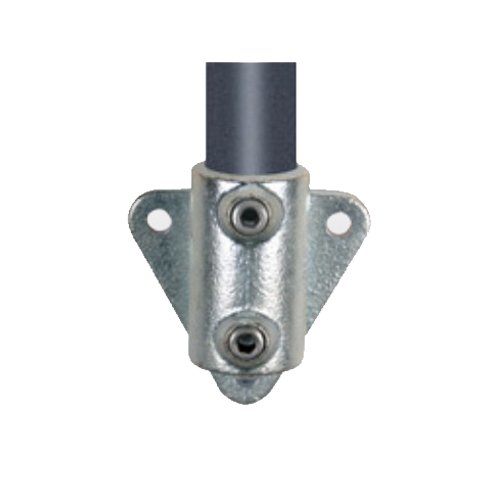

NoWeld – 146 Side Mount Flange 48.3mm Connector – Galvanised |
NW48G-146 | $42.00 | |
 |

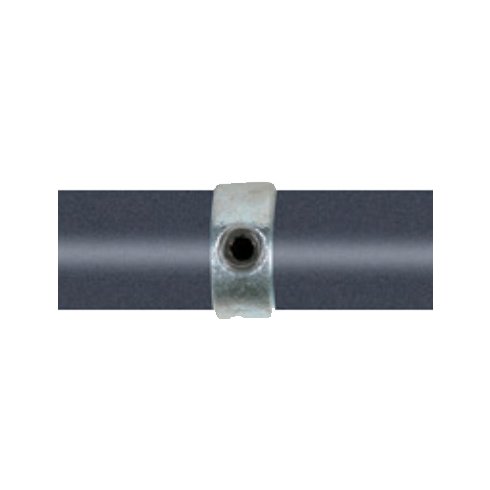

NoWeld 150 – Internal Expanding Joint to suit 48.3mm Connector – Galvanised |
NW48G-150 | $22.00 | |
 |

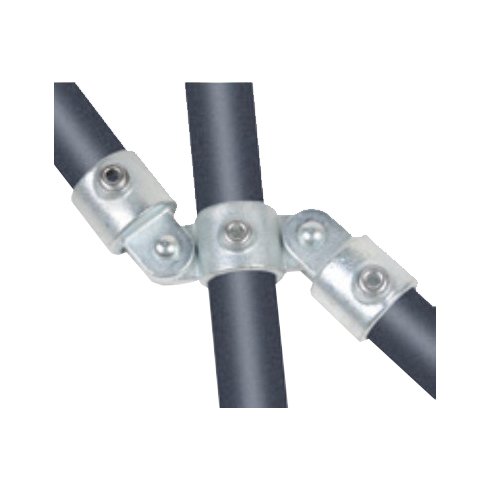

NoWeld – 167 Post to Rail Adjustable 48.3mm Connector – Galvanised |
NW48G-167 | $44.00 | |
 |

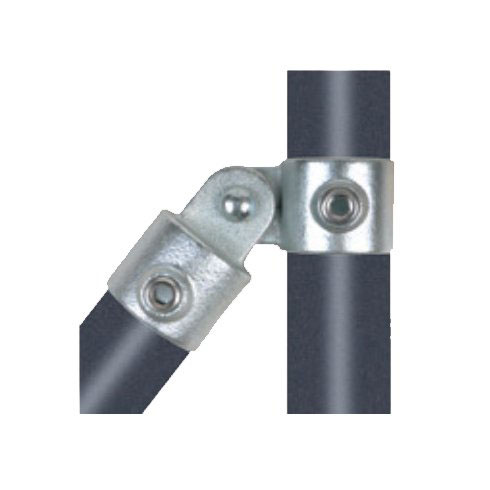

NoWeld 173 – 48.3mm Angle Connector – Galvanised |
NW48G-173 | $40.00 | |
 |

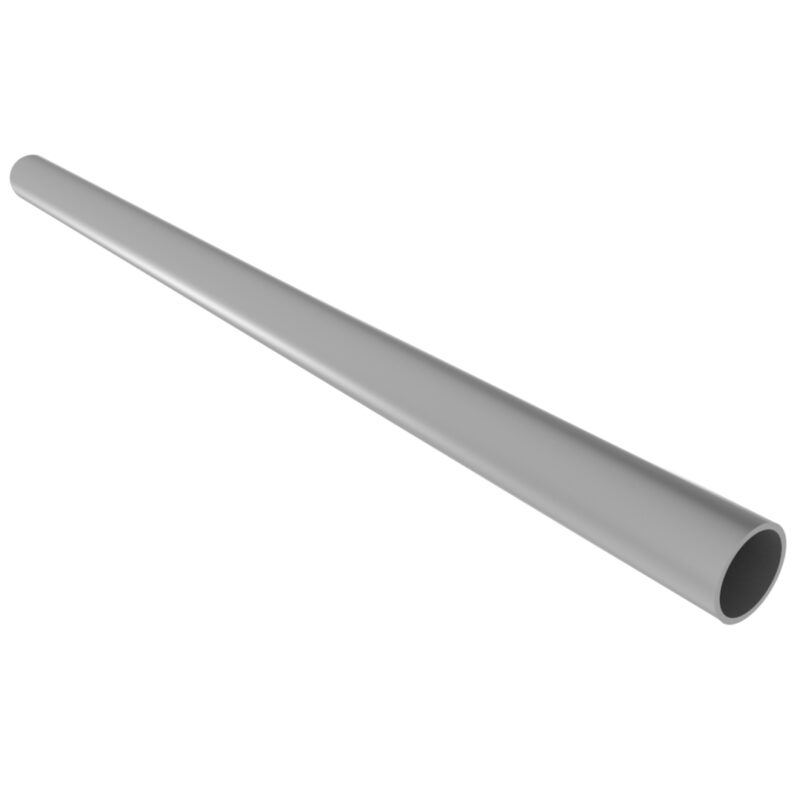

40NB (48.3mm OD) x 2.75mm x 2m Rail – Galvanised |
NW48G-2000 | $74.00 | |
 |

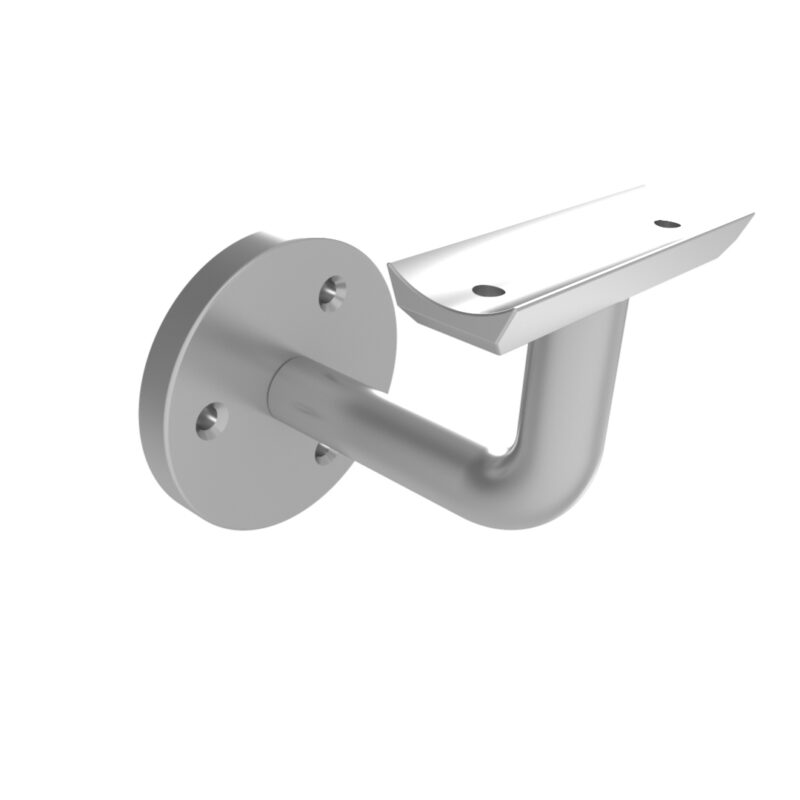

NoWeld 746 – Assist Saddle Wall Bracket 48.3mm – Galvanised |
NW48G-746 | $37.00 | |
 |
NoWeld 751 – Assist adjustable angle post saddle 48.3mm Connector – Galvanised |
NW48G-751 | $42.00 | |
 |
40NB (48.3 OD) x 2.75mm x 880mm Post – Galvanised |
NW48G-880 | $47.00 | |
 |
40NB (48.3mm OD) x 2.75mm x 1275mm Below Ground Post – Galvanised and Powder Coated Yellow |
NW48Y-1275 | $94.00 | |
 |
40NB (48.3mm OD) x 2.75mm x 2m Rail – Galvanised and Powder Coated Yellow |
NW48Y-2000 | $97.00 | |
 |

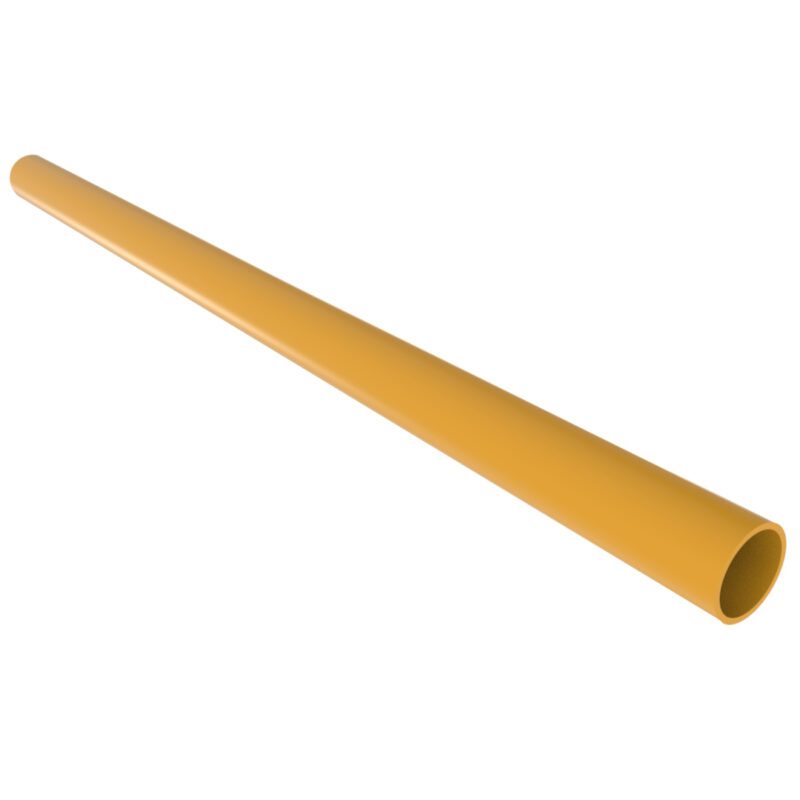

40NB (48.3mm OD) x 2.75mm x 880mm Post – Galvanised and Powder Coated Yellow |
NW48Y-880 | $62.00 | |
 |

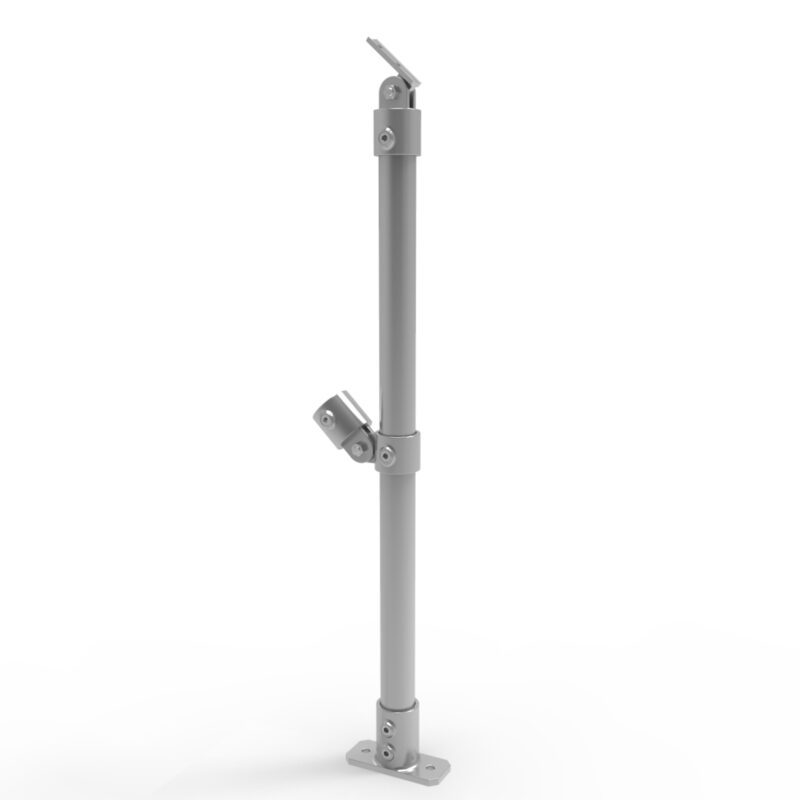

NoWeld Angled End Post Surface Mount – Galvanised |
NWAEP-SMG | $167.00 | |
 |

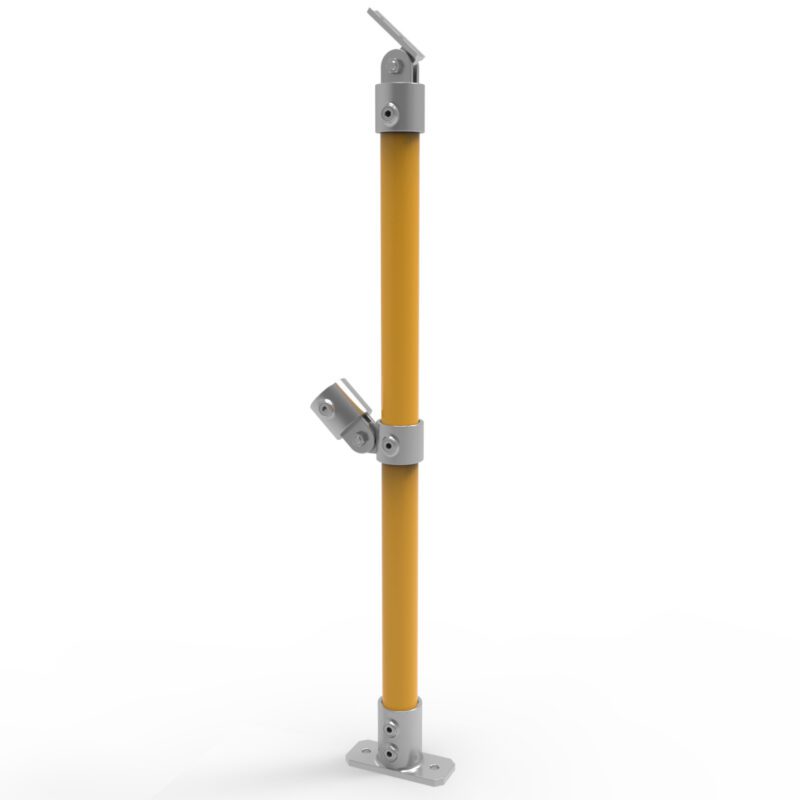

NoWeld Angled End Post Surface Mount – Galvanised and Powder Coated Yellow |
NWAEP-SMY | $180.00 | |
 |

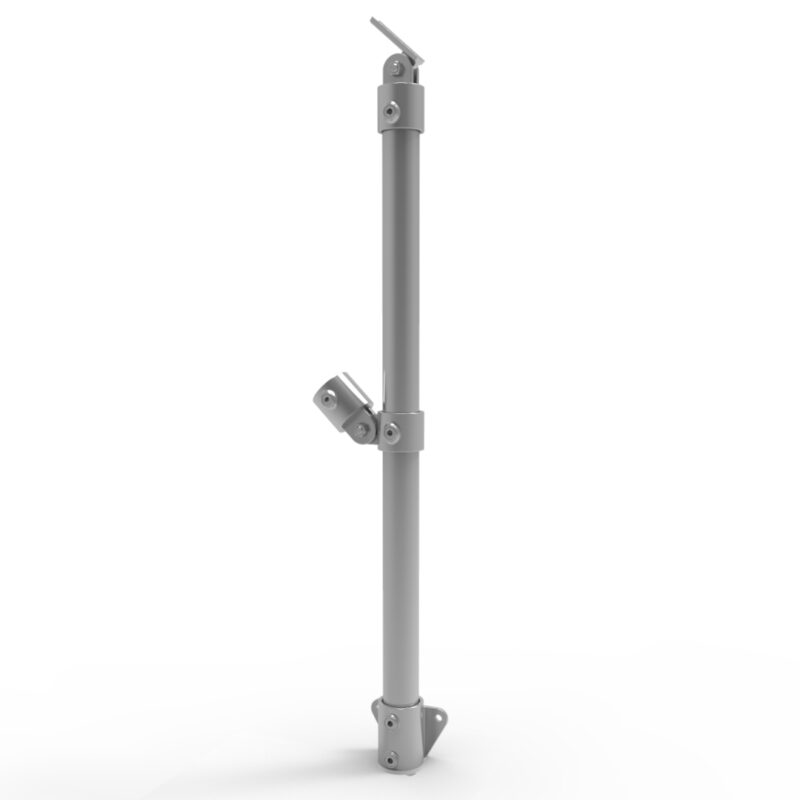

NoWeld Angled End Post Vertical Mount – Galvanised |
NWAEP-VMG | $167.00 | |
 |

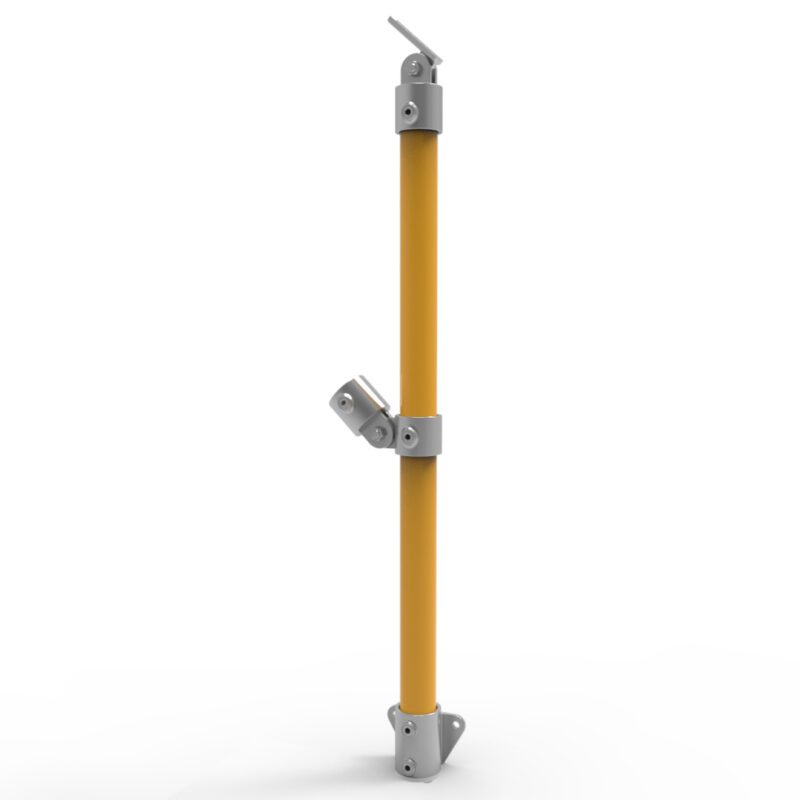

NoWeld Angled End Post Vertical Mount – Galvanised and Powder Coated Yellow |
NWAEP-VMY | $180.00 | |
 |

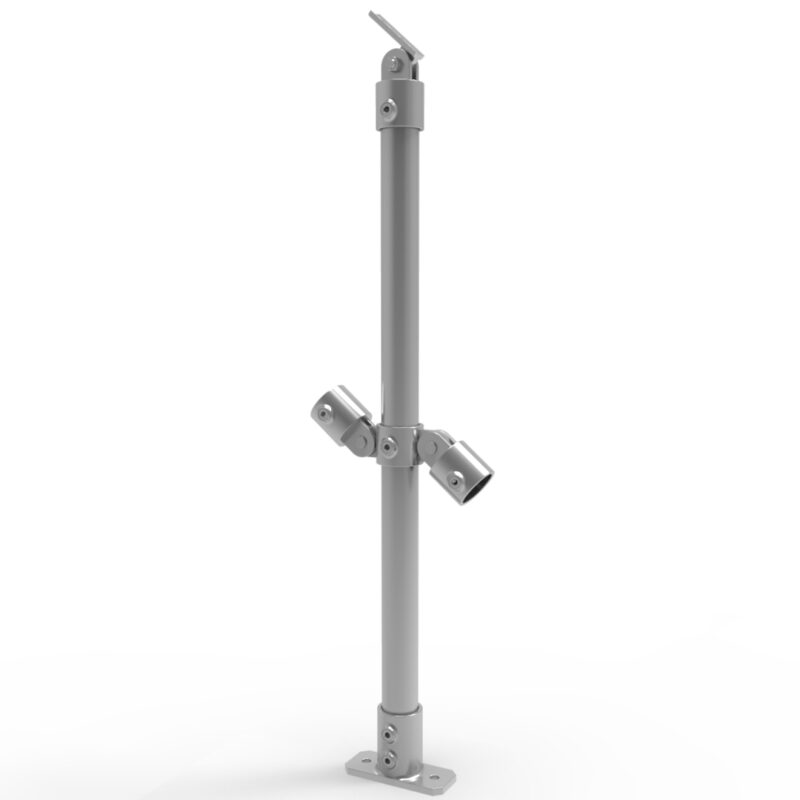

NoWeld Angled Through Post Surface Mount – Galvanised |
NWATP-SMG | $169.00 | |
 |

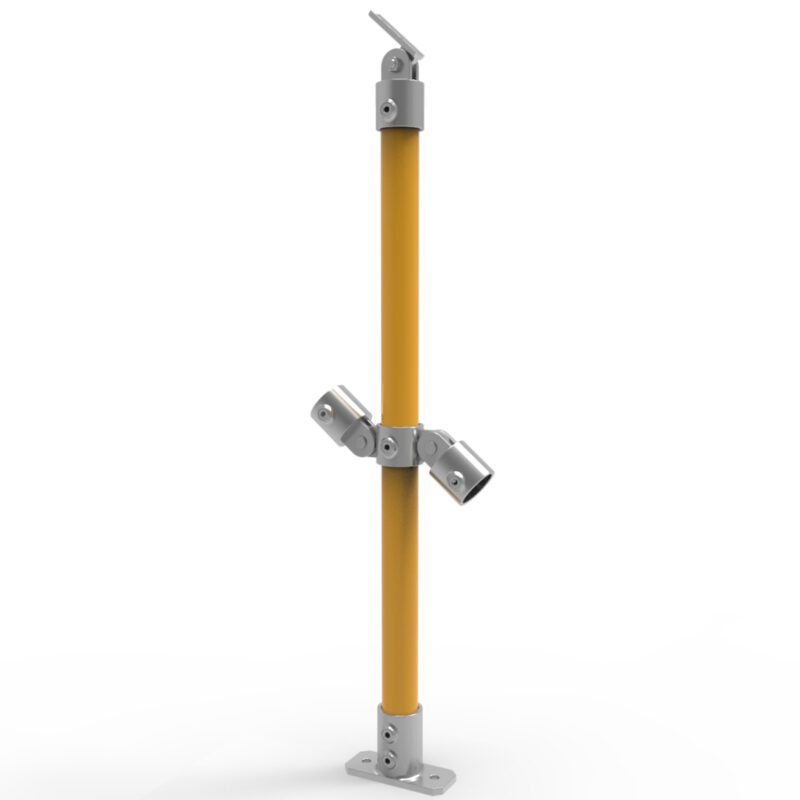

NoWeld Angled Through Post Surface Mount – Galvanised and Powder Coated Yellow |
NWATP-SMY | $182.00 | |
 |

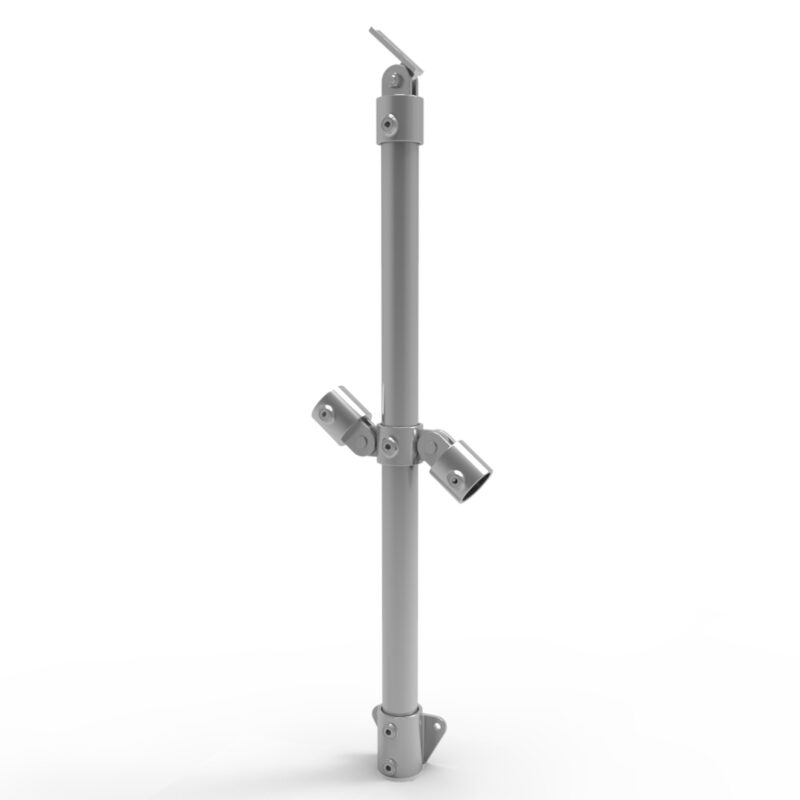

NoWeld Angled Through Post Vertical Mount – Galvanised |
NWATP-VMG | $169.00 | |
 |

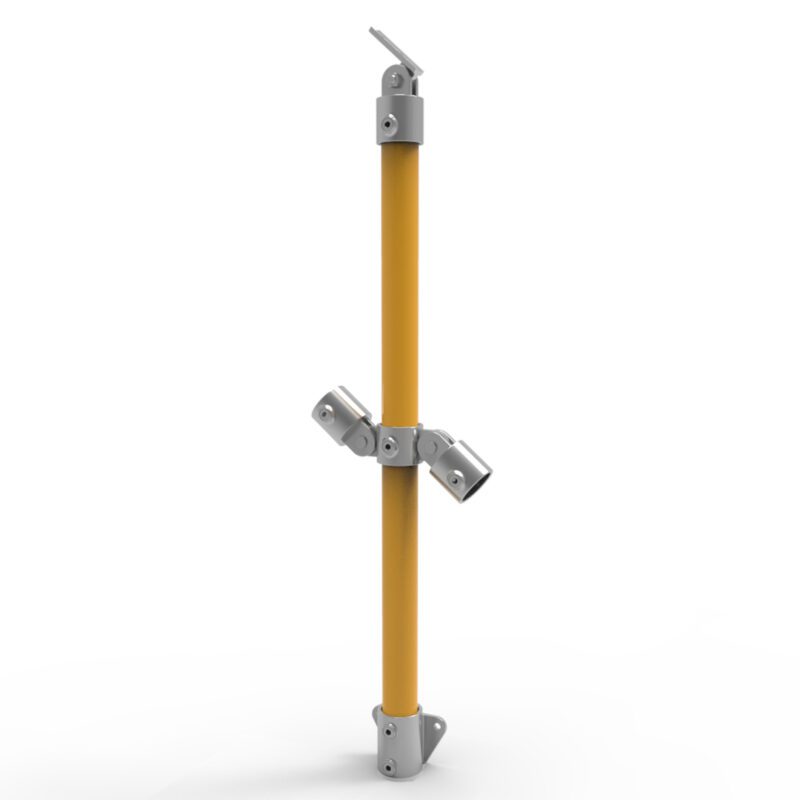

NoWeld Angled Through Post Vertical Mount – Galvanised and Powder Coated Yellow |
NWATP-VMY | $182.00 | |
 |
NoWeld Handrail Bend 40NB 45 degree – Galvanised |
NWB40-45 | ||
 |
NoWeld Handrail Bend 40NB 90 degree – Galvanised |
NWB40-90 | $89.00 | |
 |

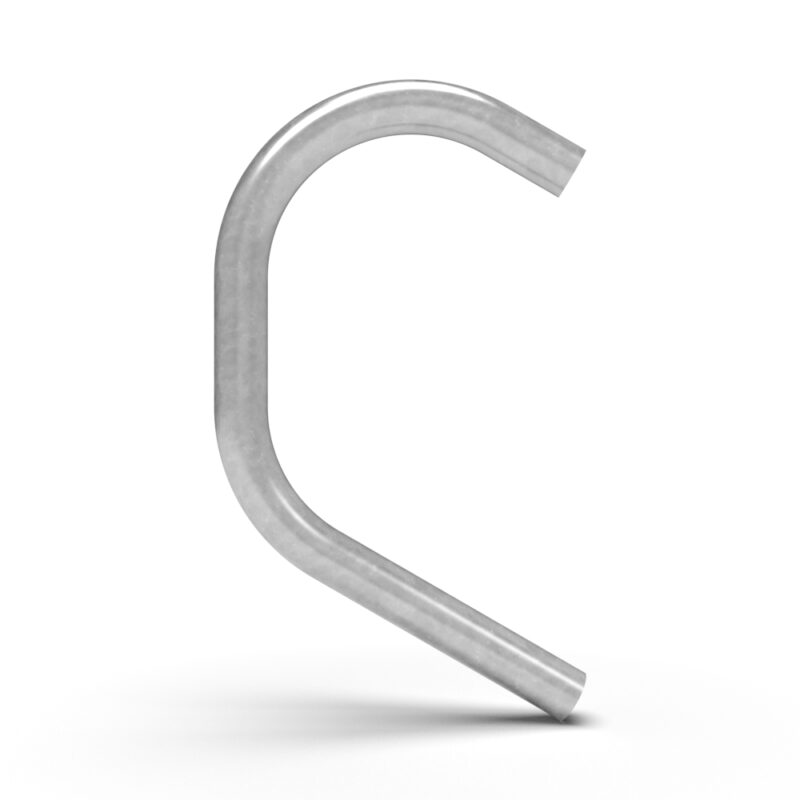

NoWeld Closure Bend 30 Degrees – Galvanised |
NWCB-30 | $80.00 | |
 |

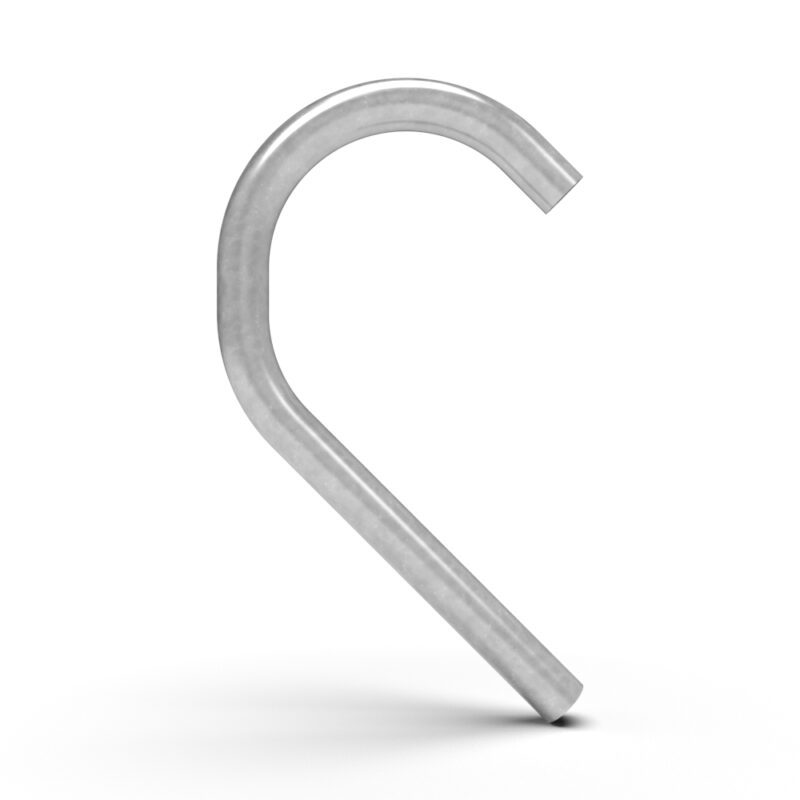

NoWeld Closure Bend 45 Degrees – Galvanised |
NWCB-45 | $102.00 | |
 |
NoWeld Closure Bend – Galvanised |
NWCB | $102.00 | |
 |

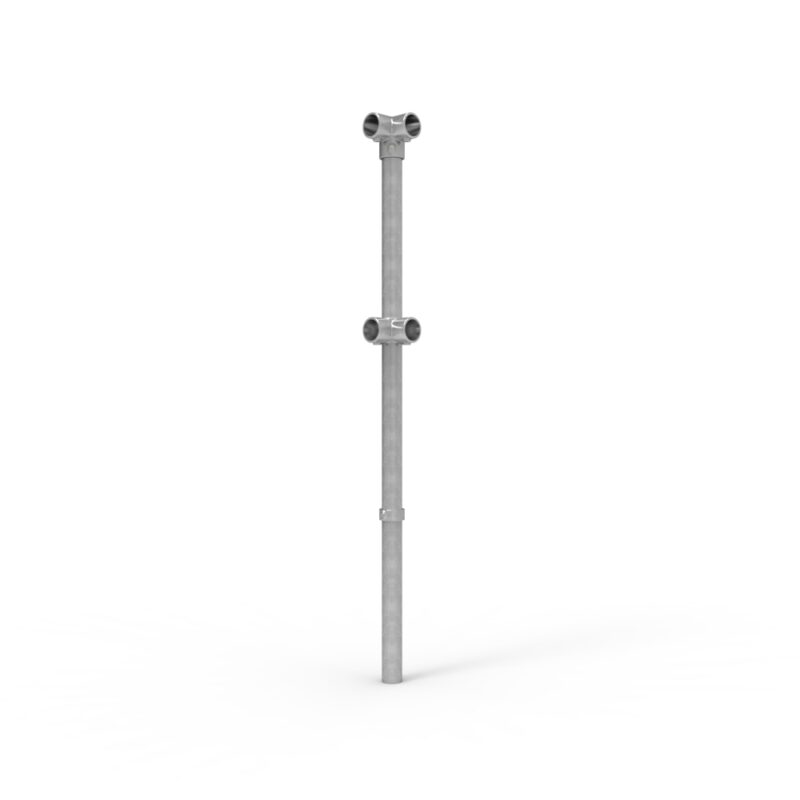

NoWeld Corner Post Below Ground – Galvanised |
NWCP-BGG | $130.00 | |
 |
NoWeld Corner Post Below Ground – Galvanised and Powder Coated Yellow |
NWCP-BGY | $169.00 | |
 |
NoWeld Corner Post Surface Mount – Galvanised |
NWCP-SMG | $164.00 | |
 |

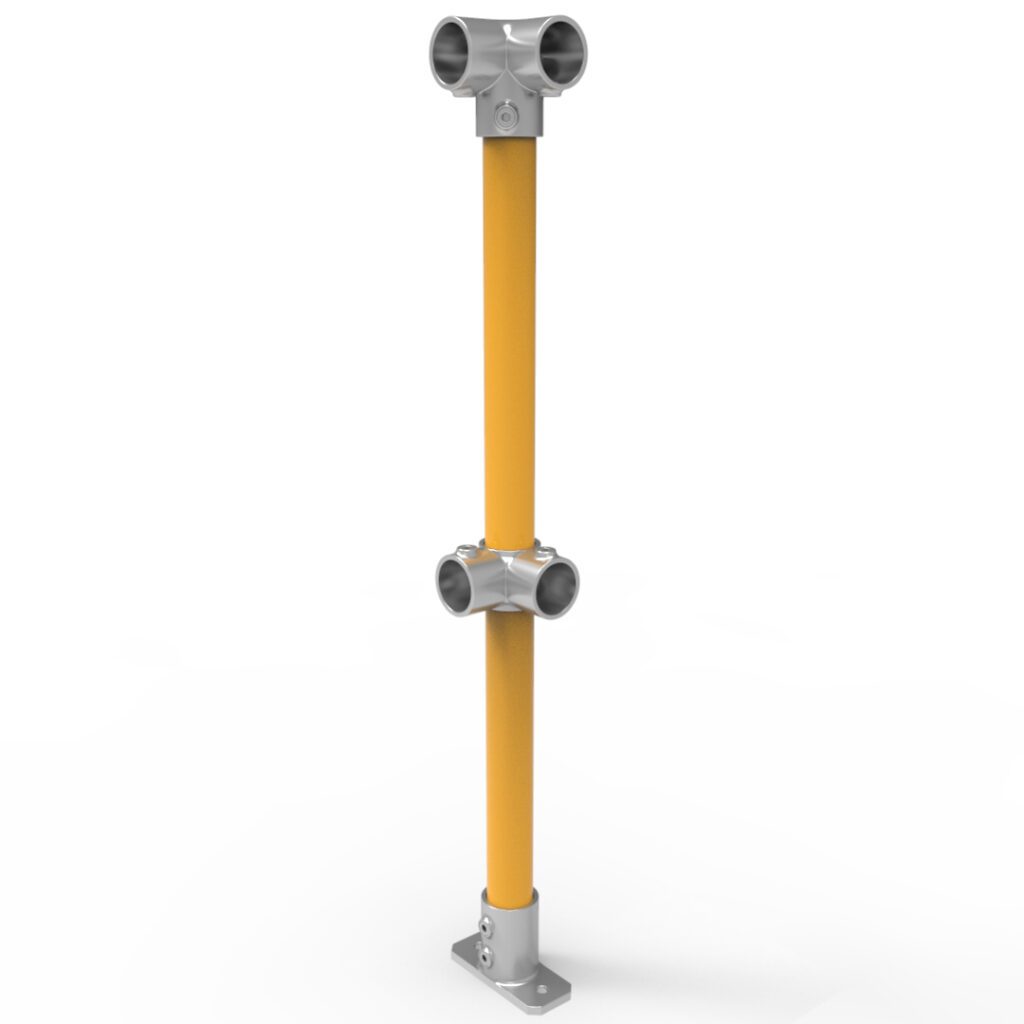

NoWeld Corner Post Surface Mount – Galvanised and Powder Coated Yellow |
NWCP-SMY | $177.00 | |
 |

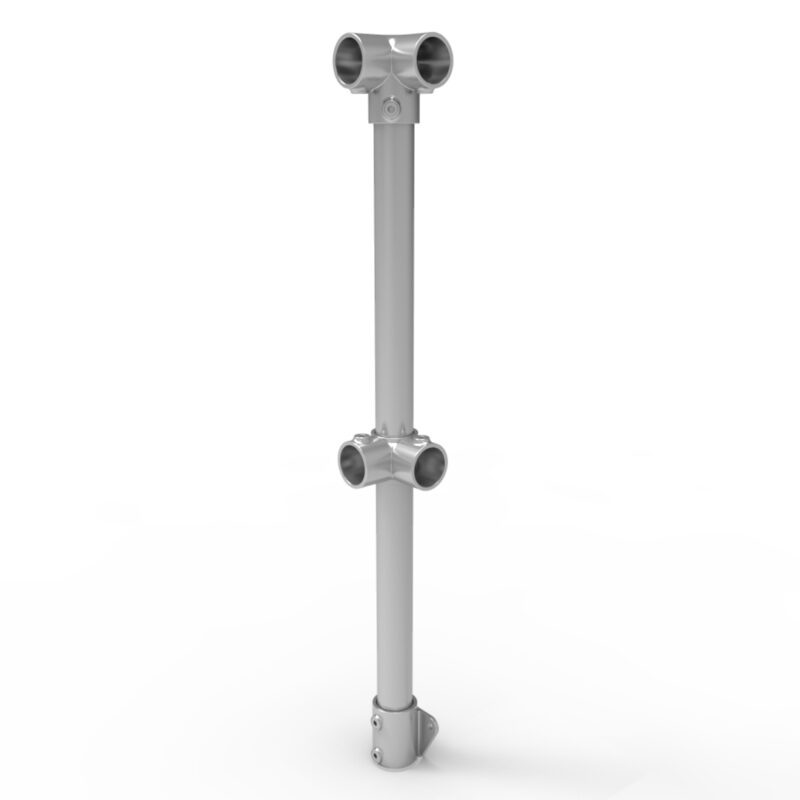

NoWeld Corner Post Vertical Mount – Galvanised |
NWCP-VMG | $164.00 | |
 |

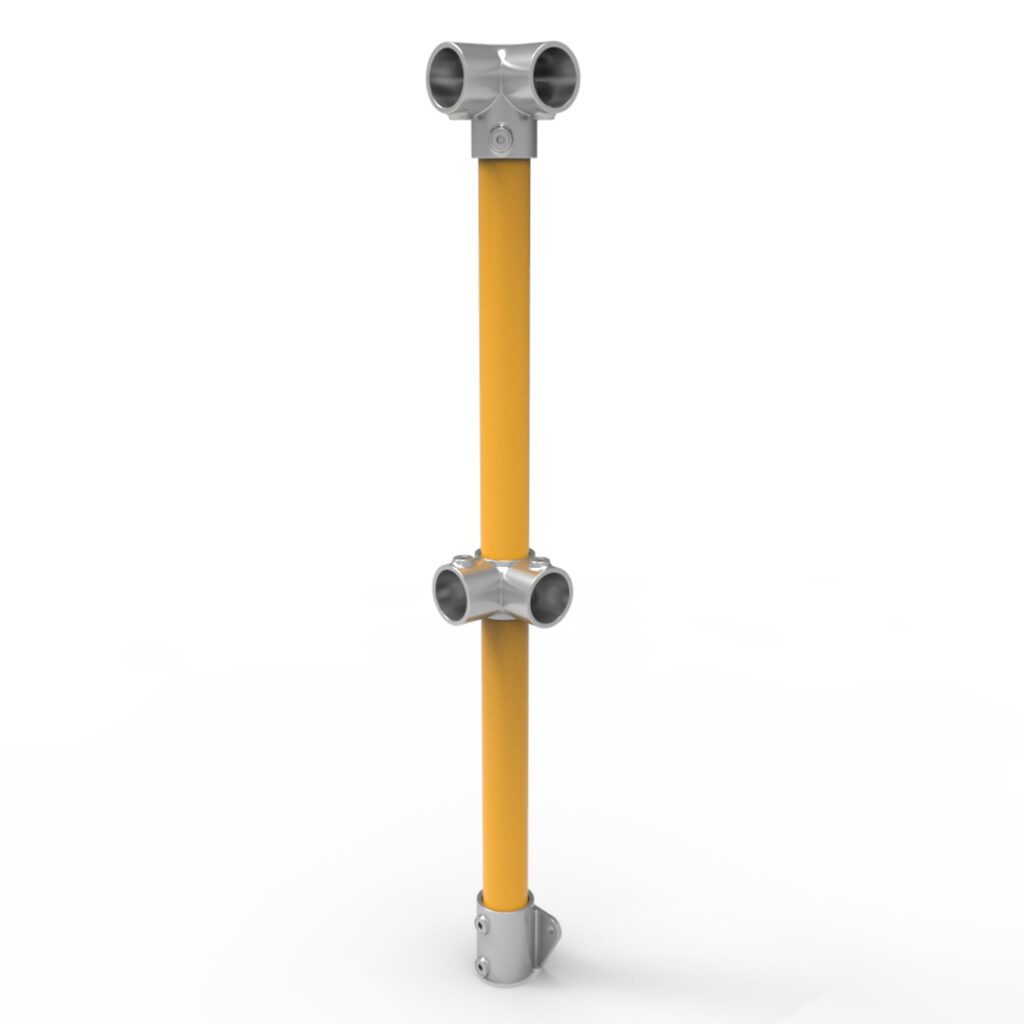

NoWeld Corner Post Vertical Mount – Galvanised and Powder Coated Yellow |
NWCP-VMY | $177.00 | |
 |
NoWeld End Post Below Ground – Galvanised |
NWEP-BGG | $110.00 | |
 |

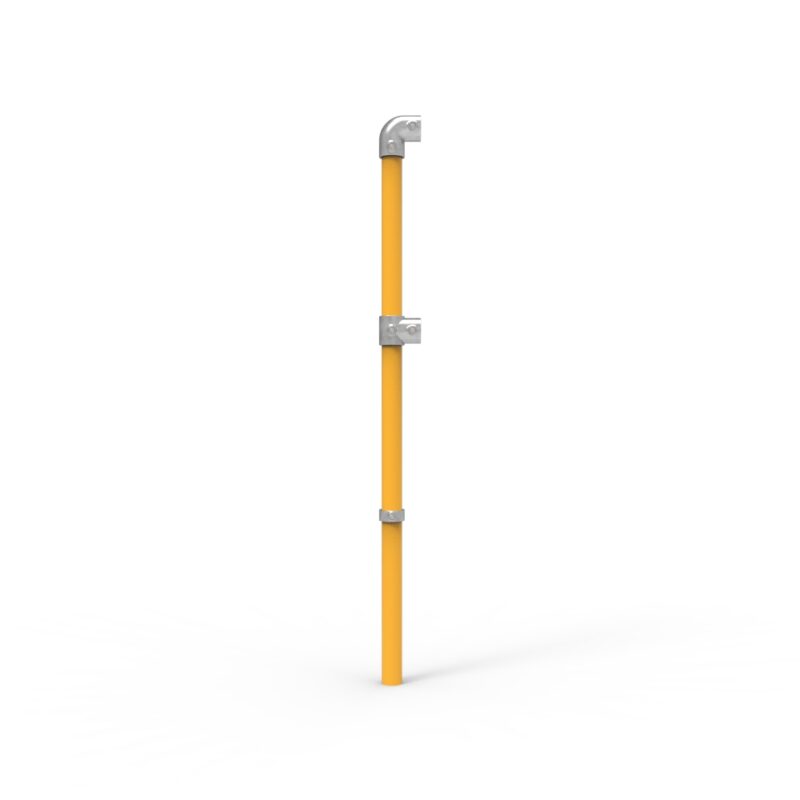

NoWeld End Post Below Ground – Galvanised and Powder Coated Yellow |
NWEP-BGY | $147.00 | |
 |
NoWeld End Post Surface Mount – Galvanised |
NWEP-SMG | $142.00 | |
 |

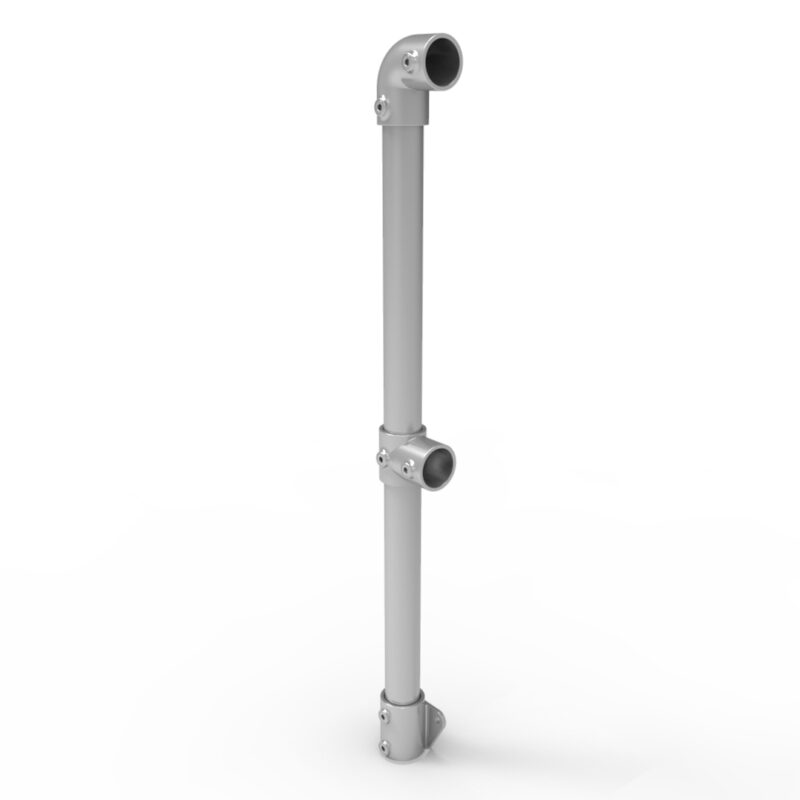

NoWeld End Post Vertical Mount – Galvanised |
NWEP-VMG | $142.00 | |
 |

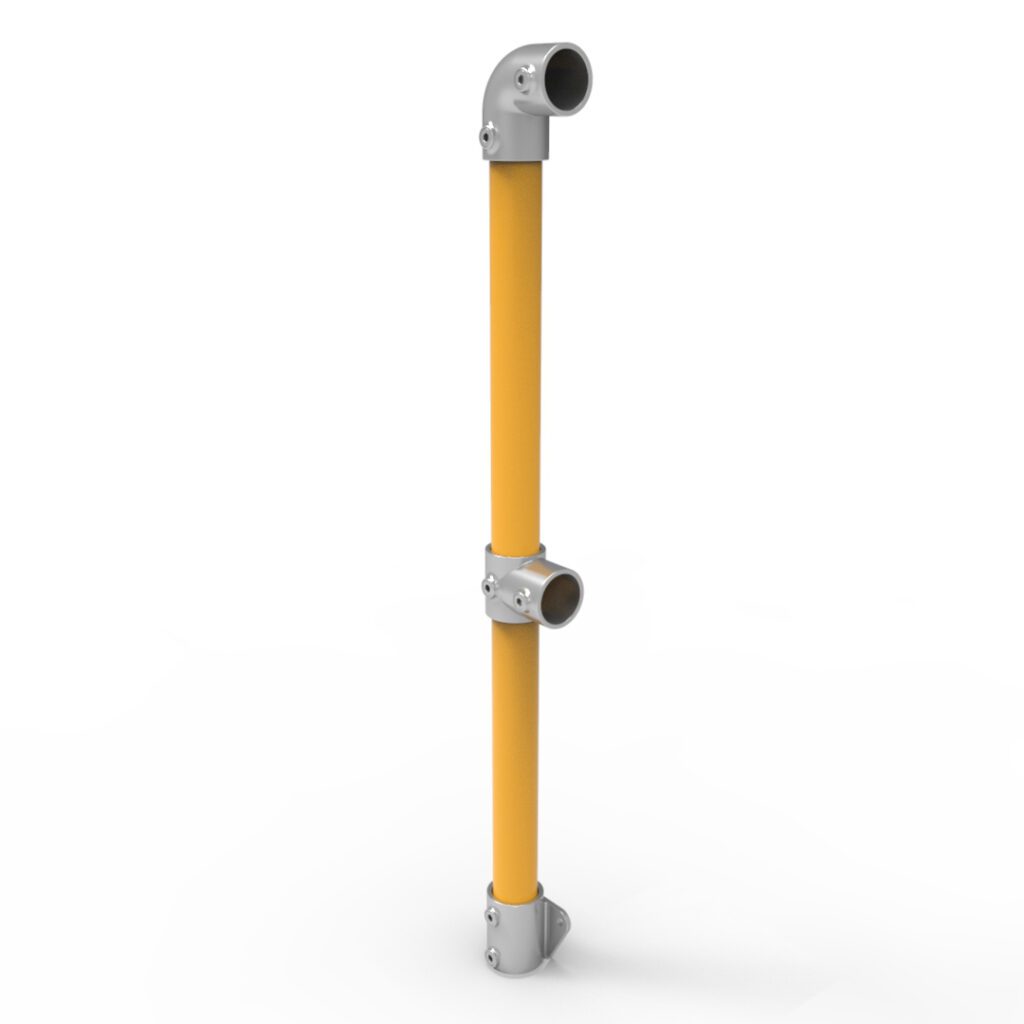

NoWeld End Post Vertical Mount – Galvanised and Powder Coated Yellow |
NWEP-VMY | $157.00 | |
 |

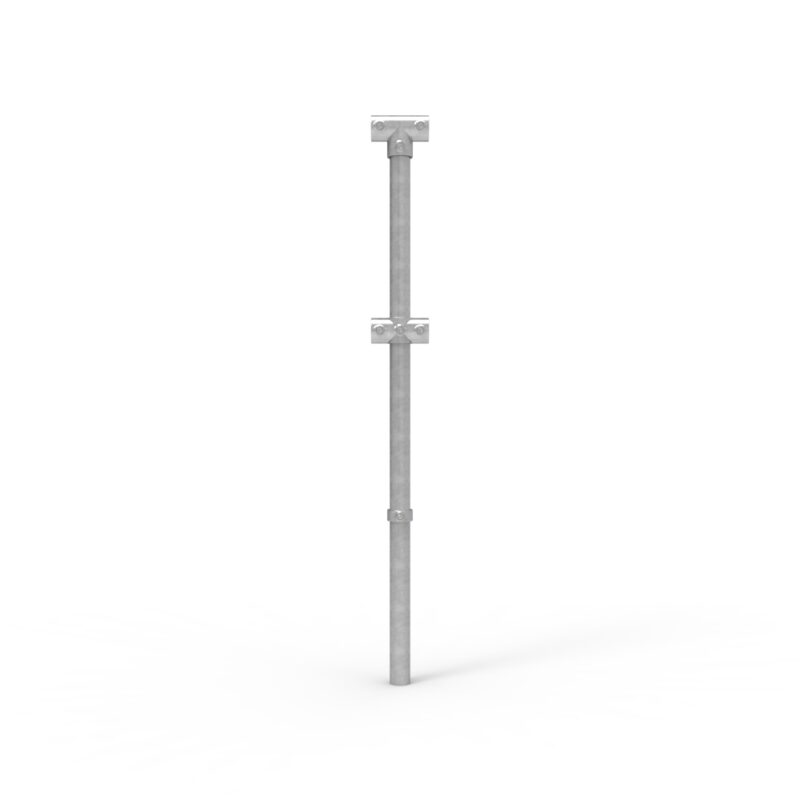

NoWeld Through Post Below Ground – Galvanised |
NWTP-BGG | $129.00 | |
 |
NoWeld Through Post Below Ground – Galvanised and Powder Coated Yellow |
NWTP-BGY | $167.00 | |
 |

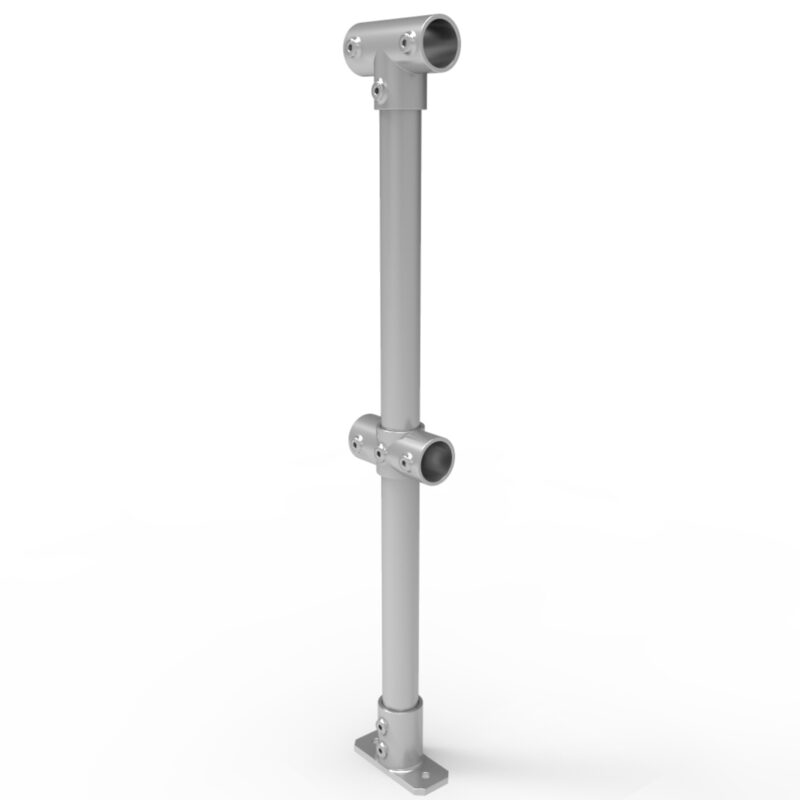

NoWeld Through Post Surface Mount – Galvanised |
NWTP-SMG | $162.00 | |
 |

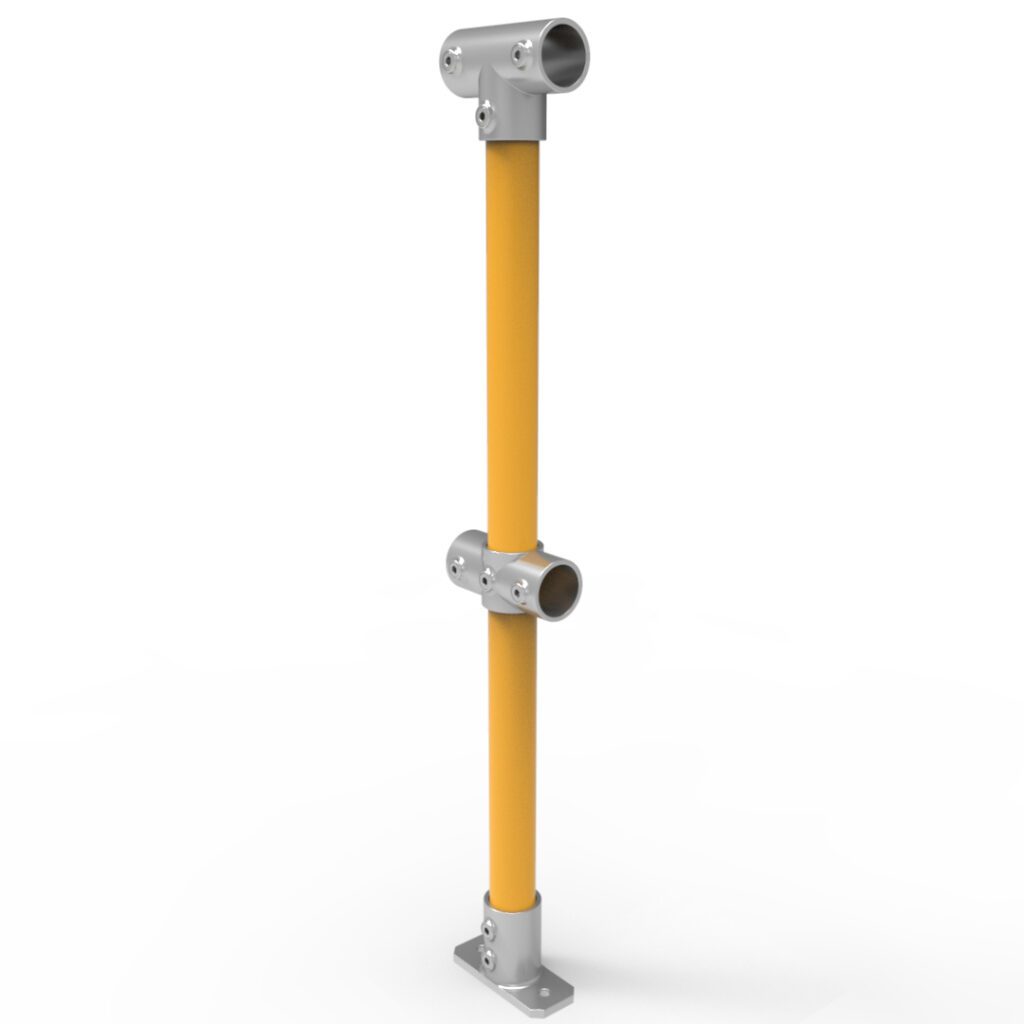

NoWeld Through Post Surface Mount – Galvanised and Powder Coated Yellow |
NWTP-SMY | $175.00 | |
 |

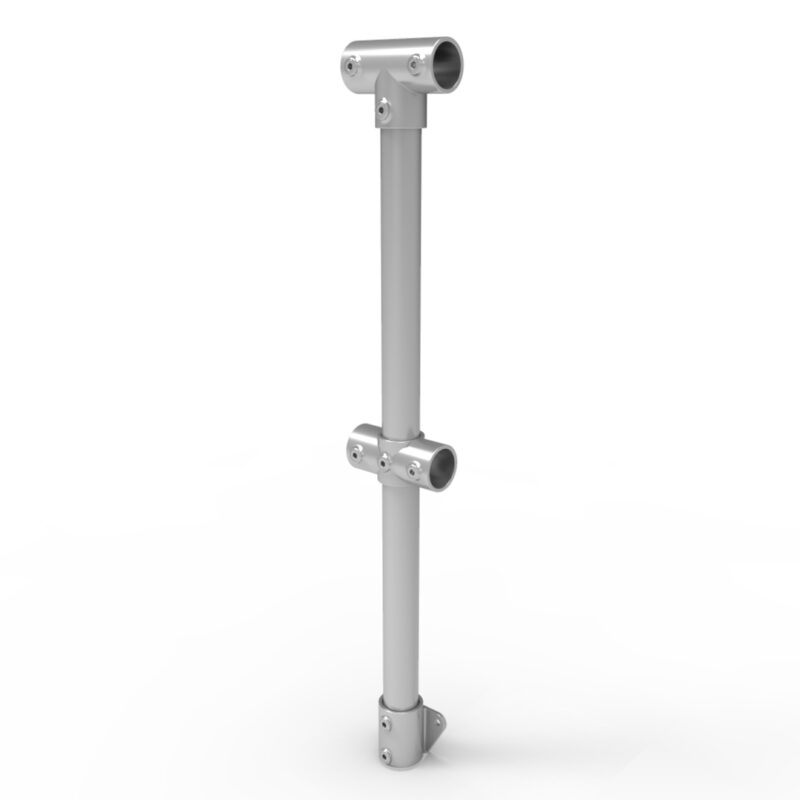

NoWeld Through Post Vertical Mount – Galvanised |
NWTP-VMG | $162.00 | |
 |

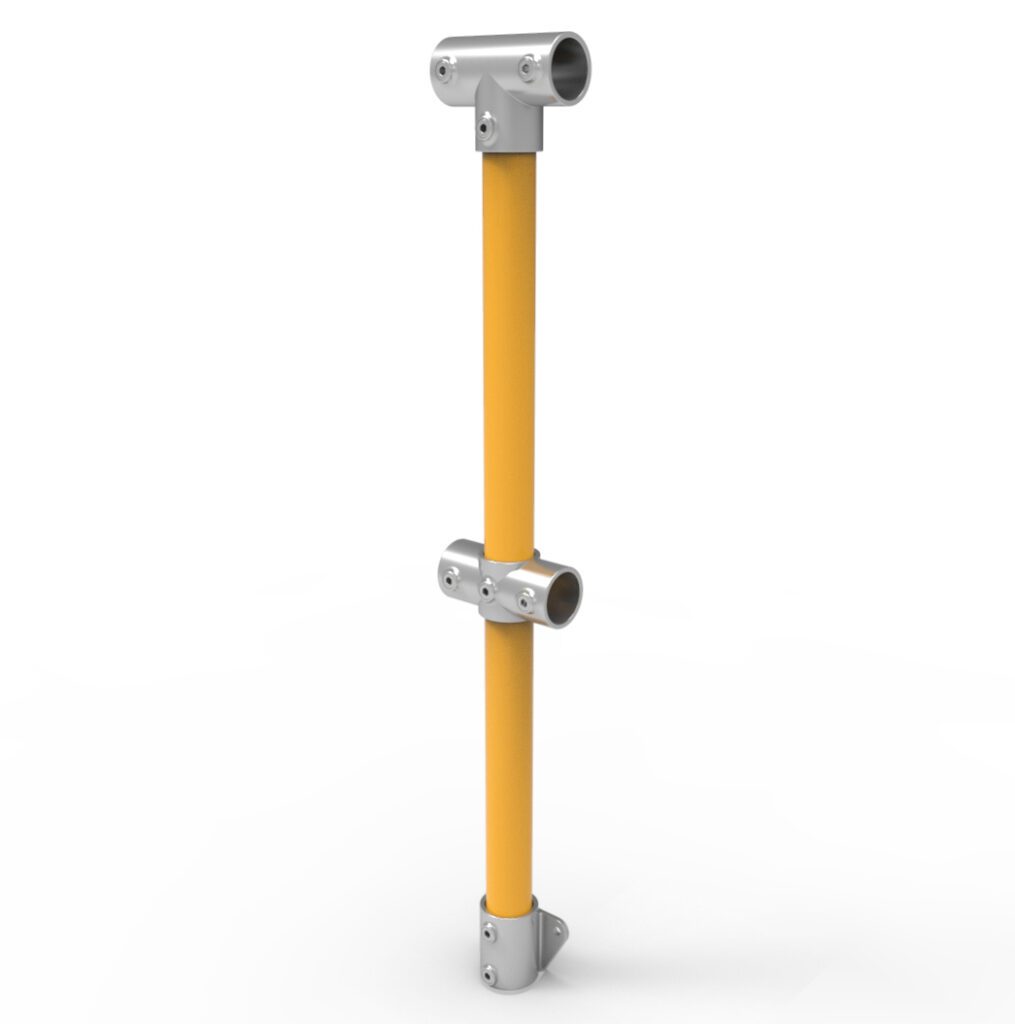

NoWeld Through Post Vertical Mount – Galvanised and Powder Coated Yellow |
NWTP-VMY | $175.00 |
