Access Platforms – Modular
+ Add to Quote Request

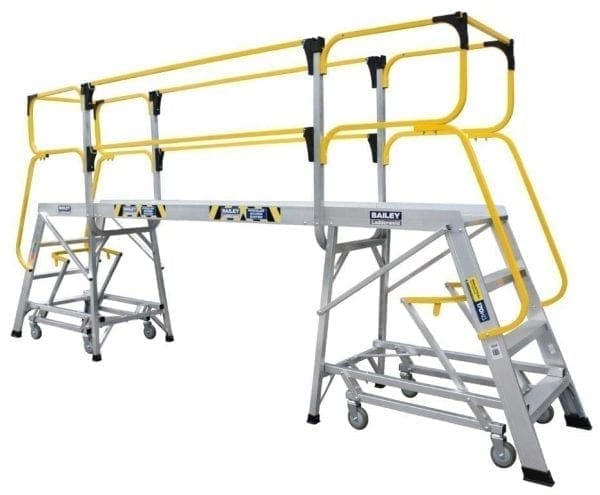

2 Metre bridge configuration

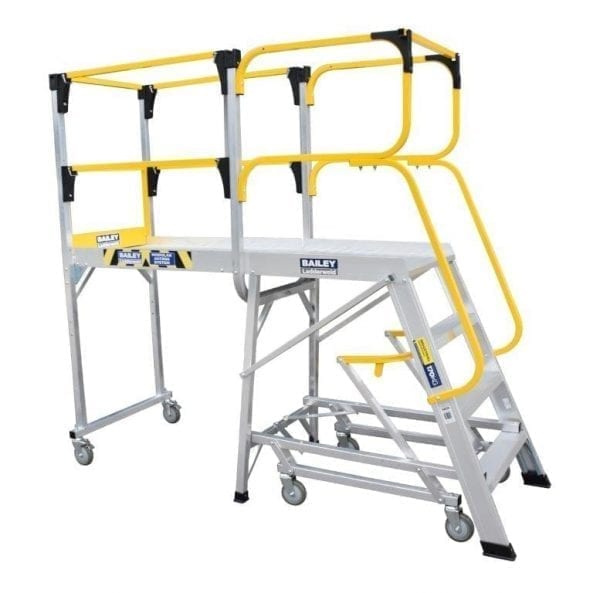

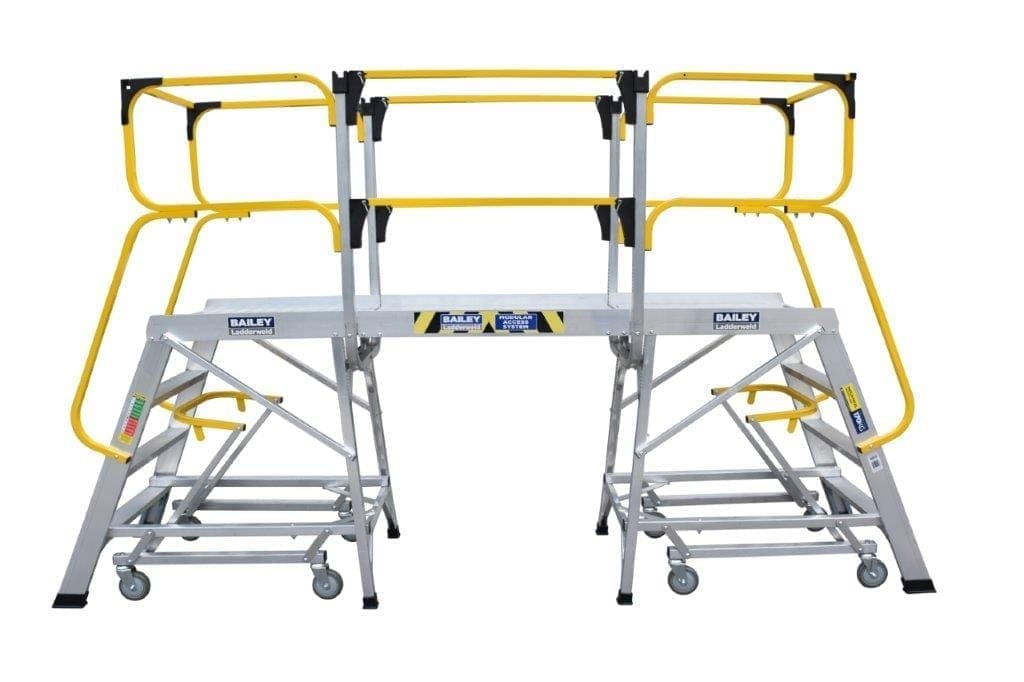

1 Metre bridge configuration- 1 Metre extension and upright attachment

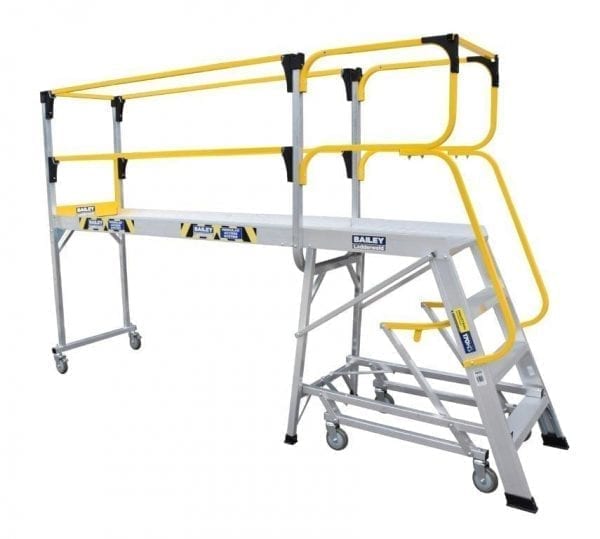

- 2 Metre extension and upright attachment
- Work platform base unit

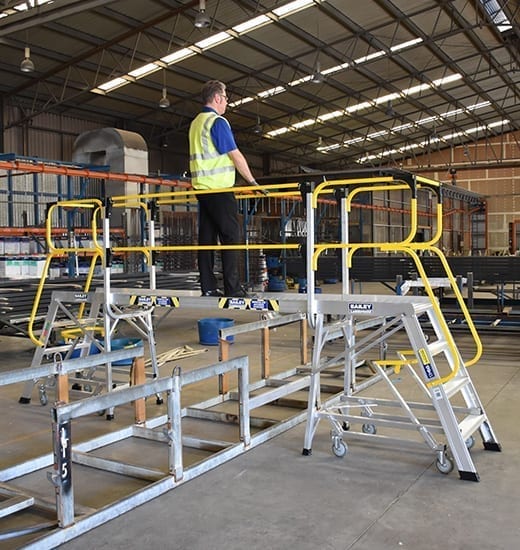

- Modular Access Systems in fabrication

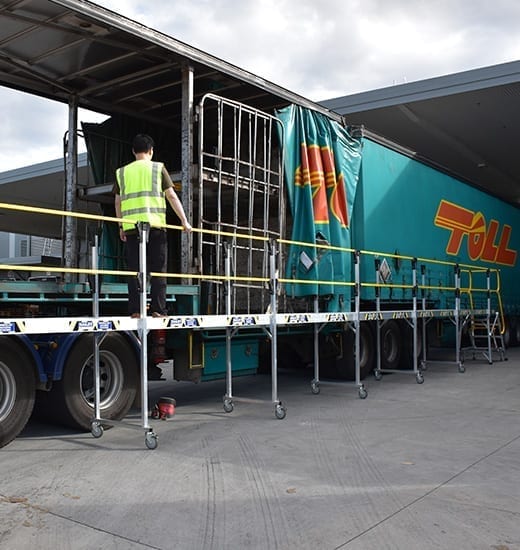

- Modular Access Systems accessing transportation and delivery vehicles

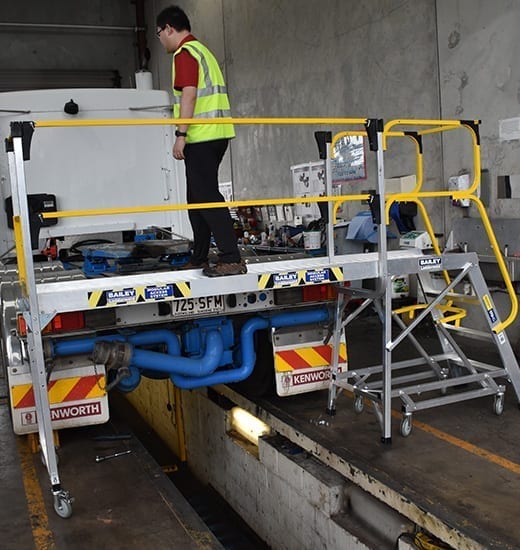

- Modular Access Systems servicing trucks
Our Modular Access Systems are an extended working platform that can be configured to varying heights. These innovative and lightweight solutions are so functional, that they allow the user the ability to customise the platform to suit the desired application.
Using the well known Mobile Access Platforms as a foundation, step platforms (with 3 to 7 steps) can be added. This means a user can configure an unlimited, expandable platform length with a variable height. This off the shelf solution reduces lengthy supply times and ensures there are no exorbitant investment costs.
Commonly used in a range of industries, Modular Access Systems adapt to Manufacturing, Process, Transportation, Aviation, Heavy Equipment Maintenance, Materials Handling / Stock Picking, Warehousing and Mining Service duties.
Additional Information
Think Innovation when you choose Modular Access Systems!
These working systems are suited to high-frequency use. They are lightweight to use and can be easily moved around a workplace. The system features removable, lock-in handrails for egress and foot-operated ‘total-brake’ castors for stability. Fabricated from heavy-duty aluminium, they are exceptionally strong with a fully welded design. All Modular Access Systems are made in accordance with the relevant Australian Standards for safety.
Each platform module is 170 kg load rated. They are perfect for both uses on industrial and commercial sites. Each system is supplied as a flat pack for optimal transportation. Standard sized fasteners and tools are included for easy assembly, as well as comprehensive picture-based instructions.
Modular Access Platforms Specifications:
| Code | Model Type | Nominal Standing Height | Max. Reach Height. | Unit Weight |
| SFS13789 | 1.0 m Platform | N/A | N/A | 16.5 kg |
| SFS13790 | 2.0 m Platform | N/A | N/A | 31.0 kg |
| SFS13791 | 3 Step Upright | 828 mm | 2.8 m | 7.9 kg |
| SFS13792 | 4 Step Upright | 1104 mm | 3.1 m | 8.5 kg |
| SFS13793 | 5 Step Upright | 1381 mm | 3.4 m | 9.2 kg |
| SFS13794 | 6 Step Upright | 1656 mm | 3.7 m | 10.0 kg |
| SFS13591 | 3 Step Access Platform | 828 mm | 2.8 m | 38.1 kg |
| SFS13592 | 4 Step Access Platform | 1104 mm | 3.1 m | 40.6 kg |
| SFS13593 | 5 Step Access Platform | 1381 mm | 3.4 m | 43.0 kg |
| SFS13594 | 6 Step Access Platform | 1656 mm | 3.7 m | 46.0 kg |
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Modular Access System 1.0m Platform |
SFS13789 | ||
 |
Modular Access System 2.0m Platform |
SFS13790 | ||
 |
Modular Access System 3 Step Upright |
SFS13791 | ||
 |
Modular Access System 4 Step Upright |
SFS13792 | ||
 |
Modular Access System 5 Step Upright |
SFS13793 | ||
 |
Modular Access System 6 Step Upright |
SFS13794 | ||
 |
Mobile Access Platform 3 step 170kg |
SFS13591 | ||
 |
Mobile Access Platform 4 step 170kg |
SFS13592 | ||
 |
Mobile Access Platform 5 step 170kg |
SFS13593 | ||
 |
Mobile Access Platform 6 step 170kg |
SFS13594 |
