Ladder Lifters – Solar and Construction
+ Add to Quote Request

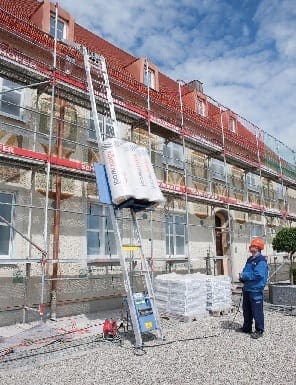

- Construction lift insulation

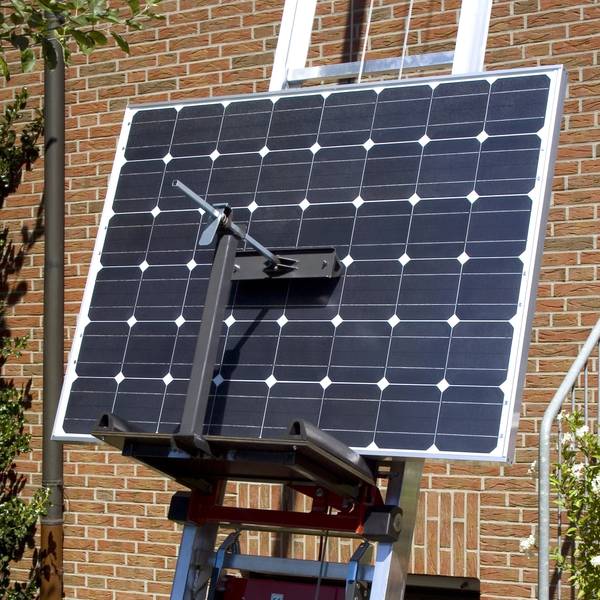

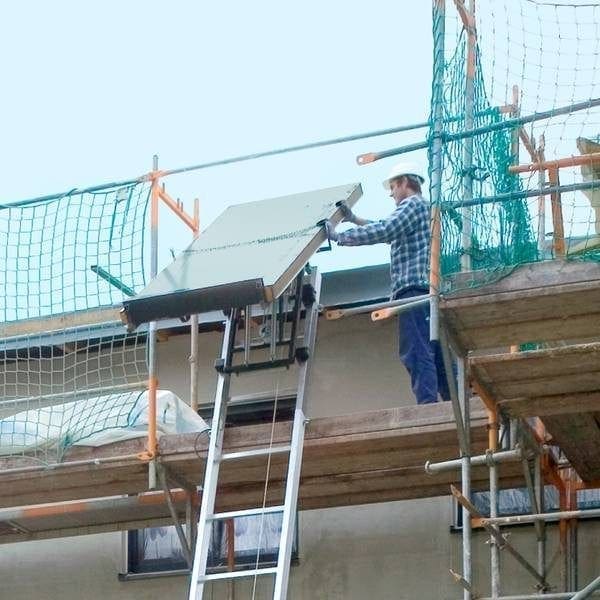

- Solar panel lift

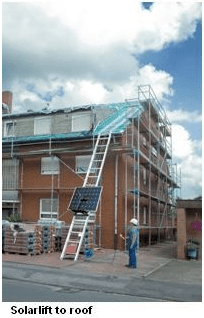

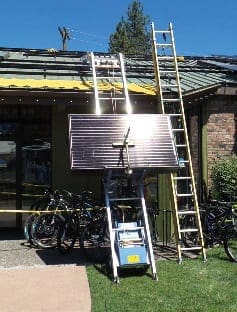

- Solarlift

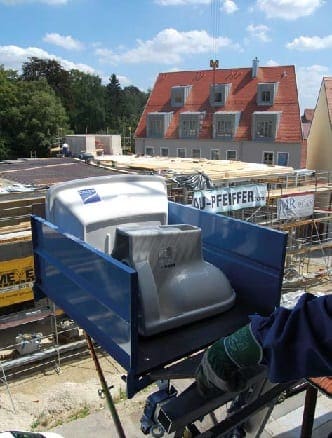

- Construction lift general platform

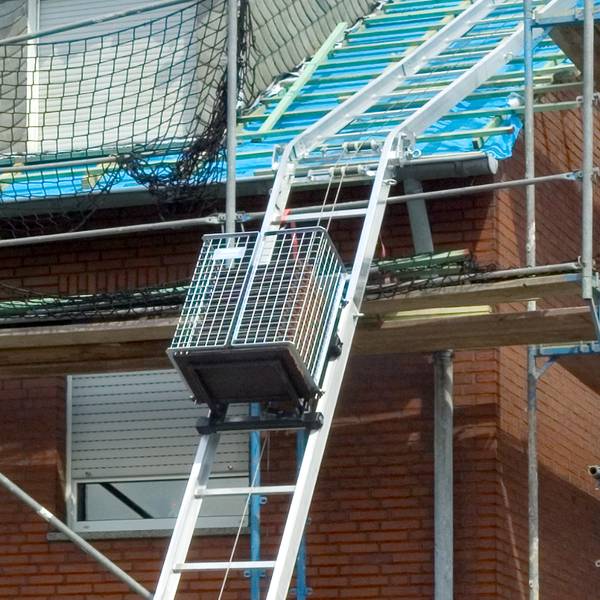

- Construction lift with tile holder

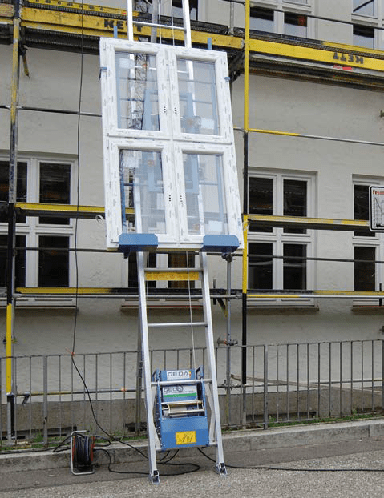

- Construction lift windows
- L20226 lifting tiles

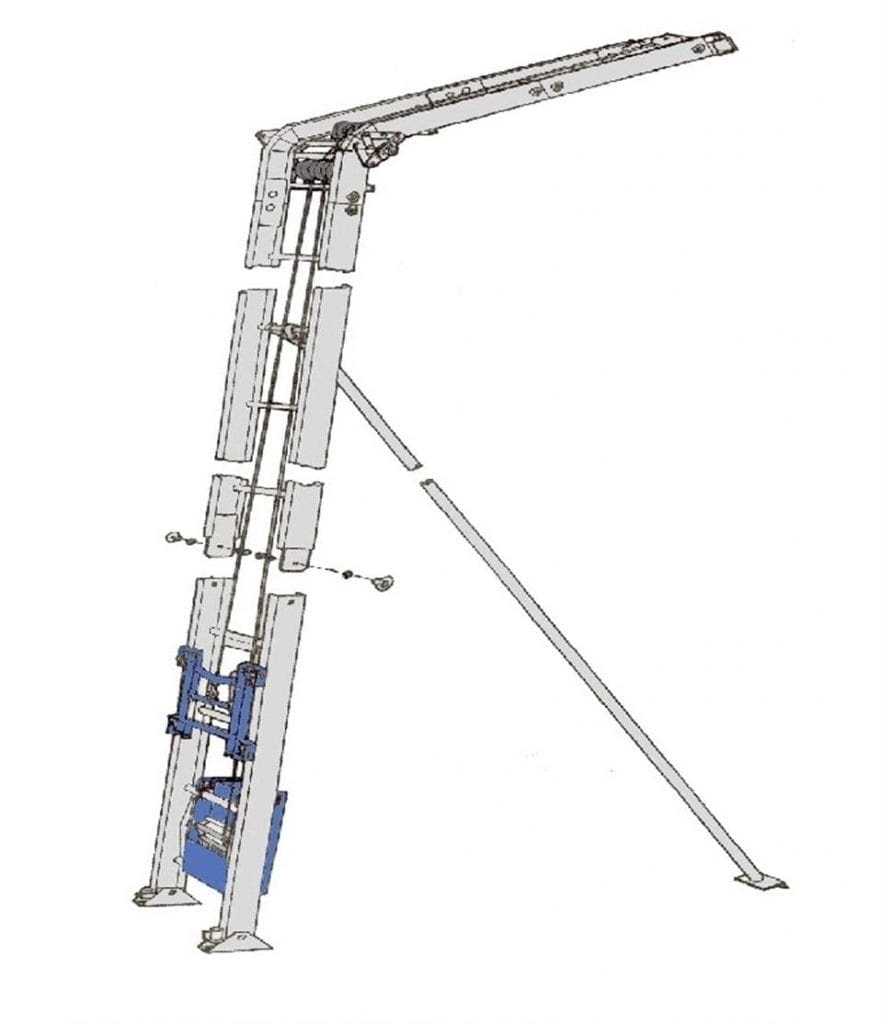

- Basic ladder lifter L20226

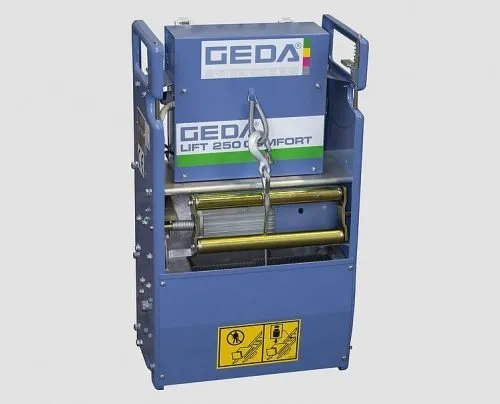

- Electric winch
- 02893 Platform with side guides
- Ladder lift with 02886 trolley
- 02826 Roof tie
Don’t risk the safety of the installer! Make the job easier with our MatHand Solar and Construction Ladder Lifters.
With an innovative design, our Ladder Lifters are ideal for various safe lifting operations. With an inclined lifting mechanism, they are sophisticated lifting systems with versatile load-bearing ladder style lifting rails. Various platforms can be fixed to the load carriage. This then transports products like building materials, scaffolding platforms, windows, and solar panels onto the roof safely. Rubber rests protect panels from being damaged while the clamping device fastens them safely to the platform.
These unique Ladder Lifters are perfect for the building, construction, roofing and solar technology industries. Additional accessories enable the lifter to transport all types of materials upwards.
Additional Information
Ladder Lifters safely handle and transport building materials and supplies!
Made in Germany, MatHand Ladder Lifters are safe, top quality, and feature first-class components. They are manufactured from aluminium, are extremely lightweight and ensure a safe and versatile lifting solution to meet all demands on any building or construction site.
Easy to use and setup
As shown in the video above, the system is incredibly fast and easy to install. It also guarantees the safe handling of heavy loads and comes with many versatile accessories to lift various requirements. Our Ladder Lifters feature a 250 kg load capacity. They are easy to maintain, with the units easily assembled or dissembled. Additionally, the Mobile Axle (code: 02886) makes it even safer to manually transport the Lifters to and from a worksite. These devices are powered by a 240-volt single-phase supply with a safe 24-volt control pendant and 5 metres of cable. All electric cables are plug-in joins.
Great safety features
Safety plays an extremely important factor when using our MatHand Ladder Lifters. All carriages are equipped with a parachute device as a standard feature to avoid a crash of the load in the unlikely event that a cable should break and large footplates ensure safe standing support of all Lifters.
Lift to great heights
The standard lifting height is 11.5 metres but with the addition of extension pieces, they can gain a maximum lift height of up to 19 metres. The MHSL is available specifically for solar panel lifting. The design meets the requirements of the standard AS1418.7:2002 – Special Purpose Appliances.
Please Note: Ladder lifters are not suitable for transporting personnel
Require an alternative lifting solution?
Browse our range of Lifting Equipment or check out our products suitable for Building and Construction.
Click the PDF button to learn more.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
|
Solar panel lifter 250kg x 11.5 metres |
MHSL | ||
|
Construction ladder lifter 250kg x 11.5 metres |
MHCL | ||
 |
Manual transport axle kit |
02886 | ||
 |
Ladder prop telescopic up to 5.7 m |
05643 | ||
 |
Extension tube up to 74m |
02829 | ||
|
Roof tie (infinitely adjustable in height from 37 to 60 cm) |
02826 |
