MatHand Mobile Lift Trolleys MN series 01

Our MatHand Mobile Lift Trolleys are extremely versatile and have the ability to lift and shift heavy loads. This eliminates any need for manual handling. They are incredibly easy to use and the perfect safety solution in any business in any industry.

Fabricated from high strength steel, these trolleys are strong and durable, yet extremely lightweight and easy to position. A robust and convenient trolley that can be configured to suit your application. MatHand Mobile Lift Trolley is supplied with a heavy-duty powder coat finish. For food-grade applications, it is possible yo produce in stainless steel finish. It is no problem to have you working with ease!

Download our brochures below for more details.

Product Variation

Clear

Additional Information

What models are available?

Quality Australian made product with unlimited configurations, our trolleys are separated into two base unit arrangements:

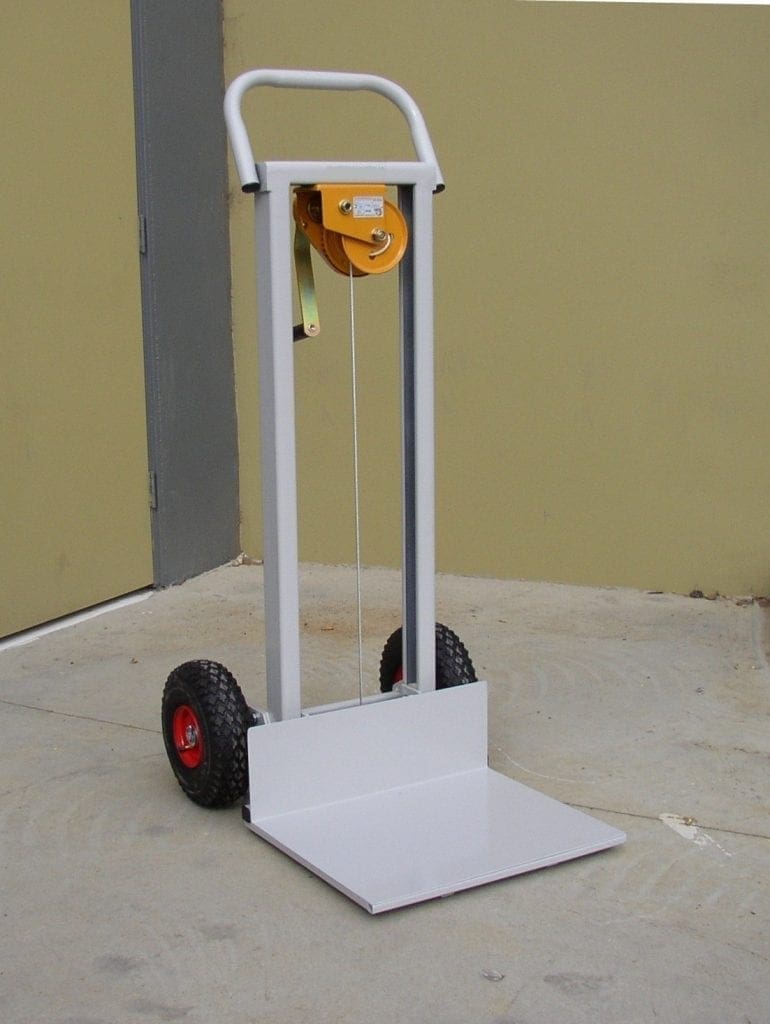

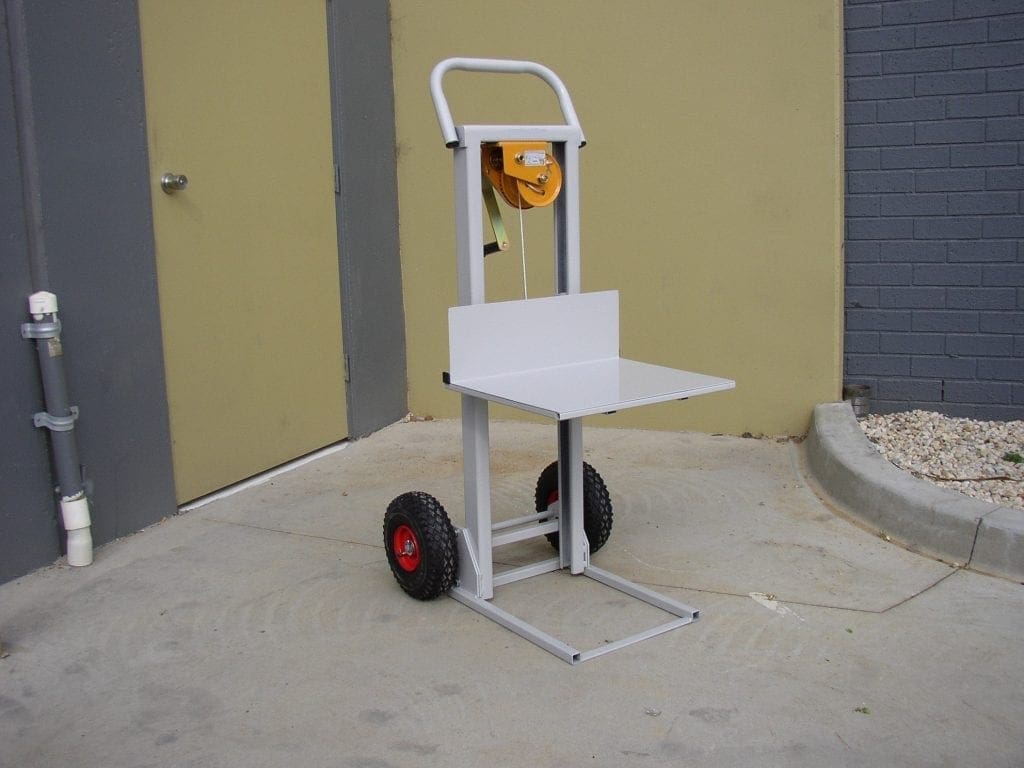

N Series – Two large diameter rear wheels. Operator can tilt the trolley backwards and move over uneven ground.

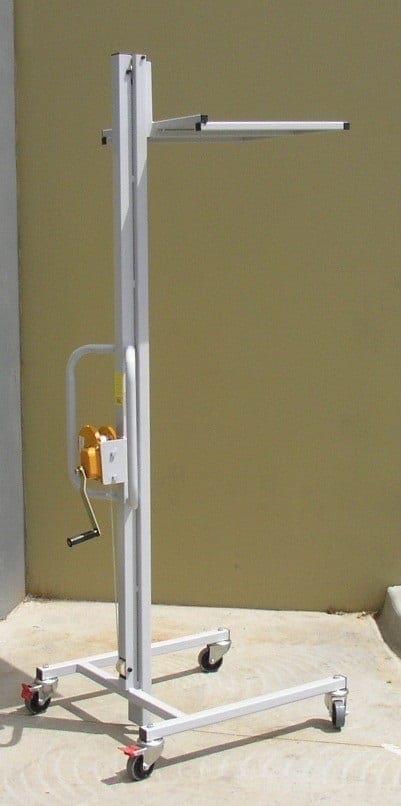

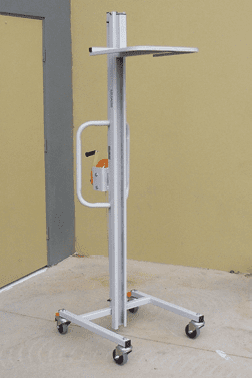

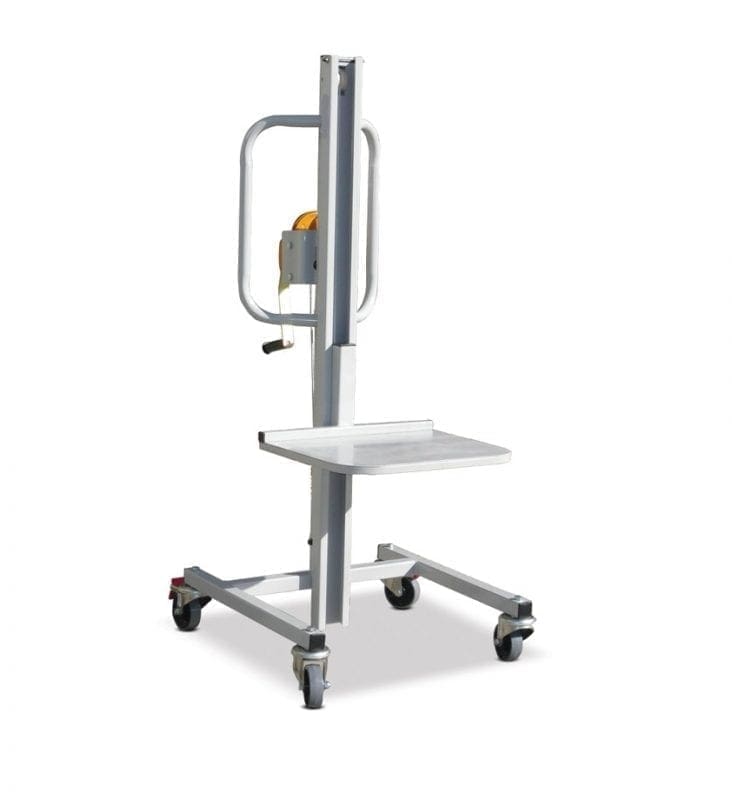

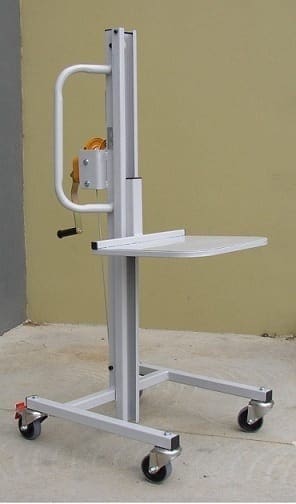

S Series – Mobile base with four swivel castors for ultimate manoeuvrability on flat surfaces.

They are fitted with a high-quality safety-brake hand winch and feature a standard 150kg lifting capacity! Please note: other lifting capacities are available on request. Optionally all trolleys are available with battery electric lift.

Technical Specifications and Data

N Series Dimensions –

S Series Dimensions –

Additional options are also available:

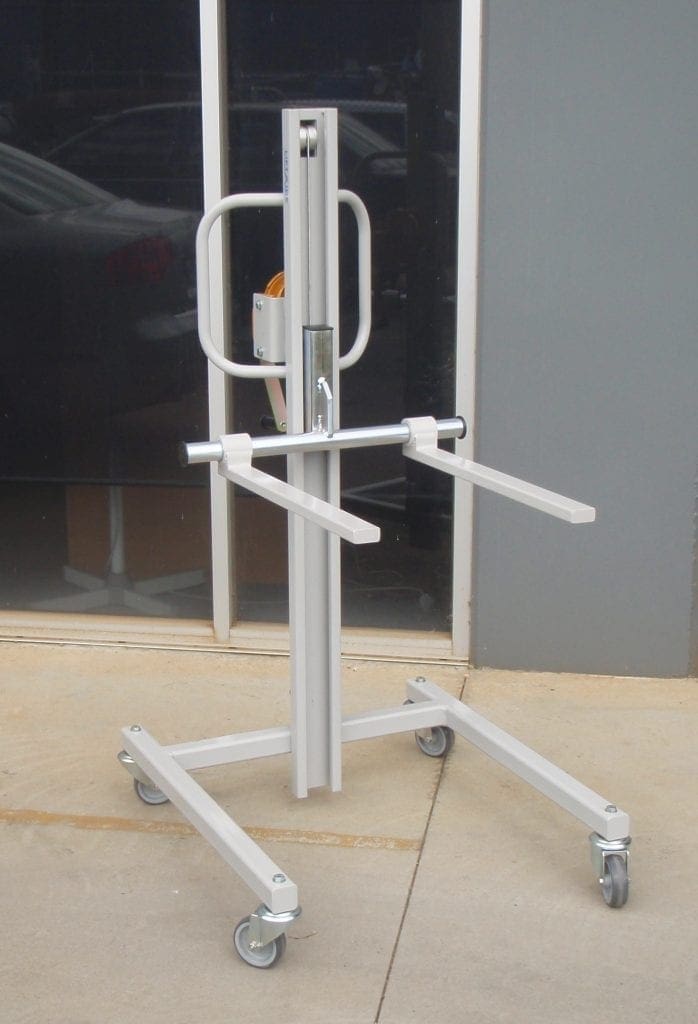

Forks in place of flat platform, adjustable or fixed
Crane jib with various suspension points
Mechanical grabs and gripping devices

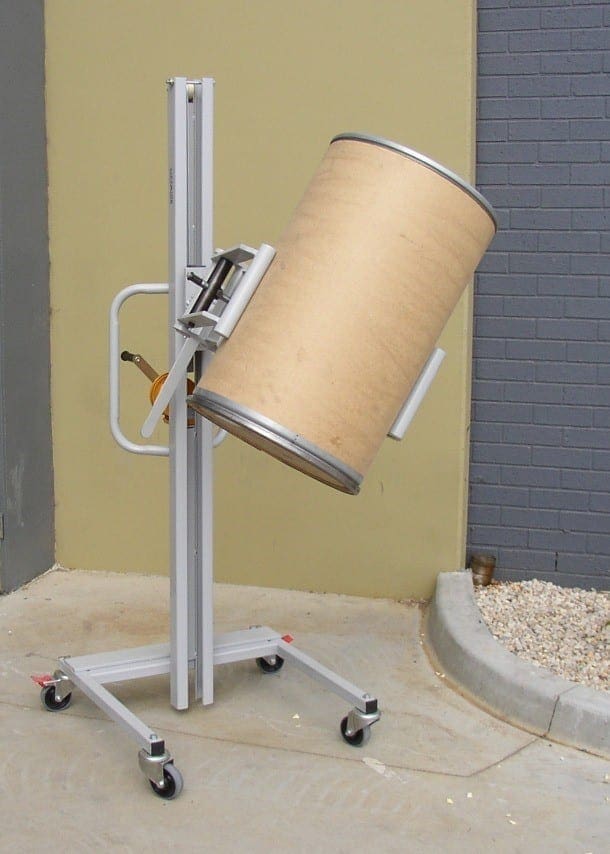

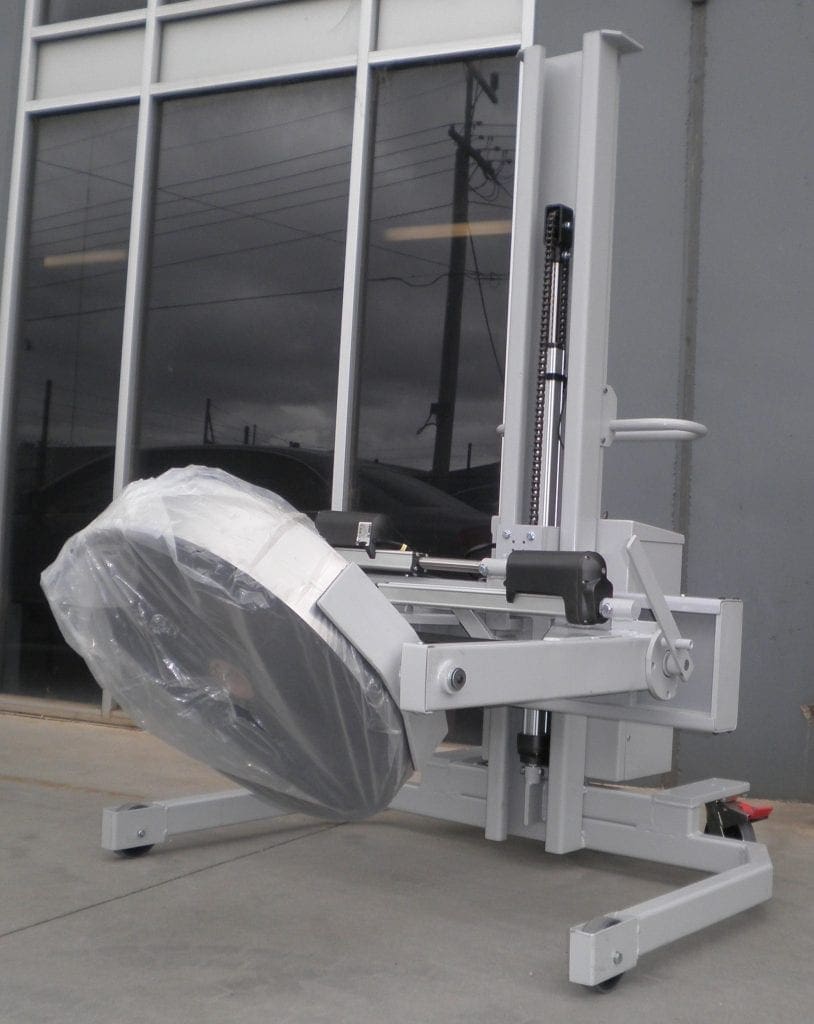

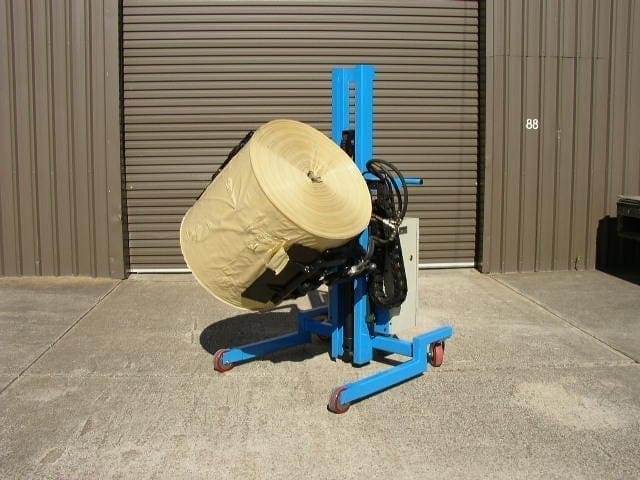

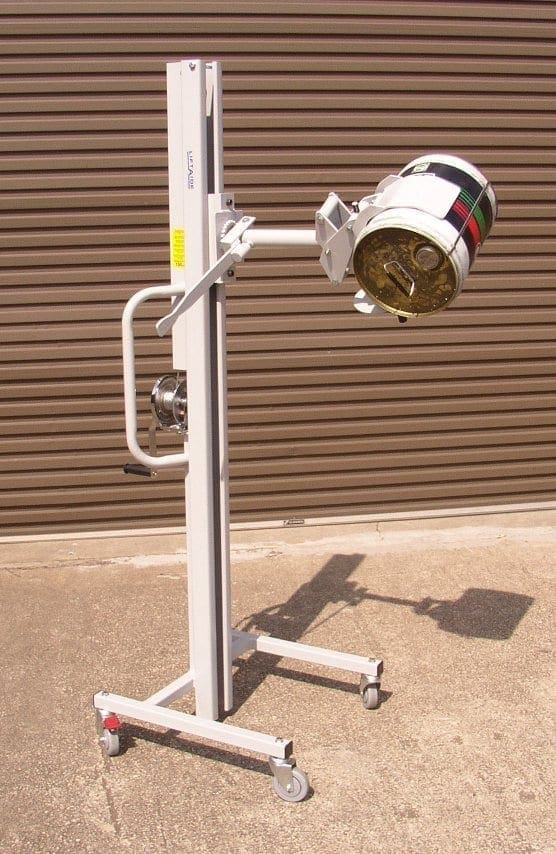

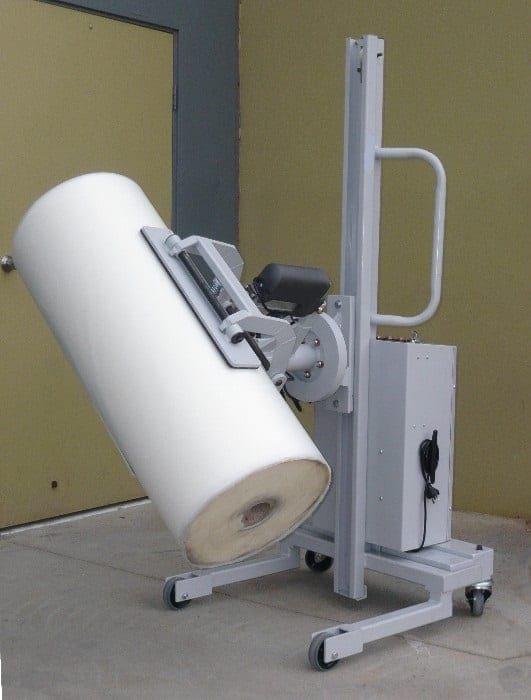

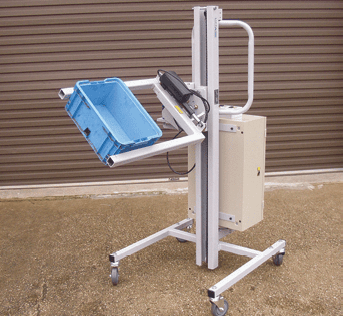

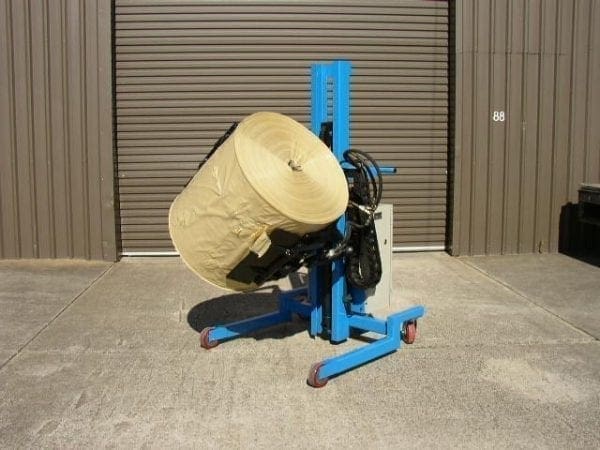

Rotator for reels, barrels, drums, rolls, crates, buckets, crates, bins etc
Roll spike for handling rolls from centre core
Forks with removable platform

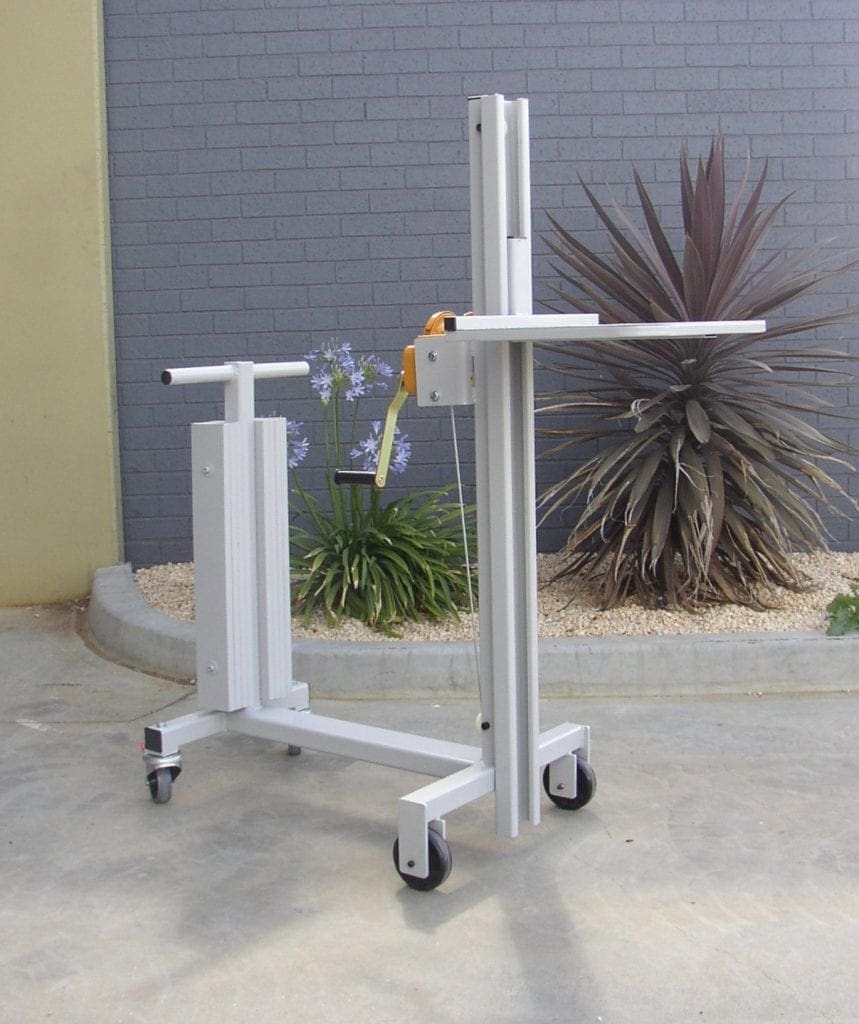

Counterweight design for hard to reach applications
Straddle legs in a variety of sizes
Push-button activated grippers and mechanical grabs
Lower mast height, extra lift heights, two and three stage masts

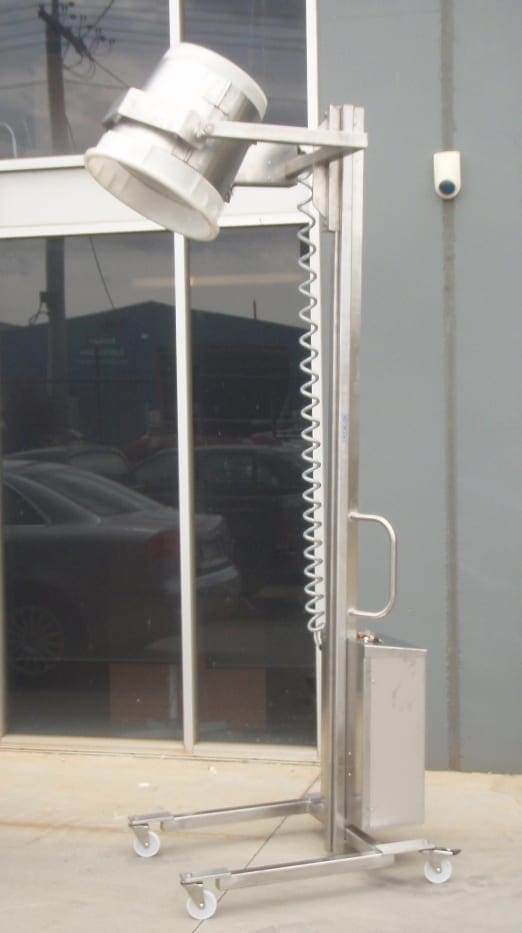

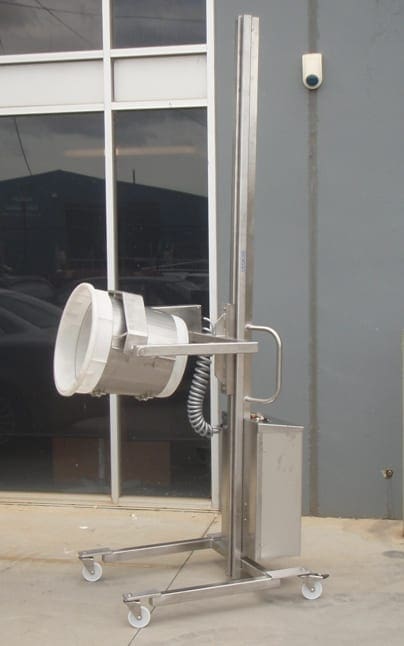

Stainless steel construction

Require something else?

Peruse our wide range of Materials Lifters, to find the solution you require OR get in contact with us to discuss your application.

Click the PDF button to learn more.

Product Variations

Description	Product Code

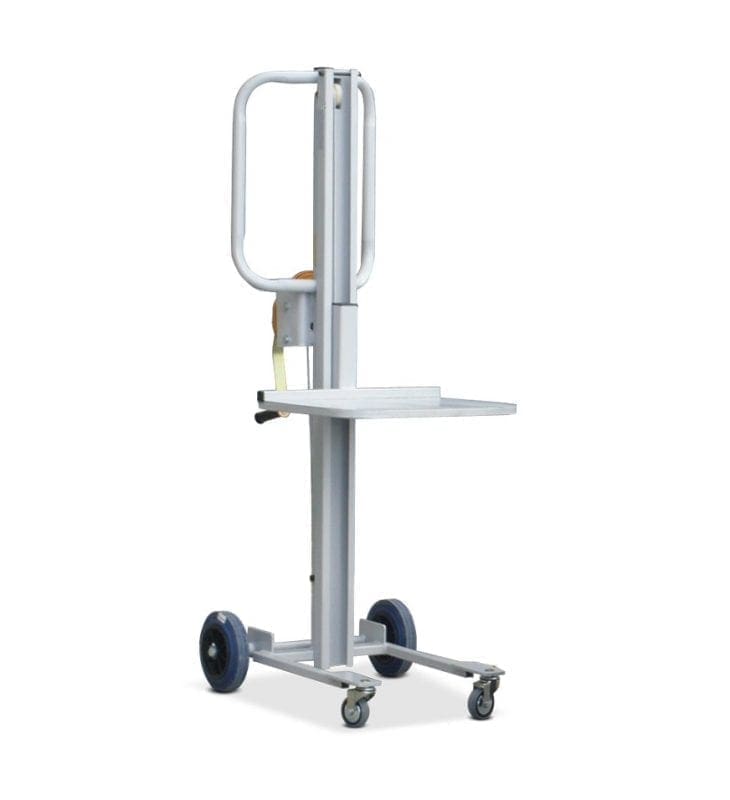

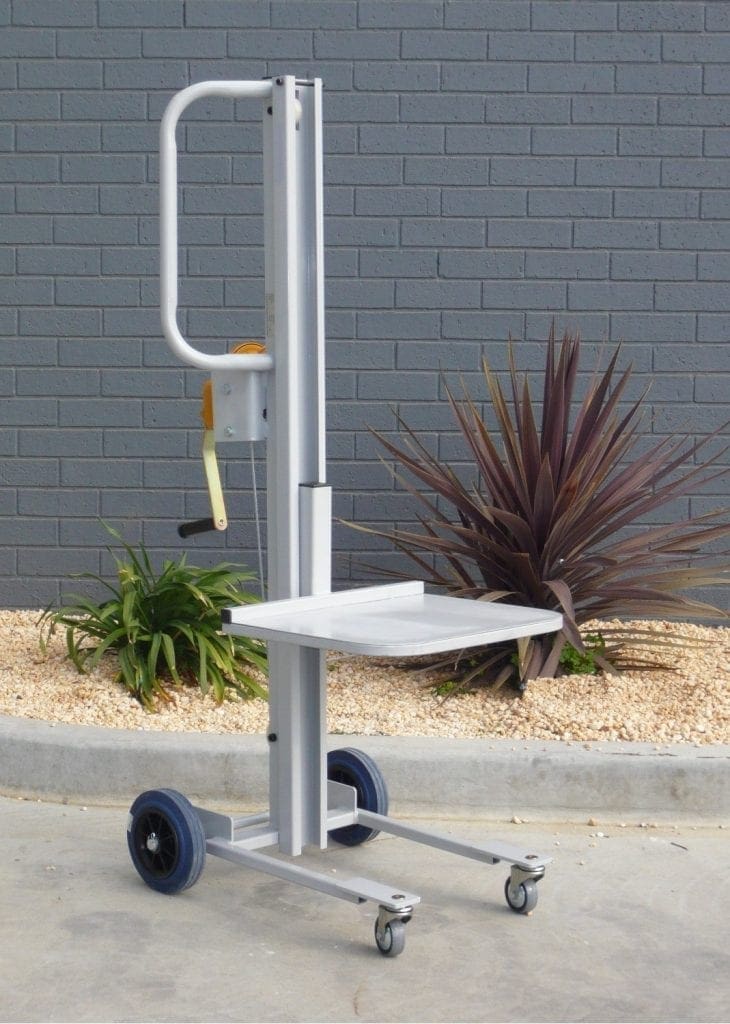

Mobile Lift Trolley Wheels: Rear 200mm solid rubber + front castors Lift Height: 1250mm Table Size: 500 x 400mm	MG412	Add to Quote Request
Mobile Lift Trolley Wheels: Rear 250mm pneumatics Lift Height: 900mm Table Size: 500 x 400mm	MN49	Add to Quote Request
Mobile Lift Trolley Wheels: Rear 250mm pneumatics Lift Height: 1200mm Table Size: 500 x 400mm	MN412	Add to Quote Request
Mobile Lift Trolley Wheels: Rear 250mm pneumatics Lift Height: 1200mm Cradle for gas cylinders	MN612	Add to Quote Request
Mobile Lift Trolley Wheels: Rear 250mm pneumatics Lift Height: 1500mm Table Size: 600 x 600mm	MN615	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 1200mm Table Size: 500 x 400mm	MS412	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 1200mm Table Size: 500 x 400mm	MS412E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 1800mm Table Size: 500 x 400mm	MS418	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 1800mm Table Size: 500 x 400mm	MS418E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 2000mm Table Size: 500 x 400mm	MS420	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 2000mm Table Size: 500 x 400mm	MS420E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 1200mm Table Size: 600 x 600mm	MS612	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 1200mm Table Size: 600 x 600mm	MS612E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 1800mm Table Size: 600 x 600mm	MS618	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 1800mm Table Size: 600 x 600mm	MS618E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 2000mm Table Size: 600 x 600mm	MS620	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 2000mm Table Size: 600 x 600mm	MS620E	Add to Quote Request
Mobile Lift Trolley Wheels: Four swivel castors Lift Height: 3200mm [2 stage mast] Table Size: 600 x 600mm	MS6232	Add to Quote Request
Mobile Lift Trolley Battery electric Wheels: Four swivel castors Lift Height: 3200mm [2 stage mast] Table Size: 600 x 600mm	MS6232E	Add to Quote Request
