Material Lifters TORO

Additional Information

Easily transport heavy items!

Providing fast, ergonomic and easy heavy lifting, this device performs tasks quickly. With a two-speed winch, users can safely operate the lifter and reposition items as needed. Roller wheels allow the lifter to move effortlessly. An adjustable handle also helps drive the unit and forks can be introverted for added flexibility.

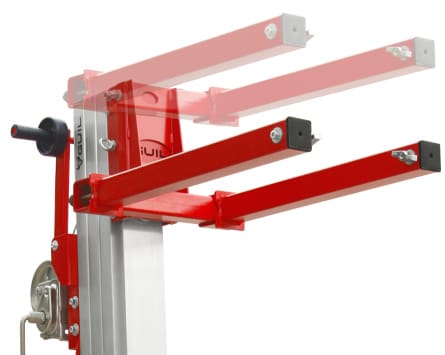

The Lifter has a range of safety benefits that will ensure your workplace and employees are operating appropriately and controlling manual handling risks. Heavy loads can be transported with ease thanks to the innovative design. The unit features reversible forks for added flexibility and higher lifting heights.

Also known as a Contractor Lift, the Materials Lifter is a great choice for relocating and transporting heavy objects. It is equipped with a robust winch handle for leverage, which allows a user to raise materials quickly and efficiently. This Contractor Lift is ideal for a range of applications. Some uses include for HVAC contractors, electrical contractors, industrial maintenance tasks, steel erectors and facility or warehouse management.

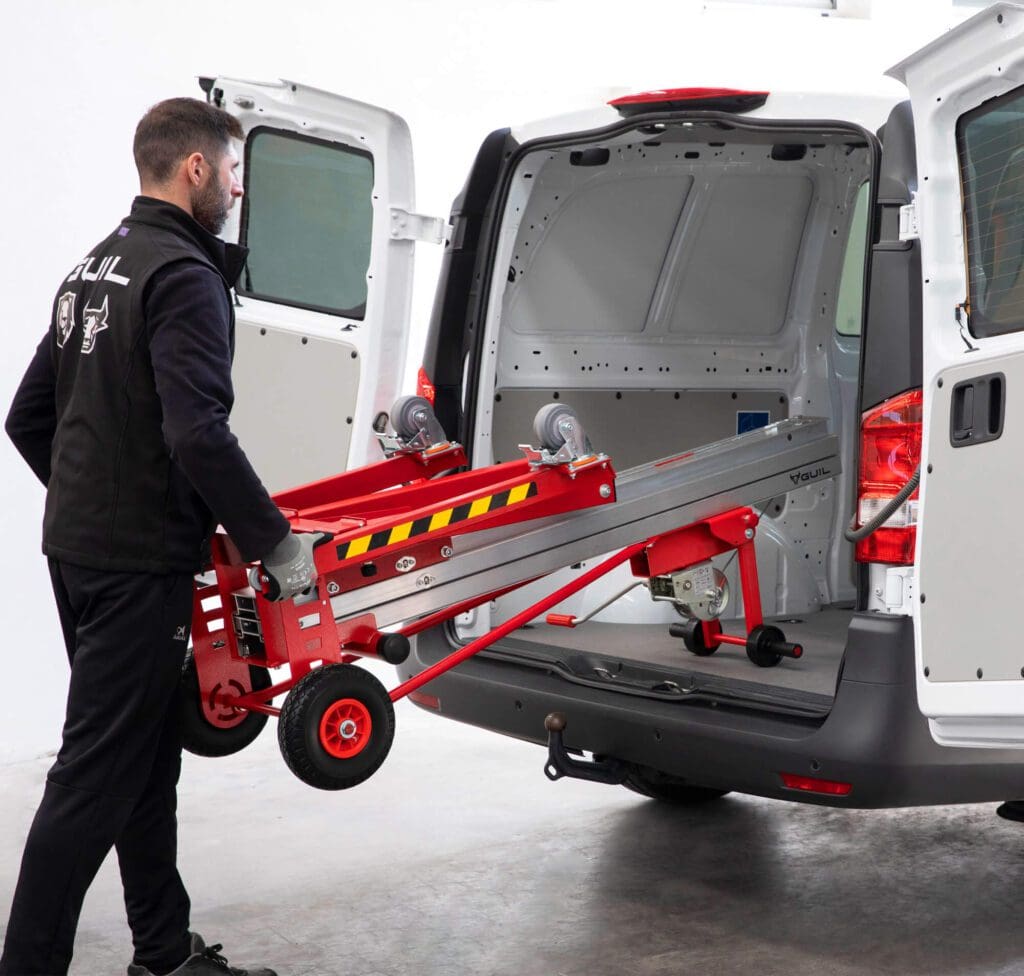

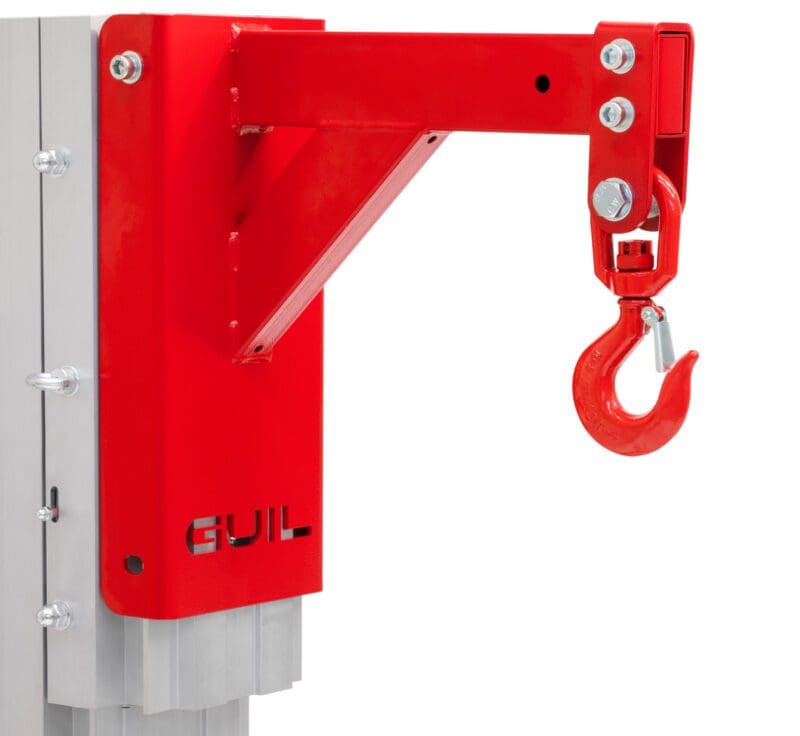

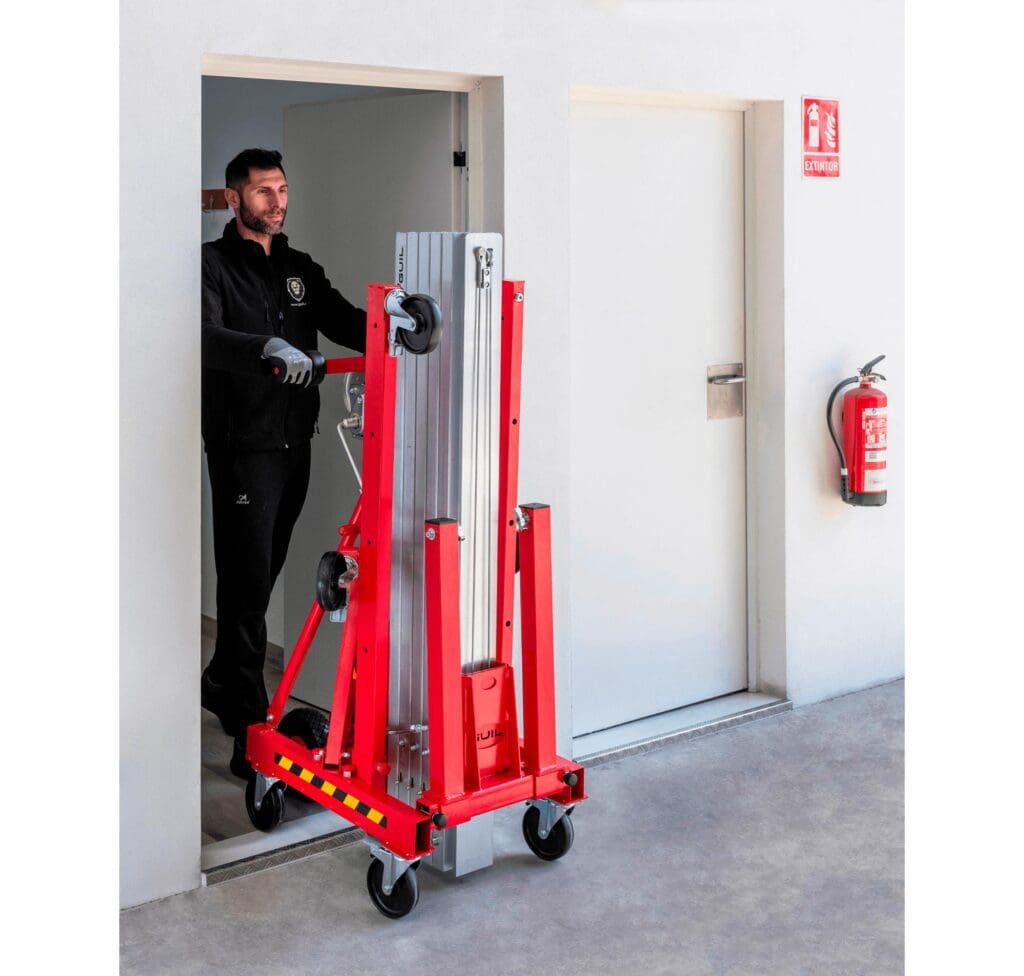

Materials Lifter is a compact lifting device, designed to move heavy materials and improve productivity. It features a short collapsed mast with a superior cabling system that easily accesses high lifting heights. The lifter is robust and can be used for transporting steel beams and continuous lifting applications. With a short collapsed mast, this unit can travel through doorways without tipping. It even fits nicely into small vehicles and has a small storage space. The Materials Lifter is equipped with flip-out stabiliser legs, reversible forks, lockable castors, a load bar that is perfect for overhead cranes and roller wheels that assist the unit into trucks or vans.

---

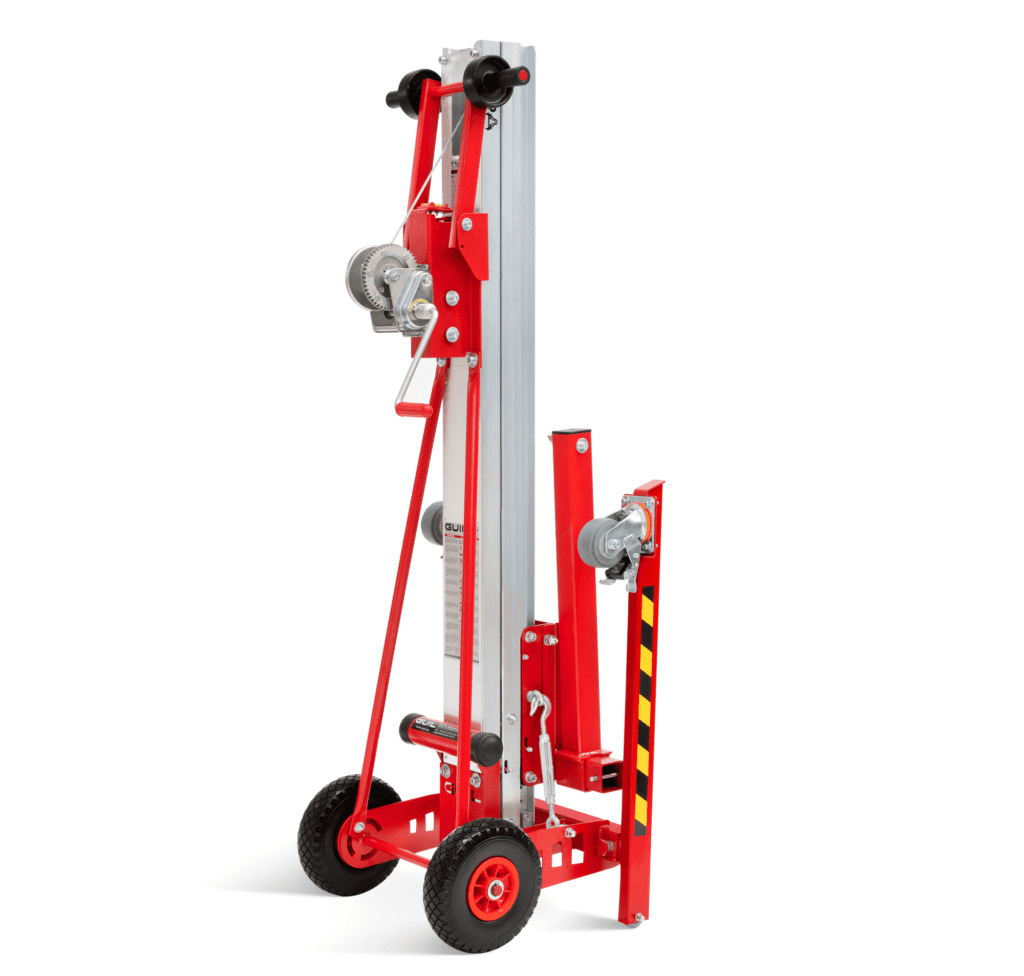

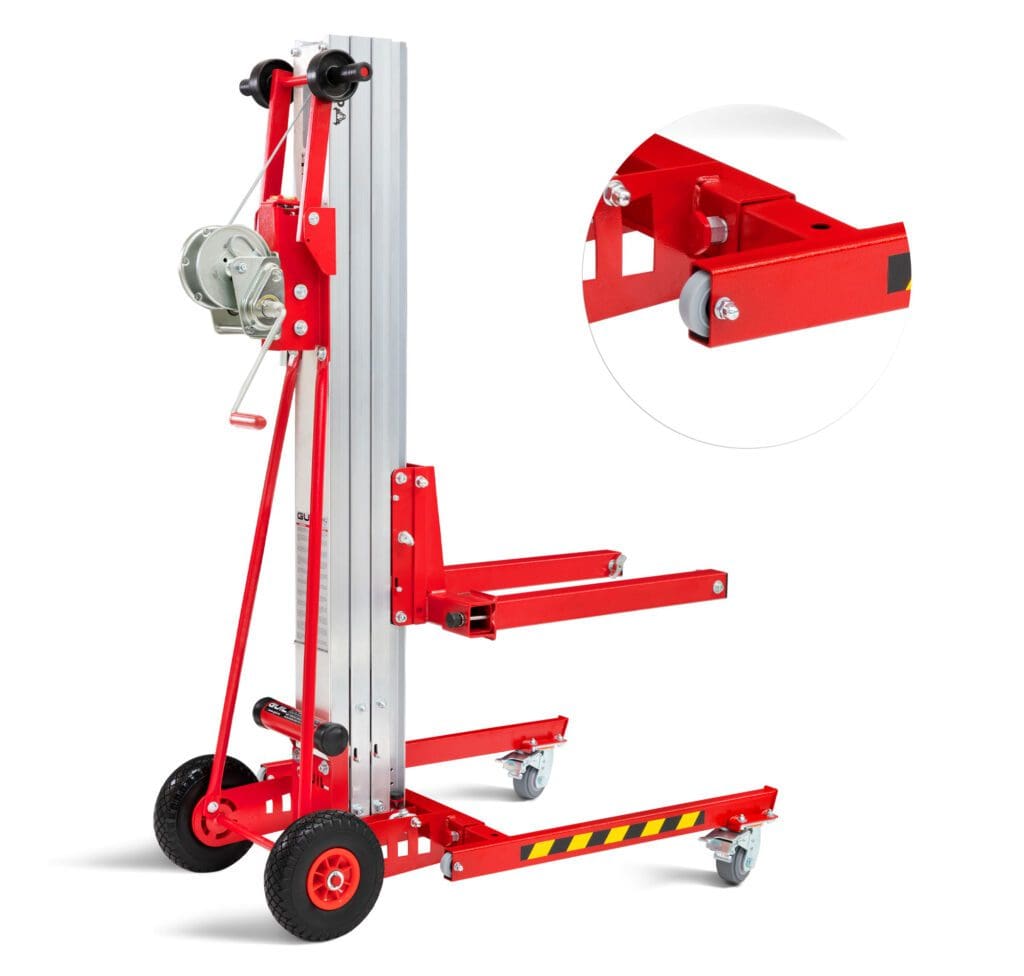

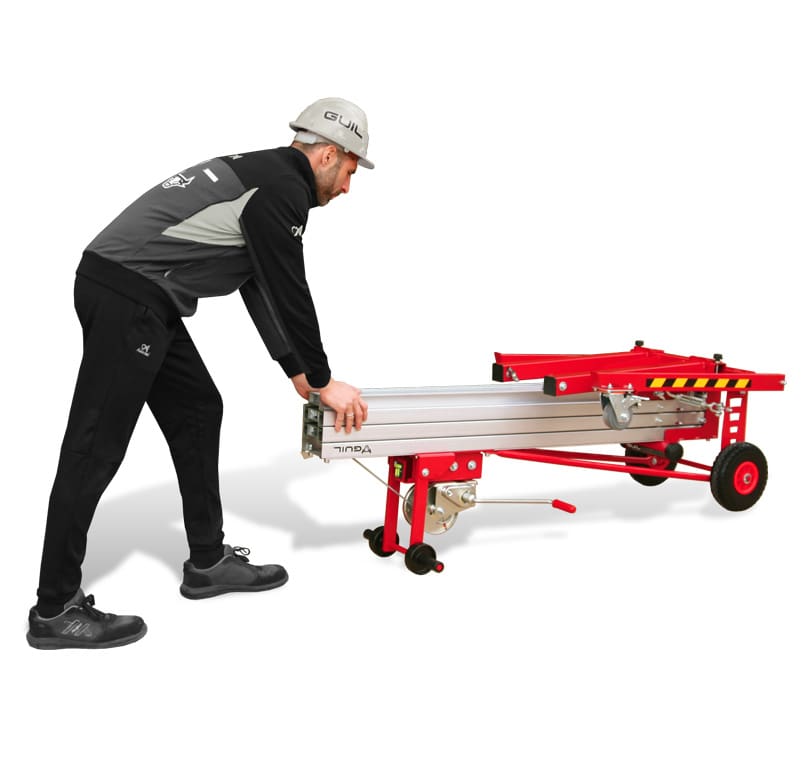

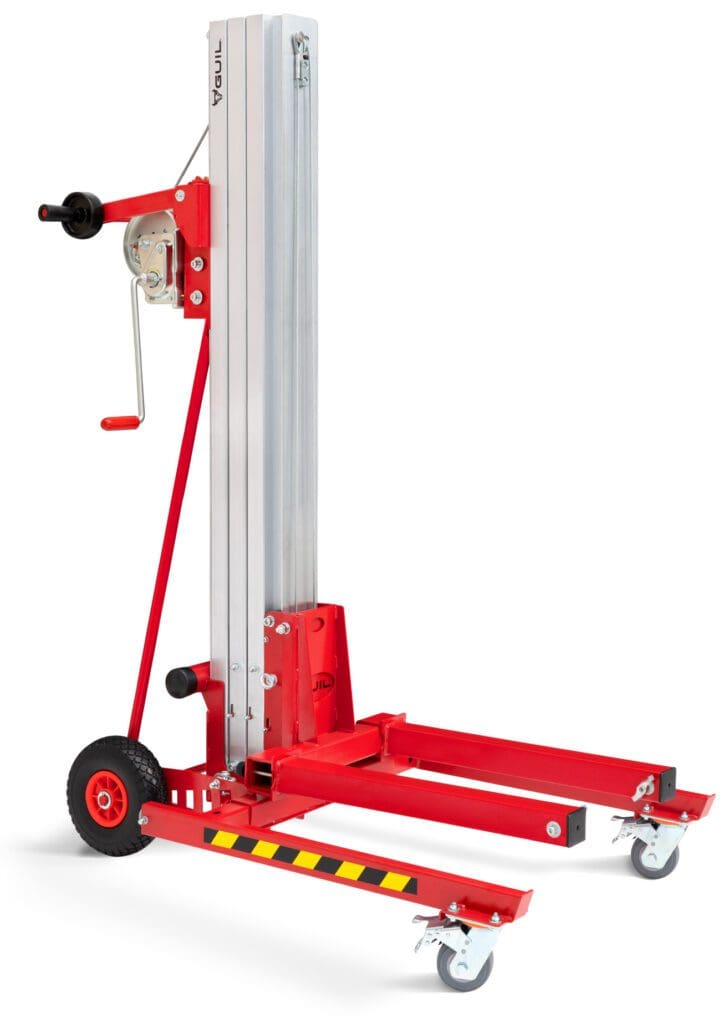

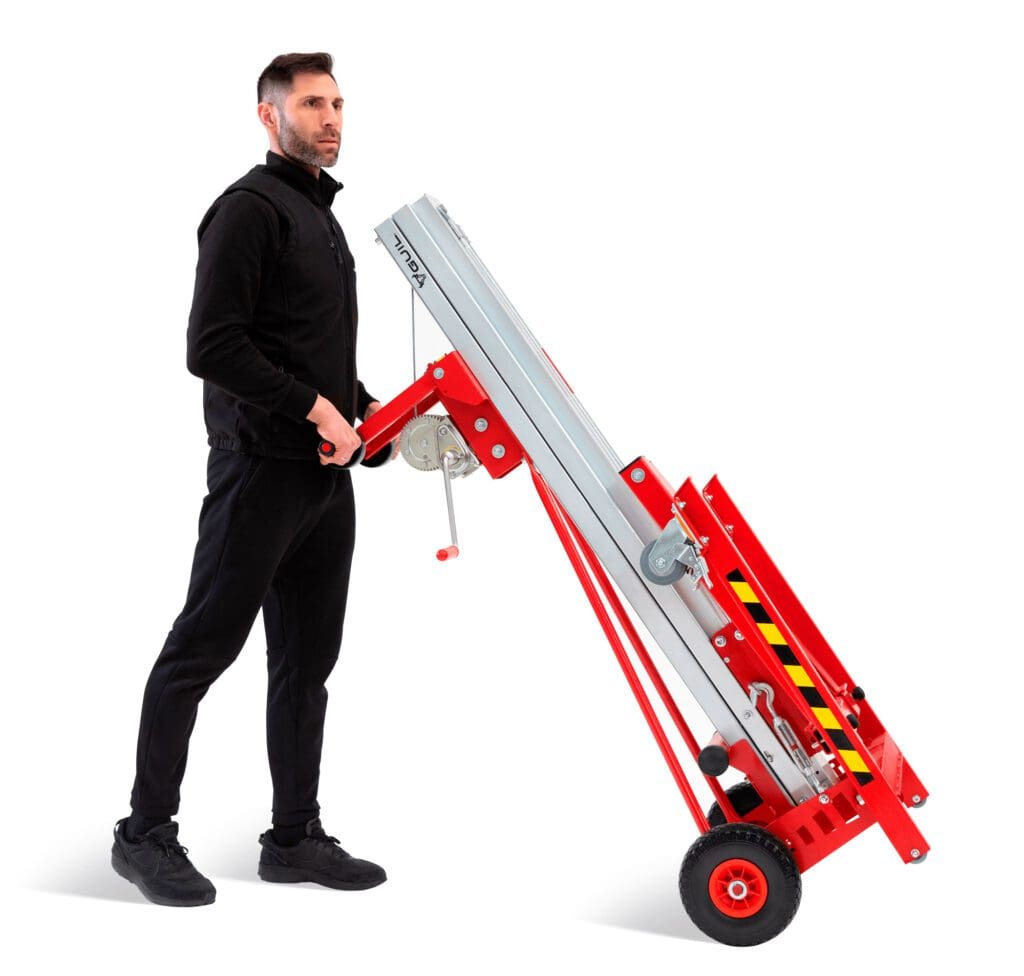

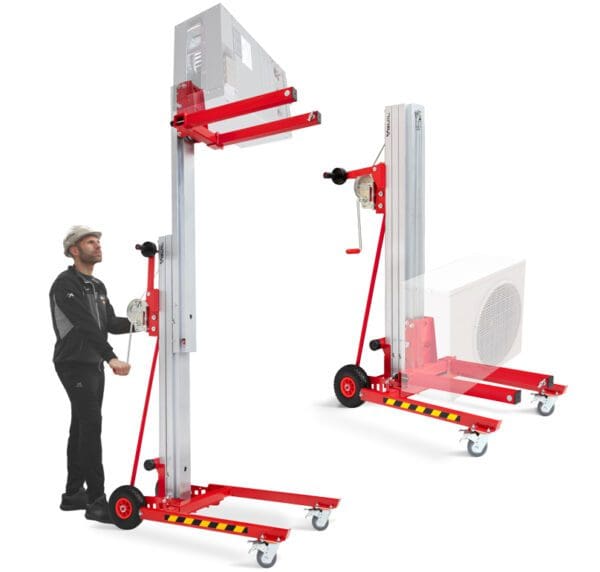

A series lifter

Designed to lift loads of up to 170 kg up to a maximum height of 4.10 metres. Its compact design allows it to be transported in small vehicles.

---

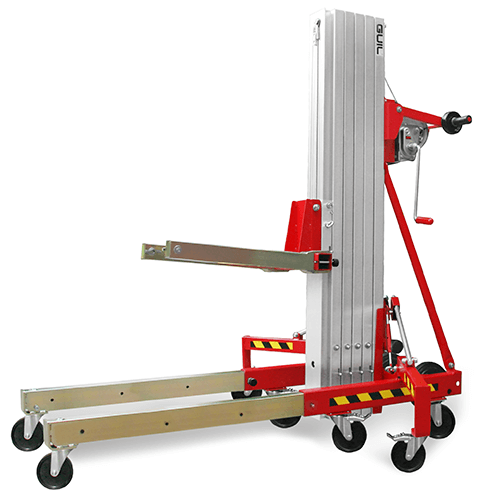

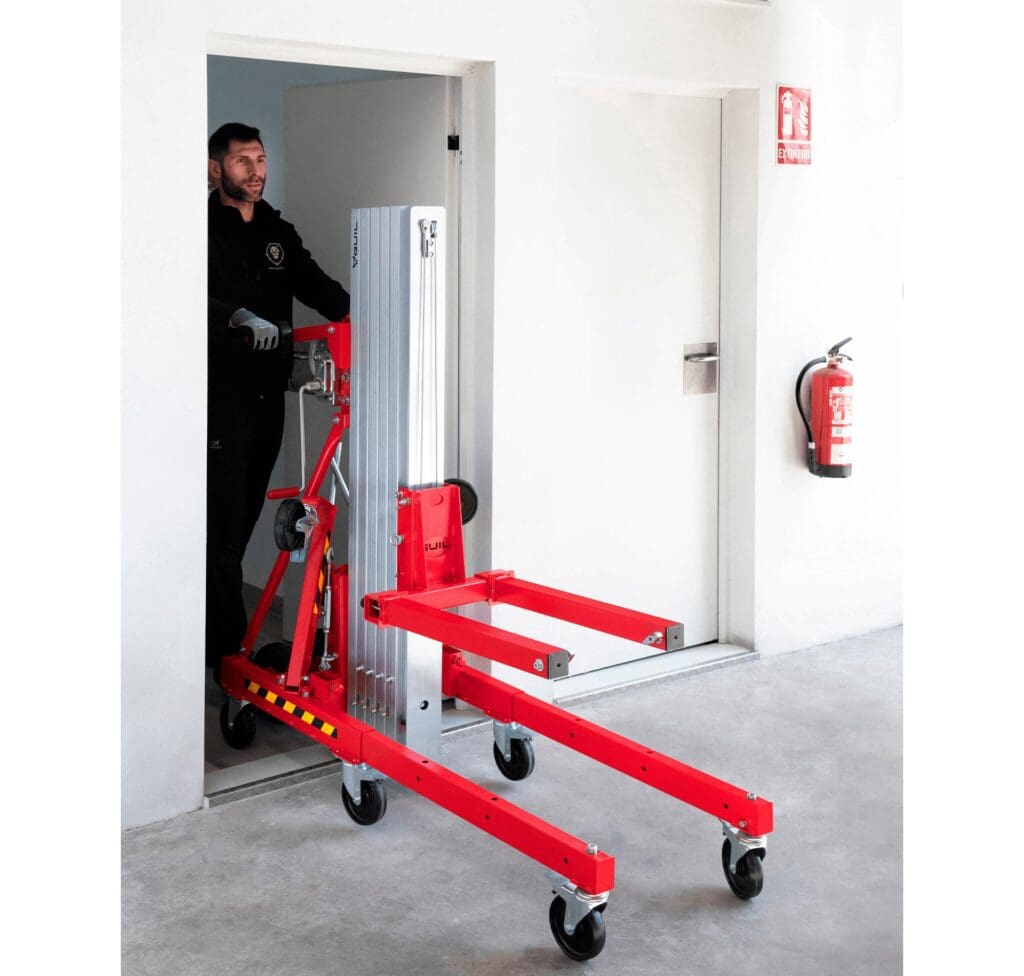

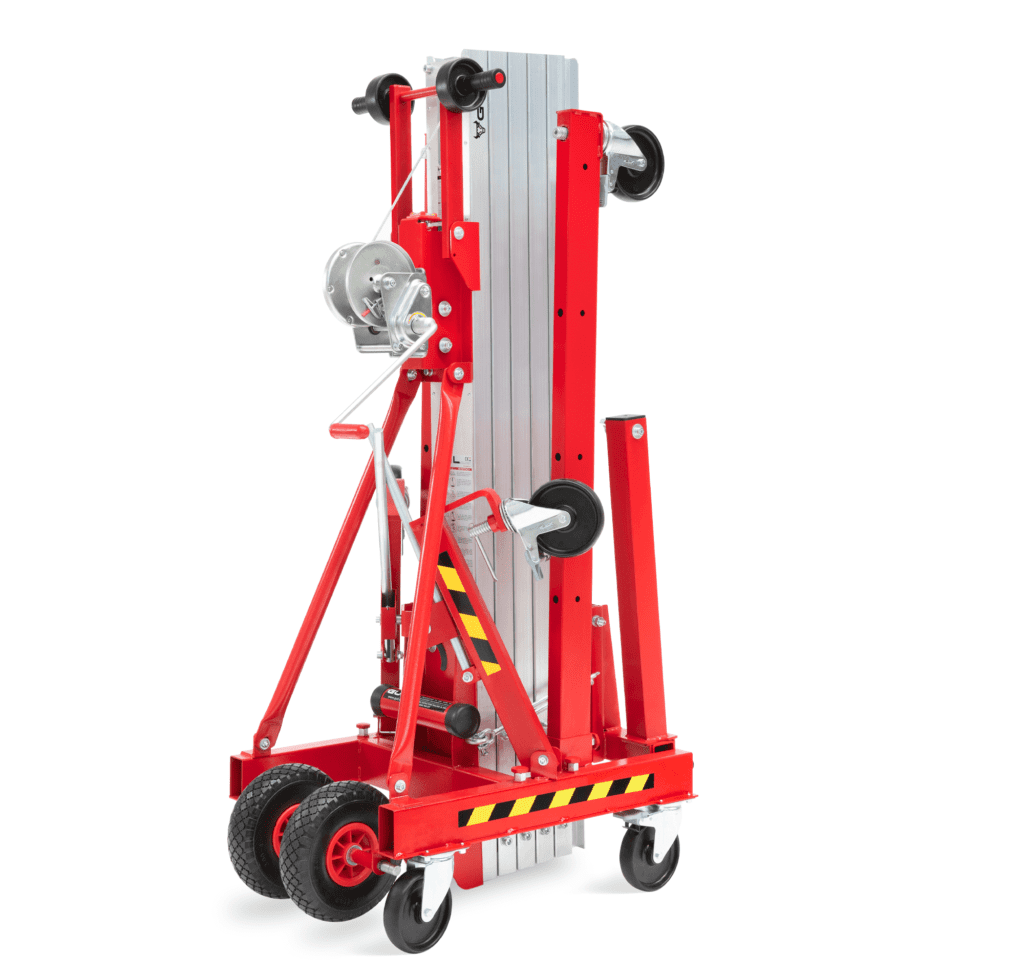

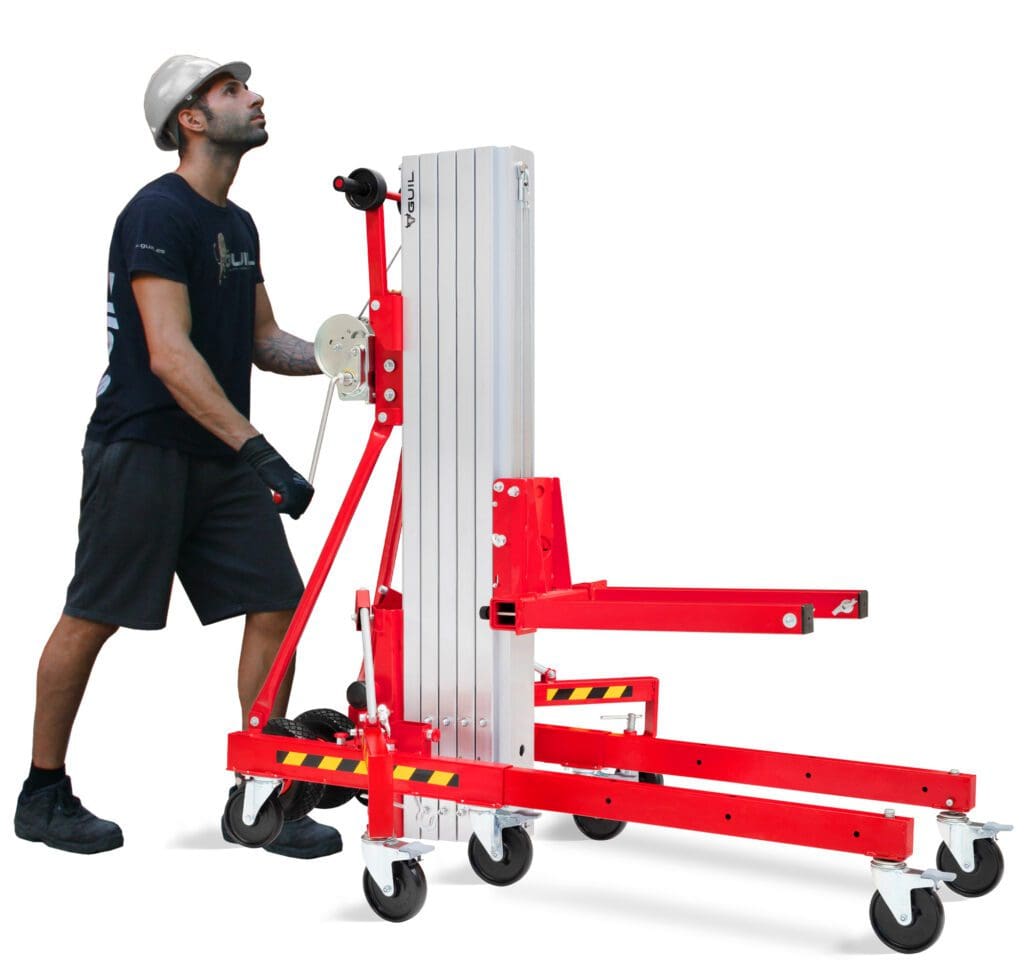

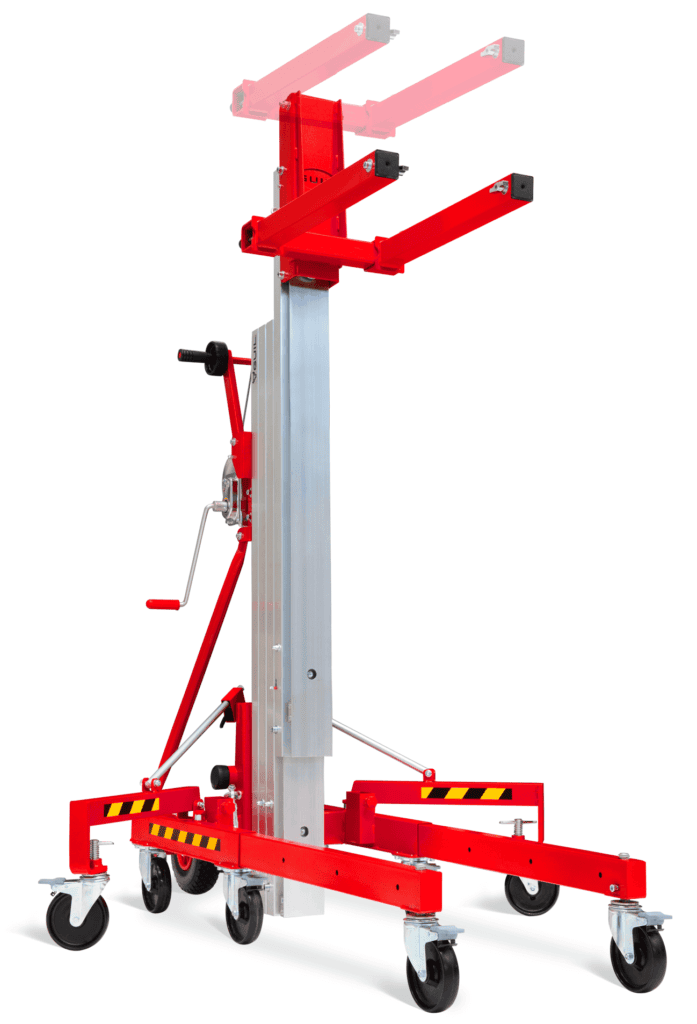

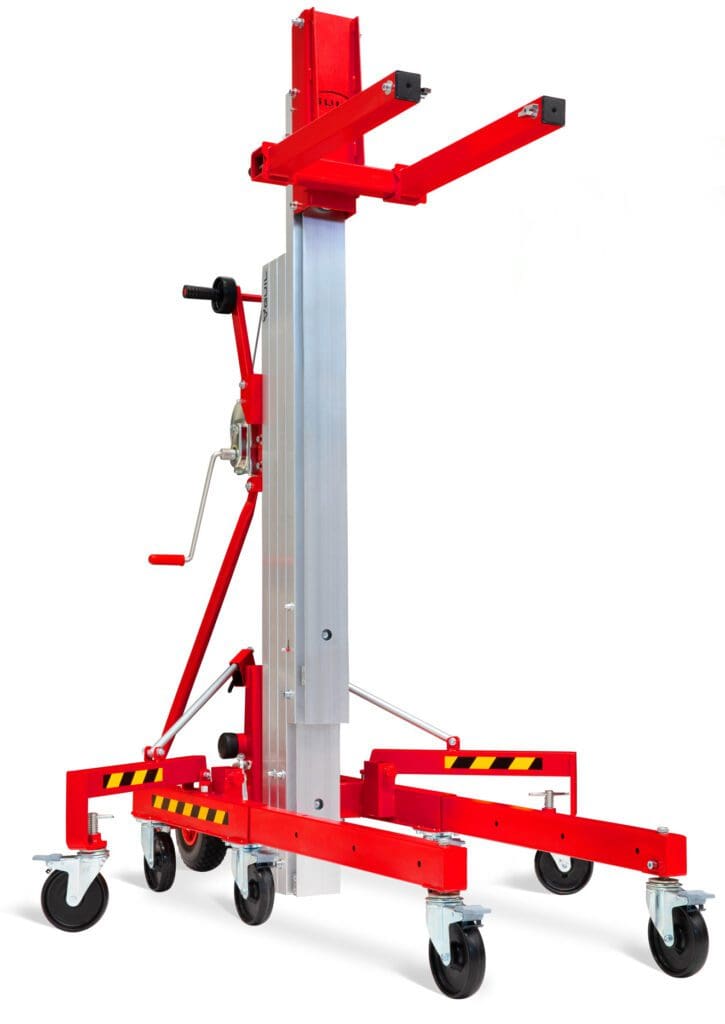

B series lifter

Designed to lift loads of up to 220 kg up to a maximum height of 6.30 metres.

---

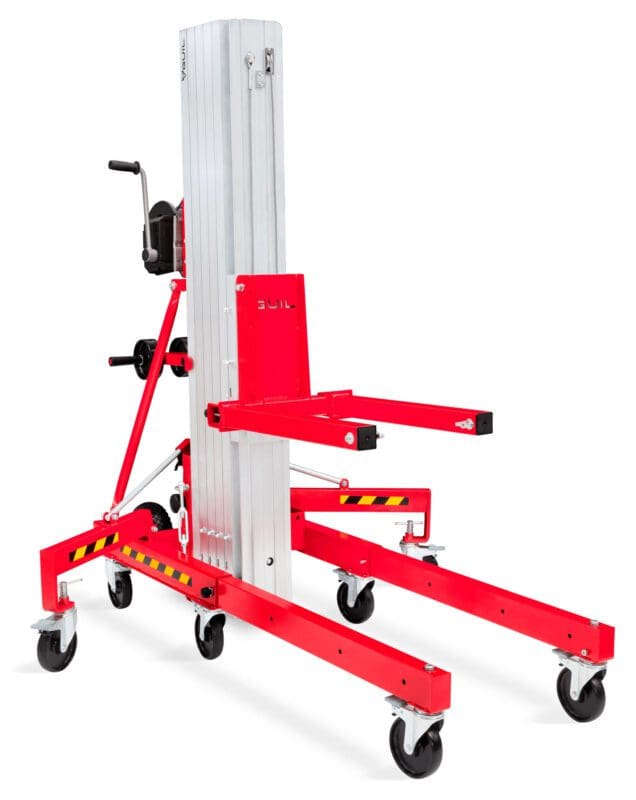

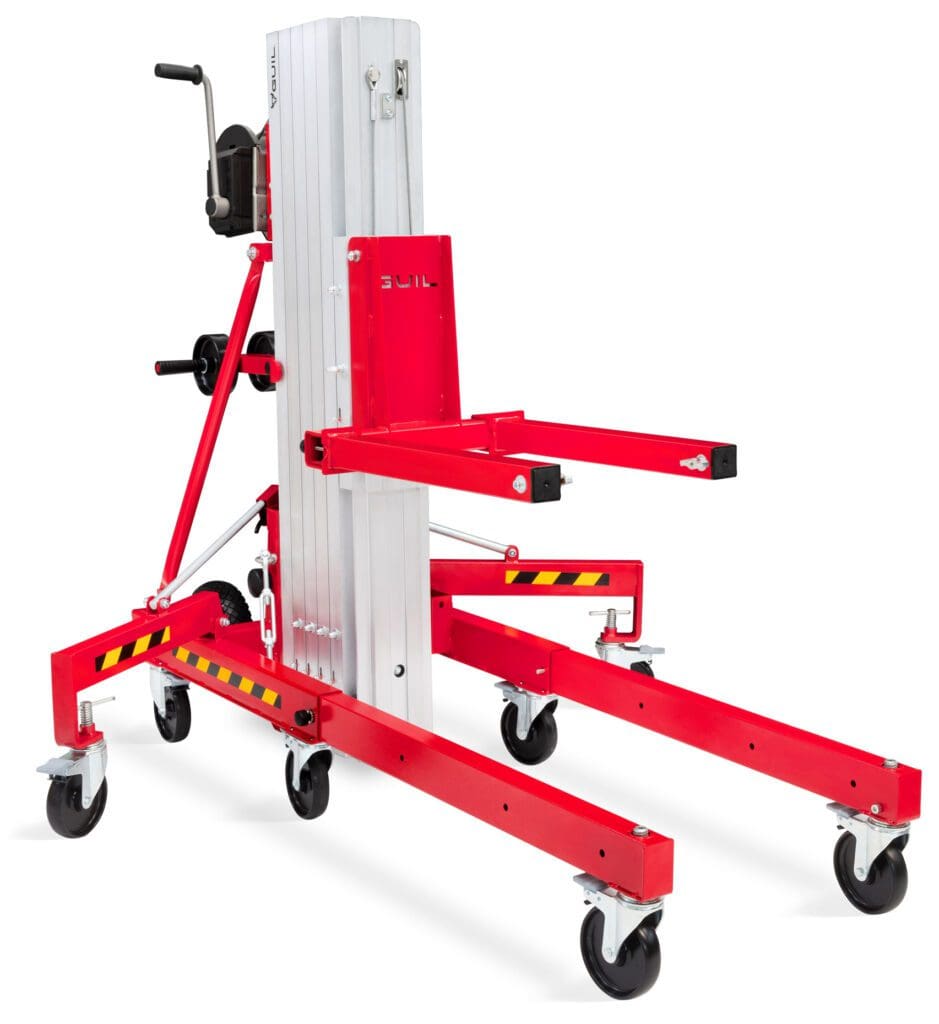

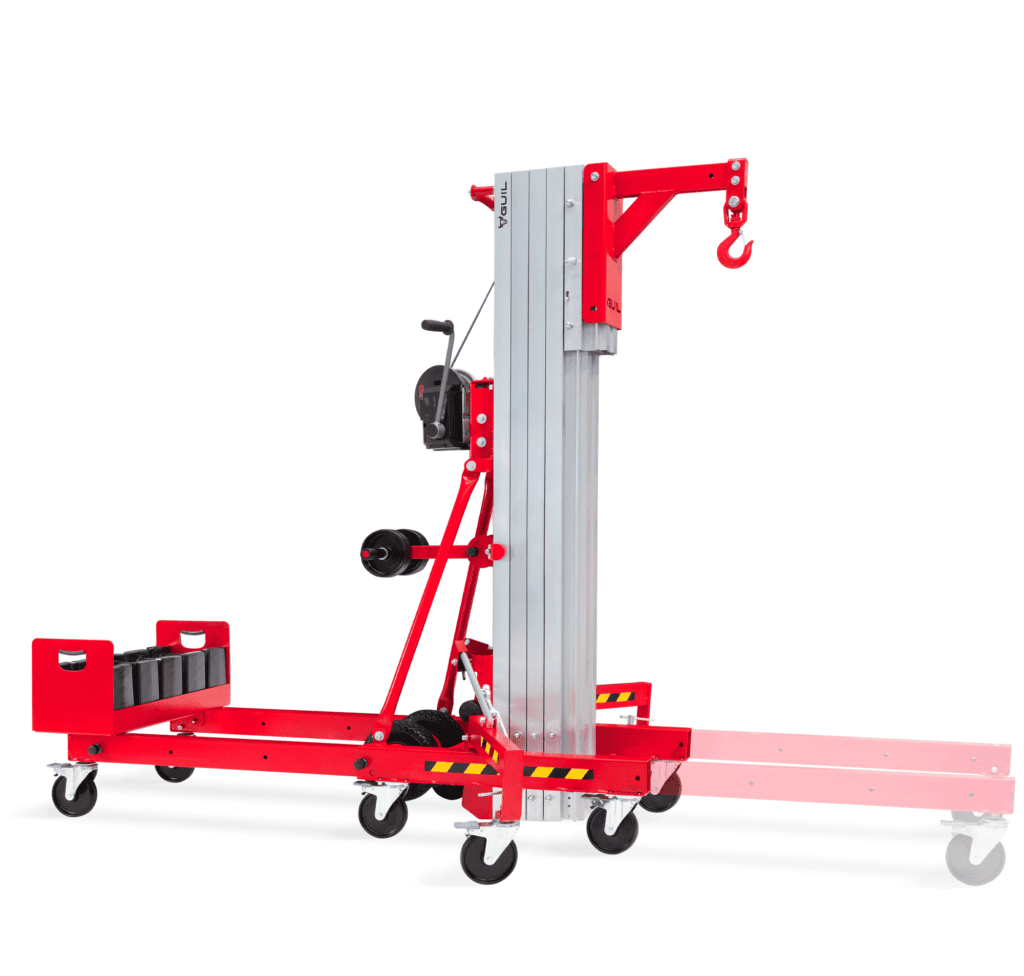

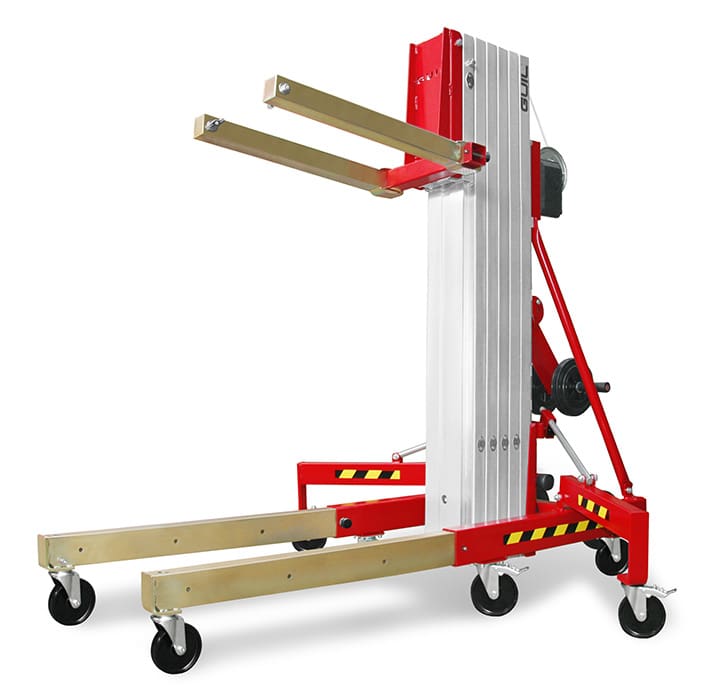

C series lifter

Designed to lift loads of up to 320 kg up to a maximum height of 6.5 metres.

---

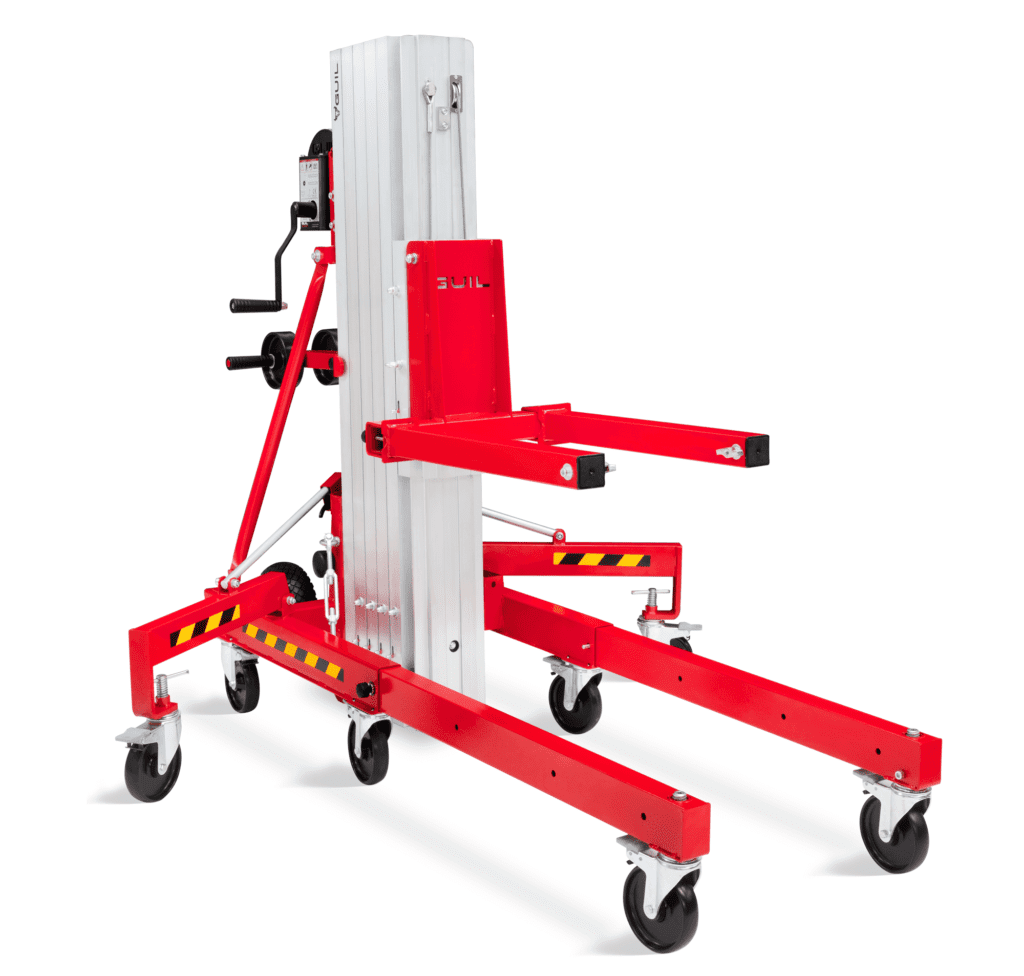

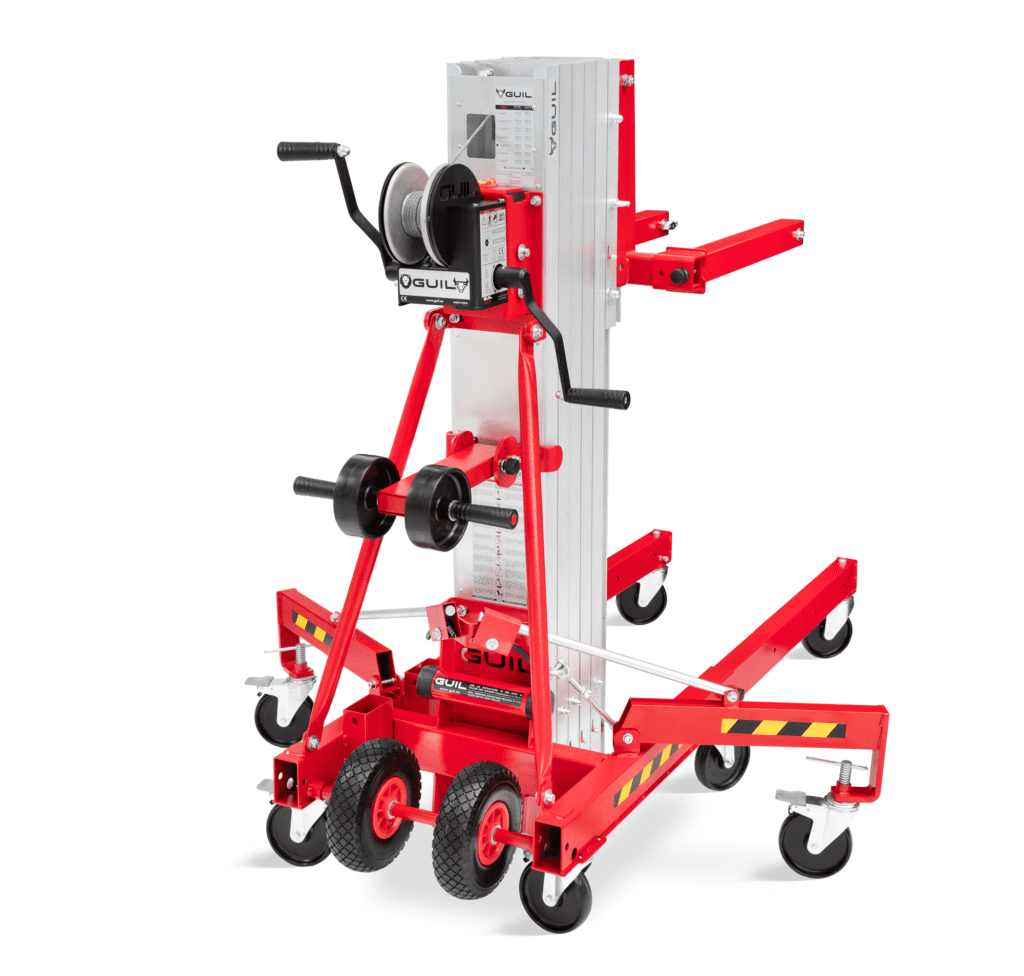

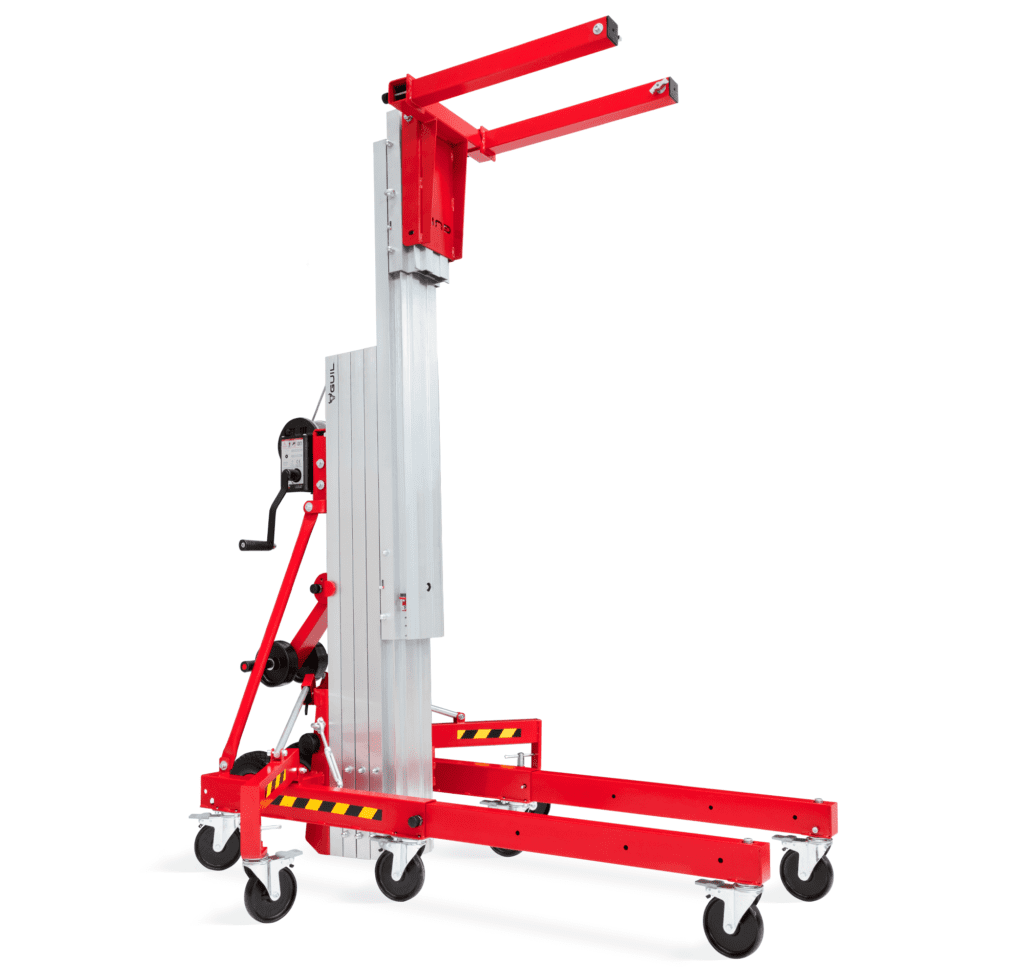

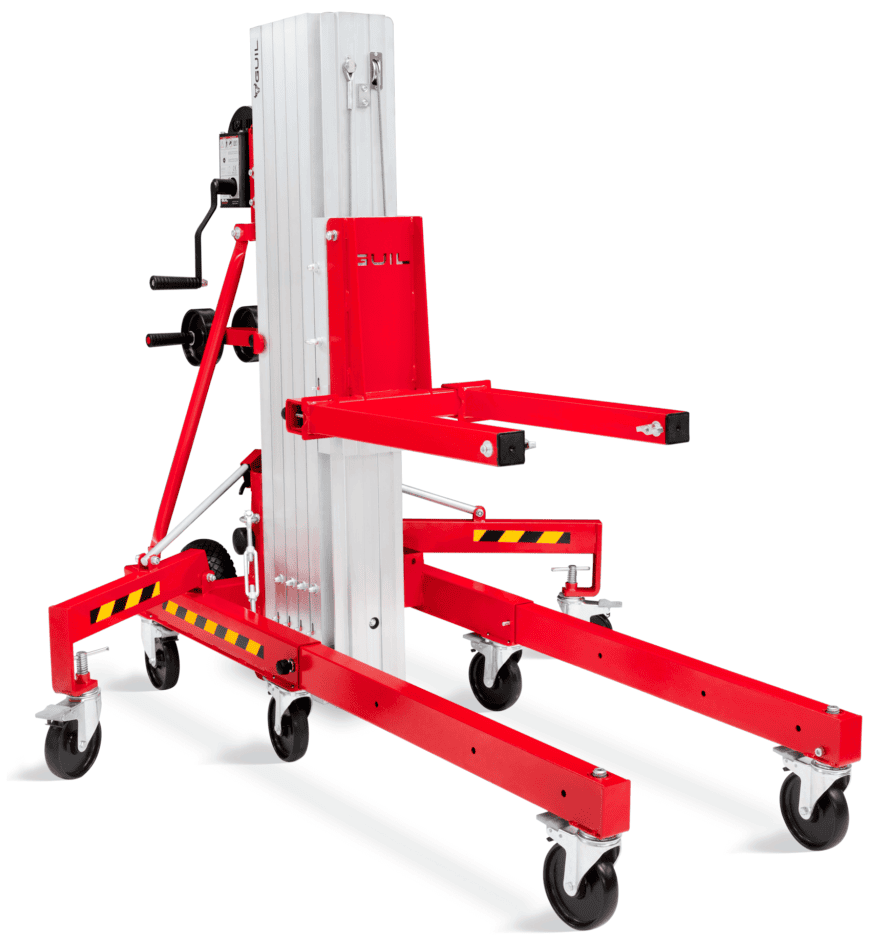

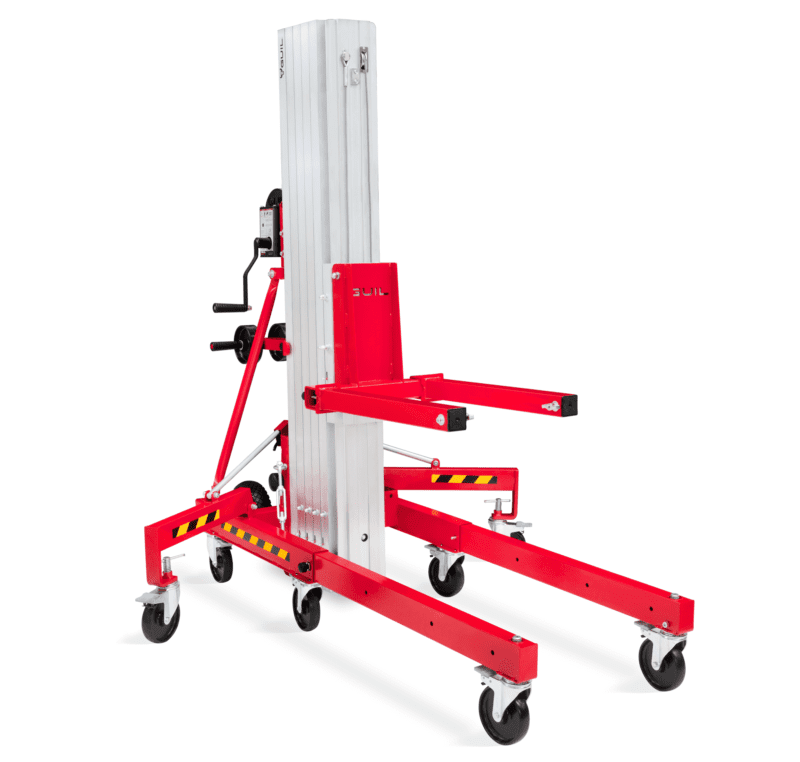

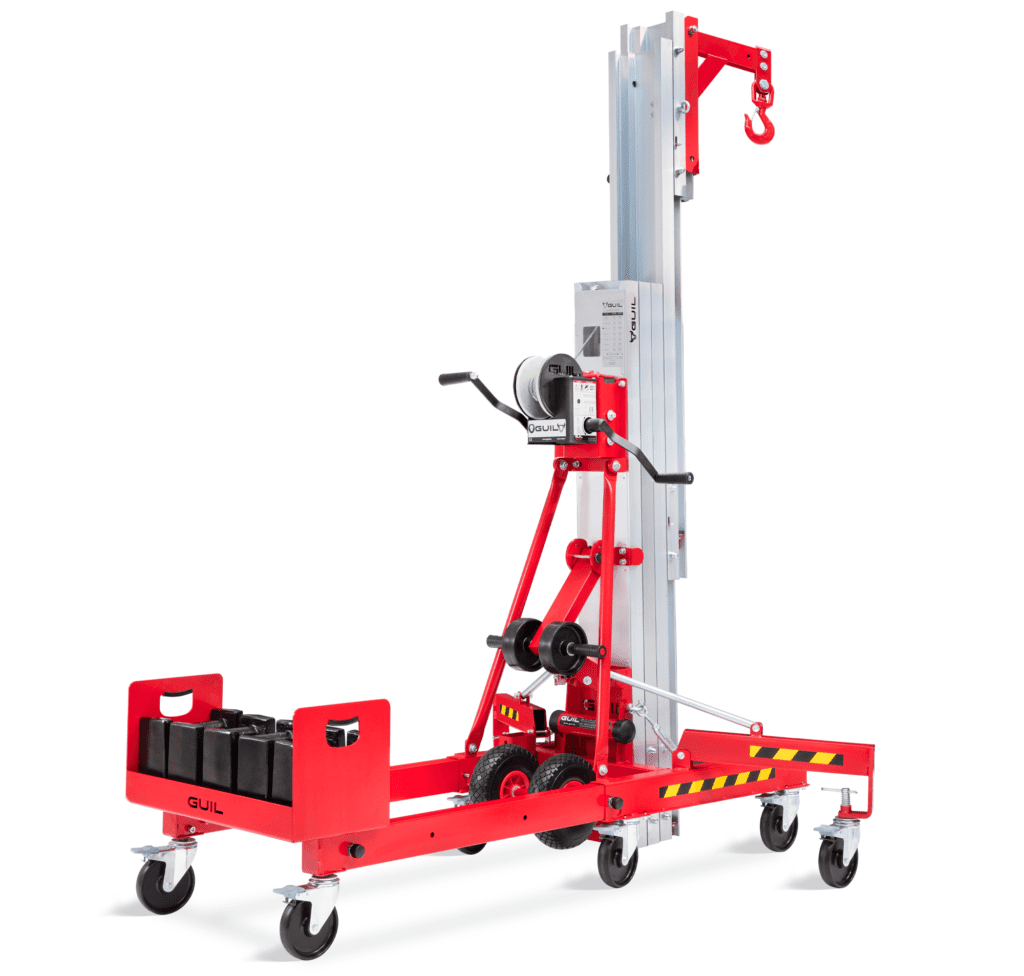

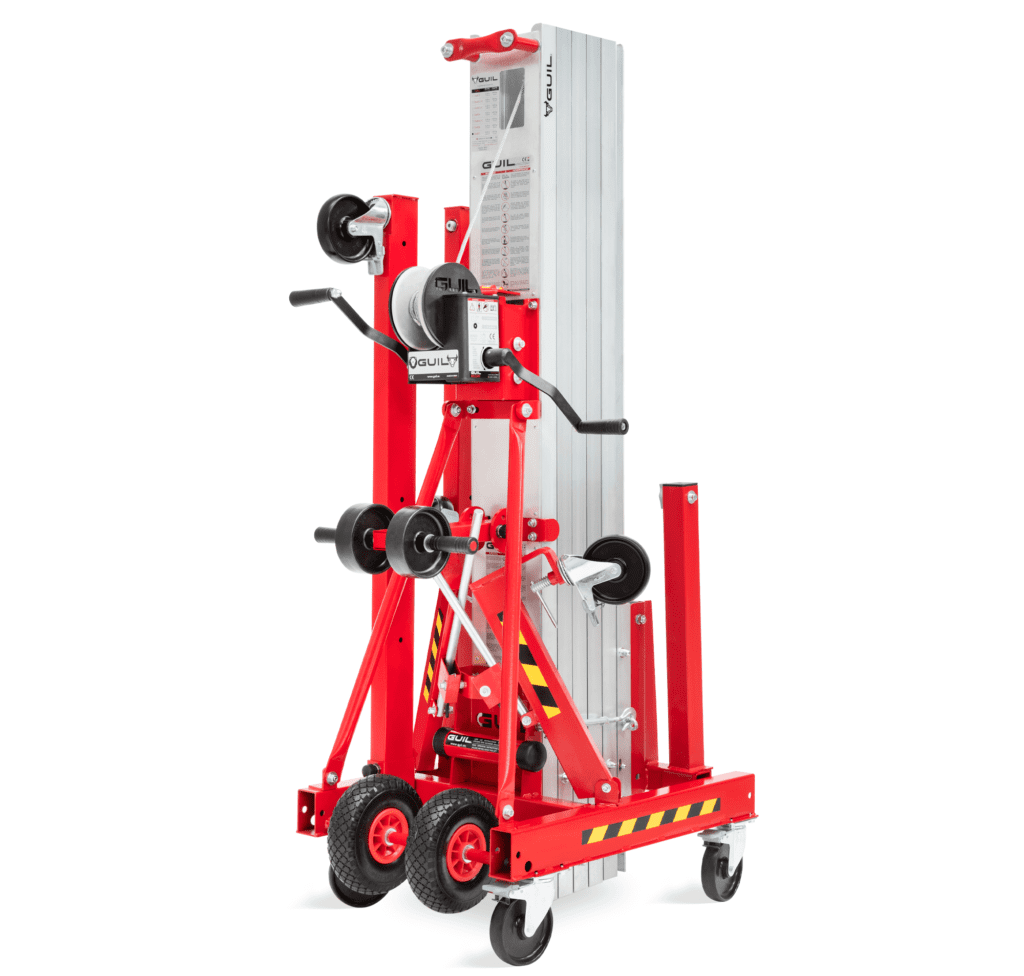

D series lifter

Designed to lift loads of up to 400 kg up to a maximum height of 6.5 metres.

SPECIFICATIONS	D-402C	D-403C	D-406	D-407
Maximum lifting height (Forks up)	3.85 m	5.00 m	6.50 m	8.00 m
Maximum lifting height (Forks down)	3.45 m	4.60 m	6.10 m	7.60 m
Maximum Load	420 kg	400 kg	400 kg	350 kg
Height stowed	1.61 m	1.61 m	1.99 m	1.99 m
Load height	30 cm	30 cm	30 cm	30 cm
2-in-1 design lifter	Front or rear legs	Front or rear legs	Front or rear legs	Front or rear legs
Leveller screw-jacks	Yes	Yes	Yes	Yes
Side stabiliser arms	Included	Included	Included	Included
Telescopic legs	Included	Included	Included	Included
Brake Winch	Double Handled	Double Handled	Double Handle	Double-handled
Transport	12 wheels	12 wheels	12 wheels	12 wheels
Folding handgrip with wheels	Yes	Yes	Yes	Yes
Stowed dimensions	95 x 66 x 161 cm	95 x 66 x 161 cm	95 x 66 x 199 cm	95 x 66 x 199 cm
Net Weight	162 kg	178 kg	190 kg	207 kg
Sections	3 – Profile 208 mm	4 – Profile 208 mm	4 – Profile 208 mm	5 – Profile 208 mm

---

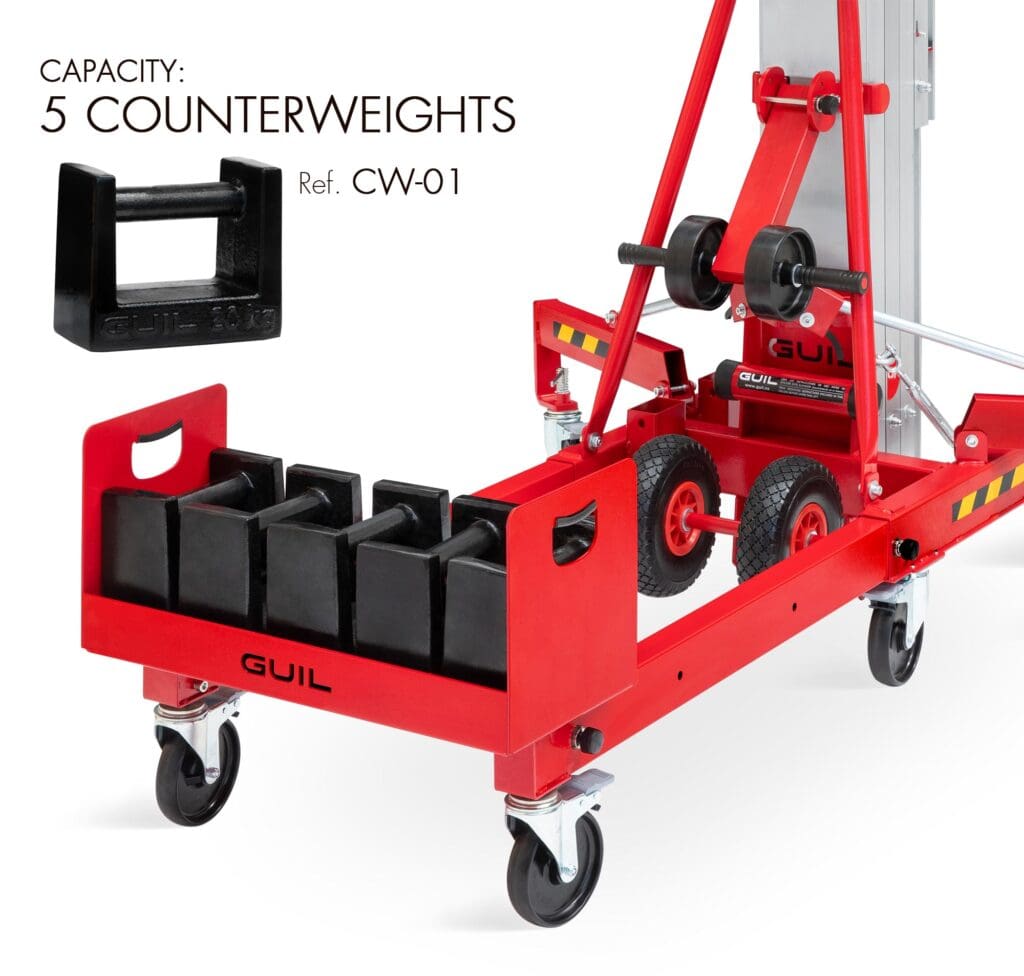

Counterbalance arrangement

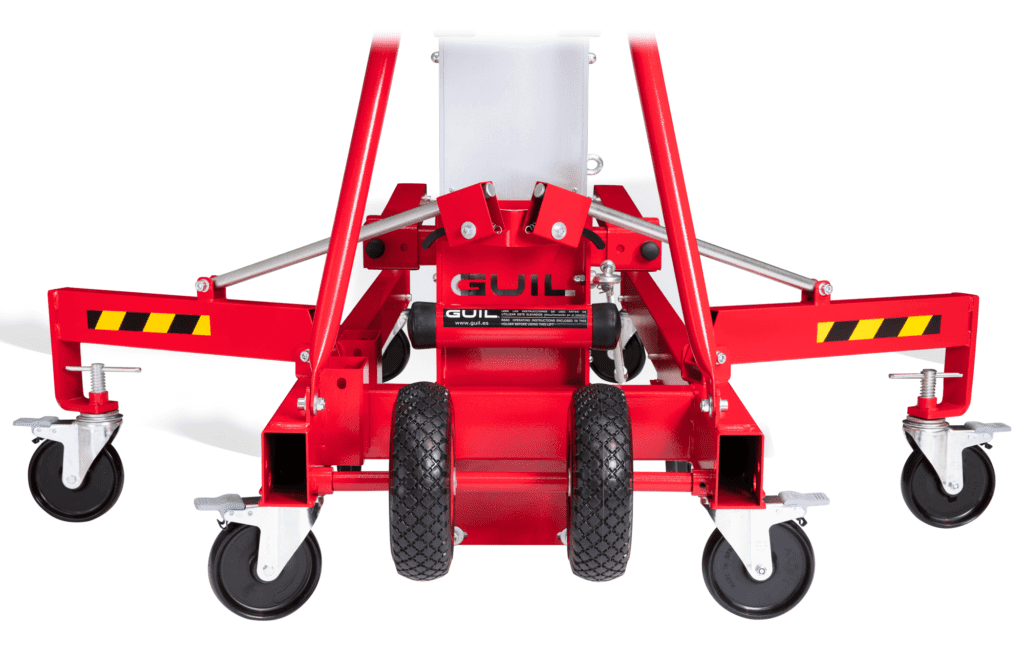

The TORO Material Lifters have a unique design that allows the support legs to be inserted from the front of the machine OR the rear of the chassis. This makes using it close to a wall or an obstruction possible. These support legs are also fitted with height-adjustable wheels. An optional tray for counterbalance and counterweights is available to complete this solution.

---

Electric lifting system

This optional extra allows you to raise and lower the lifts using a cordless drill. This accessory includes a drill (brand: METABO, Germany), power reducer and adaptor to couple with the winch. The adaptor fixes the drill into position requiring only one hand to operate.

---
