Gates Swing Gate Long

+ Add to Quote Request

Our Swing Gates are a great industrial solution for use in warehouses, factories, car parks and other similar work areas. They easily control traffic, ensure pedestrian safety and create a secure workplace management system. Available as either self-closing or manual, they feature a robust design with a steel post and aluminium beam.

Swing Gates can be either post or wall-mounted, depending on requirements, and have a maximum opening 5 metres. The Manual Gate (Code MSG5000) require one operator to manually open or close the gate to provide a vehicle or forklift access. The alternative Self-Closing Gate (Code SSG5000) features an adjustable spring assisted closing mechanism that will automatically close once a person or vehicle has moved through the gate.

All these models are finished in yellow powder-coated paint with high visibility red and white reflective panel. Posts/bollards are optional.

Additional Information

Swing Gates assist with safe pedestrian and traffic access.

Ensure your workplace is secured with our Self-Closing or Manual Swing Gates. With a sturdy design, they prevent unauthorised access and ensure workplace safety by controlling the entry/exit of pedestrians and vehicles. Both gates are ideal for commercial and industrial settings. Additionally, the gates can be used in pairs for a wider opening and to accommodate traffic both ways.

Features:

  • Available as either a Self-Closing or Manual Swing Gate.
  • Supplied with a 5-metre long aluminium beam.
  • Maximum opening is 5 m and the minimum opening is 3 m.
  • Installation services are available.
  • Robust design with aluminium rail and a hi-vis reflective panel.
  • Optional steel bollards, receiver posts and wall receivers are available on request.
  • Can be used in pairs for a wider opening.


Choose the right model for your application!

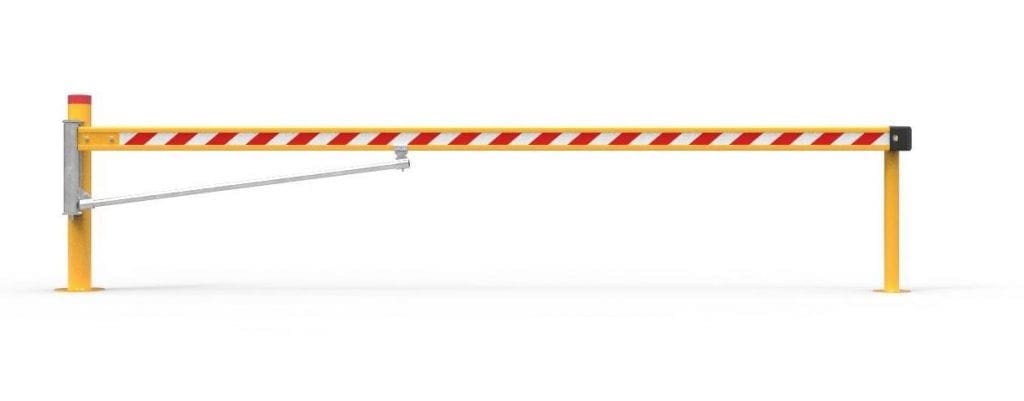

Manual Swing Gate Specifications:

The MSG5000 is a manually operated swing gate that can be mounted to any solid surface or optional bollard posts. It is supplied as a standard 5 m or 3 m beam rail, however, it can be cut down to suit any length. An optional receiver post is available, as well as a range of round or square bollards (on request).

  • Operation – Push open/push close
  • Gate Swing – 180-degrees
  • Gate Stop – Receiver bracket
  • Receiver Post – Optional
  • Maximum Opening – 5000 mm
  • Minimum Opening – 3000 mm
  • Mounting Type – Post or Wall
  • Rail Type – 145 x 40 mm
  • Rail Height – 1000 mm above the floor
Manual Swing Gates

Manual Swing Gates

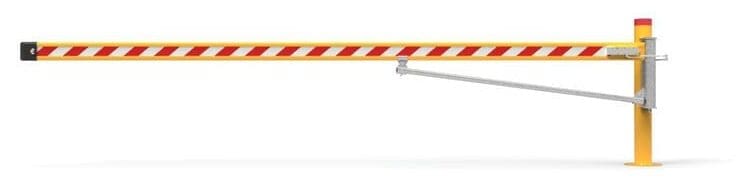

Self-Closing Swing Gate Specifications:

The SSG5000 features a self-closing operation and can be either wall or post mounted (optional posts are available). It has a freestanding design with an adjustable spring assisted closing mechanism. Additionally, it can be installed with a choice of left or right-hand operation and can swing either inward or outward.

  • Operation – Hydraulic spring assistance
  • Gate Swing – 90-degrees
  • Gate Stop – Built-in soft stop with a receiver bracket
  • Receiver Post – Optional
  • Maximum Opening – 5000 mm
  • Minimum Opening – 3000 mm
  • Mounting Type – Post or Wall
  • Rail Type – 145 x 40 mm
  • Rail Height – 1000 mm above the floor
Self Closing Swing Gates

Self Closing Swing Gates



Support bollards are s an optional extra. These include C90SM for a 90 mm surface-mounted bollard, C140BG for a 140 mm below ground bollard and C140SM for a 140 mm surface mounted bollard. Round and square posts are also available. Please enquire if you have certain specifications, so we can customise a solution.

Require an alternative industrial solution?

View more of our Safety Gates and find an option that suits your pedestrian and traffic segregation requirements.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

Manual Swing Gate 5m – Powder Coated Aluminium

MSG5000 $1,399.00

Self-Closing Swing Gate – 5 Metre

SSG5000 $2,820.00

Bollard 90mm Below Ground – Galvanised and Powder Coated

C90BG $240.00

Bollard 90mm Surface Mounted – Galvanised and Powder Coated

C90SM $227.00

Bollard 140mm Below Ground – Galvanised and Powder Coated

C140BG $455.00

Bollard 140mm Surface Mounted – Galvanised and Powder Coated

C140SM $424.00

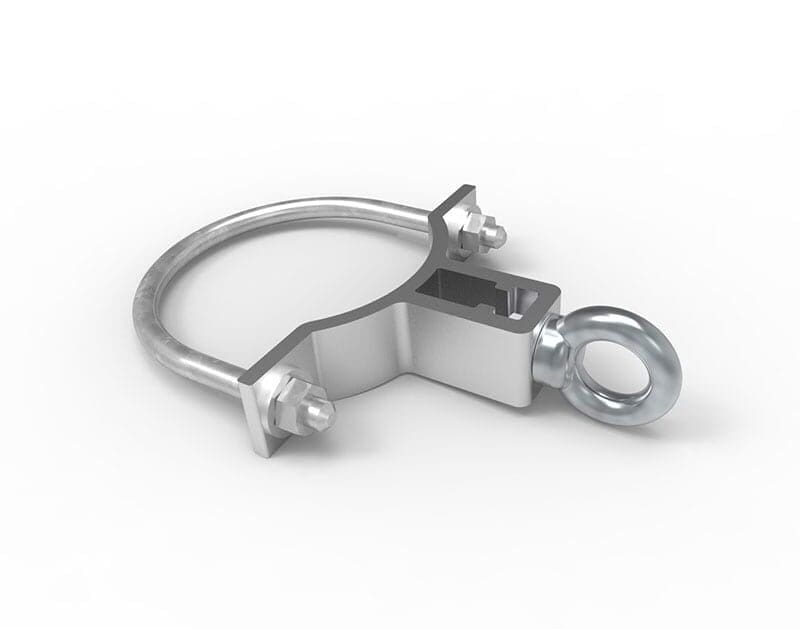

Manual Swing Gate – Receiver Kit

MSGRK $40.00
