Forklift Jibs – Fixed Angle Long

Our Long Fixed Jibs are forklift attachments best suited to general purpose and long reach lifting activities. They are fixed at a horizontal position with a telescopic extension for different lifting positions and Safe Working Loads.

Available in four fixed models – MFJL25, MFJL50, MSFJL100 and MSFJL120 – these slip-on devices help convert a forklift into a working crane for heavy goods. With a reach of 3.5 metres (when fully extended, Long Fixed Jobs can easily handle long reach lifts.

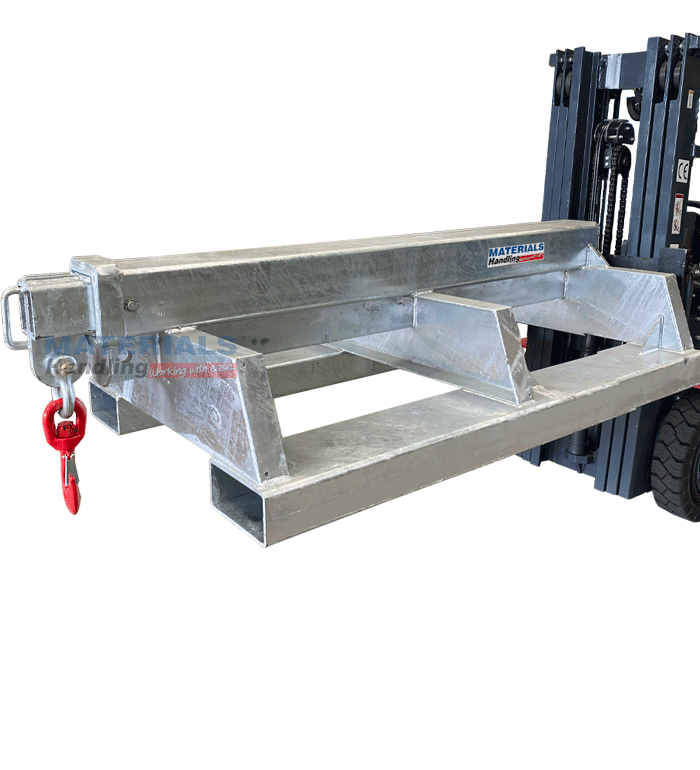

When retracted and closed, these jibs have an overall length of 2.1 metres. The Forklift Jib attachments are held safely by a chain and all models feature a zinc finish.

Additional Information

A variety of Long Fixed Jibs are available with varying load limits!

Our range offers an affordable solution to general lifting applications that require a long reach. These attachments suit most lifting and maintenance requirements and our MSJFL100 is even perfect for larger forklifts. Browse the specifications below to identify the model best suited to your lifting activity.

MFJL25 Long Fixed Jib Specifications:

Safe Working Load (SWL) – 2500 kg maximum
Unit Weight – 135 kg
Load Centre – 950 mm
Pocket Size – 185 mm x 65 mm
Pocket Centres – 275 mm
Horizontal C of G – 1160 mm
Vertical C of G – 185 mm
Supplied with safety hook and shackle

MFJL25 Fixed Jib (End View)

MFJL50 Long Fixed Jib Specifications:

Safe Working Load (SWL) – 4750 kg maximum
Unit Weight – 170 kg
Load Centre – 935 mm
Pocket Size – 185 mm x 75 mm
Pocket Centres – 275 mm
Horizontal C of G – 1210 mm
Vertical C of G – 200 mm
Supplied with safety hook and shackle

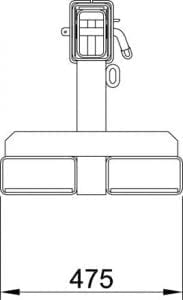

MFJL50 Fixed Jib (End View)

MSFJL100 Long Fixed Jib Specifications:

Working Load Limit (WLL) – 10,000 kg maximum
Unit Weight – 515 kg
Load Centre – 920 mm
Pocket Size – 230 mm x 110 mm
Pocket Centres – 875 mm
Horizontal C of G – 1200 mm
Vertical C of G – 100 mm
A wide pocket jib used where the fork or its attachment preclude the use of the narrow fork centres on the other jibs.
Suits larger forklifts and those with hydraulic tine positioners
Supplied with safety hook and shackle

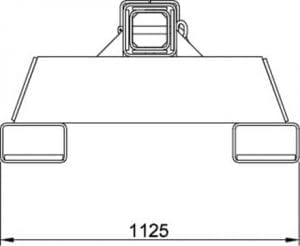

MSFJL100 Fixed Jib (End View)

All our Long Fixed Jibs can be quickly connected to a forklift as they slip-on and feature a safety chain. Each model has a reach of 3.5 metres and overall length of 2.1 metres when closed. For further working load limits for each extended position, please download the supporting PDFs (located above).

Browse our entire range!

Check out our huge variety including Tilt and Telescopic Jibs. Alternatively, view our Short Fixed Jibs for confined spaces.

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
Fixed Jib (Long) with Telescopic Extension Safe Working Load – 2.5T	MFJL25	$1,600.00	Add to Quote Request
Fixed Jib (Long) with Telescopic Extension Safe Working Load – 4.75T	MFJL50	$2,100.00	Add to Quote Request
Fixed Jib (Long) with Telescopic Extension Safe Working Load – 10T Adjustment range 920 – 3565mm	MSFJL100	$5,070.00	Add to Quote Request

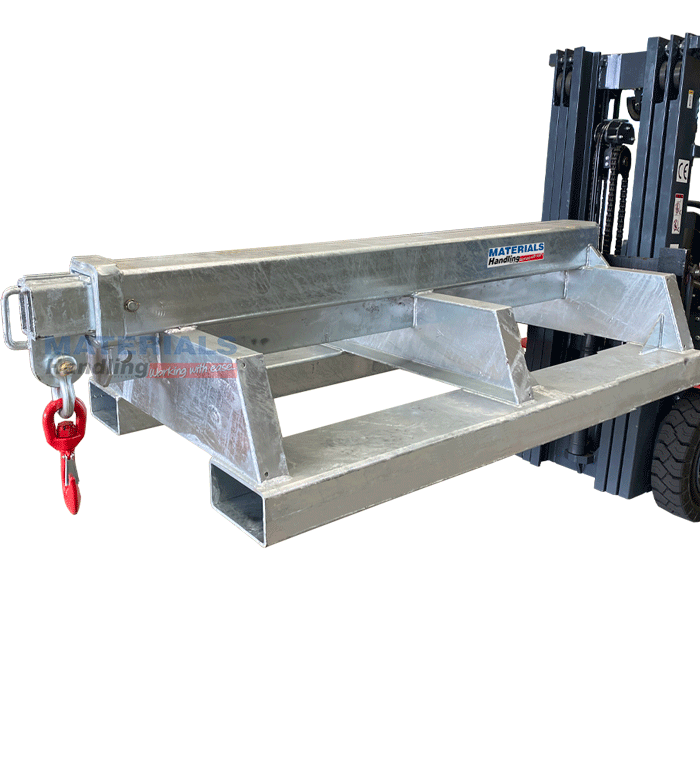

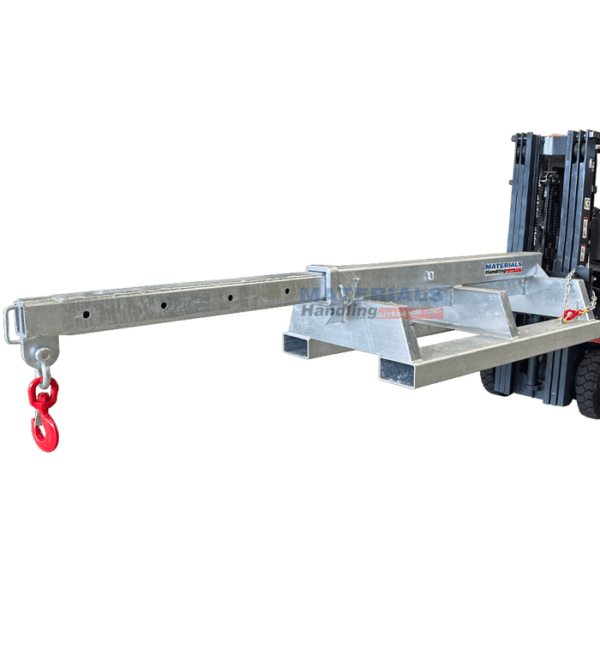

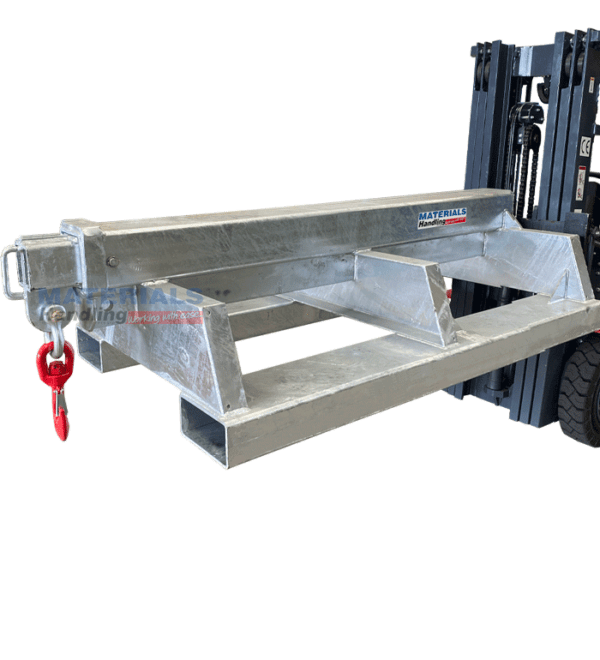

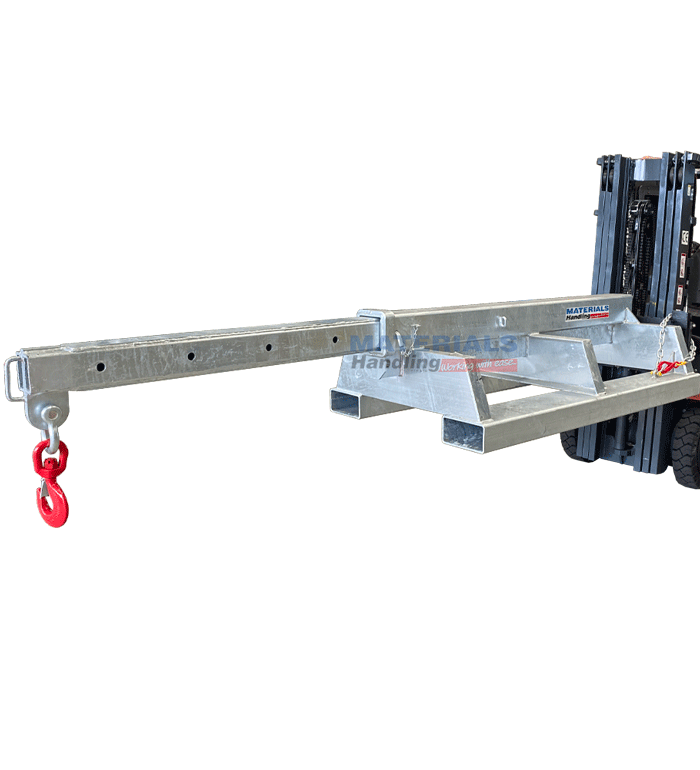

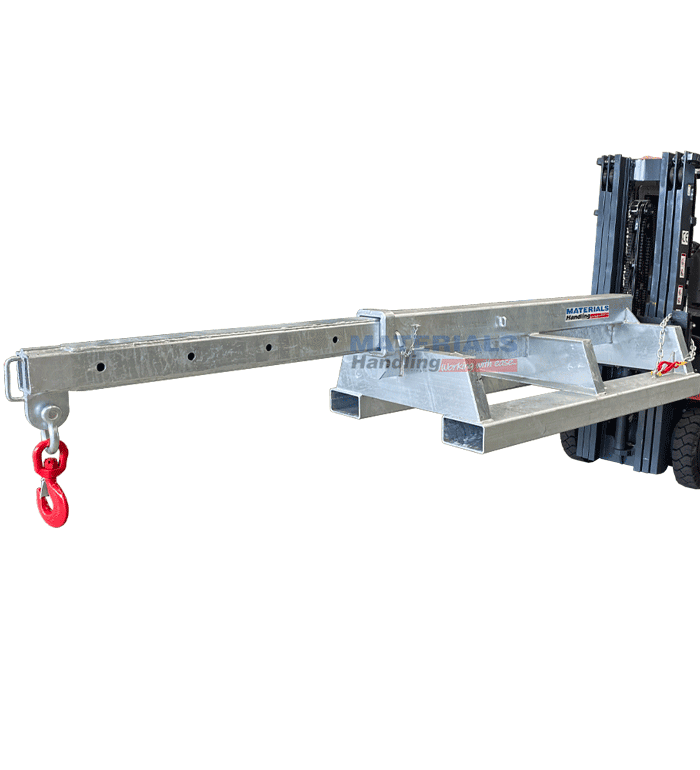

Fixed Jib (Long) with Telescopic Extension Safe Working Load – 12T Adjustment range 1030 – 4055mm	MSFJL120	$7,640.00	Add to Quote Request
