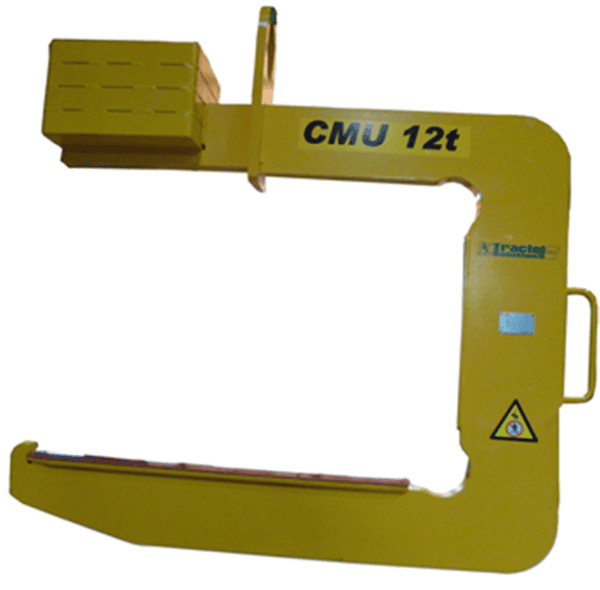

Lifting Hooks C Hook

Lifting Hooks for handling items such as steel coils or rolls of material.

Lifting capacity up to 32 tonne is possible.

These hooks can be supplied in a custom size for your specific project. Please contact us for a quote. Refer to the application worksheet PDF attached.

Product Variation

Clear

Additional Information

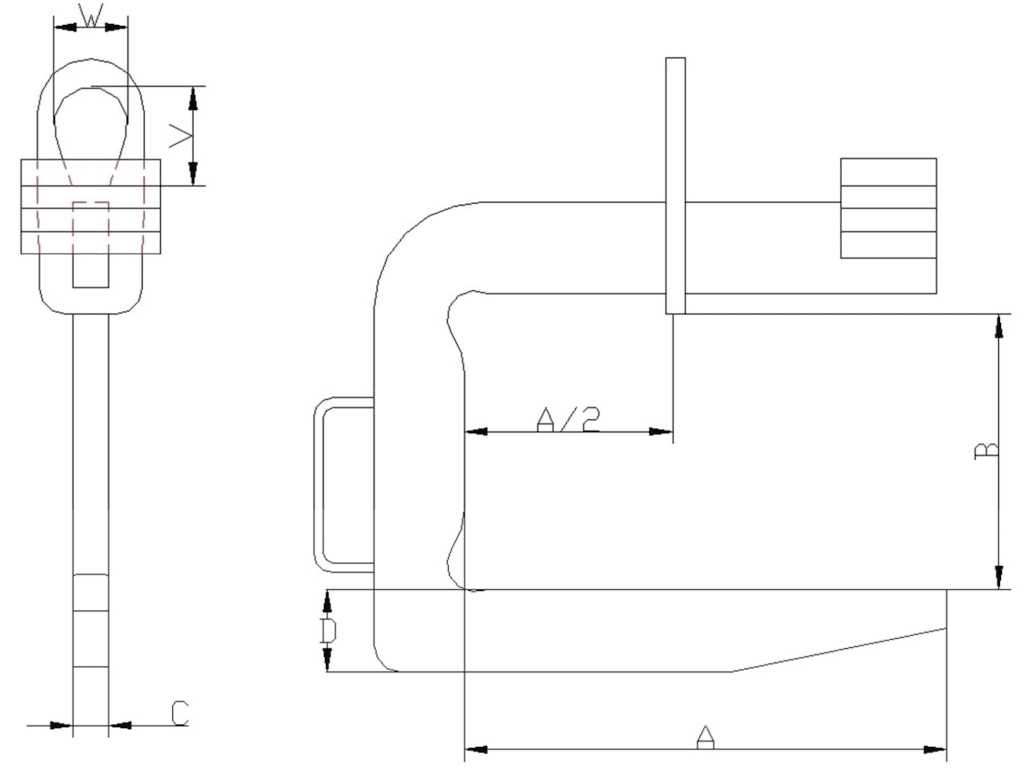

Code	WLL (tonne)	A	B	D	C	V	W	Weight (kg)
SCT5	5	700	600	136	50	165	100	350
SCT7.5	75	800	700	165	60	170	115	515
SCT10	10	1000	700	195	70	180	150	745
SCT16	16	1200	700	250	80	250	170	1230
SCT20	20	1500	900	300	90	250	170	2050
SCT25	25	1600	900	325	100	250	170	2605
SCT32	32	2000	900	375	120	250	170	3850

Click the PDF button to learn more.

Product Variations

Description	Product Code
5 tonne	SCT5	Add to Quote Request
7.5 tonne	SCT7.5	Add to Quote Request
10 tonne	SCT10	Add to Quote Request
16 tonne	SCT16	Add to Quote Request
20 tonne	SCT20	Add to Quote Request
25 tonne	SCT25	Add to Quote Request
32 tonne	SCT32	Add to Quote Request
