Name: Lifting Clamps Scissor Grip Round
Brand: Materials Handling Pty Ltd
Availability: InStock

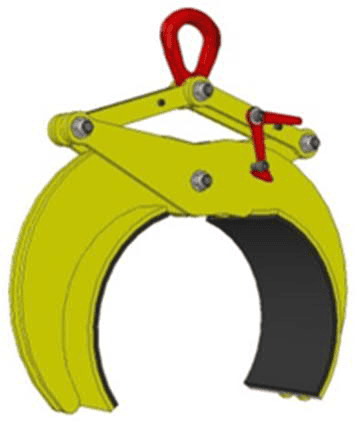

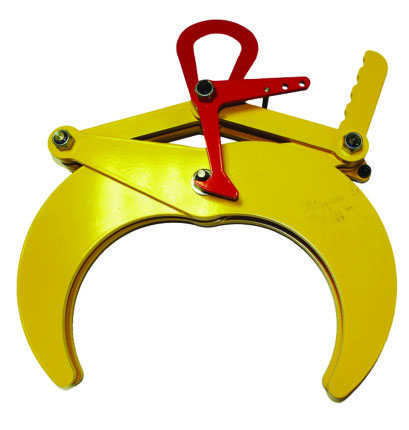

Lifting Clamps Scissor Grip Round

Lifting of round or square bars, tubes, and various small profiles individually or in bundles.

These accessories are fitted with an open position locking system allowing to lay down the load without any intervention on the clamp.

These clamps come with an ergonomic handle and a security screw in order to avoid the complete closure of the clamps’ arms to protect the worker’s hands/fingers. Nevertheless, it is forbidden to place hands inside the parallelogram but the risks of not following instructions are significantly reduced

Product Variation

Clear

Additional Information

Lifting clamp for lifting round materials.
Optional automatic release.

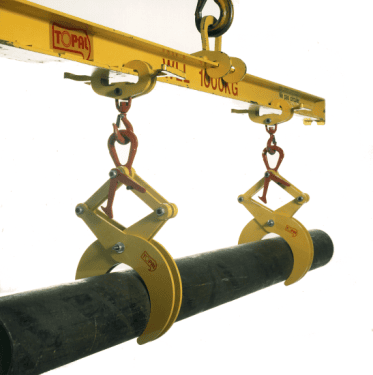

Recommended to be used in pairs.

The clamping force is proportional to the weight of the load being carried.

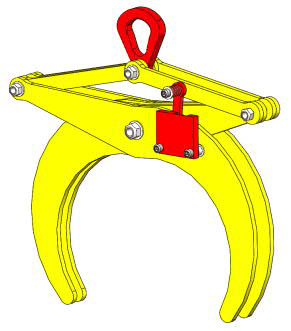

The clamps can be supplied in with a semi-automatic or automatic release mechanism.

Vertical lifting
Automatic release
Ergonomic handle
Hot epoxy coating

Click the PDF button to learn more.

Product Variations

Description	Product Code
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Opening: 50-100 mm WLL: 500 kg	RT05-50-100-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Opening: 50-100 mm WLL: 500 kg	RT05-50-100-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Opening: 50-100 mm WLL: 500 kg	RT05-50-100	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Auto clamp and release mechanism Opening: 50-100 mm WLL: 500 kg	RTA05-50-100-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Auto clamp and release mechanism Opening: 50-100 mm WLL: 500 kg	RTA05-50-100-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Auto Opening: 50-100 mm WLL: 500 kg	RTA05-50-100	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Opening: 100-200 mm WLL: 1000 kg	RT1-100-200-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Opening: 100-200 mm WLL: 1000 kg	RT1-100-200-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Opening: 100-200 mm WLL: 1000 kg	RT1-100-200	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Auto clamp and release mechanism Opening: 100-200 mm WLL: 1000 kg	RTA1-100-200-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Auto clamp and release mechanism Opening: 100-200 mm WLL: 1000 kg	RTA1-100-200-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Auto Opening: 100-200 mm WLL: 1000 kg	RTA1-100-200	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Opening: 200-350 mm WLL: 2000 kg	RT2-200-350-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Opening: 200-350 mm WLL: 2000 kg	RT2-200-350-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Opening: 200-350 mm WLL: 2000 kg	RT2-200-350	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Auto clamp and release mechanism Opening: 200-350 mm WLL: 2000 kg	RTA2-200-350-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Auto clamp and release mechanism Opening: 200-350 mm WLL: 2000 kg	RTA2-200-350-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Auto Opening: 200-350 mm WLL: 2000 kg	RTA2-200-350	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Opening: 250-450 mm WLL: 3000 kg	RT3-250-450-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Opening: 250-450 mm WLL: 3000 kg	RT3-250-450-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Opening: 250-450 mm WLL: 3000 kg	RT3-250-450	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads and rubber coating Auto clamp and release mechanism Opening: 250-450 mm WLL: 3000 kg	RTA3-250-450-CR	Add to Quote Request
Lifting Clamp Scissor Grip Round with curved pads Auto clamp and release mechanism Opening: 250-450 mm WLL: 3000 kg	RTA3-250-450-TC	Add to Quote Request
Lifting Clamp Scissor Grip Round Auto Opening: 250-450 mm WLL: 3000 kg	RTA3-250-450	Add to Quote Request
