Products / Lifting Equipment / Lifting Attachments & Clamps / Lifting Clamps Horizontal Polyurethane Coating

Lifting Clamps Horizontal Polyurethane Coating

+ Add to Quote Request

Lifting CLamps designed for handling plates and sheet material horizontally. The clamp is fitted with a tip-up lever to ensure clamping on the load.

The gripping section is fitted with a polyurethane coating to protect the work piece from being damaged by the lifting clamps.

The lifting clamps are normally used in pairs. Chain lifting slings are not included.

Additional Information

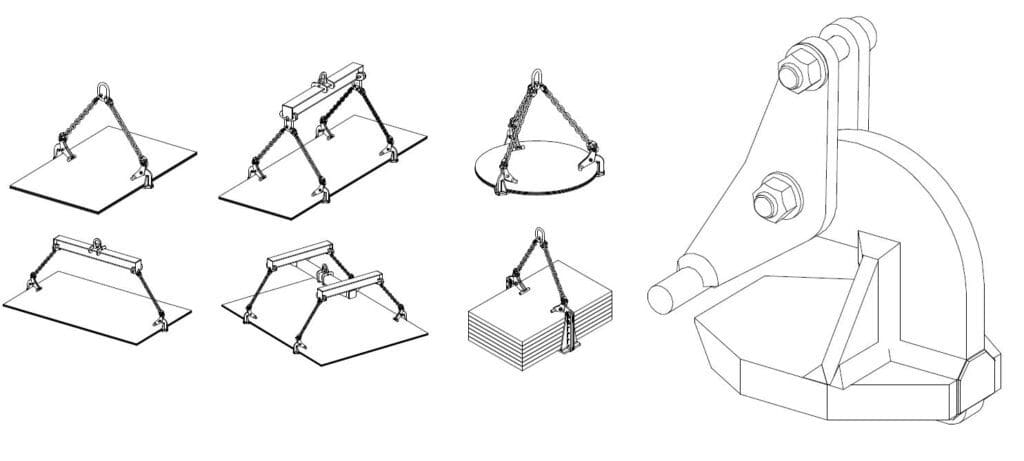

Lifting Clamps Horizontal Plate Clamps with Polyurethane Coating TLH

Normally used in pairs for lifting plates or sheet metal, individually or in bundles.

  • 1 pair with a 2-legged sling

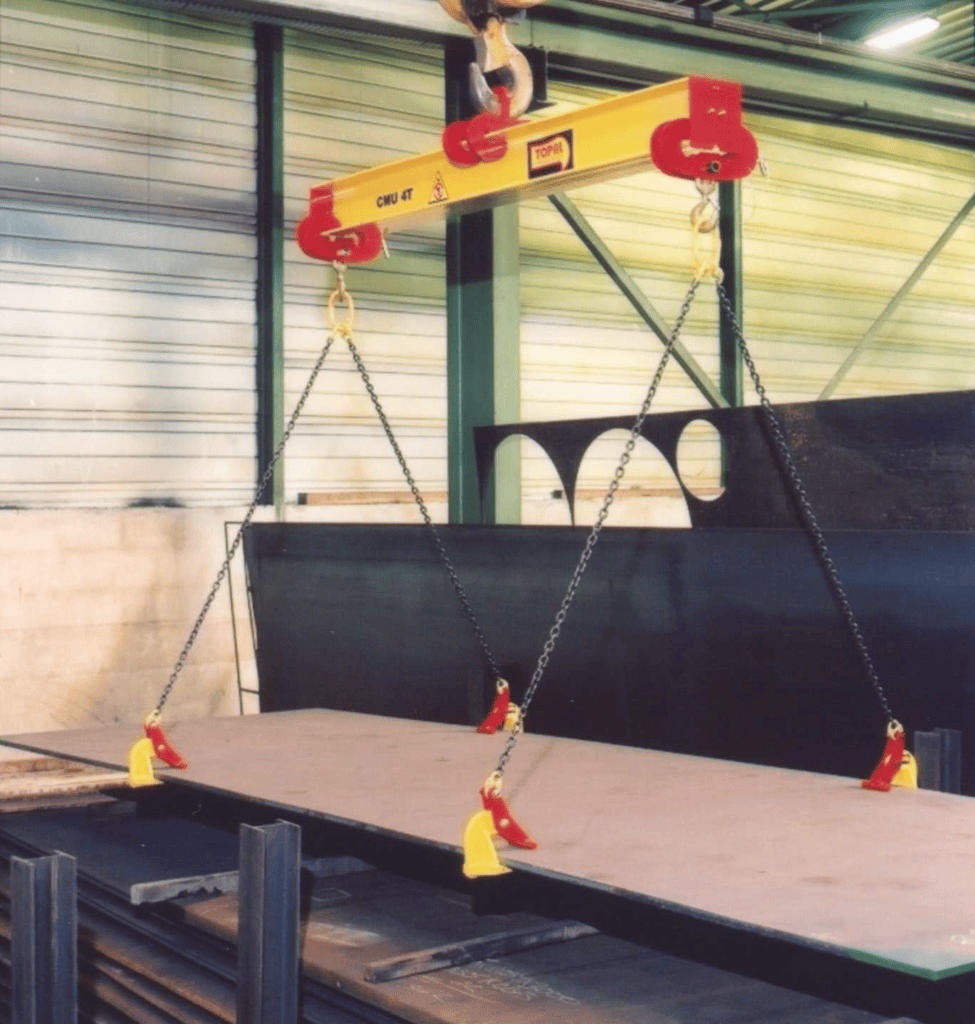

  • Several pairs with 2-legged slings and lifting beam

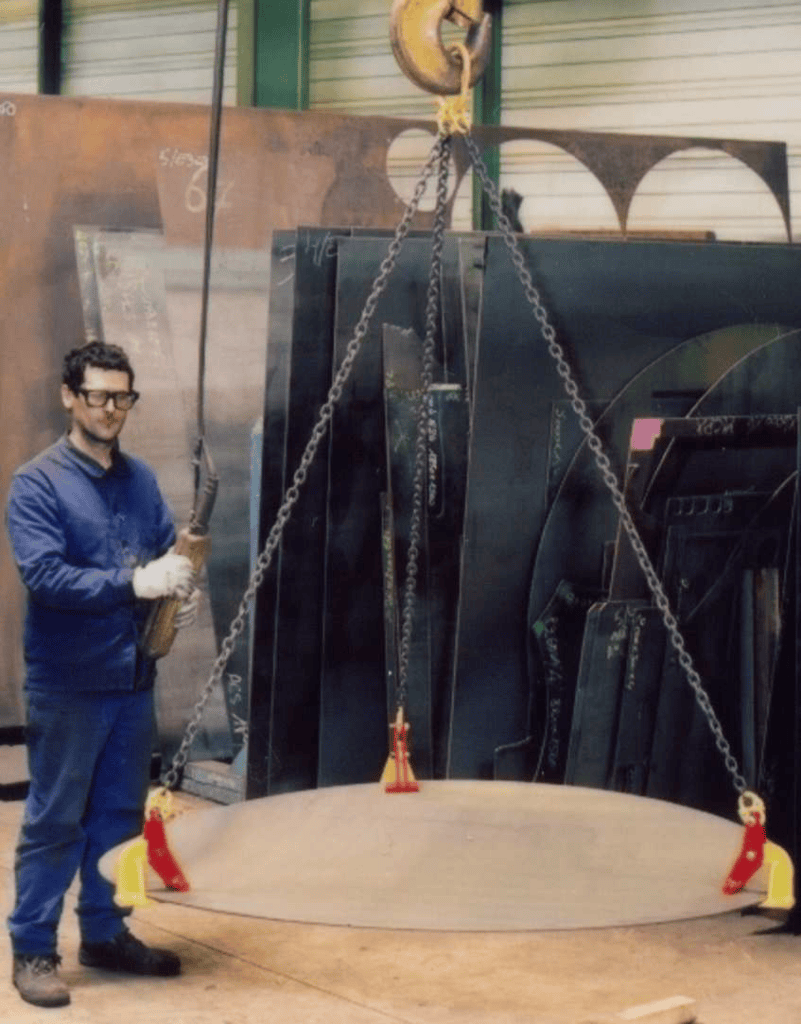

  • Use in 3s with a 3-legged sling for lifting round sheet metals

Fit the load into the clamps, making sure they are evenly distributed onto the piece to be lifted. Lifting ensures the clamp is locked. Clamping is proportional to the load lifted, thus avoiding an excessive force on the workpiece.

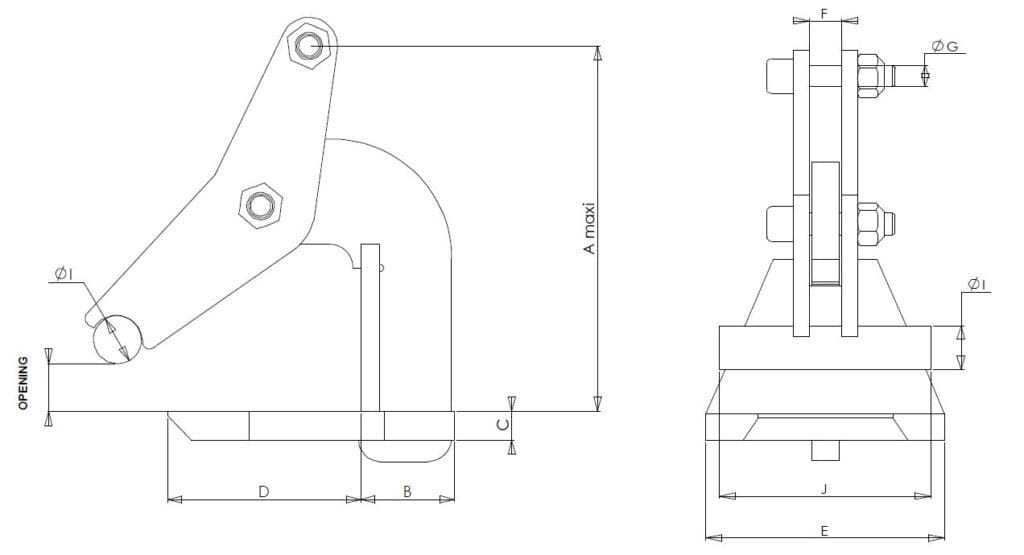

Lifting Clamps Horizontal Plate Clamps with Polyurethane Coating TLH (2)

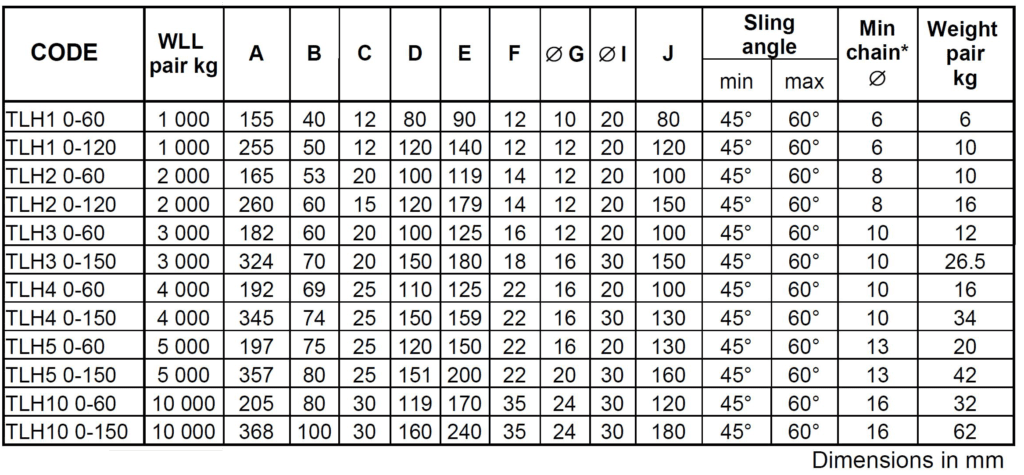

Lifting Clamps Horizontal Plate Clamps with Polyurethane Coating TLH (table)

Product Variations

Image Description Product Code Price (excl. GST)

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 500 kg

TLH1-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-100 mm
WLL: 500 kg

TLH1-0-100PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 1000 kg

TLH2-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-100 mm
WLL: 1000 kg

TLH2-0-100PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 1500 kg

TLH3-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-100 mm
WLL: 1500 kg

TLH3-0-100PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 2000 kg

TLH4-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-130 mm
WLL: 2000 kg

TLH4-0-130PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 2500 kg

TLH5-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-130 mm
WLL: 2500 kg

TLH5-0-130PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-40 mm
WLL: 5000 kg

TLH10-0-40PU

Horizontal Lifting Clamps with Polyurethane Coating
Opening: 0-130 mm
WLL: 5000 kg

TLH10-0-130PU
agg.5
