Lifting Clamp Constant Contact Grip
+ Add to Quote RequestLifting Clamps suitable for vertical and horizontal handling – YES, the clamps are able to lift and tilt the workpiece!

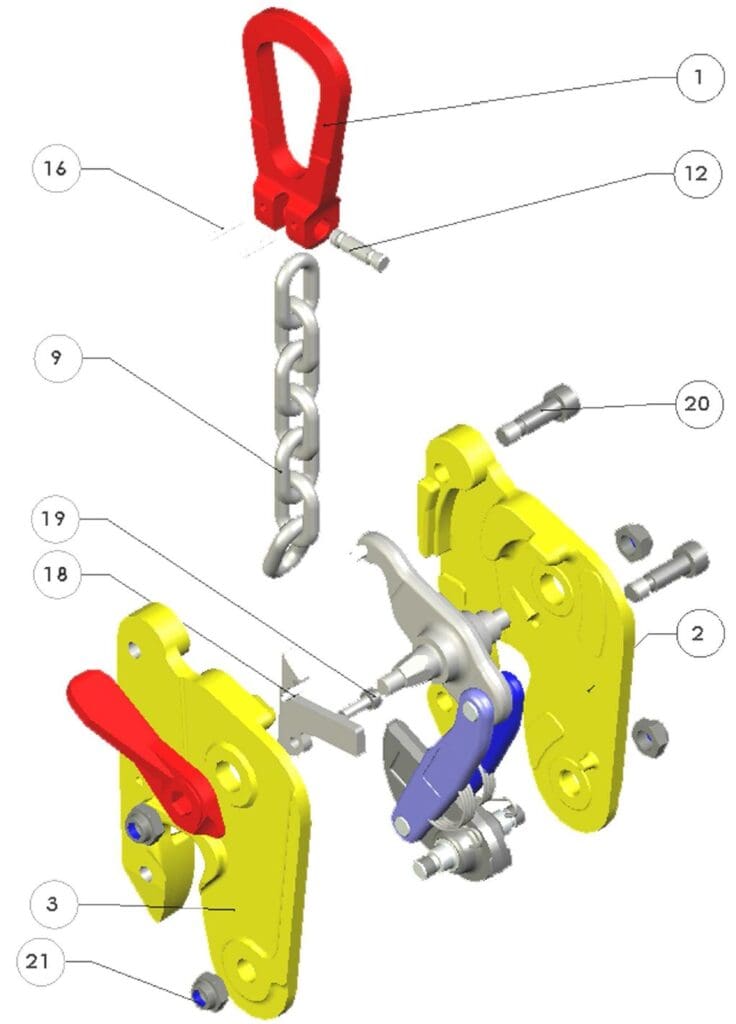

This model offers a unique automatic gripping mechanism, ensuring the clamp is locked when the plate is correctly positioned at the back of the throat. Each lifting clamp is fitted with a safety spring mechanism for permanent contact of the cam onto the piece to be lifted, even when it is being put down.
The locking lever does not protrude – this means the clamp may be used on bare ground.

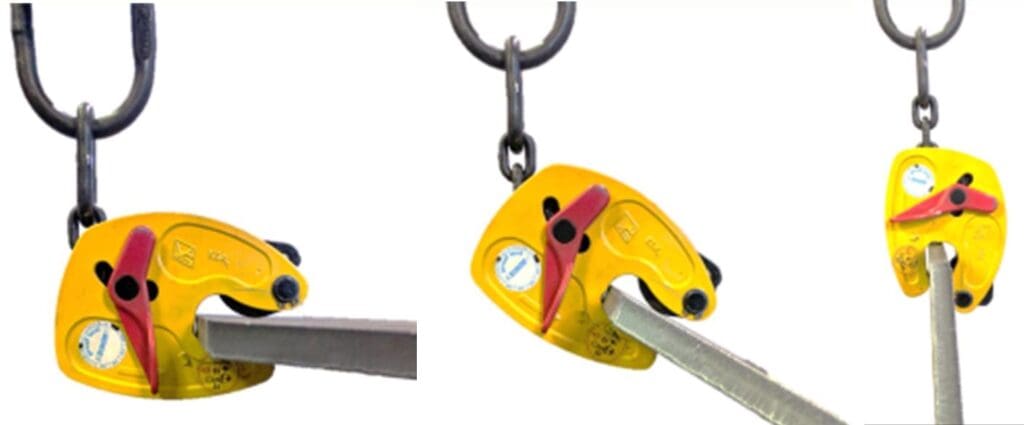

The chain connection enables the load to be lifted and tilted and makes positioning the clamp simple. The corrugated cam marks only one side of the load.
Additional Information
To open the lifting clamp, push the locking lever downwards until the trigger activates – the lever remains in a down position. When the load is driven home at the back of the clamp throat, the trigger activates and the clamp locks automatically. The corrugated cam penetrates into the load material.
Lifting ensures proportional clamping force – avoiding marking the load excessively. To release the clamp, push down the locking lever completely until it locks the clamp in the open position.

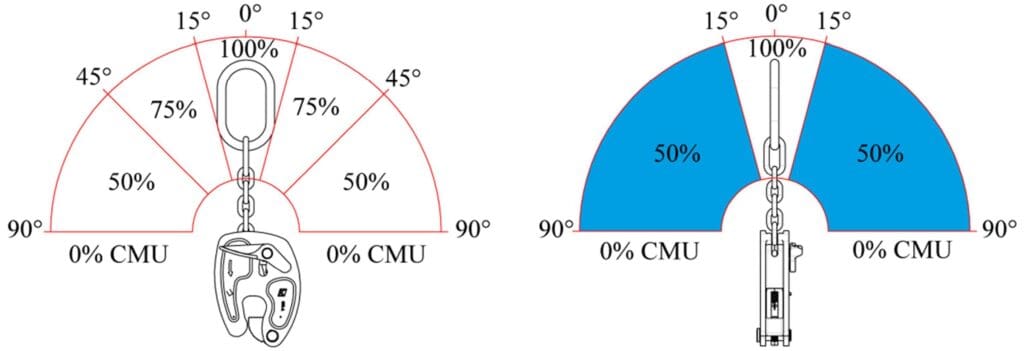

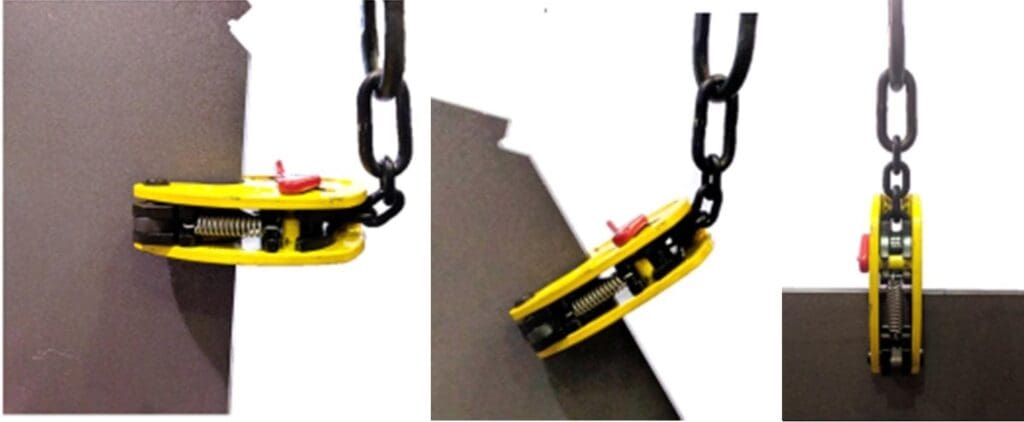

The clamp may also be used without the automatic mechanism being activated. To do so, use the manual opening and closing using the lever without bringing it to its limit stop (trigger not activated). Loads may be grasped horizontally or vertically and turned to inverse position (90° or 180°). The pieces can be gripped from the side in order to tip them over.
- Manufactured without load-bearing welds
- Hot epoxy coating
- Safety factor: 3 in accordance with the EN 13155.2003 norma
- Every clamp is tested to twice the working load limit (2 x WLL)
- 1 year warranty against any defect in fabrication

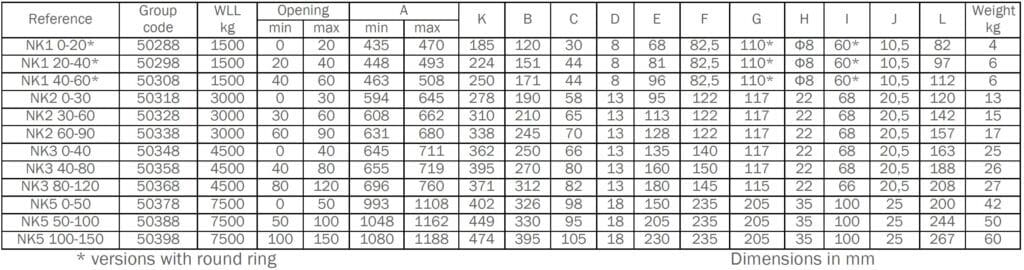

Product Variations
Image | Description | Product Code | Price (excl. GST) | |
---|---|---|---|---|
Lifting Clamp Constant Pressure |
NK1-0-20 | |||
Lifting Clamp Constant Pressure |
NK1-20-40 | |||
Lifting Clamp Constant Pressure |
NK1-40-60 | |||
Lifting Clamp Constant Pressure |
NK2-0-30 | |||
Lifting Clamp Constant Pressure |
NK2-30-60 | |||
Lifting Clamp Constant Pressure |
NK2-60-90 | |||
Lifting Clamp Constant Pressure |
NK3-0-40 | |||
Lifting Clamp Constant Pressure |
NK3-40-80 | |||
Lifting Clamp Constant Pressure |
NK3-80-120 | |||
Lifting Clamp Constant Pressure |
NK5-0-50 | |||
Lifting Clamp Constant Pressure |
NK5-100-150 | |||
Lifting Clamp Constant Pressure |
NK5-50-100 |
