Lifting Beams Spreader Beam Multi Position

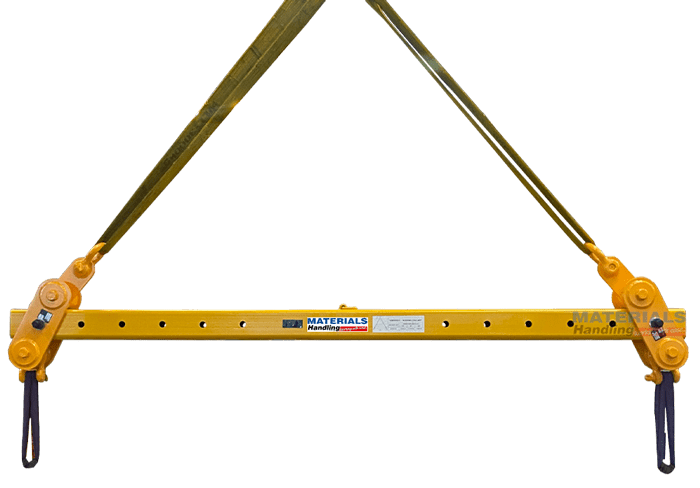

Lifting Beams Spreader Crane Beam CSMP20X3 (2)

The Spreader Beam is intended to offer support, stability, and to reduce lateral forces during crane lifting operations, ensuring that big loads are transported and handled safely.

Each Lifting Beam is supplied with shackles and fitted with adjustable lifting points to create a versatile lifting device suitable for many handling applications.

Certified to Australian Standards and fitted with a data plate and certificate of compliance for complete safety.

Product Variation

Clear

Additional Information

• Multiple lifting positions
• 20, 48 and 100 tonne capacity models available
• Available in standard lengths of 3.3, 6 or 8 m
• Other lengths and capacities available on request
• Lifting shackles included
• Suits most lifting applications by overhead crane
• Designed in accordance with Australian Standards
• Enamel painted finish (yellow)

Click the PDF button to learn more.

Product Variations

Description	Product Code

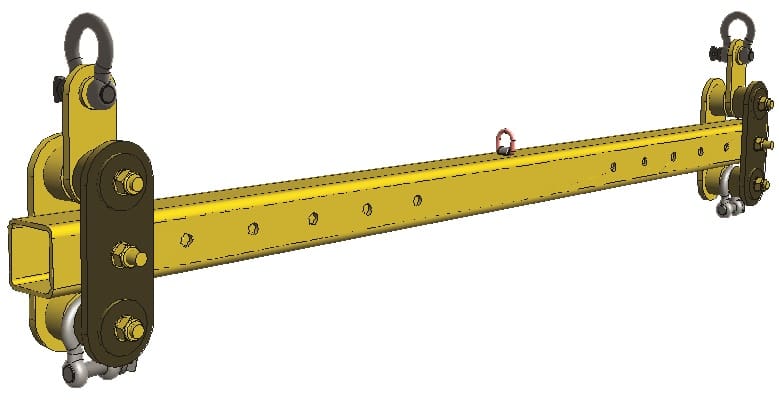

Crane spreader beam 20T 3m	CSMP20X3	Add to Quote Request

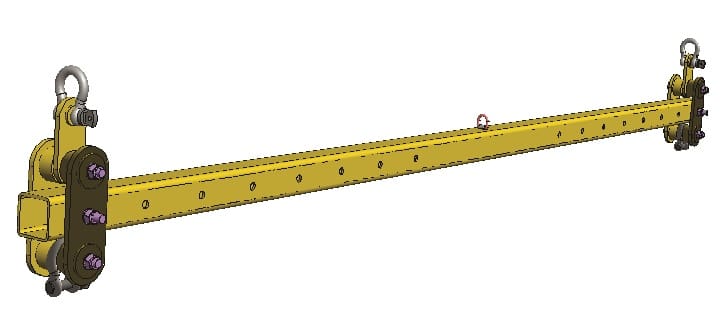

Crane spreader beam 20T 6m	CSMP20X6	Add to Quote Request

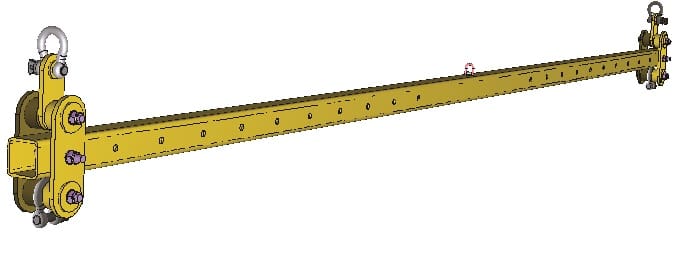

Crane spreader beam 20T 8m	CSMP20X8	Add to Quote Request
Crane spreader beam 48T 3m	CSMP48X3	Add to Quote Request
Crane spreader beam 48T 6m	CSMP48X6	Add to Quote Request
Crane spreader beam 48T 8m	CSMP48X8	Add to Quote Request
Crane spreader beam 100T 3m	CSMP100X3	Add to Quote Request

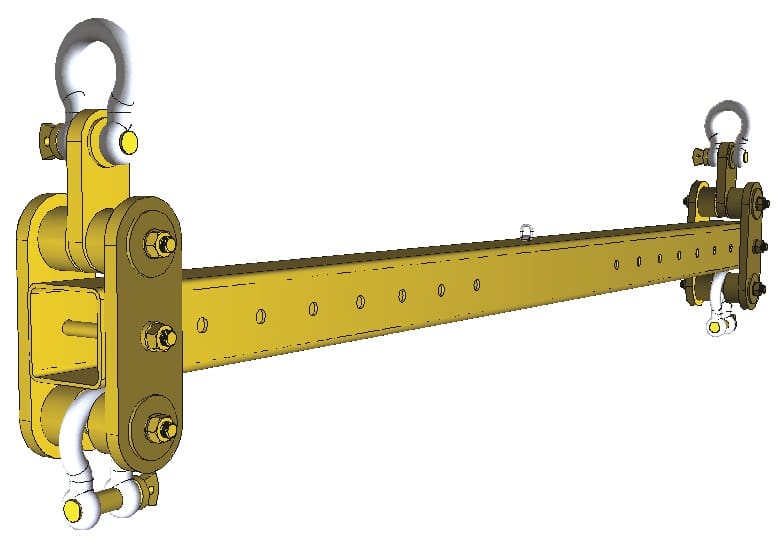

Crane spreader beam 100T 6m	CSMP100X6	Add to Quote Request

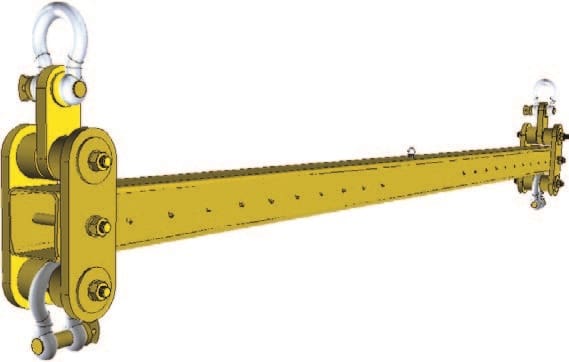

Crane spreader beam 100T 8m	CSMP100X8	Add to Quote Request
