Wheelie Bin Tippers Forklift Mounted

Able to pick up and tip 240-litre wheelie bins with ease. This model is fitted with a powerful tipping mechanism whereby the action is carried out via a pull-cord operation. The forklift driver releases the mechanism from the comfort of the driver’s seat. The action can only be conducted once when the locking pin is released. This prevents accidental tipping. The MFWE24 frame assembly prevents bin movement and a chain secures the front of the bin. Returning the bin to its original position can be done manually or with the forklift. The bin locks into position once upright.

Specifications:

• Working Load Limit (WLL): 500 kg
• Fork Pockets: 190 x 70 mm
• Fork Pocket Centres: 840 mm
• Unit Weight: 80 kg
• Finish: Safety Orange Enamel Paint
• Download MFWE24 Specifications Sheet here.

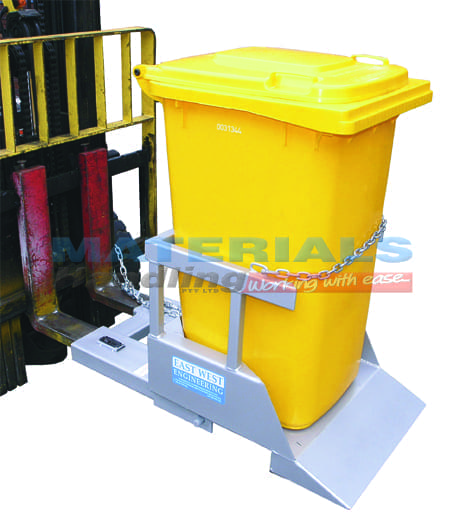

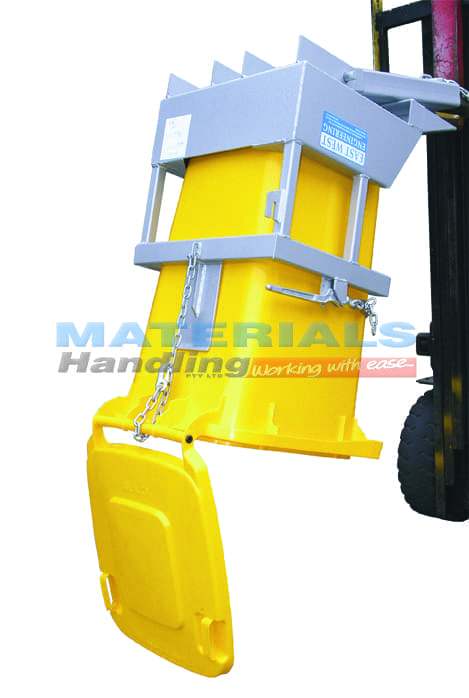

Designed for emptying standard 240-litre wheelie bins. To engage tipping, the bin is wheeled into the device’s cradle and secured via a safety chain. The chain is attached to the backrest, which allows the bin to be lifted and emptied or transported around a worksite. This model features a smooth and safe 180° tipping rotation and the forklift driver does not have to leave his seat to operate.

Specifications:

• Working Load Limit (WLL): 500 kg
• Load Centre: 1200 mm
• Unit Weight: 100 kg
• Pocket Size: 165 x 65 mm
• Pocket Centres: 340 mm
• Horizontal C of G: 720 mm
• Vertical C of G: 90 mm
• Download MNWBT1 Specifications Sheet here.

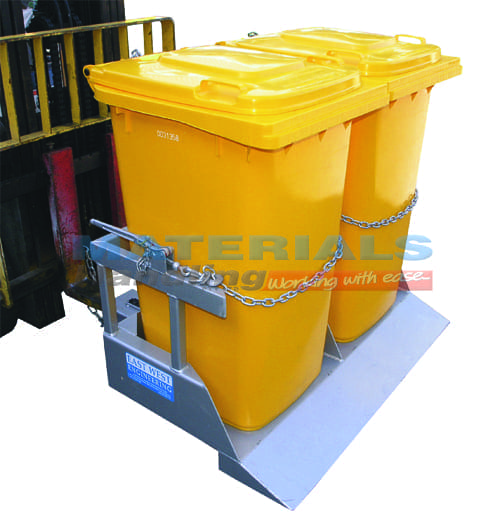

This model is similar to our MNWB1, however, it has a larger capacity. The MNWB2 model has been designed for emptying 1-2 standard 240-litre wheelie bins. The bins are wheeled into the cradle and secured via safety chains attached to the backrest, which allows the bins to be moved or emptied. The forklift driver remains in his seat at all times and the device is capable of 180° rotation.

Specifications:

• Working Load Limit (WLL): 1000 kg
• Load Centre: 1200 mm
• Unit Weight: 150 kg
• Pocket Size: 165 x 65 mm
• Pocket Centres: 340 mm
• Horizontal C of G: 720 mm
• Vertical C of G: 90 mm
• Download MNWBT2 Specifications Sheet here.

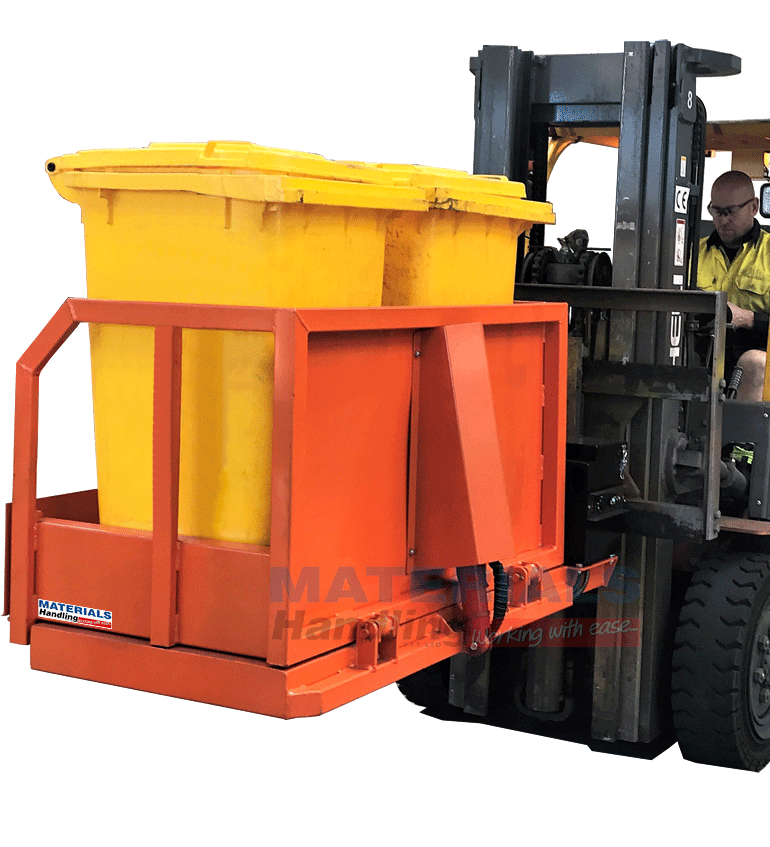

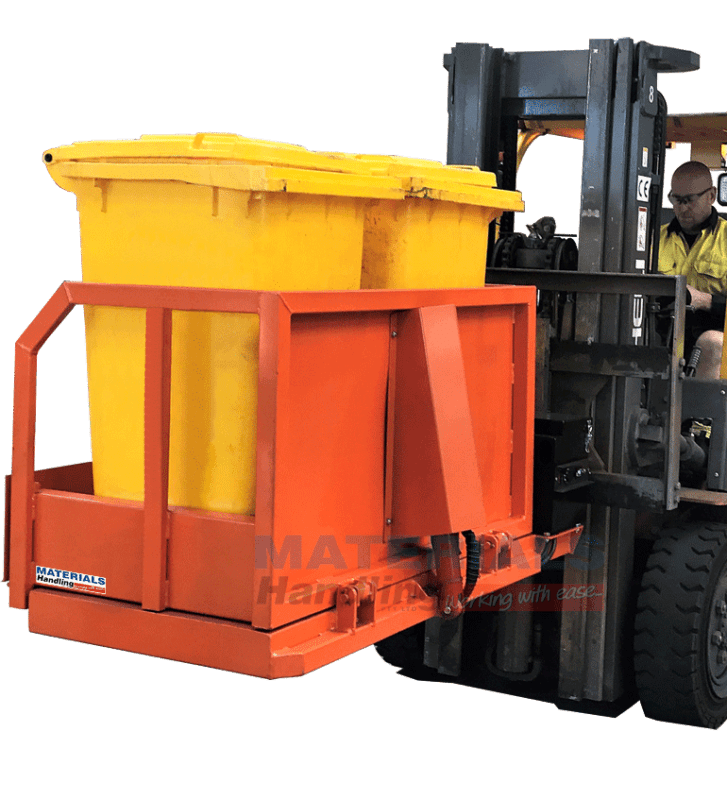

Easily and cleverly handles either 1 or 2 standard 240-litre wheel bins. Waste emptying is completed using a forklift with a rotator attached. The bins are secured via a safety chain that stops the bins disengaging from the attachment during the tipping process or when being transported around a worksite.

Specifications:

• Working Load Limit (WLL): 500 kg
• Fork Pockets: 190 x 90 mm
• Fork Pocket Centres: 700 mm
• Unit Weight: 100 kg
• Finish: Safety Orange Enamel Paint
• Download MFWB24 Specifications Sheet here.

As one of our more robust models, the MFWC66 is capable of emptying either 660 litre or 1100 litre wheelie bins. It is suitable for either forklift or overhead crane operation and features a multi-purpose attachment. Waste emptying is completed via the forklift driver or crane operator from a safe distance. It’s activated when the draw chord is released. Custom brackets with ratchet tensioners fasten the bins to the attachment. Whilst designed primarily for wheelie bins, the MFWC66 can also handle 500-litre cube bins and other similar bins.

Specifications:

• Working Load Limit (WLL): 500 kg
• Fork Pockets: 180 x 65 mm
• Fork Pocket Centres: 800 mm
• Unit Weight: 185 kg
• Finish: Safety Orange Enamel Paint
• Download MFWC66 Specifications Sheet here.
