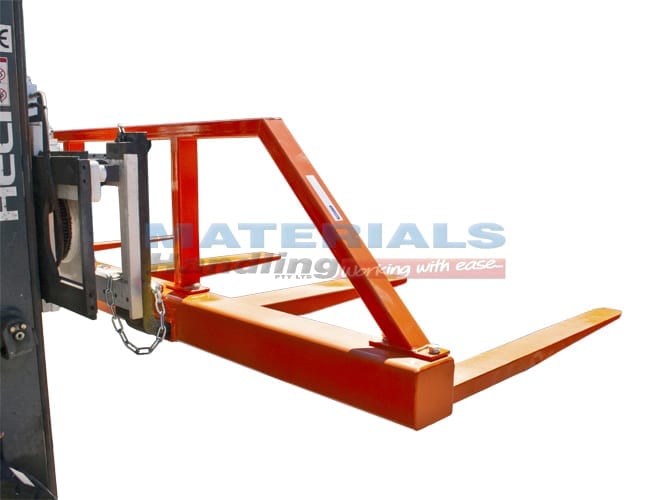

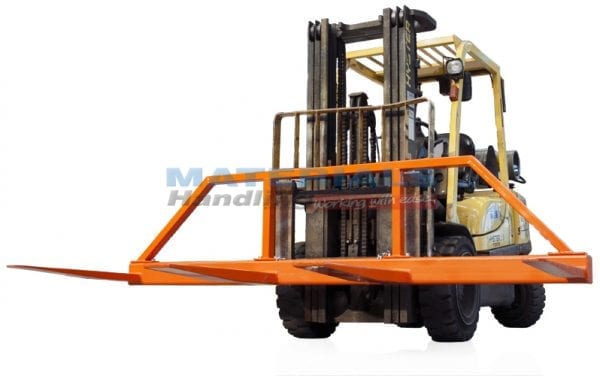

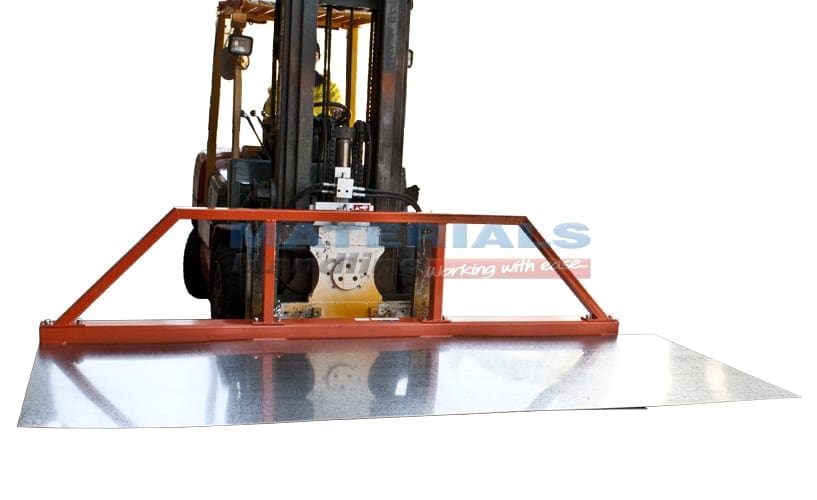

Fork Spreader with Load Guard
+ Add to Quote RequestThe Fork Spreader is a 3-metre wide attachment that safely assists with lifting items. With an incorporated load guard for added protection, it flexibly moves heavy loads without damaging products. The load is evenly distributed over the spreader and the attachment quickly connects for fast and efficient use. This production is perfectly suited to moving and transporting items like plasterboards, roof sheeting, timber, plastic tubing and similar materials.
When connecting to the forklift, the Fork Spreader slips on by placing the fork tynes into the attachment’s fork pockets. The spreader is then further secured with a safety chain. Additionally, the Fork Spreader boasts an incredible Working Load Limit (WLL) of 3000 kg and is finished in enamel paint.
For easy shipping, the unit is supplied as a flat-pack for onsite assembly. As such, the load guard requires bolt-on fixings to the beam and all components are included.
Additional Information
Easily move wide loads with a Fork Spreader!
With a 3 metre wide spreader and load guard, this robust attachment will safely lift extra wide or flexible loads without the risk of damage to the products. It features a wide range of safety benefits and is a necessity in any warehousing or industrial area. Its Load Guard is secured using bolts and spring washers and the safety chain prevents the attachment from moving off the fork tynes.
Specifications:
- Working Load Limit (WLL) – 3000 kg
- Load Centre – 600 mm
- Unit Weight – 255 kg
- Pocket Size – 160 x 60 mm
- Overall Dimensions (W x H x L) – 3000 x 710 x 1210 mm
- Load Guard Height – 560 mm
- Fork Pocket Size – 160 x 60 mm
- Fork Pocket Centres – 872 mm
- HCG – 305 mm
- VCG – 40 mm
- Finish – Enamel Paint over Primed Steel
Require an alternative solution?
View our great range of Forklift Extensions and Spreaders.
Click the PDF button to learn more.
Product Variations
Image | Description | Product Code | Price (excl. GST) | |
---|---|---|---|---|
Fork Spreader 3m with Load Guard |
MFFS300L | $2,480.00 |
