Name: Conveyor - Expandable and Flexible
Brand: Materials Handling Pty Ltd
Availability: InStock

Conveyor – Expandable and Flexible

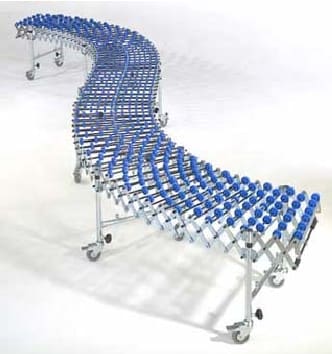

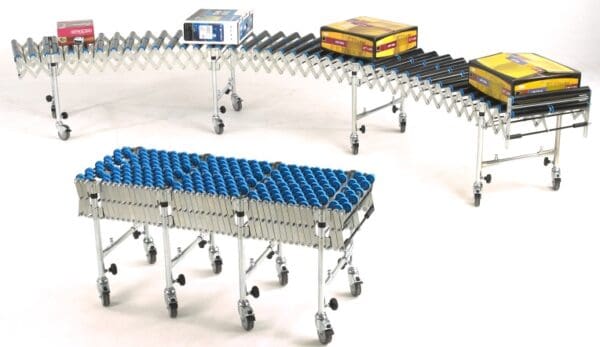

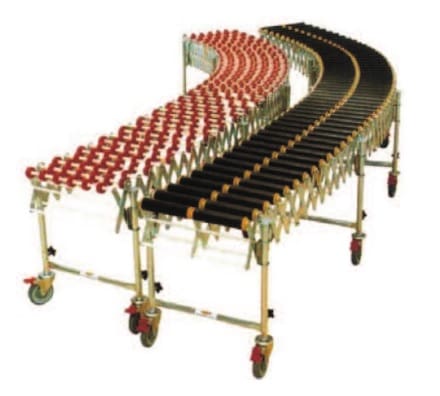

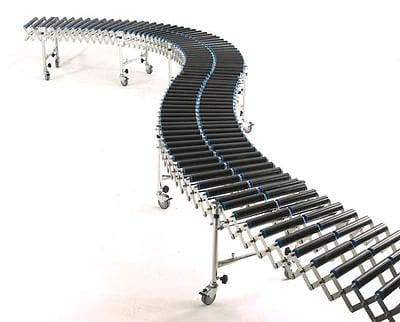

Extendaflex Expandable and Flexible Conveyor

72744 Extendaflex Expandable and Flexible Conveyor

Extendaflex conveyors are mobile, flexible, extendable conveyors that can be easily arranged for moving goods in warehouse and storage applications as well as loading or unloading vehicles or shipping containers. Available with a choice of plastic or steel skate wheels or plastic tube rollers, all models are designed to ensure self-tracking of the cargo.

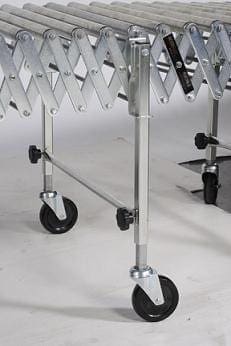

All conveyors extend to a maximum length of 7500mm with height adjustable legs. The leg sets are fitted with swivel castors for mobility and alternating castors are fitted with a foot locking brake. Each conveyor can be fitted with an optional joining link to connect to another Extendaflex. This allows you to connect multiple units together and create whatever length you require! It is also possible to fit a carton stop to prevent the product from rolling off the end. This carton stop folds away when not needed or when using a joining link.

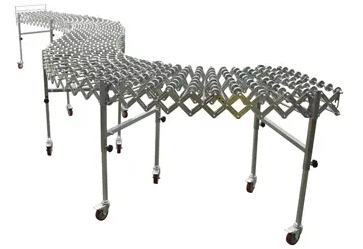

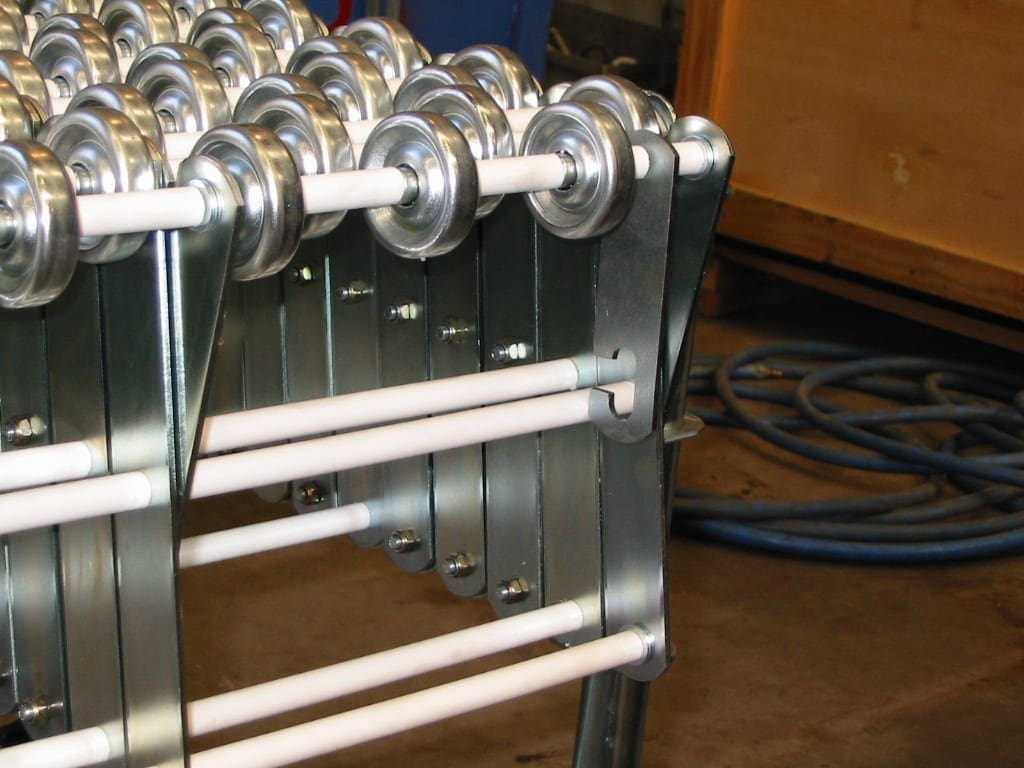

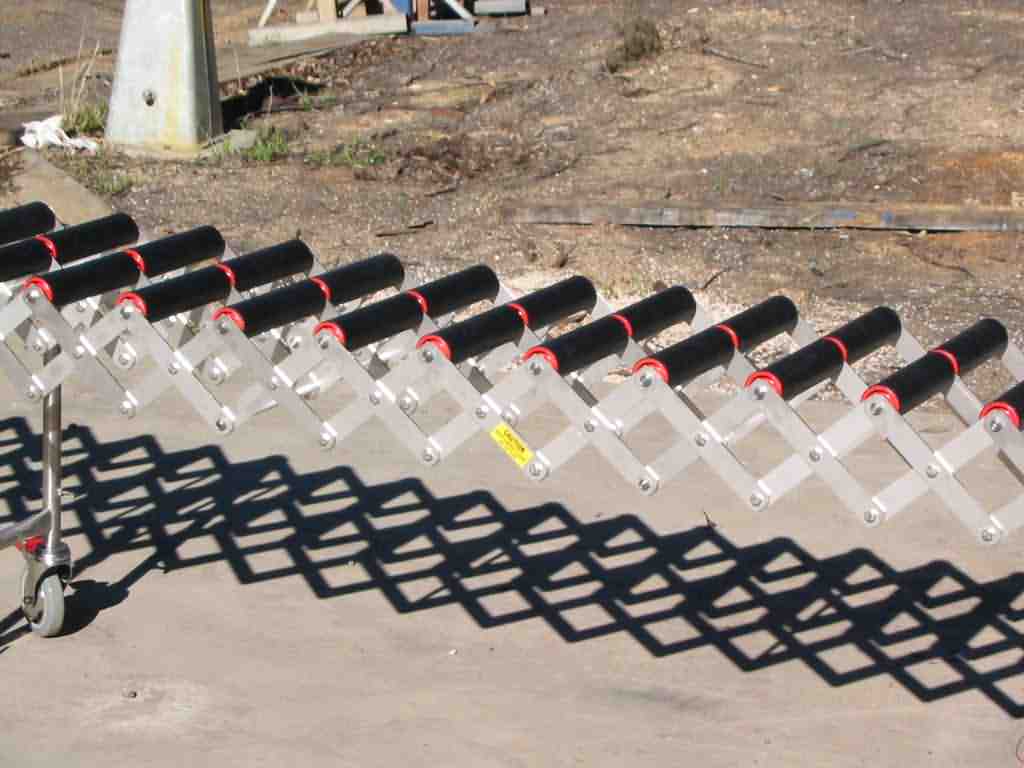

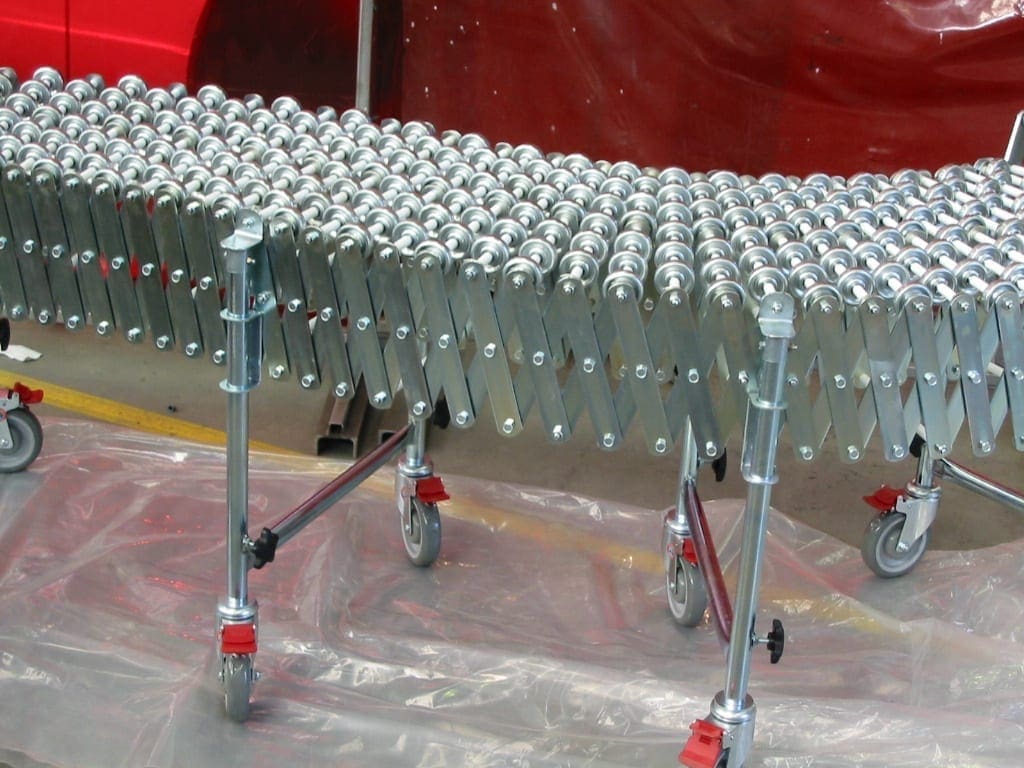

Choose skate wheels for products with a smooth base or conveyor rollers for products with an irregular base. The standard models are supplied with a zinc-plated finish with the option to supply in stainless steel construction. All skate wheels and conveyor rollers are 50mm in diameter.

Extendaflex conveyors are made in Australia and assembled to meet your order. For this reason, it is possible for us to create custom lengths and widths without impacting the supply time.

The loading capacity of 5 leg units is 150 kg per metre, the 7 leg units are 200 kg per metre and the 8 leg units are 250 kg per metre.

Also, view our range of Cobra expanding conveyors.

Product Variations

Description	Product Code
Extendaflex Flexible Conveyor Plastic roller 350mm wide 5 legs – 1 roller per shaft	CER31	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide 7 legs – 1 roller per shaft	CER31H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide 5 legs – 2 rollers per shaft	CER32	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide 7 legs – 2 rollers per shaft	CER32H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 450mm wide 5 legs – 2 rollers	CER42	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 450mm wide 7 legs – 2 rollers per shaft	CER42H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 610mm wide 5 legs – 2 rollers per shaft	CER62	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 610mm wide 7 legs – 2 rollers per shaft	CER62H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 610mm wide 7 legs – 2 rollers per shaft	CER63H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 350mm wide 5 legs – 5 wheels per shaft	CES35	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 350mm wide 7 legs – 5 wheels per shaft	CES35H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 460mm wide 5 legs – 6 wheels per shaft	CES46	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 460mm wide 7 legs – 6 wheels per shaft	CES46H	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 610mm wide 5 legs – 8 wheels per shaft	CES68	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 610mm wide 7 legs – 8 wheels per shaft	CES68H	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 350mm wide 5 legs – 5 wheels per shaft	CSS35	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 350mm wide 7 legs – 5 wheels per shaft	CSS35H	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 460mm wide 5 legs – 6 wheels per shaft	CSS46	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 460mm wide 7 legs – 6 wheels per shaft	CSS46H	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 460mm wide 8800mm long 8 legs – 6 wheels per shaft	CSS46HD	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 610mm wide 5 legs – 8 wheels per shaft	CSS68	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 610mm wide 7 legs – 8 wheels per shaft	CSS68H	Add to Quote Request
Extendaflex Flexible Conveyor Steel skate wheel 610mm wide 8800mm long 8 legs – 8 wheels per shaft	CSS68HD	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide Stainless Steel – 5 legs – 1 roller per shaft	CER31-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide Stainless Steel – 5 legs – 2 rollers per shaft	CER32-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 350mm wide Stainless Steel – 7 legs – 2 rollers per shaft	CER32H-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 450mm wide Stainless Steel – 5 legs – 2 rollers per shaft	CER42-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 450mm wide Stainless Steel – 7 legs – 2 rollers per shaft	CER42H-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 610mm wide Stainless Steel – 5 legs – 2 rollers per shaft	CER62-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic roller 610mm wide Stainless Steel – 7 legs – 2 rollers per shaft	CER62H-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 350mm wide Stainless Steel – 5 legs – 5 wheels per shaft	CES35-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 350mm wide Stainless Steel – 7 legs – 5 wheels per shaft	CES35H-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 460mm wide Stainless Steel – 5 legs – 6 wheels per shaft	CES46-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 460mm wide Stainless Steel – 7 legs – 6 wheels per shaft	CES46H-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 610mm wide Stainless Steel – 5 legs – 8 wheels per shaft	CES68-SS	Add to Quote Request
Extendaflex Flexible Conveyor Plastic skate wheel 610mm wide Stainless Steel – 7 legs – 8 skates	CES68H-SS	Add to Quote Request
