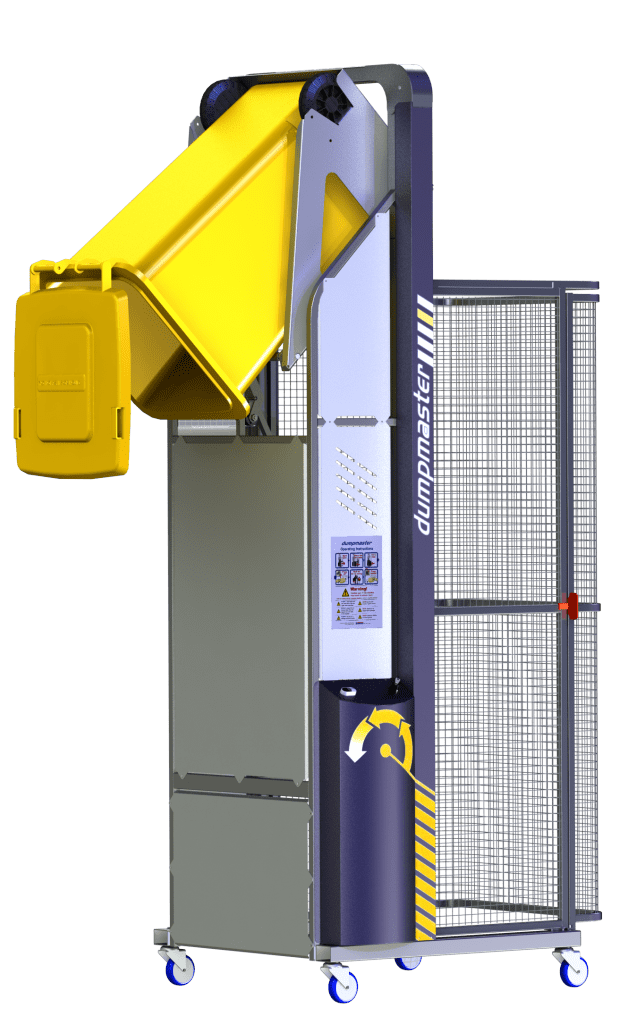

Wheelie Bin Tippers DumpMaster

With its electro-hydraulic operation, the DumpMaster Wheelie Bin Tipper lifts any bin to any height, safely and quickly. Handling capacities up to 250 kg, it is one of the most efficient and reliable waste management solutions on the market. This unit has been continuously developed for over 30-years and is still a favourite among customers.

From emptying rubbish into skips/bins to pouring ingredients into mixers, the DumpMaster suits many applications. Its versatile design makes it easy to transport and it takes up little floor space. The tipping cycle on the Bin Tipper is completely unique as it lifts the bin straight up and then softly turns it upside down, over the lid of a receptacle.

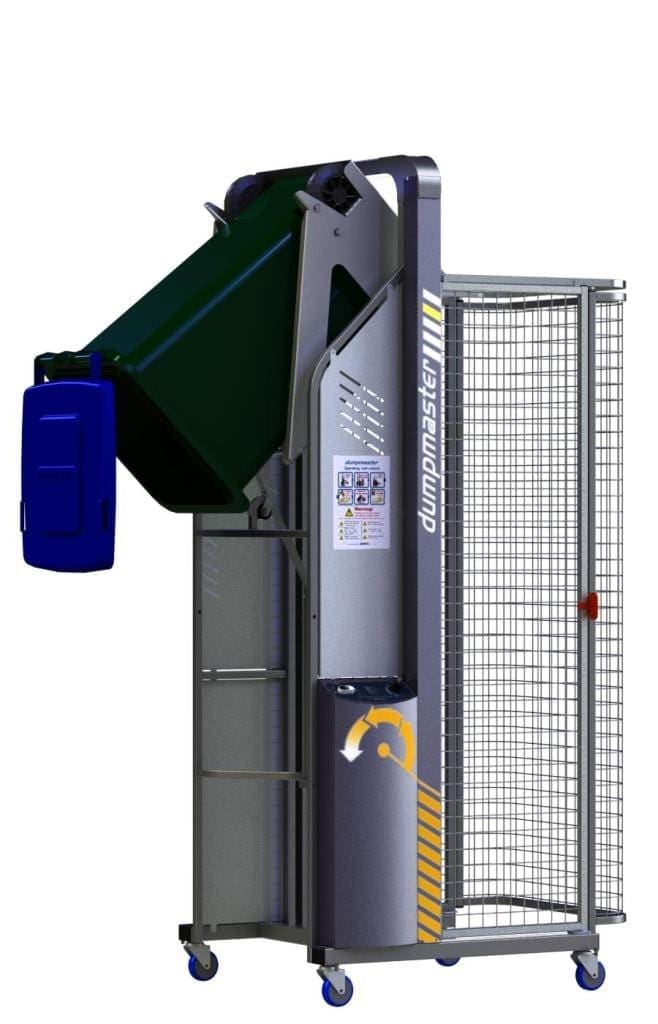

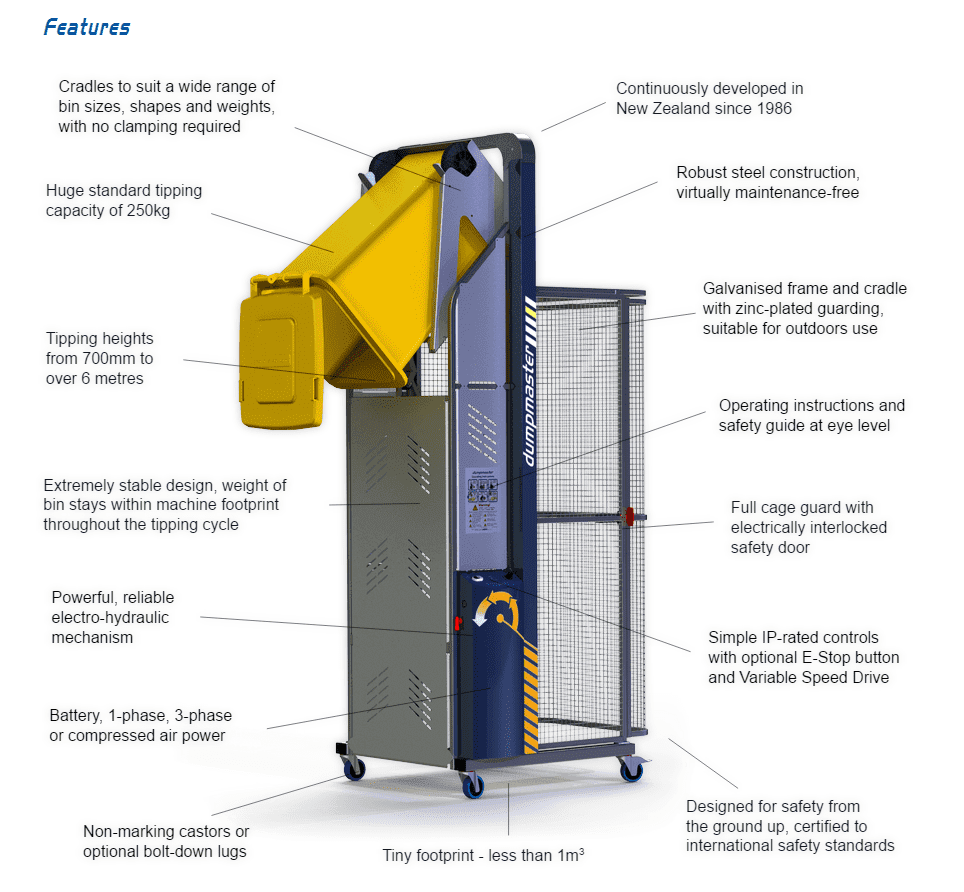

Designed with safety at the forefront, the DumpMaster features a full guarding cage and an interlocked gate system (fitted as standard). The machine is built in accordance with relevant safety standards (AS4024 Safety of Machinery).

Product Variation

Clear

Additional Information

Our DumpMaster Bin Tipper is an efficient solution that handles many waste management activities!

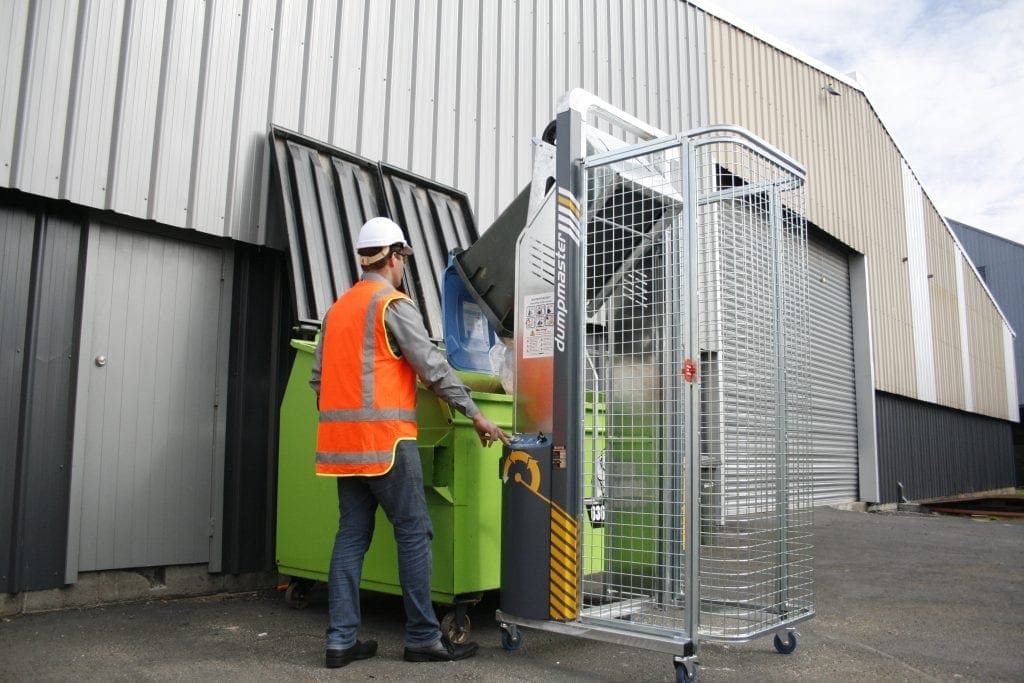

This device is a great solution for the fast emptying of wheelie bins. The tipping cycle takes as little as 15 seconds and the hydraulics of the device handles all the heavy lifting. A Bin Tipper like the DumpMaster reduces any risk of manual injury or strain.

With its electric-hydraulic system, the DumpMaster is supplied either as battery or mains-powered and has a variety of lift heights available to suit your requirements. The Bin Tipper can also be customised with a selection of different cradles to tip just about anything you need to be emptied.

Use either outdoors or indoors, this device assists a range of applications. Several models are available with varying tipping heights between 1200 mm and 2100 mm. The Bin Tipper can even be customised to suit particular specifications.

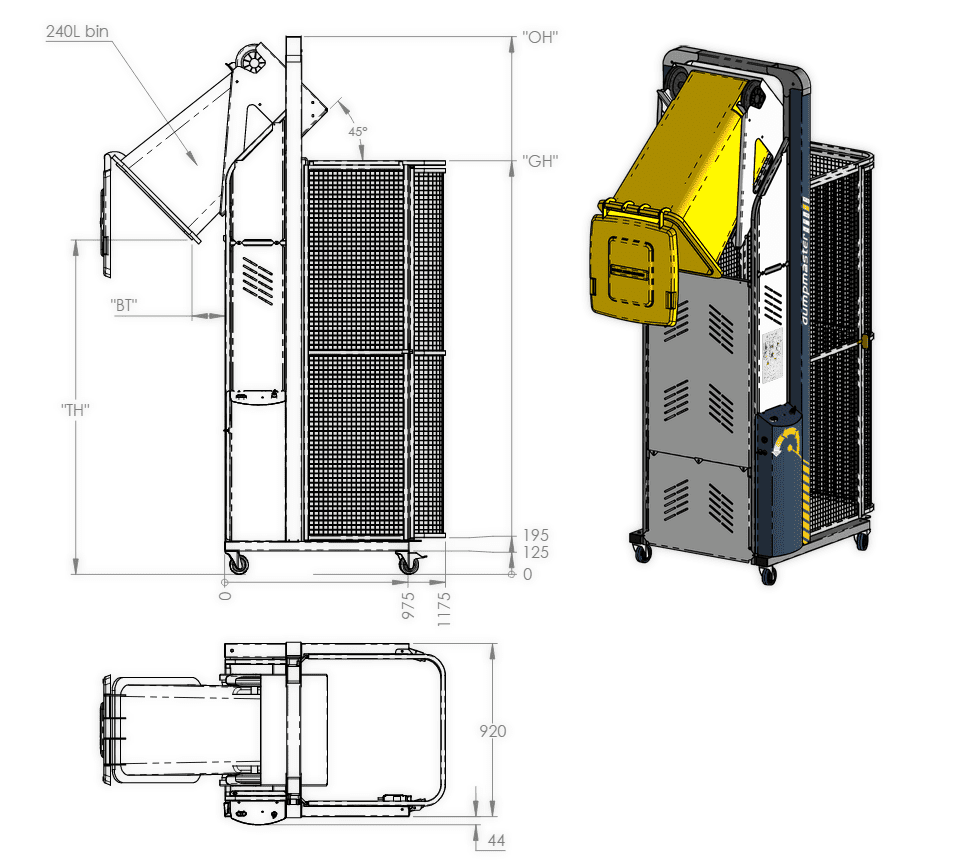

Specifications:

Tipping Height – (can be customised)
Capacity – 250 kg (optionally 300 kg)
Bin Compatibility – 60, 80, 120, 140, 240 L Standard Wheelie Bins
User Operations – Raise/Lower buttons, key switch, battery indicator, lockout switch
Galvanised mild steel frame and wire mesh guarding

Model	Tipping Height	Height	Unit Weight	Tipping Cycle Duration
M0700	700 mm	1760 mm	160 kg	11 seconds
M1200	1200 mm	2260 mm	205 kg	11 seconds
M1500	1500 mm	2560 mm	215 kg	13 seconds
M1800	1800 mm	2860 mm	225 kg	15 seconds
M2100	2100 mm	3160 mm	260 kg	17 seconds
M2400	2400 mm	3460 mm	280 kg	19 seconds
M2700	2700 mm	3760 mm	300 kg	21 seconds
M3000	3000 mm	4060 mm	320 kg	23 seconds

An optional DockMaster M700DC model is available, which is suitable for emptying bins from elevated loading docks and platforms.

Equip your DumpMaster with a great range of optional accessories to customise a great waste management solution. Choose from:

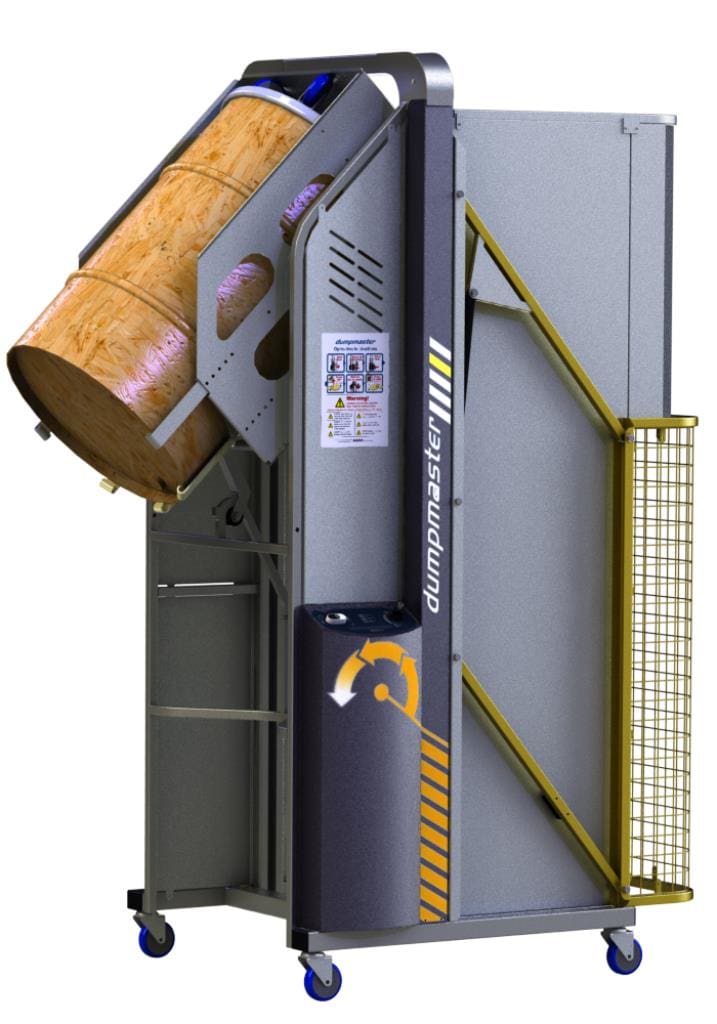

Customised cradles to suit any type of lifting drum
Standard units are battery-powered with a charger (Alternatively available in 240V, 415V or Compressed Air)
Frame-mounted tipping chute
Solar Panel
Stainless Steel Construction
Bin hook kit to secure machine into position
Left-hinge, right-hinge, swing-up or roller door
Safety Monitoring systems
Transparent, unbreakable polycarbonate guarding
Operator guard (splash shield)
Sheet metal guarding
Auto-cycle controller
Digital scales to weigh bins
