Concrete Kibble Lay-Down Type

+ Add to Quote Request

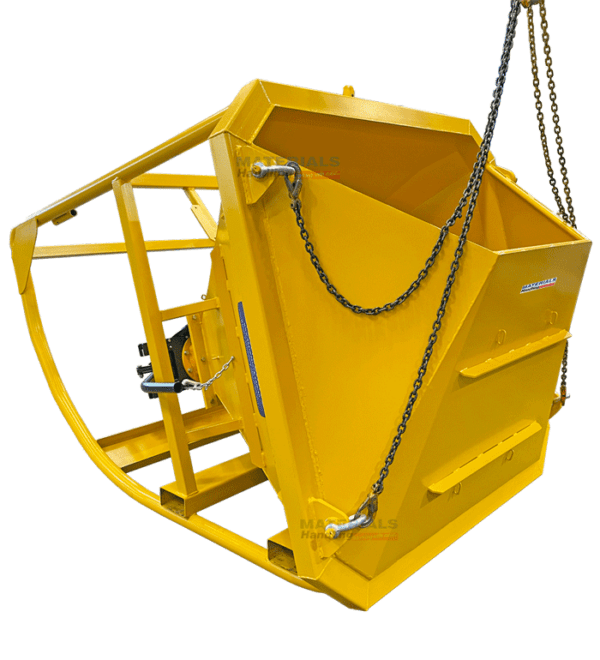

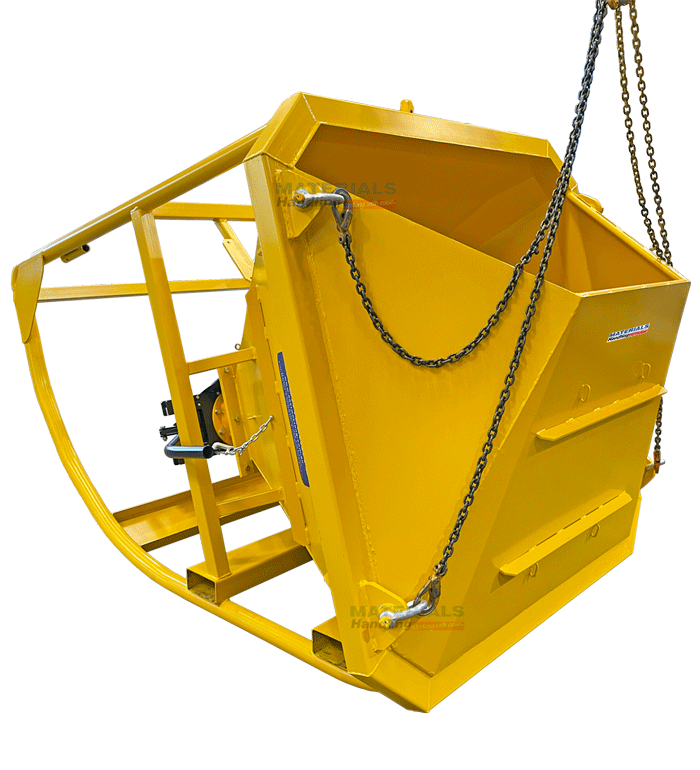

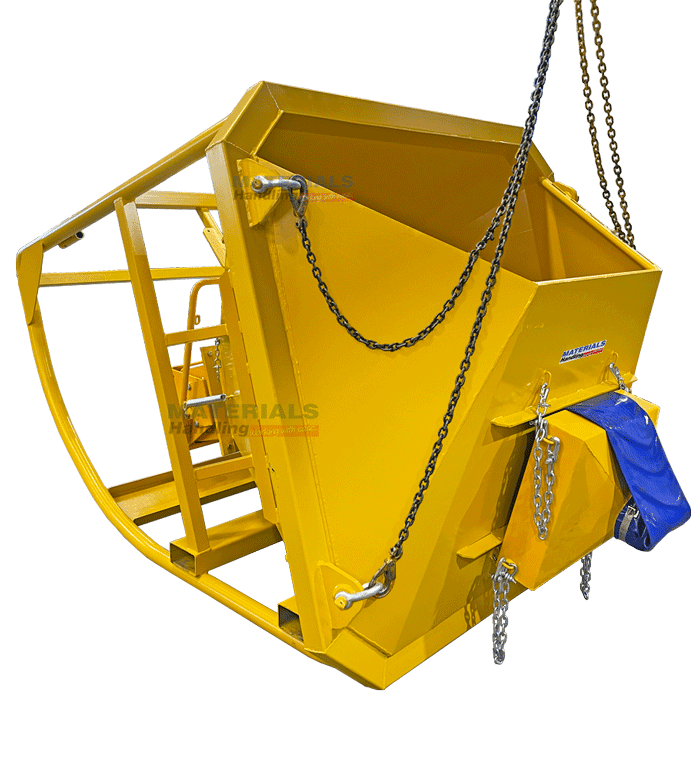

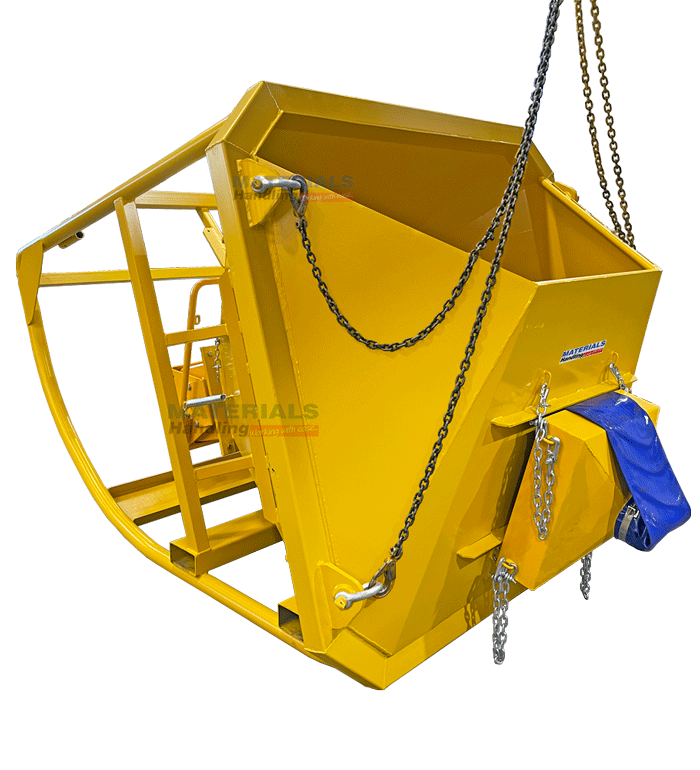

Concrete Kibble Lay-Down Types feature features a uniquely robust roll-over design. These systems are for use with overhead cranes and offer a great solution for large applications – each kibble boasts an extensive Safe Working Load capacity.

Lay-Down Concrete Kibbles are available in two models – volume capacity of 2.0 cubic metres and 3.0 cubic metres. Kibbles are operated from either side of the kibble for ultimate flexibility and integration into work sites. With an innovative design, these units can also be equipped with an optional hydraulic opening function for automatic control.

Thanks to the built-in forklift pockets, the units can be transported around working environments and have a storage facility for the chute.

Additional Information

An easy-to-use Concrete Kibble with a Lay-Down design!

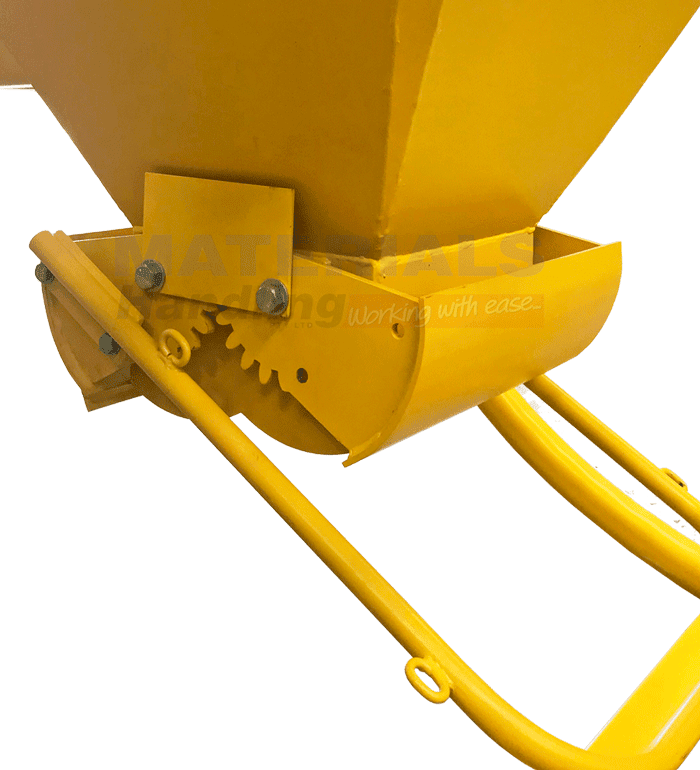

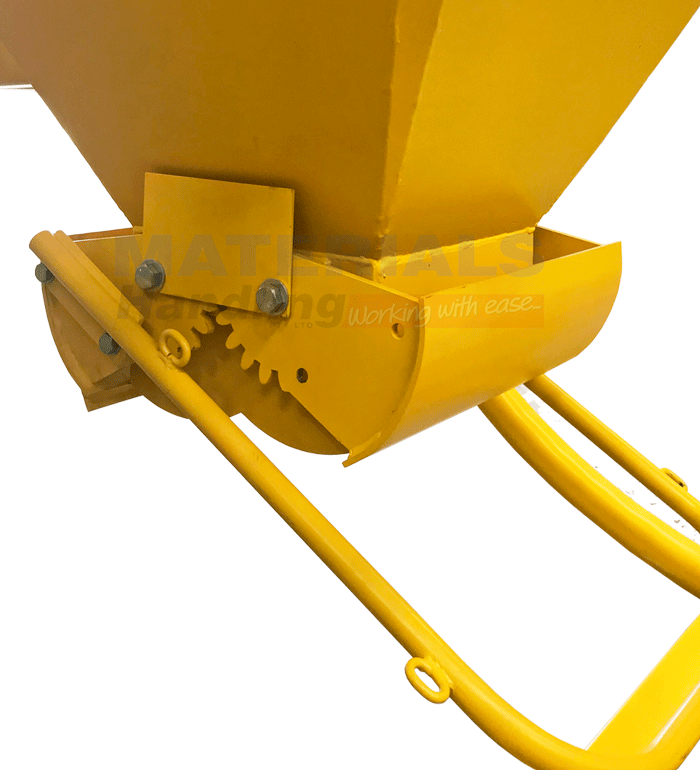

These Concrete Kibble models offer both front and bottom discharge points, with the use of an adjustable chute. To access the bottom discharge point, simply release the manual push bar. Each unit comes in a painted ‘Safety Yellow’ enamel finish and are robust in construction. Two models are available depending on the required specifications:

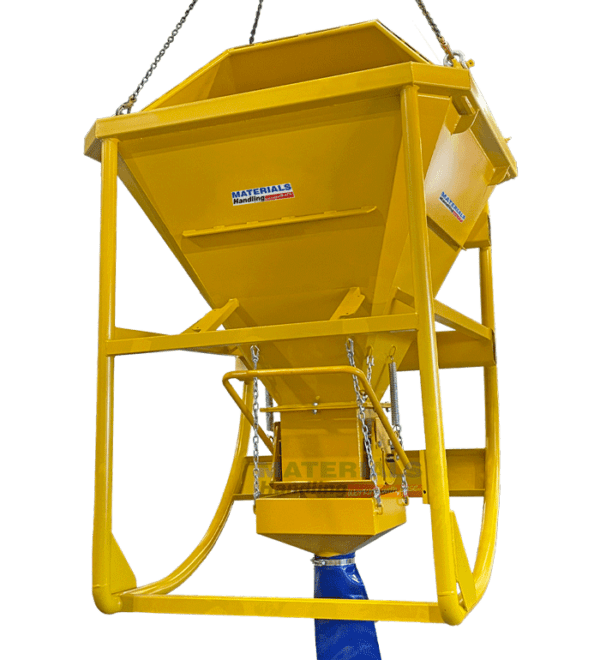

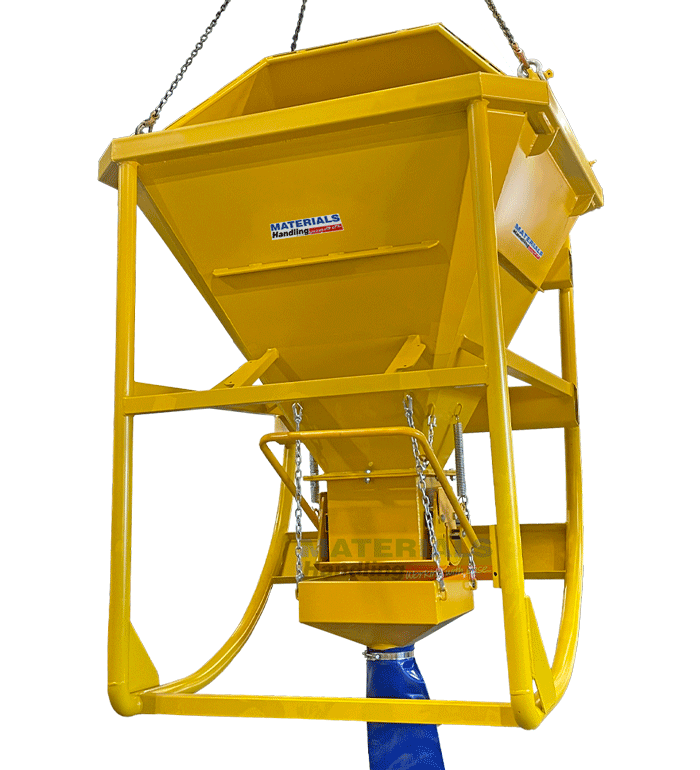

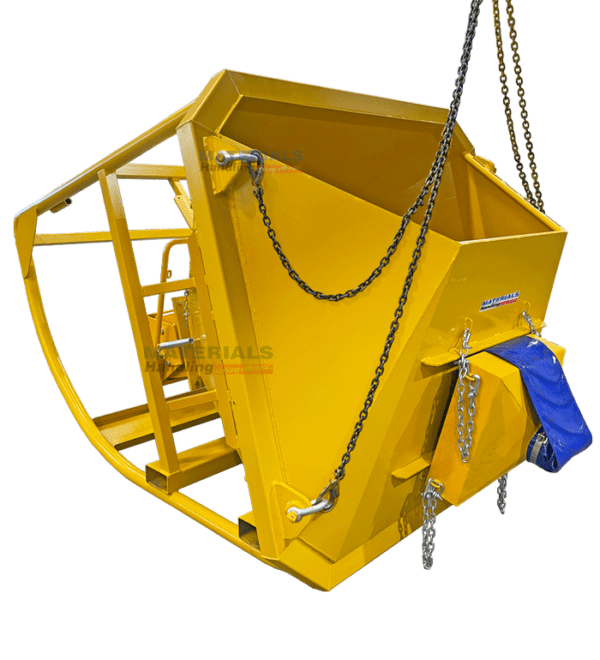

CKROF20 Concrete Kibble

  • Volume Capacity – 2.0 Cubic Metres
  • Working Load Limit (WLL) – 5000 kg
  • Unit Weight – 780 kg
  • Fork Pocket Size – 185 mm x 85 mm
  • Fork Pocket Centres – 750 mm

CKROF30 Concrete Kibble

  • Volume Capacity – 3.0 Cubic Metres
  • Working Load Limit (WLL) – 7500 kg
  • Unit Weight – 1000 kg
  • Fork Pocket Size – 185 mm x 85 mm
  • Fork Pocket Centres – 750 mm

Now available with an Optional Hydraulic Function!

These Lay-Down Type Concrete Kibbles can be optionally fitted with a Hydraulic Power Pack (HPP) to change manual functions to automatic processes. With the addition of this feature, operation is controlled with the push of a button. This improves workplace safety, as the operator is away from the unit’s mechanisms and pouring functionalities. Choose between either a pendant or a wireless remote control option.

Please note, this is an optional fitted accessory that can be integrated with both Concrete Kibbles Lay-Down Type Models.

Not what you’re after?  Continue browsing our extensive range to find other options.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

Concrete Kibble Laydown
2.0 cubic metre

CKROF20 $8,380.00

Concrete Kibble Laydown
3.0 cubic metre

CKROF30 $11,720.00

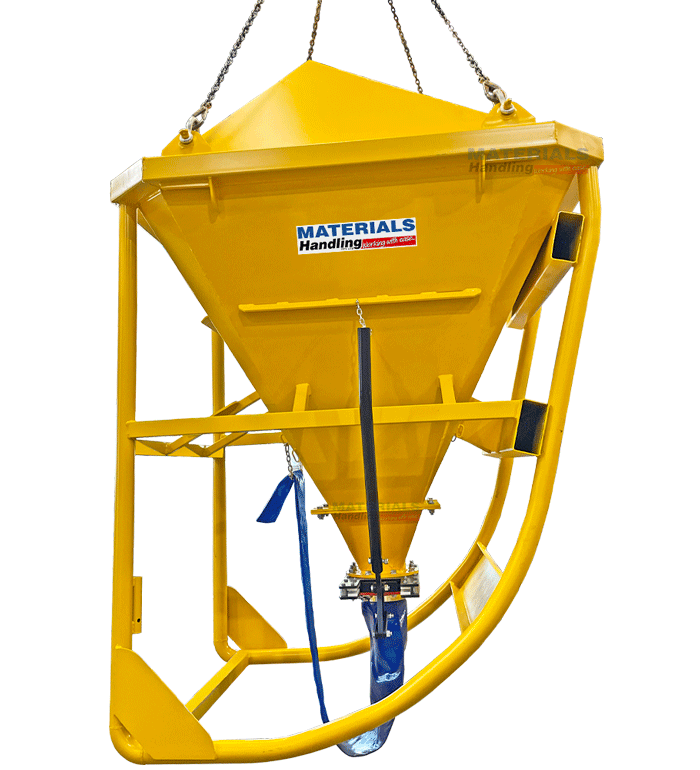

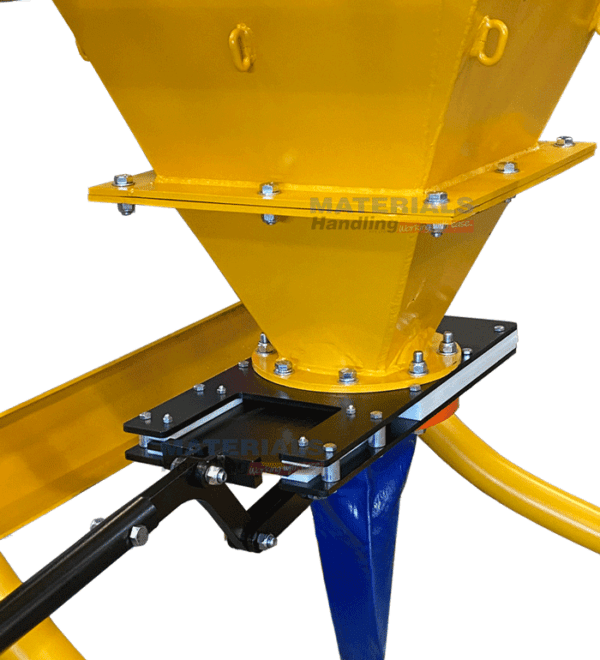

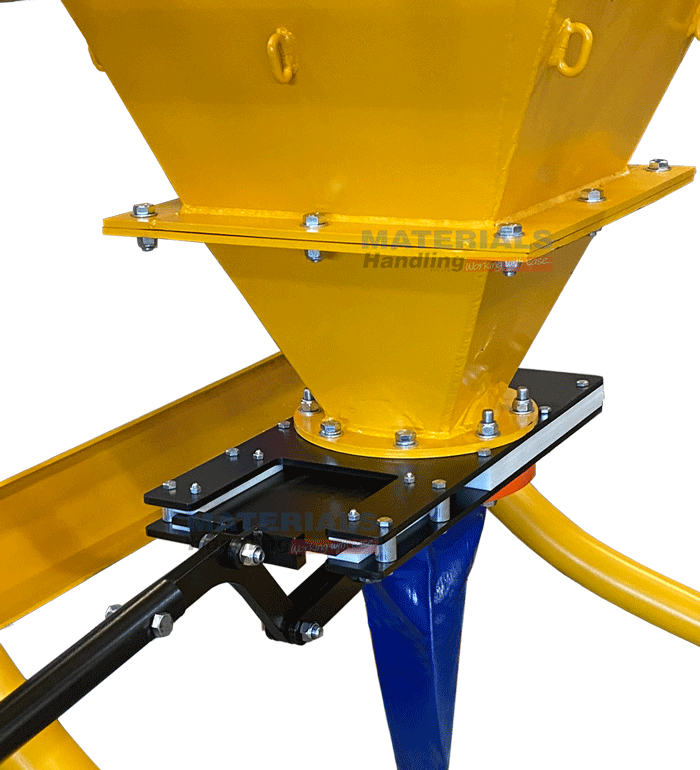

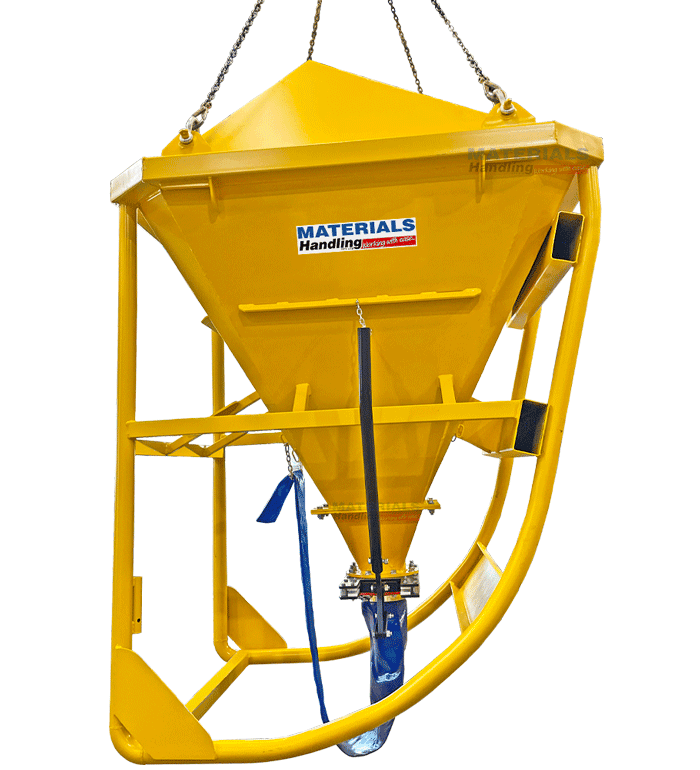

Concrete Kibble Laydown
2.0 cubic metre

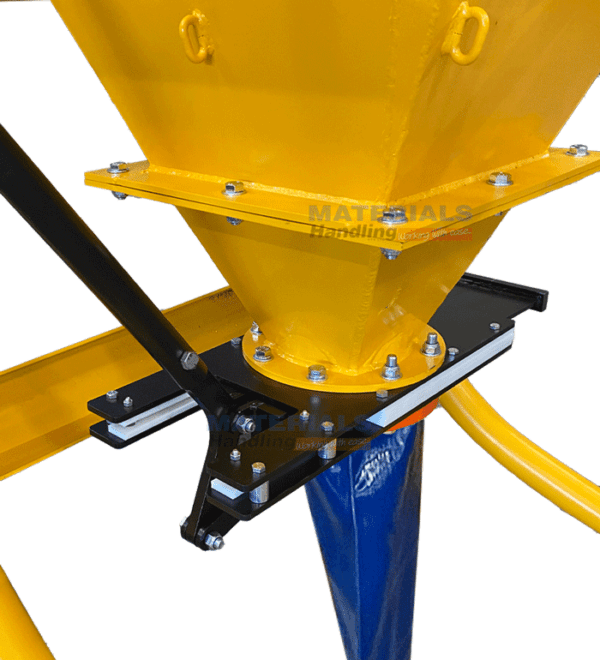

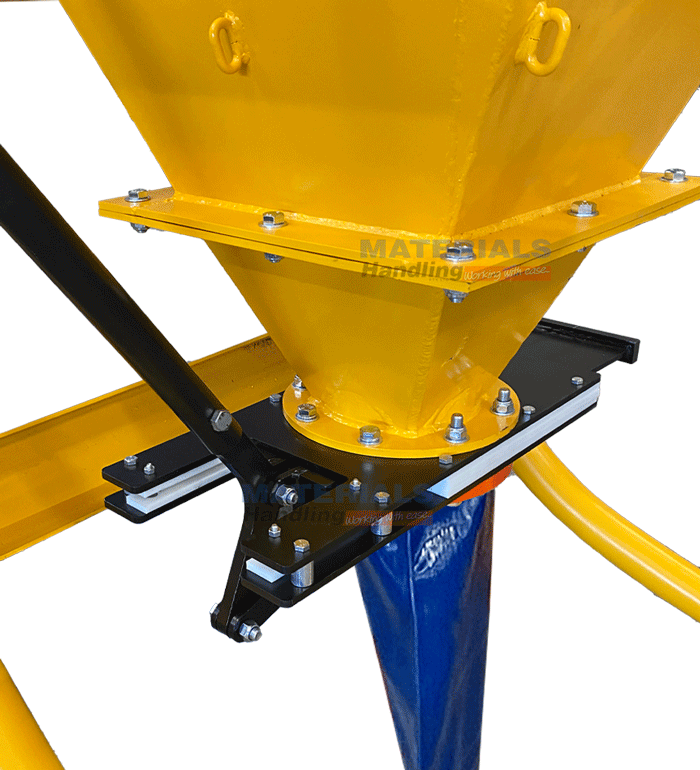

with slide valve

CKROF20-SV $7,980.00

Concrete Kibble Laydown
3.0 cubic metre
with slide valve

CKROF30-SV $10,860.00

Concrete Kibble Hydraulic Laydown
2.0 cubic metre

CKROF20H $15,310.00

Concrete Kibble Hydraulic Laydown
3.0 cubic metre

CKROF30H $18,650.00

Concrete Kibble Laydown
3.0 cubic metre

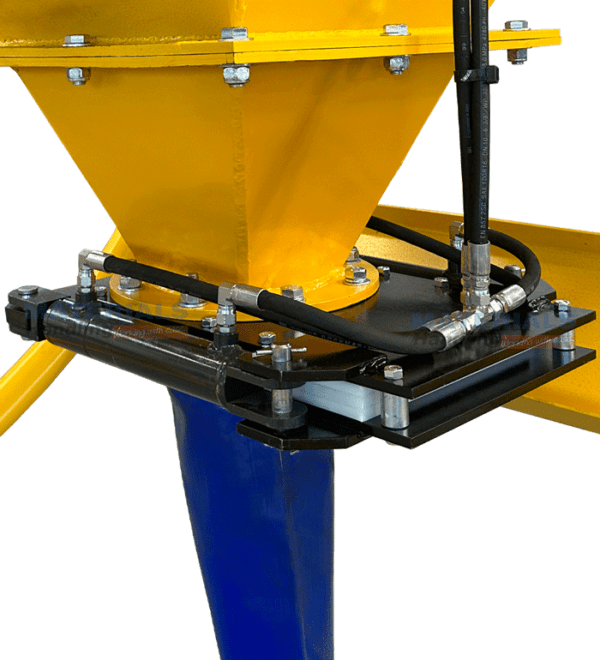

with hydraulic slide valve

CKROF30-SVH $17,790.00

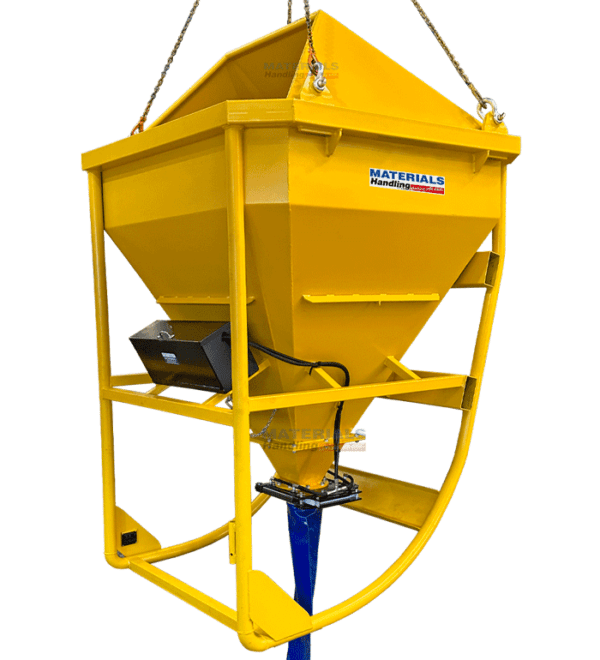

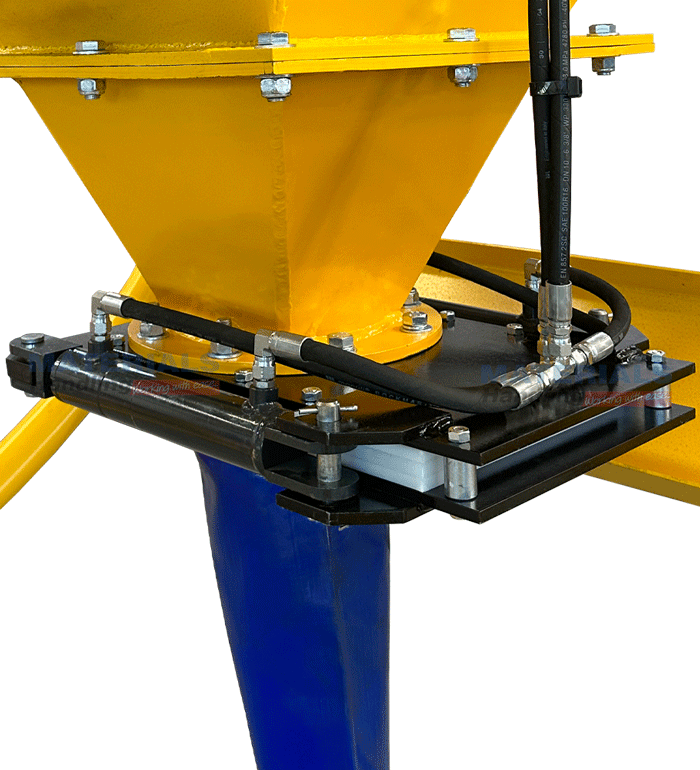

Concrete Kibble Laydown
2.0 cubic metre
with hydraulic slide valve

CKROF20-SVH $14,910.00

Wireless and Hydraulic Option for Kibbles

MHPP-REMOTE $6,930.00
