Name: Compact Goods Hoist
Brand: Materials Handling Pty Ltd
Availability: InStock

Compact Goods Hoist

+ Add to Quote Request

Our Compact Goods Hoist is a modular Australian design that lifts goods to mezzanines, docks and other levels.

Each machine is made to order to create a solution specifically for your workplace.

A popular mezzanine lift in warehouses, distribution centres and factories, it is a heavy-duty goods hoist with multi-level applications.

These hoists are extremely user-friendly, ergonomically designed and create a secure way of transporting goods around a workplace.

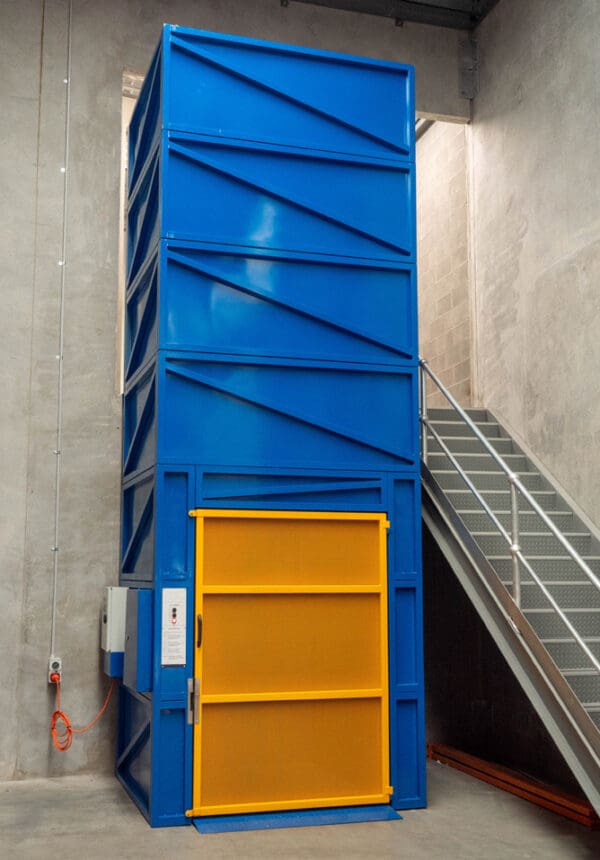

The Compact Goods Hoist is ideal for face mounting to a dock or against an upper floor, for freestanding mezzanine installation.

Product Variation

Clear

Additional Information

Minimal impact on your building

One of the best solutions for the movement of goods between floor levels, the Compact Goods Hoist has minimal impact on building structure. There is no need for an expensive pit, drilling, welding or engineering required. The unit features a freestanding frame and a fixed upper-level gate.

Suitable for many applications

Compact Goods Hoist is built with a platform suitable for pallets, trolleys or wheelie bins. With a lowered height of 35 mm, there is no need to mount the hoist in a pit. Therefore, goods can be easily loaded or transferred into the hoist at ground level.

These mezzanine lifts are completely versatile and can be adapted for a wide range of applications. We have installed this product for customers in retail and warehousing areas and apartment complexes. Consider the cost savings as there is no need to cut the concrete on site! With a modular design, find out how this hoist can function in your workplace.

The Compact Goods Hoist is simple to use as it features safe, intuitive controls and little operator training is required.

Comes complete with a freestanding structure – no impact on existing site or building structure
Features a modular, pit-less design – no cutting, digging or laying of concrete required
Engineered with an extremely low roll-on height that ensures pallet truck loading is safe and easy
Installation is quick, simple and normally completed in a single day

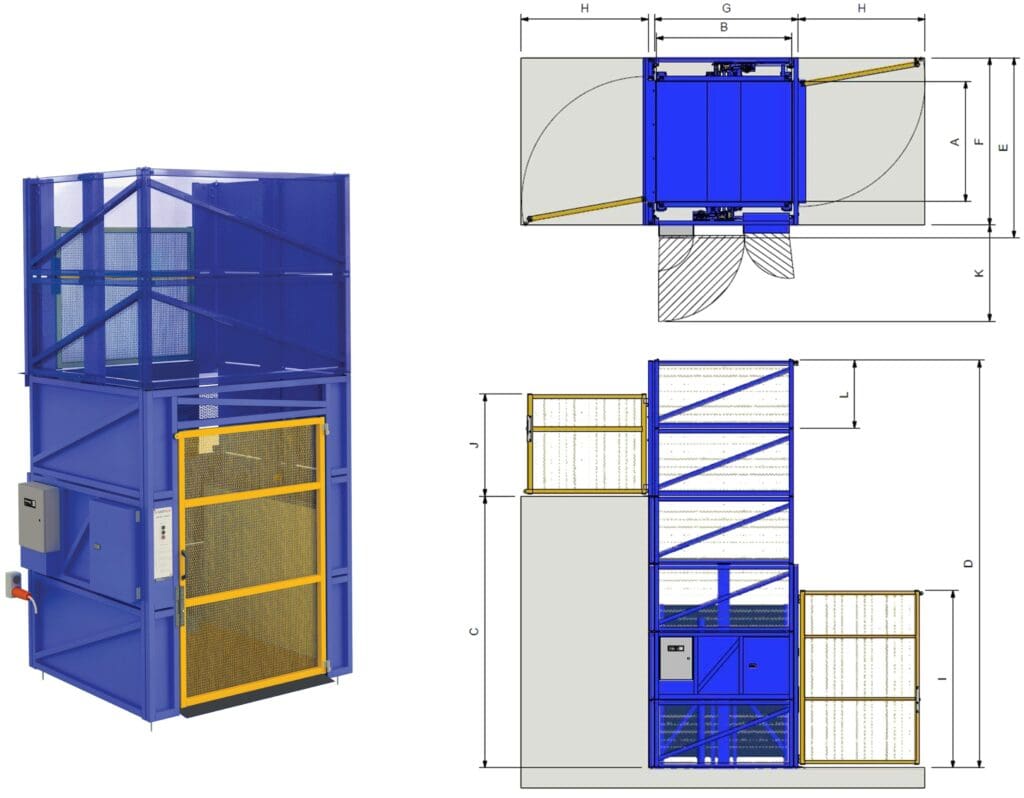

Technical Information

Max capacity: 1500 kg
Standard platform Size: 1600 x 1420 mm [length x width]
Lowered height: 35 mm
Speed: 3.5 m/min

All hoists have two control panels with push buttons to control the platform lifting and lowering functions. One control panel is mounted at each level. The hydraulic power unit that can optionally be mounted separately from the hoist and is available in 240V or 415V.

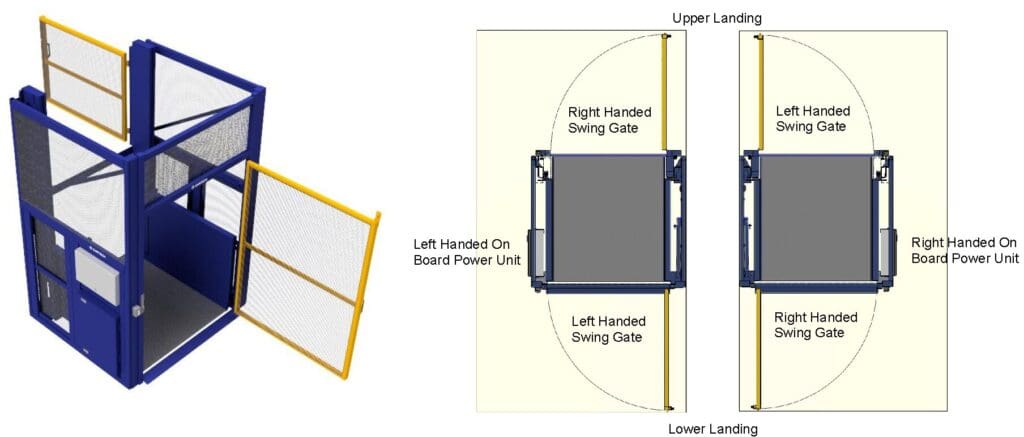

Gate orientation

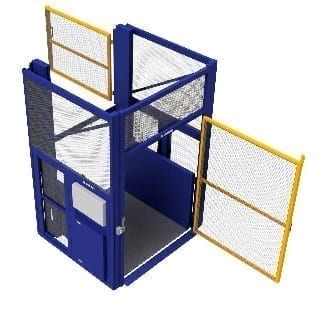

Swing gates are supplied as standard.

Select left or right hand operation for each level.

Gates can be fitted to the same side at each level or opposing sides.

Lift up gate

For applications with limited space.

Interlocked with the hoist movement.

Available for upper level only.

Compact Goods Hoist options lift up gates

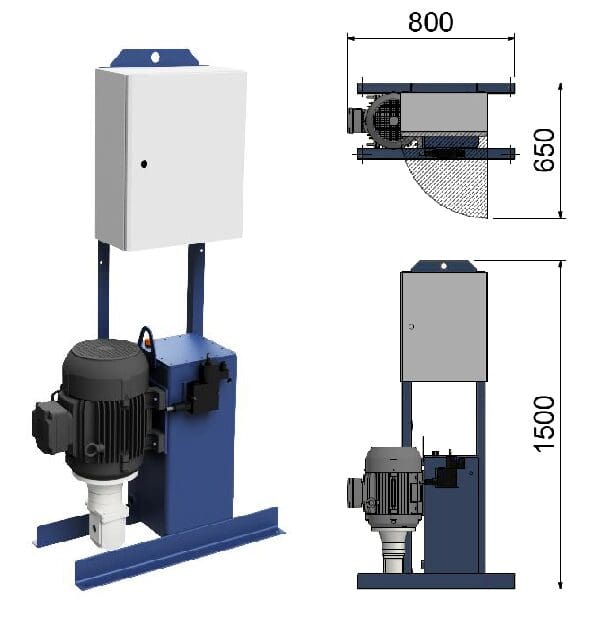

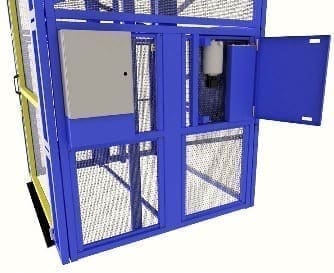

Power unit

In some applications, there is limited space to access the onboard power unit.

The power unit can be mounted separately from the lift.

Power unit can be 240V or 415V supply.

Product Variations

Description	Product Code
Compact Goods Hoist 1600mm	MCGH1600	Add to Quote Request

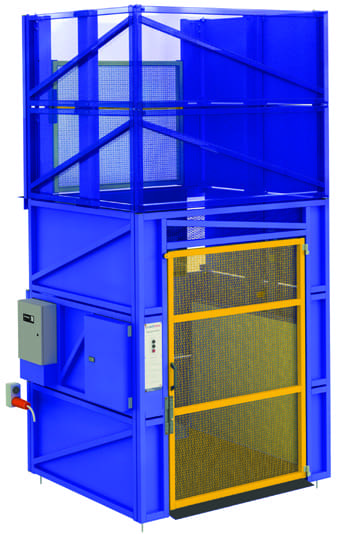

Compact Goods Hoist 2400mm	MCGH2400	Add to Quote Request

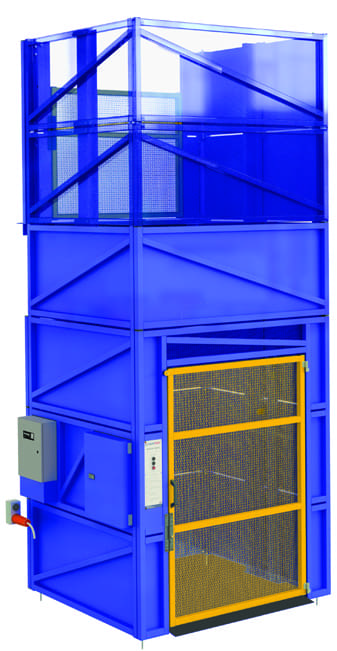

Compact Goods Hoist 3200mm	MCGH3200	Add to Quote Request
Compact Goods Hoist 4000mm	MCGH4000	Add to Quote Request
Compact Goods Hoist 4800mm	MCGH4800	Add to Quote Request
