Tipping Bins Forklift Mounted Self Dumping
+ Add to Quote RequestOur Bulk Self Dumping Bins are heavy duty and can easily handle bulk capacities for heavy waste. Available in three cubic metre capacities – MJSD18, MJSD24 and MJSD30 – these bins can be optimised to suit larger loads if required.

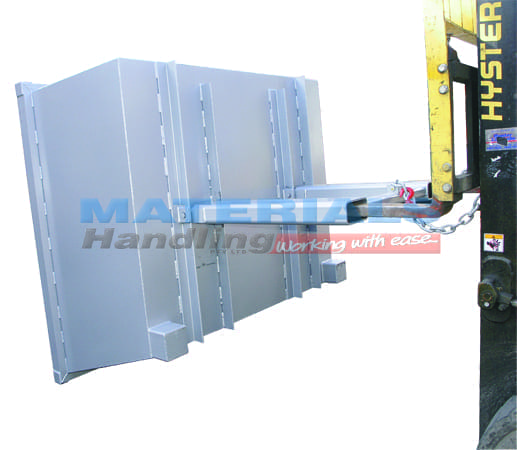

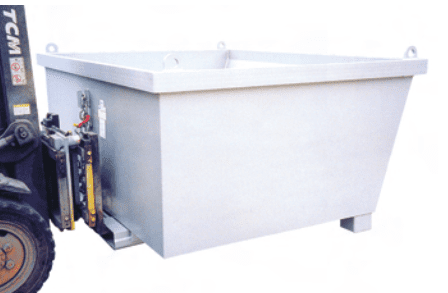

Bulk Self Dumping Bins feature a “self dumping” mechanism underneath the unit, allowing an operator to empty the contents of the bin, whilst remaining seated in the forklift during the tipping cycle. Oversized pockets have been incorporated into the design of these bins to easily suit larger forklifts.
Their robust construction and reinforced design allows them to support an incredible Working Load Limit (WLL) of up to 3000 kg. This is thanks to its innovative design that features 5 mm plate construction. At the top of the bin lip, the unit is further supported with channel reinforcement. Each bin is constructed with steel and primed with enamel paint.
Additional Information
Our Bulk Self Dumping Bins handle bulk waste with ease!
Our Bulk Self Dumping Bins are easy-to-use and provide much support for heavy waste loads, especially during its operator friendly tipping cycle. Larger sizes are available on request if the standard volumes (3.2, 4.3 and 5.4 cubic metres) do not match your needs. Please enquire for more options.
Overall Features and Benefits of MJSD range:
- Pocket size 180 x 80 mm
- Pocket Centres – 950 mm
- Safe Working Load 3000 kg
- Horizontal Centre of Gravity 900 mm
- Vertical Centre of Gravity 500 mm

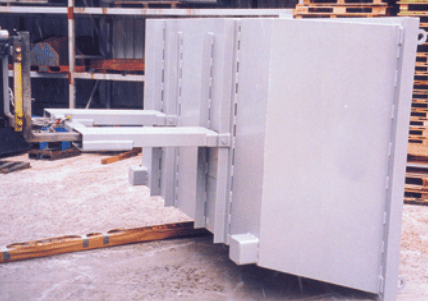

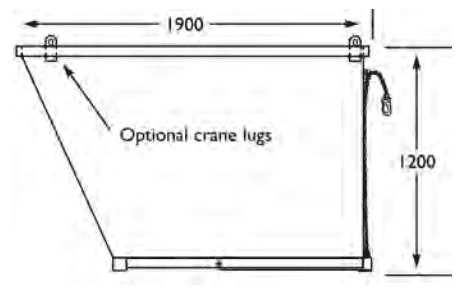

- Crane Lugs Optional
- Lid Optional
- 5 mm plate with channel reinforcement (on bin top lip)
- Self Dumping mechanism
- Steel construction with enamel paint finish
Three Models are available with varying capacities:
MJSD18 | MJSD24 | MJSD30 | |
Capacity (m3) | 3.2 | 4.3 | 5.4 |
WLL (kg) | 3000 | 3000 | 3000 |
Length (mm) | 1900 | 1900 | 1900 |
Width (mm) | 1910 | 2510 | 3110 |
Height (mm) | 1125 | 1125 | 1125 |
Unit Weight (kg) | 850 | 950 | 1050 |
Continue browsing our range!
Find the perfect solution for your waste management requirement. Alternatively, download our brochures for more specifications of our Bulk Self Dumping Bins.
Click the PDF button to learn more.
