Bulk Bag Hopper and Frame

+ Add to Quote Request

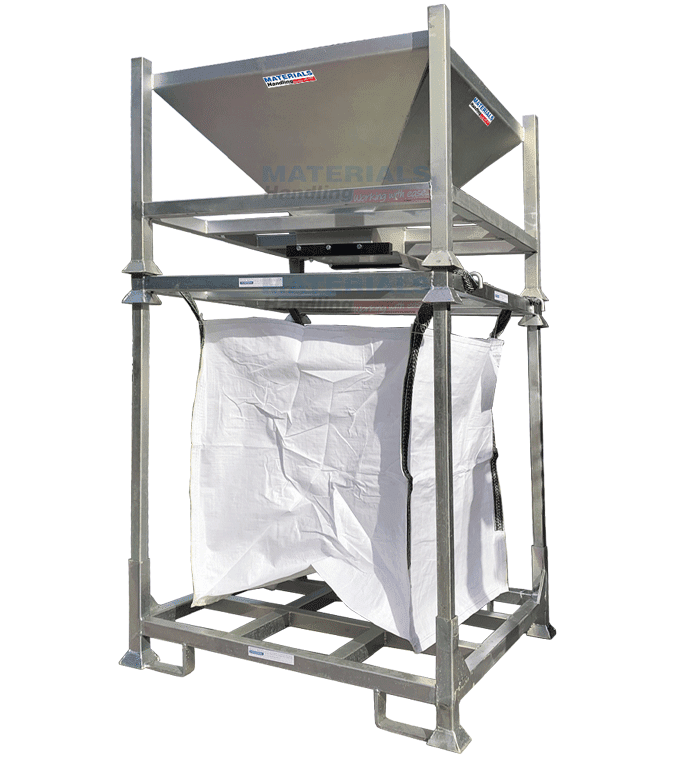

Our Bulk Bag Hoppers are designed to store and dispense bulk materials. When combined with the Bulk Bag Frame, you have a complete cost-effective solution for bulk filling or dispensing.

This system is designed to capture or dispose of materials like aggregate, grain, soil, sand, gravel, dirt and other building materials.

With a Bulk Bag Hopper, you can fill more and reduce overspill. They ensure that your materials handling systems are optimised and improve waste management processes. That is, staff productivity improves as manual handling risks are removed and loads are bagged more efficiently. They are best suited to granular products.

Additional Information

Store and dispense bulk items!

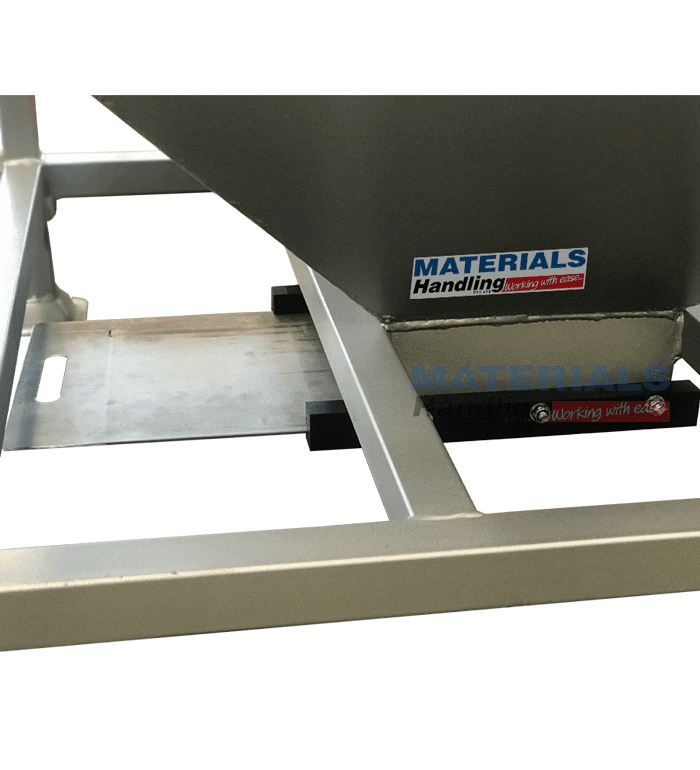

Fitted with stacking feet, these Bulk Bag Hoppers can be easily placed on the Bulk Bag Frame. When empty, it stacks 3-high, as opposed to 2-high when fully loaded. Its 300 mm slide valve assists with controlling the material flow and this is simple for any user to operate.

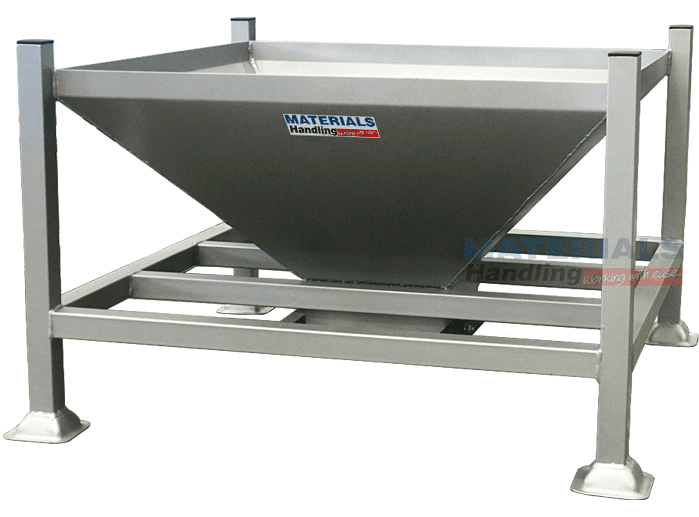

MSKH100 Bulk Bag Hopper

MSKH100 Bulk Bag Hopper

MSKH100 Features:

  • Handles granular products such as aggregate, gravel, grain, dirt, sand, etc.
  • Fitted with a 300 mm side-valve for controlling the flow of material.
  • Designed for bulk bag filling or dispensing.
  • Partners with the MSKX100 Bulk Bag Filling Frame.

MSKH100 Specifications:

  • Working Load Limit (WLL) – 1000 kg
  • Capacity – 0.25 m3
  • Width – 1180 mm
  • Depth – 1180 mm
  • Height – 740 mm
  • Weight – 72 kg

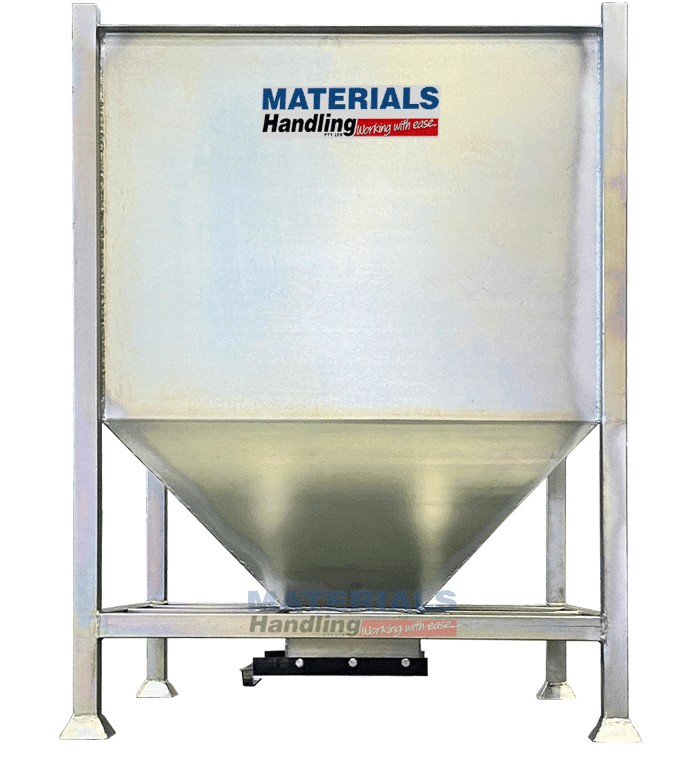

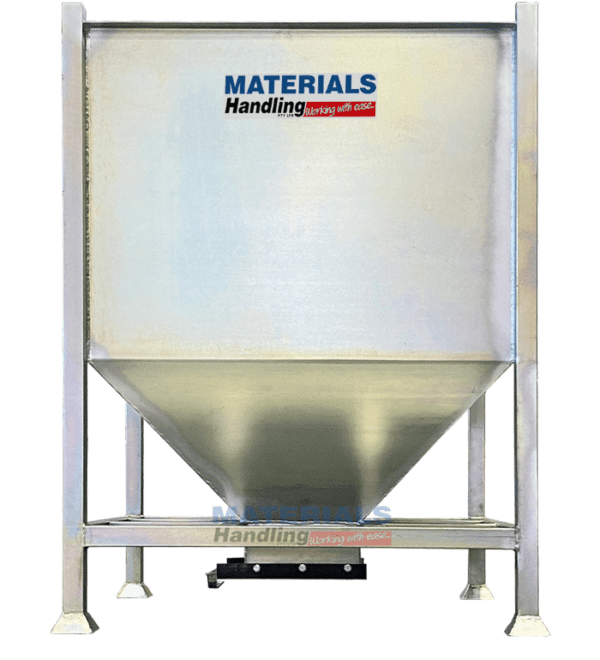

MSKH200 Bulk Bag Hopper

MSKH200 Bulk Bag Hopper

MSKH200 Features:

  • Working Load Limit (WLL) – 1000 kg
  • Ideal for handling granular products such as aggregate, sand, gravel, or grain
  • 300mm slide valve fitted for controlling material flow and easy operation
  • Designed for bulk bag filling or dispensing when used with the MSKX100 Bulk Bag Frame
  • Stacks 3 high when empty and 2 high when fully loaded
  • Stacking feet allow fast and easy placement on the MSKX100 Bulk Bag Frame
  • Available in 0.25cubic metre volume capacity model (MSKH100)

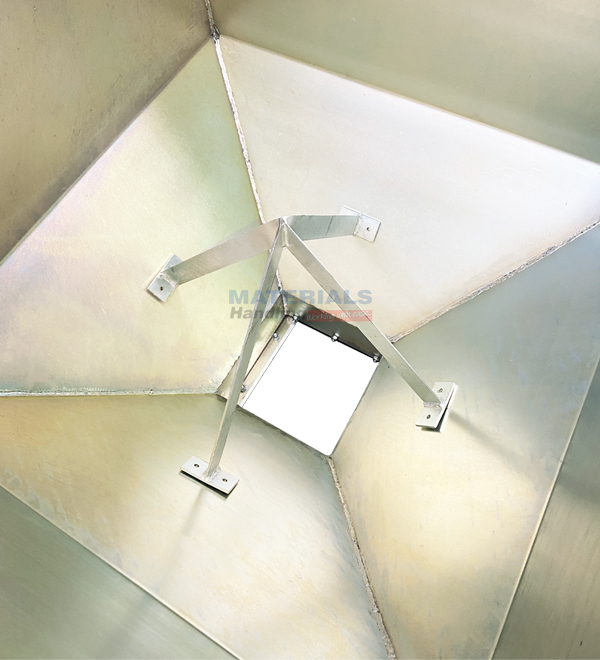

  • Optional MSKH-BP Bag Piercing Knife efficiently discharges materials from the bulk bag
  • Zinc Finish

MSKH200 Specifications:

  • Working Load Limit (WLL) – 1000 kg
  • Capacity – 1.0 m3
  • Width – 1180 mm
  • Depth – 1180 mm
  • Height – 1400 mm
  • Weight – 165 kg

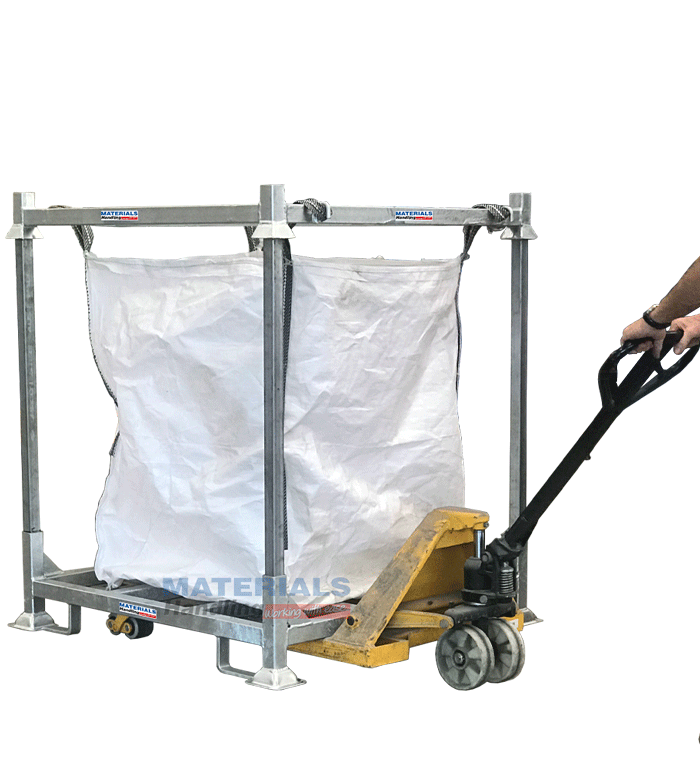

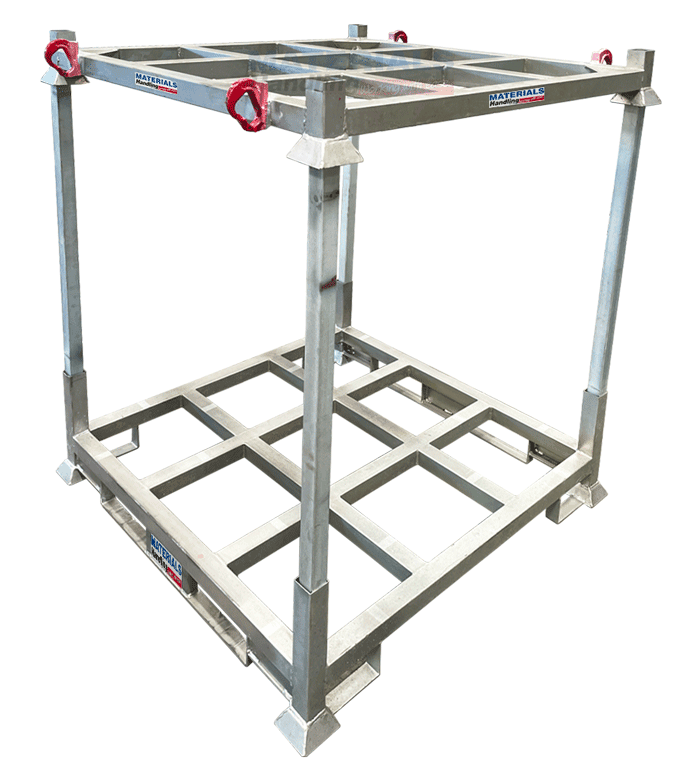

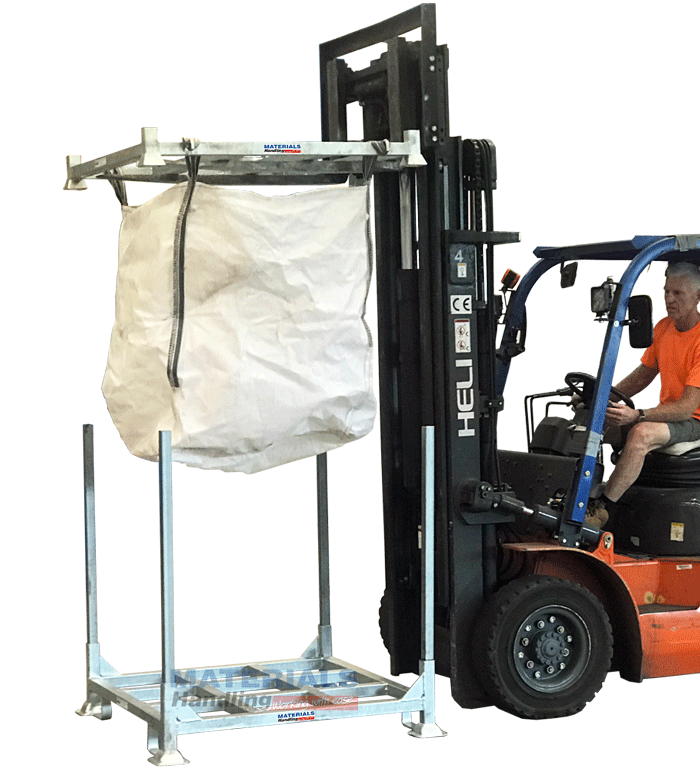

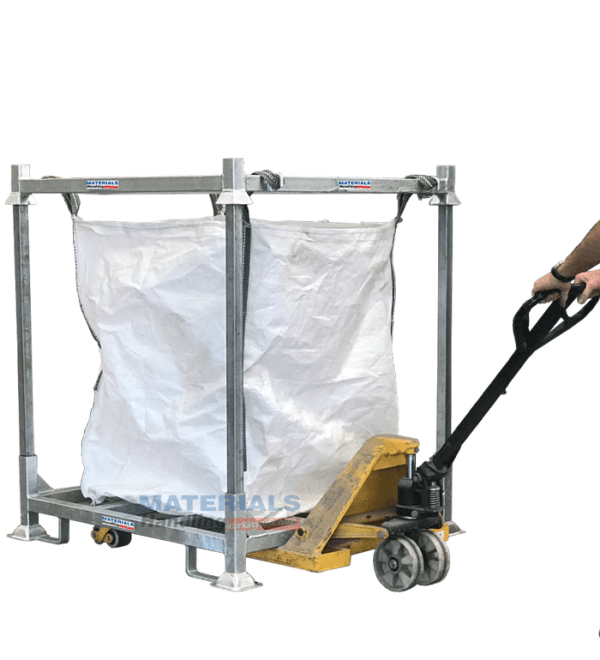

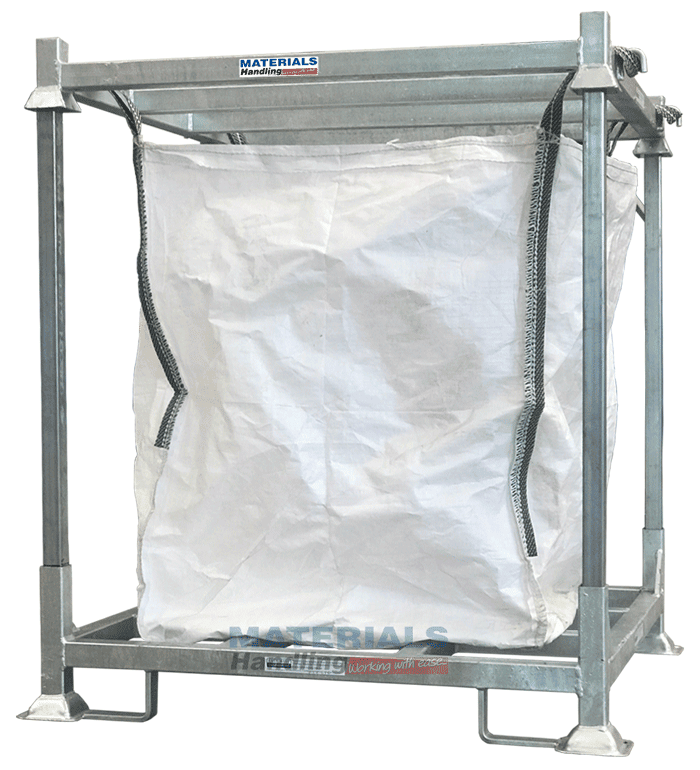

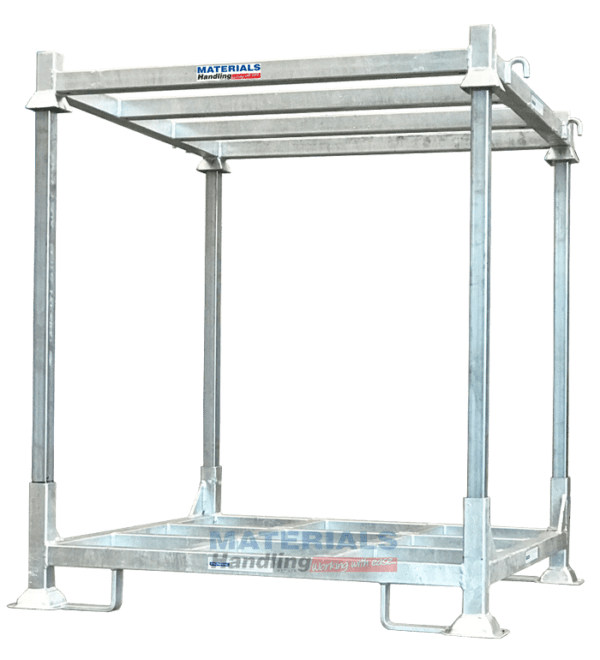

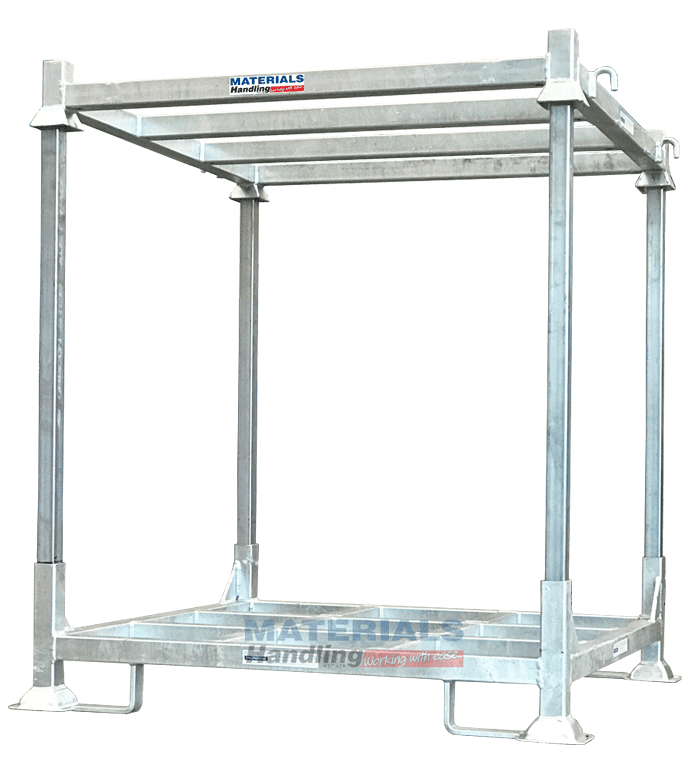

MSKX100 Bulk Bag Frame

MSKX100 Bulk Bag Filling Frame

MSKX100 Features:

  • Allows bulk bags to be held open for filling.
  • Restraining hooks help to position the bag.
  • A metal base frame keeps the bag off the ground, protecting it from damage and other hazards.

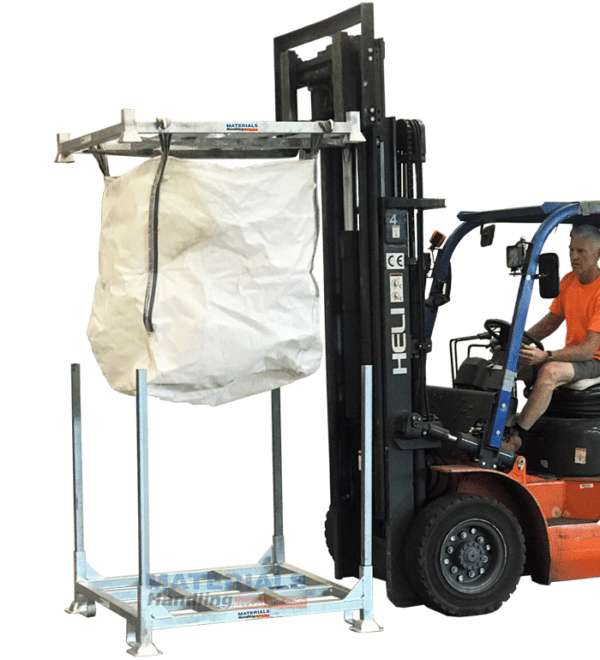

  • Can be transported by forklift via its fitted fork stirrups.
  • Stacks 3-high when empty and 2-high when loaded.
  • Custom leg lengths are available on request for different bag types.

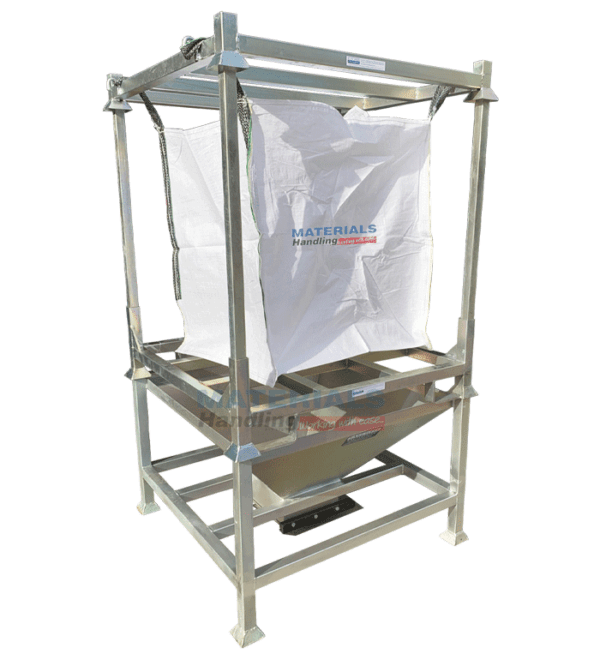

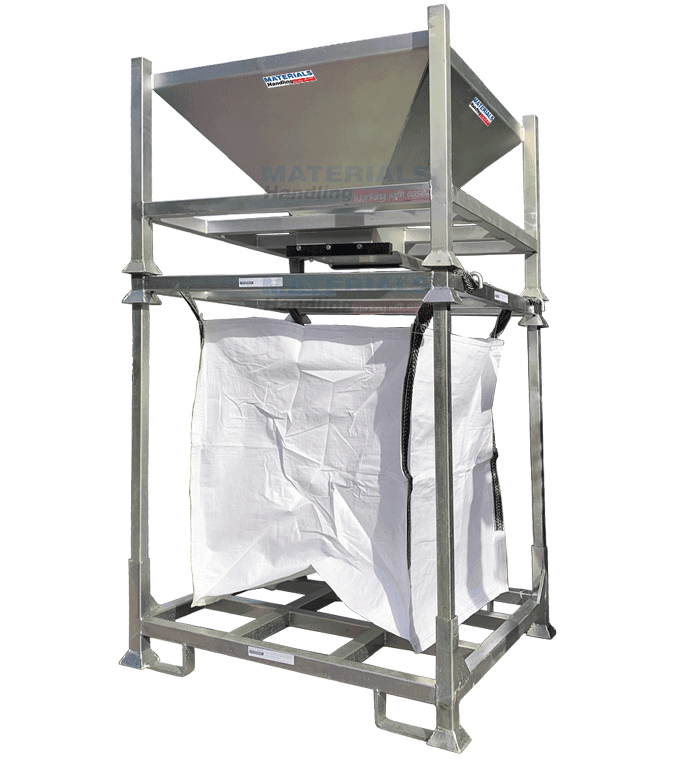

  • Partners with the Bulk Bag Hopper to allow easy dispense and filling.

MSKX100 Specifications:

  • Working Load Limit (WLL) – 1000 kg
  • Overall Dimensions (mm) – 1180 x 1230 x 1345
  • Weight – 92 kg
  • Fork Pocket Size (mm) – 175 x 90
  • Fork Pocket Centres – 855 mm
  • Zinc Finish


Keep searching?

Browse our wide range of Kibbles and Bulk Bags.



Product Variations

Image Description Product Code Price (excl. GST)

Bulk Bag Hopper with slide valve
0.25 cubic metre 1000kg capacity

MSKH100 $1,070.00

Bulk Bag Hopper with slide valve
1.0 cubic metre 1000kg capacity

MSKH200 $1,730.00

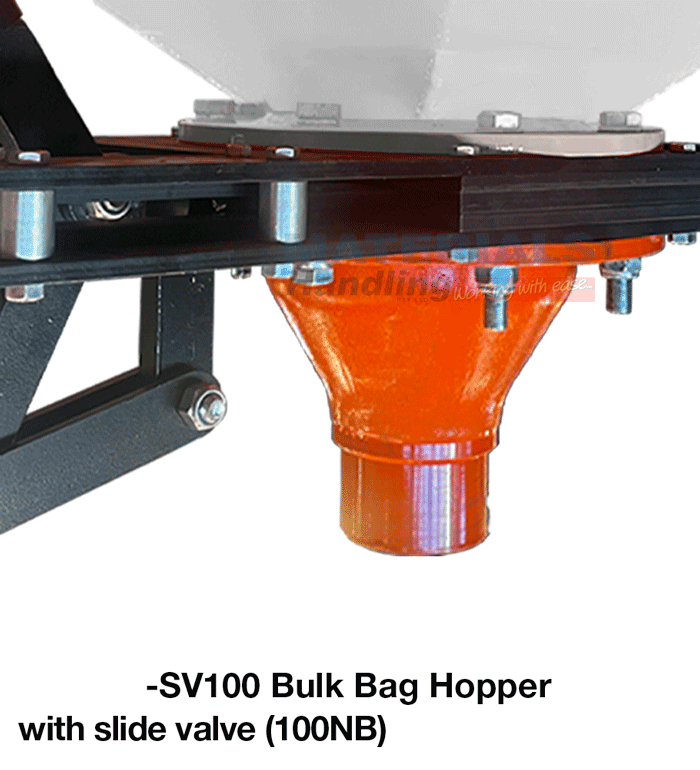

Bulk Bag Hopper Flanged Slide Valve 100mm
0.20 cubic metre 1000kg capacity

MSFH100-SV100 $3,300.00

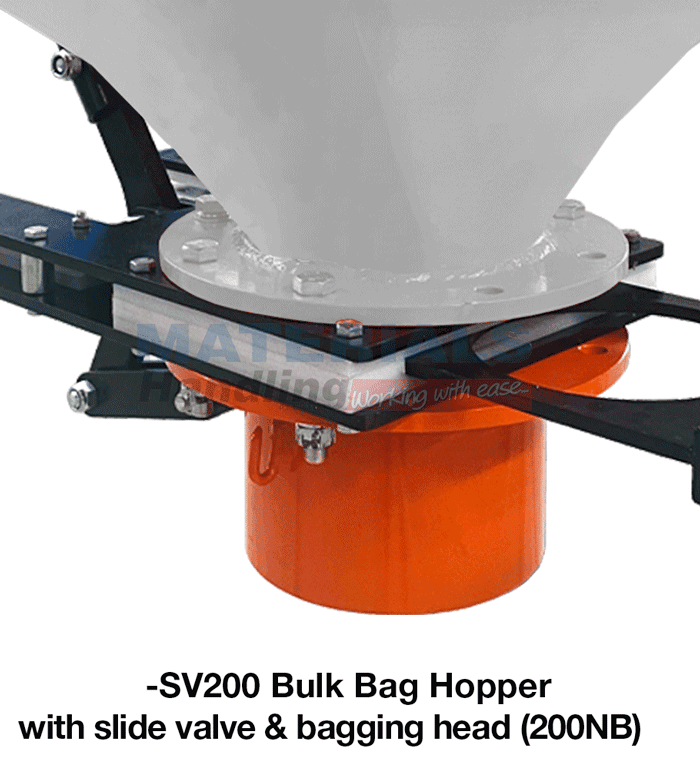

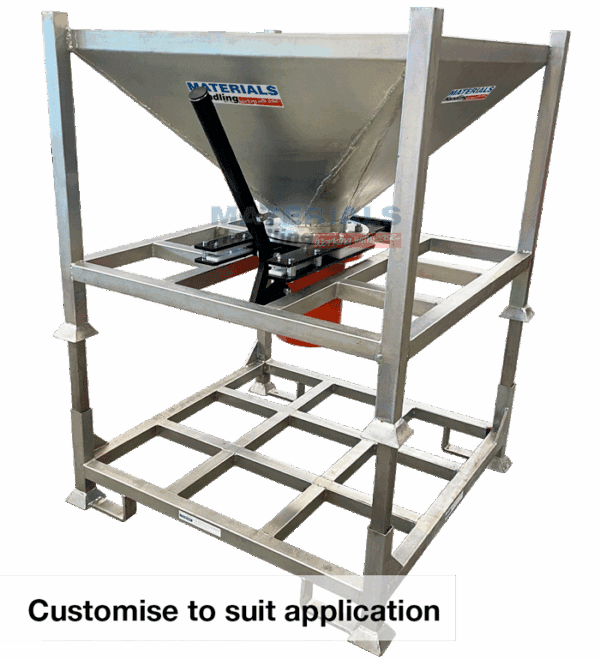

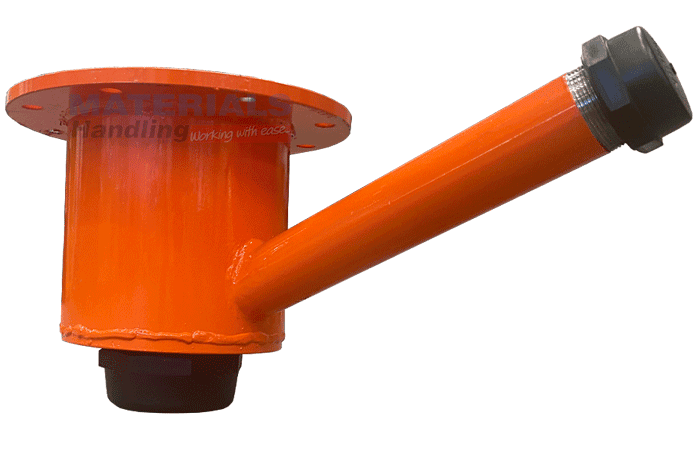

Bulk Bag Hopper Flanged Slide Valve 200mm
with Vacuum Head
0.20 cubic metre 1000kg capacity

MSFH100-SV200V $3,510.00

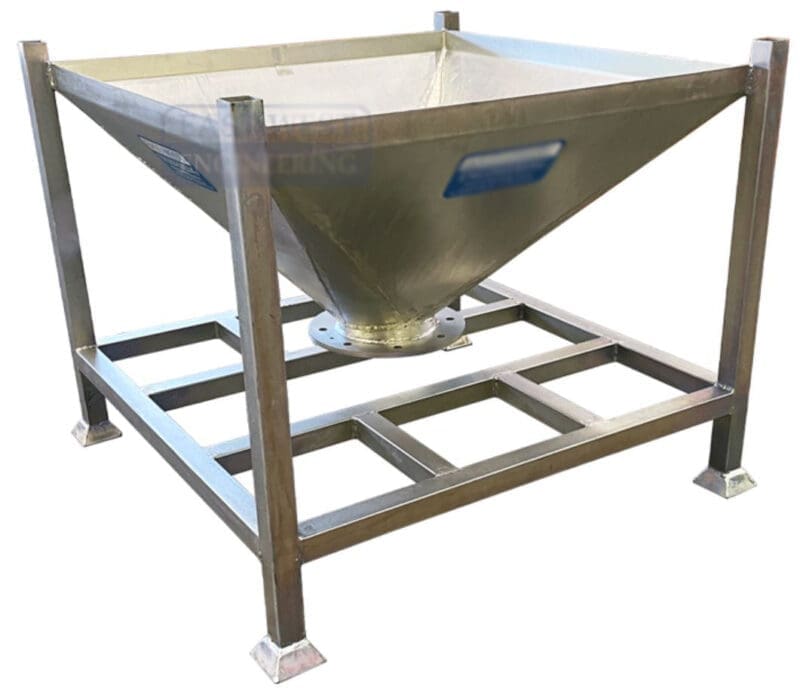

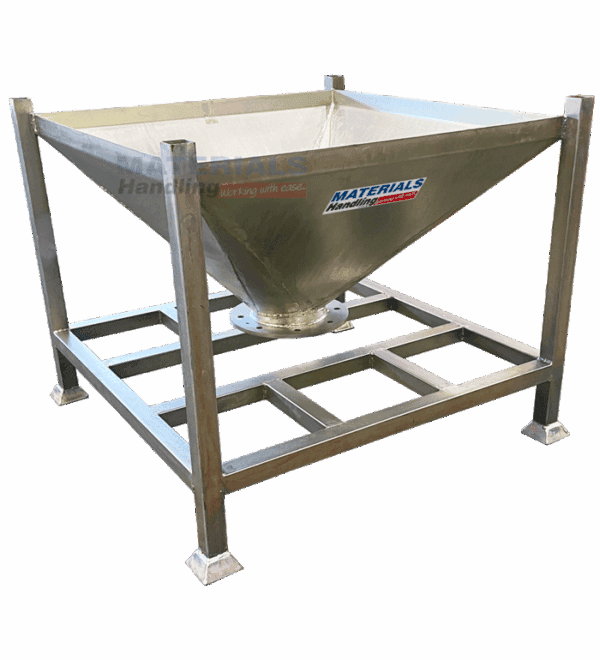

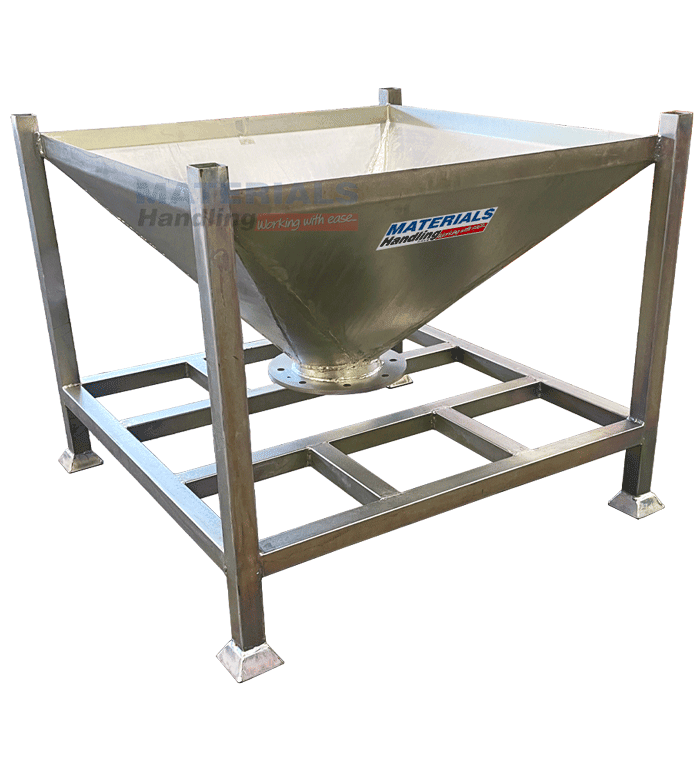

Bulk Bag Hopper – Flanged
0.20 cubic metre 1000kg capacity

MSFH100 $960.00

Bulk Bag Frame

MSKX100 $1,020.00

Bag piercer option for bulk bag frame

MSKH-BP $500.00
