Drum Lifter Rotator Forklift Mounted Battery
+ Add to Quote Request

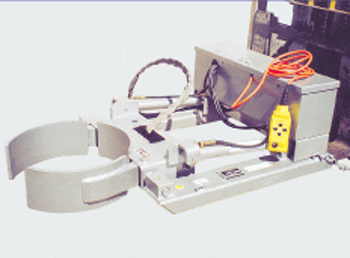

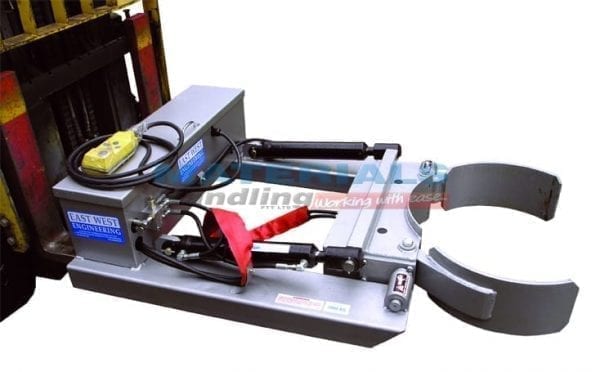

The Heavy Duty Grab Drum Rotator is equipped with a self-contained battery/electric operated power pack that hydraulically grabs, lifts and rotated 205-litre drums. It completely eliminates any need to connect to the forklift hydraulic system and it ensures reliable and safe handling.
The device is controlled through a push-button control pendant that extends with a 4-metre long cable. Ultimately, this allows a forklift driver to work the attachment from their driver’s seat. The slip-on attachment allows for quick connection to a forklift and the unit handles a working load up to 1000 kg.
Commonly used in food processing, recycling, mining and warehousing industries, our Battery Drum Rotator is an efficient drum handling solution.
Additional Information
The Battery Drum Rotator safely handles drums with innovative controls!
This unit is so intuitive that it can easily lift a single drum from a pallet of four, without interfering with the other drums. Ideal for the safe transportation of drums around the worksite, it lifts loads weighing up to 1000 kg. When fitted with a hydraulic pack, there is no need to connect to the forklifts hydraulic system. Operation and tipping functionality is administered via the remote-controlled pendant.
Included as part of the Hydraulic Power Pack is the pendant that has a 50 m distance range, 12-Volt DC Hydraulic Pump, battery, battery charger and a robust cabinet box to protect all components. Safety has been incorporated into the overall design, with a two-button opening function and an emergency stop. A 180 AMP fuse protects the electrical circuit, while a secondary 10 AMP fuse aids the remote control system and solenoid coils.
DDCGRHPP Specifications:
- Working Load Limit (WLL) – 1000 kg
- Load Centre – 1300 mm
- Rotation – 130°
- Unit Weight – 295 kg
- Fork Pocket Size – 185 x 65 mm
- Fork Pocket Centres – 874 mm
The Battery Drum Rotator is a slip-on attachment with an enamel paint finish.
Find other drum handling solutions!
Continue browsing our great range of Drum Handling products.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
|
Hydraulic Drum Grab and Rotator with Battery Powered Hydraulic Power Pack |
DDCGRHPP | $11,950.00 |
