Vacuum Lifter – Door Flipper

The doorLifter is a comfortable vacuum lifting device that easily handles and flips through 180°. The system is ideal for horizontal or vertical transport of heavy items up to 250 kg.

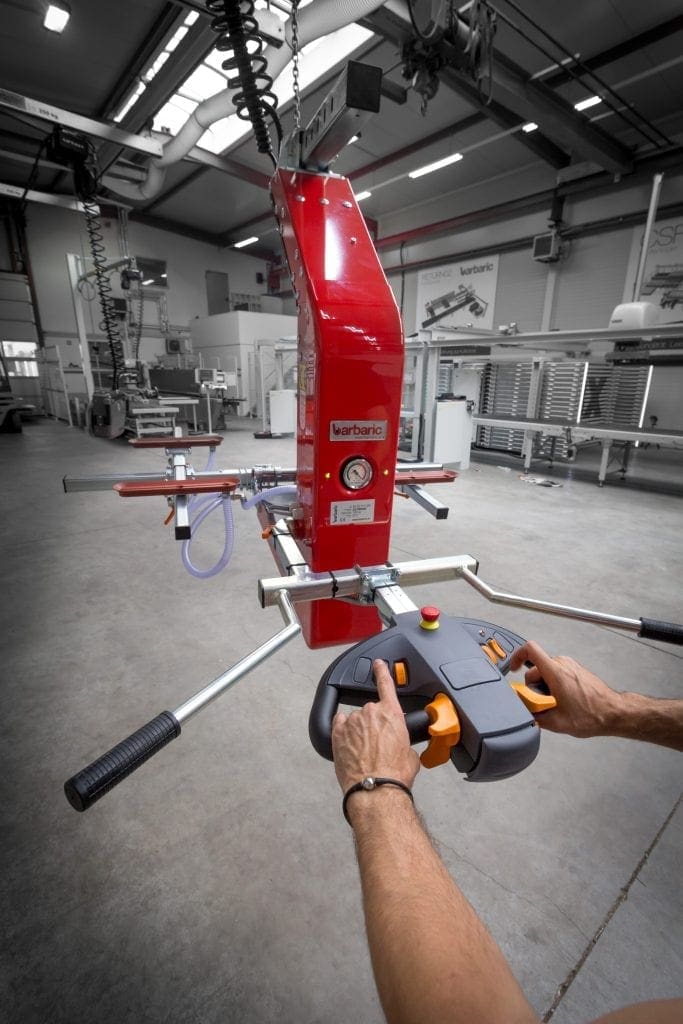

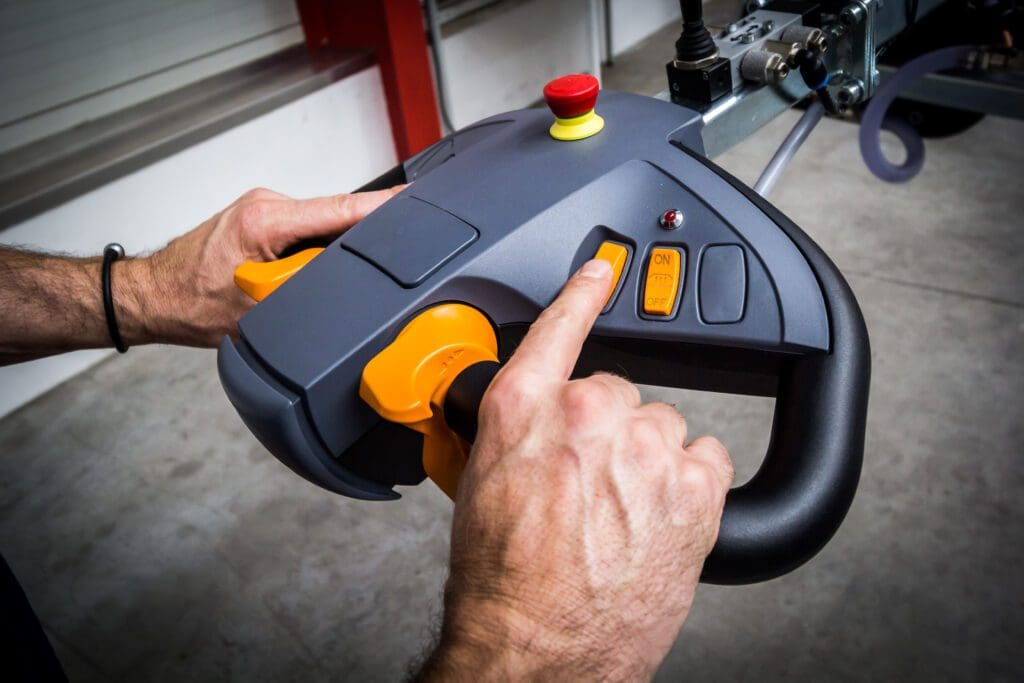

The doorLifter incorporates a range of capabilities that make it an innovative lifting machine. All features have been integrated into the control handle to allow it to easily move heavy items. This means a worker can perform their duties with only one hand and maintain complete efficiency during tasks.

The vacuum lifter prevents accidental release until a door is positioned correctly. It features a flipping range of 180° and its handle and suspension points are adjustable. It has been designed with electronic mechanism for tilting and with variable lifting speed.

Product Variation

Clear

Additional Information

There are three different arrangements of this device:

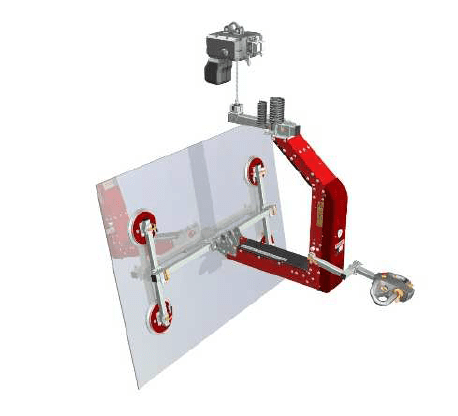

99211 – Fitted with 4 round suction cups [capacity 250kg]

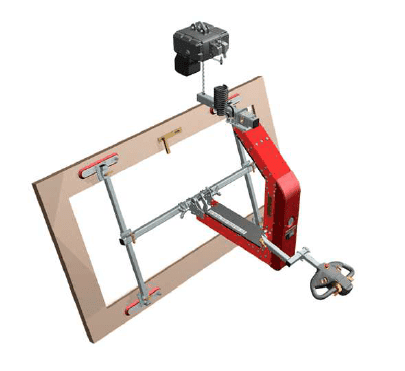

99106 – Fitted with 4 oval-shaped suction cups [capacity 200kg]
99106 + 99604 – Fitted with 6 oval-shaped suction cups [capacity 250kg]

doorLifter Vacuum Lifter – lifting and flipping

Designed for horizontal and vertical lifting and flipping, the doorLifter boasts a special 180° flipping function. The device has variable tilting speeds for comfortable control and is a complete handling system with smart lifting gear. Its ergonomic handle allows for one-handed operation and continuous smooth movement. The device can also handle heavier loads with a Maximum Lifting Load of 250 kg.

Tilting Speed – approx. 6 seconds / 180°
Lifting Speed – 0-10 m/min variable
Operating Voltage – 240 V / 50 Hz
Max Capacity – 250 kg
Compressed Air Required – 6 bar

See the doorLifter Vacuum Lifter in action below!

Range of Features!

Lifting and Tilting of 180°
Fast and infinitely variable lifting speeds
Tilting function allows for door manipulation
Fast and easy manipulation of panels – doors can be flipped
Adjustable control handle and suction traverse
Balance adjustment for different panel sizes and weights
Smooth movement and effortless operation

View the entire barbaric range!

Barbaric is a leader in lifting technology. Explore the range of solutions for glass, wood and other materials handling abilities.

Click the PDF button to learn more.

Product Variations

Description	Product Code
UGL 5 doorLifter 250 kg Flipping of flat glass up to 3.2 x 1.5 m Electric flipping mechanism 180 ° Vacuum ejector with “push off” release of workpiece Includes safety release system by load cell Four 270mm suction cups adjustable on H beam	99211	Add to Quote Request

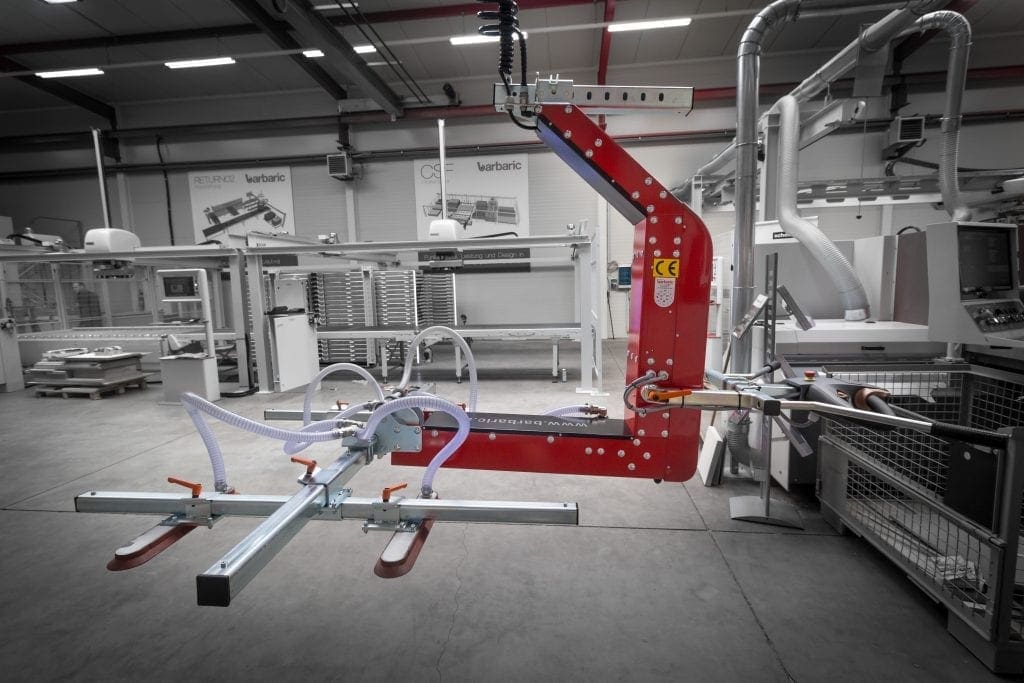

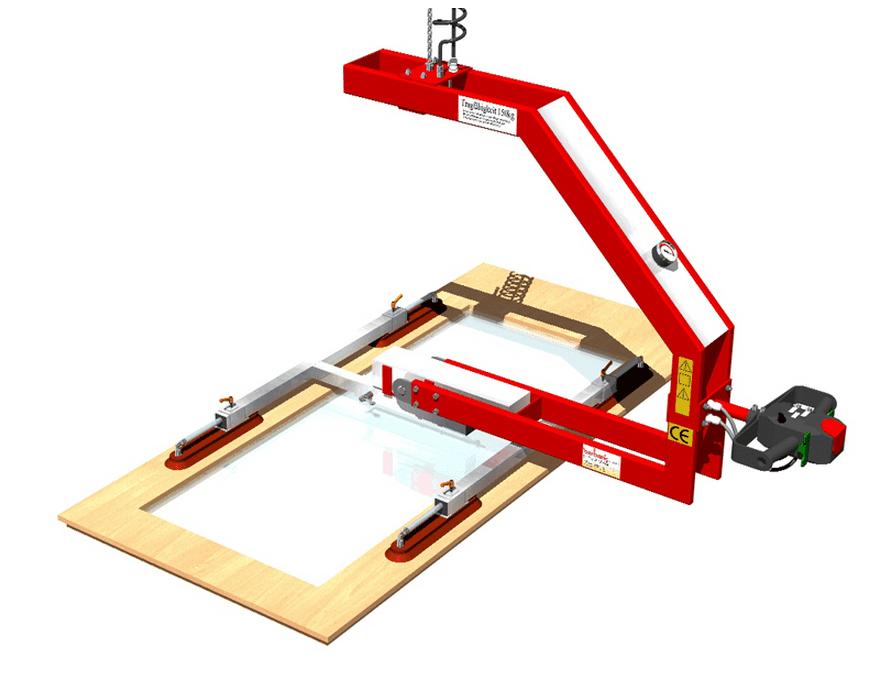

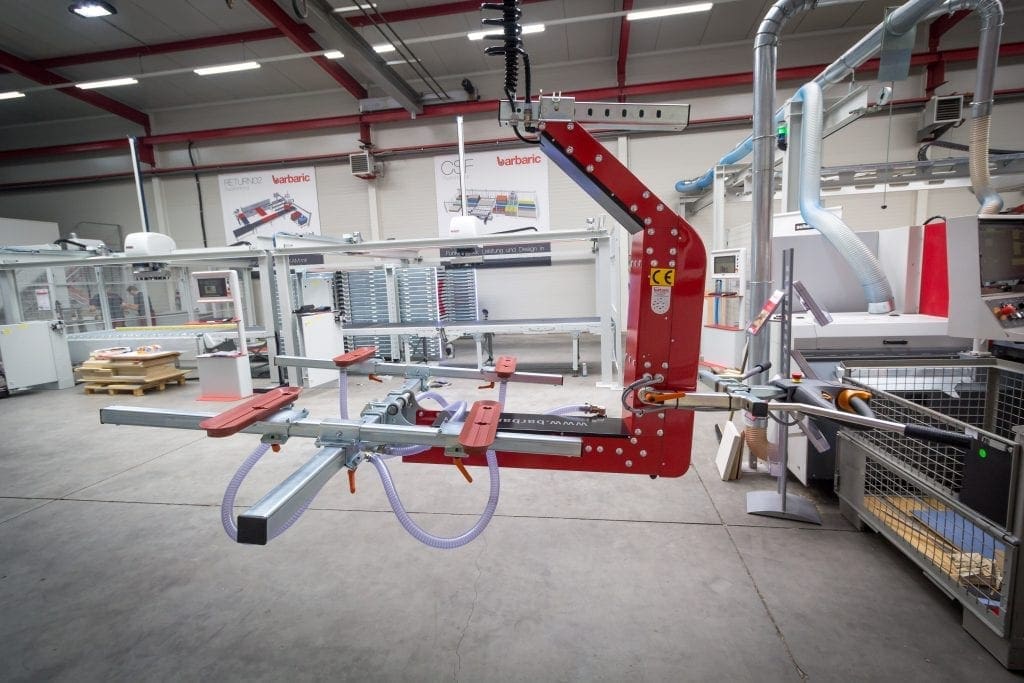

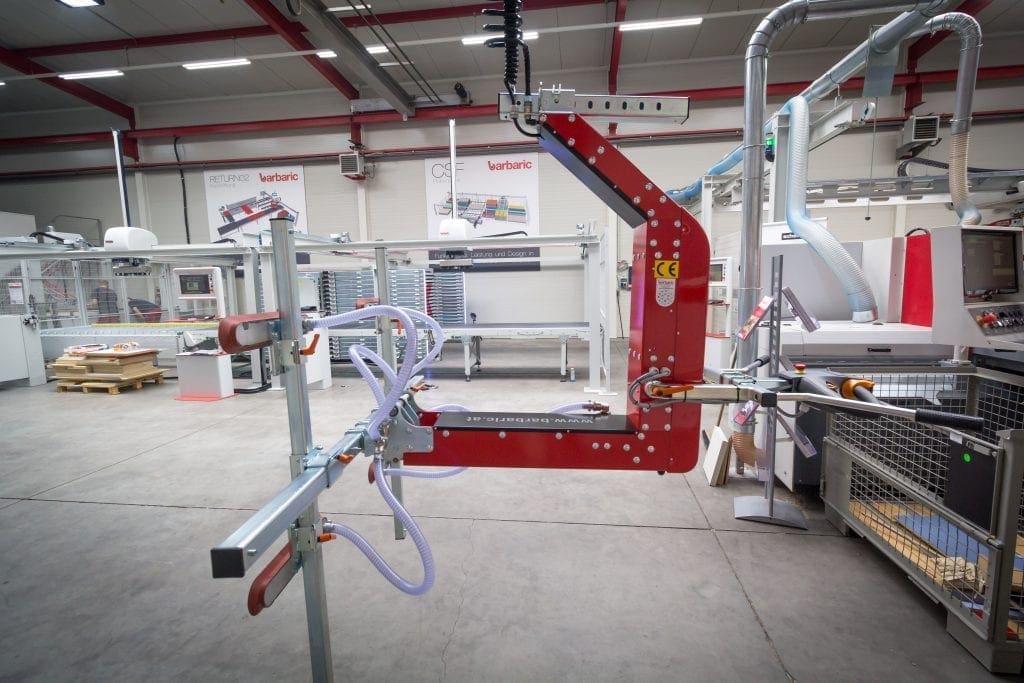

UWL 5 doorLifter 200 kg Flipping of wood panels Electric flipping mechanism 180 degrees Includes safety release system by load cell Four oval suction cups adjustable on H beam	99106	Add to Quote Request
Option: capacity 250kg (add to 99106) Six oval suction cups adjustable on 1750 x 1200 mm beams	99604	Add to Quote Request
